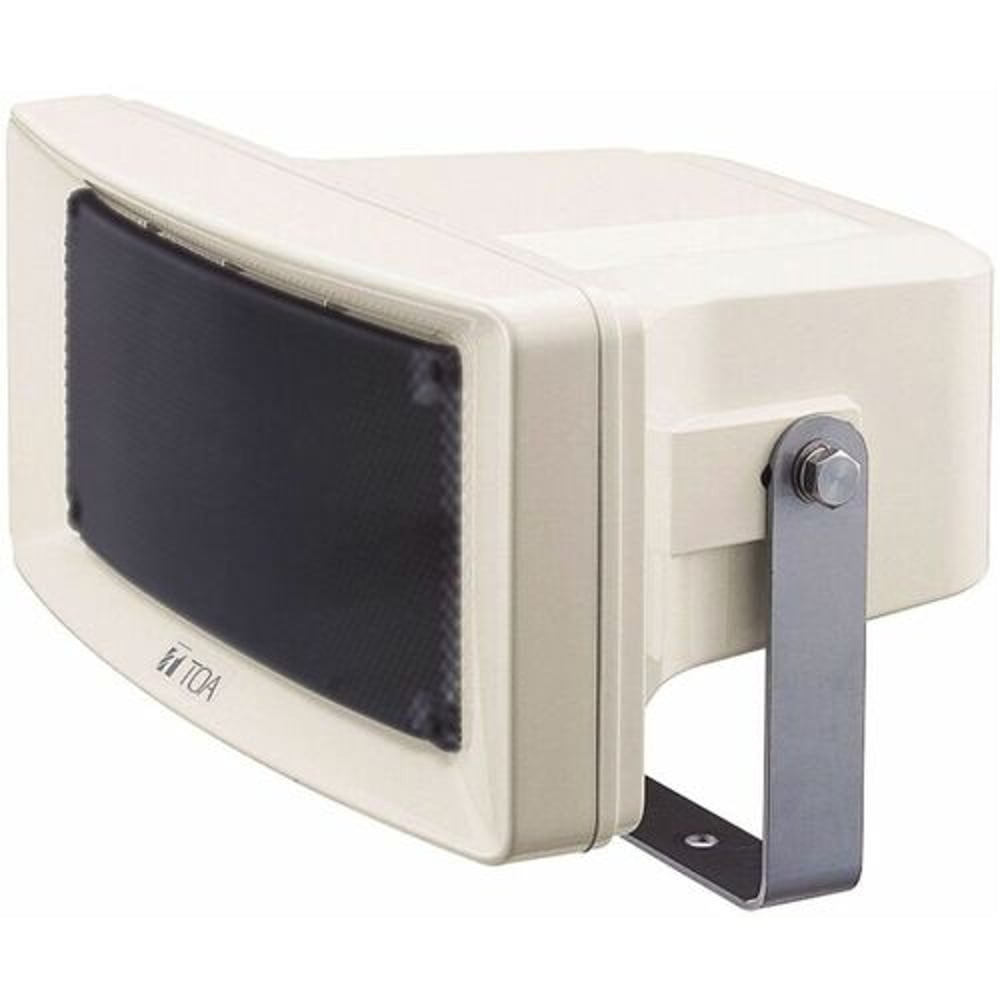

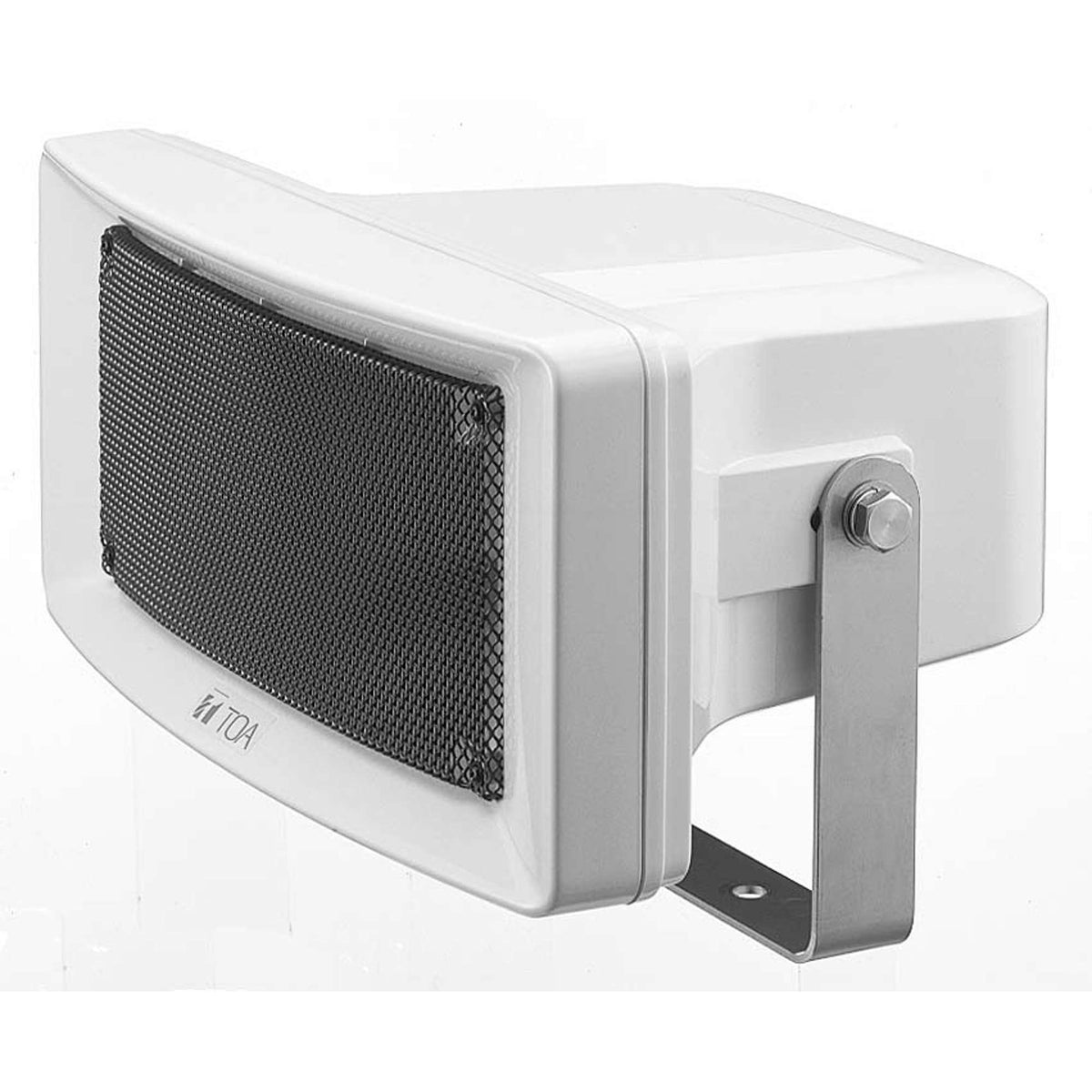

TOA Wide Range Horn Speaker Outdoor Paging 70V Surface Mount | UL Listed
TOA Wide Range Horn Speaker Outdoor Paging 70V Surface Mount | UL Listed
SoundPro Item: 51777 | Part Number: CS-304U
Usually ships in 5-7 business days
- Constant Directivity Horn Provides Uniform 90-Degree Horizontal Coverage Across Large Areas
- Built-In Rotary Switch Enables On-Site Power Tap Adjustment Without Rewiring
- IP65 Dust And Water Protection Supports Permanent Outdoor Installation
- Stainless Steel Hardware Resists Corrosion In Coastal And High-Humidity Environments
- Weatherproof ABS Resin Enclosure Withstands Impact And Temperature Extremes
- Available In Standard And UL Listed Versions To Satisfy Code And Spec Requirements
- Included Stainless Steel Bracket Supports Both Wall And Ceiling Mounting
The TOA Wide Range Horn Speaker series is engineered for facilities and venues that require reliable, intelligible audio coverage in demanding outdoor or semi-exposed environments. System integrators specifying distributed audio for campuses, warehouses, transit facilities, stadiums, and commercial properties will find this speaker well suited to the task. It combines the projection characteristics of a horn with the full-range response of a dynamic cone driver, supporting both voice paging and background music from a single device on 70V or 100V transformer-driven systems.
The constant directivity horn delivers consistent coverage across a 90-degree horizontal arc, reducing dead zones and hotspots that are common with conventional horn designs. A built-in rotary impedance switch allows on-site power tap adjustments without rewiring, which is a practical advantage during commissioning or layout changes. The enclosure is built for permanent outdoor installation, with a weatherproof polyurethane resin paint finish and impact-resistant ABS resin body designed to hold up against temperature extremes and physical abuse. Stainless steel hardware throughout prevents corrosion in coastal or high-humidity environments.
This series is available in standard and UL Listed configurations, giving specifiers the option to meet project requirements where UL 1480 compliance or fire-retardant materials are mandated by code. The included stainless steel mounting bracket supports both wall and ceiling installations, simplifying deployment across varied site conditions.
Downloads
Downloads
Specifications
