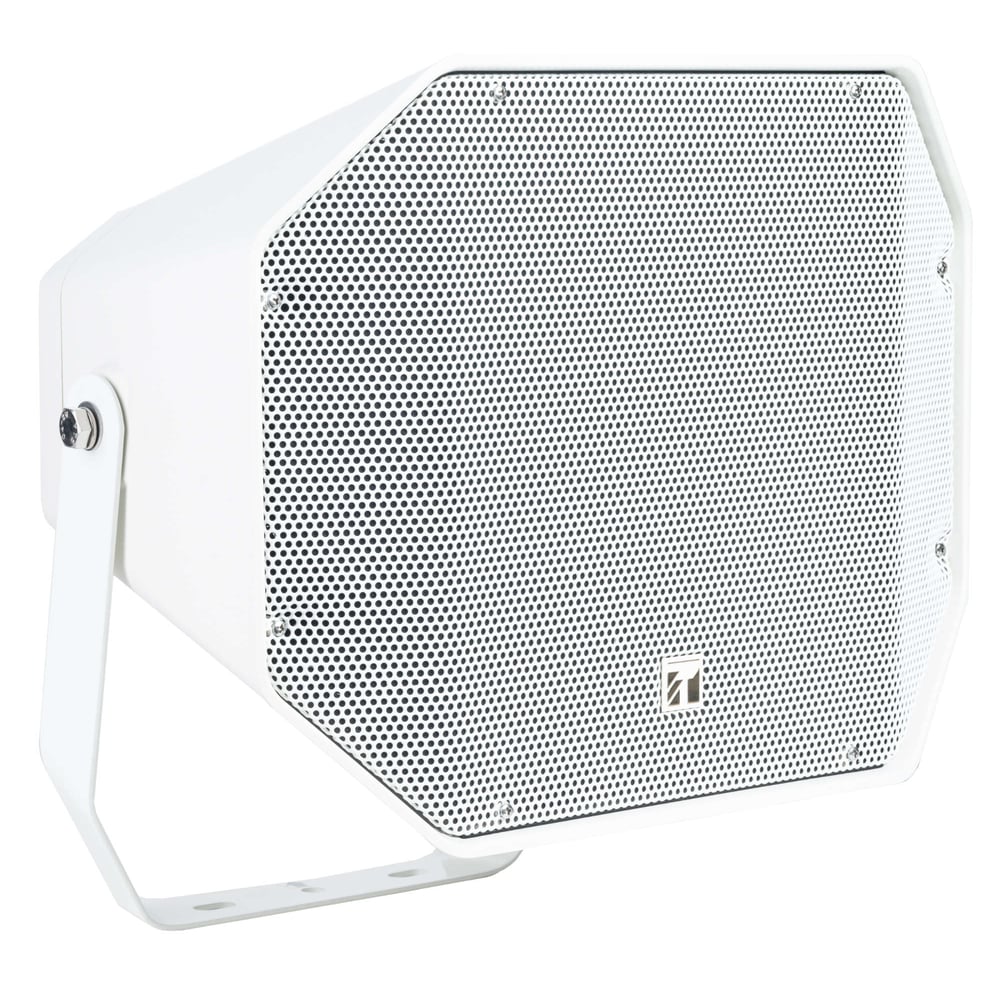

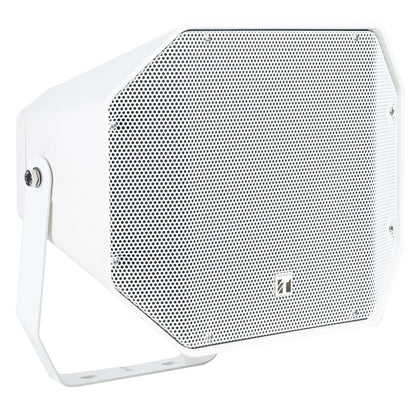

TOA CS-761W 2-Way Coaxial Weatherproof Horn Speaker 70V
TOA CS-761W 2-Way Coaxial Weatherproof Horn Speaker 70V
SoundPro Item: 124632 | Part Number: CS-761W
Usually ships in 5-7 business days
- IP66 Dust And Water Protection Ensures Reliable Performance In Exposed Outdoor Locations
- 2-Way Coaxial Driver Array Covers Full-Range Speech And Music From A Single Enclosure
- Selectable Tap Points Support Both 70V And 100V Constant-Voltage Line Systems
- Wide Directivity Pattern Focuses Coverage To Target Zones And Reduces Spill
- High Sensitivity Rating Achieves Broad Area Coverage With Less Amplifier Demand
- ABS And Steel Enclosure In RAL 9010 White Suits Architectural Installation Environments
- Optional Pole-Mount Bracket And Pole Band Expand Surface And Post Mounting Options
The TOA CS-761W is a 2-way coaxial horn speaker engineered for demanding outdoor public address and background music installations where weather resistance and audio clarity cannot be compromised. Integrators specifying distributed audio for transit hubs, stadiums, theme parks, campuses, and commercial plazas will find its IP66 dust and water protection rating critical for year-round reliability in exposed environments.
The coaxial driver arrangement, pairing a 16 cm cone woofer with a 2.5 cm tweeter, produces a wide 100 Hz to 20 kHz frequency response that supports both intelligible voice paging and full-range music reproduction. A 90-degree horizontal and 80-degree vertical directivity pattern keeps coverage focused where it is needed while minimizing spill. With a 60W rated input and 100 dB sensitivity, the CS-761W delivers broad area coverage without requiring additional amplifier headroom.
Compatibility with both 70V and 100V constant-voltage lines, selectable at four tap points, gives system designers flexibility across North American and international infrastructure. The ABS and steel enclosure in RAL 9010 white fits cleanly into architectural environments where aesthetics matter alongside performance. Optional accessories including the SP-201 pole-mount bracket and YS-60B pole band expand placement options beyond standard wall and surface mounting for posts and columns.
