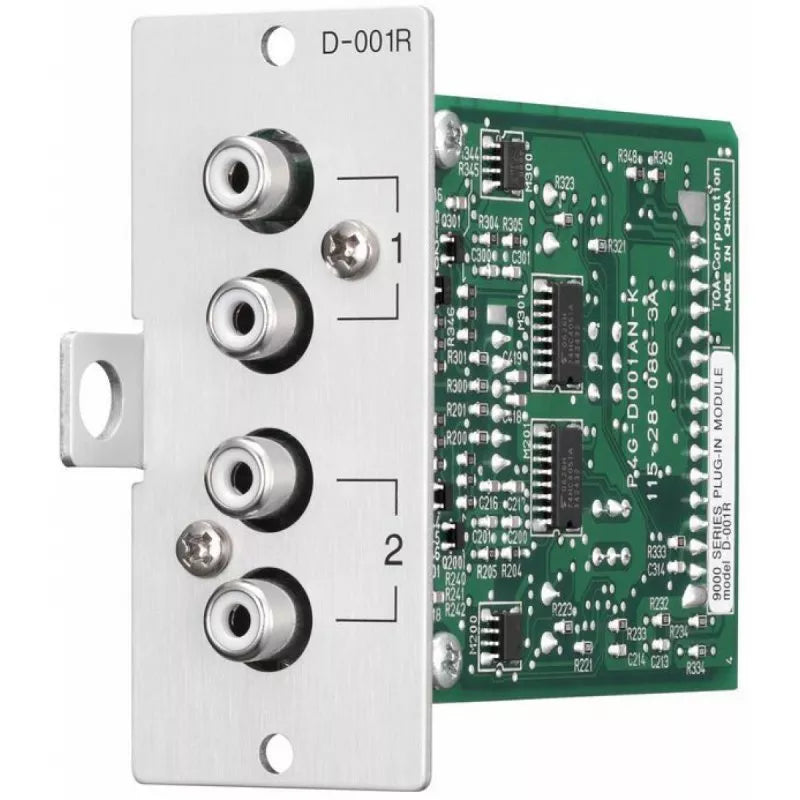

TOA D-001R Line Input Module For 9000 Series Digital Matrix Mixers

TOA D-001R Line Input Module For 9000 Series Digital Matrix Mixers

SoundPro Item: 51989 | Part Number: D-001R

$226.00
$280.00 $226.00
Your Price Sold out
MSRP: $280.00 | MAP: $226.00

Usually ships in 5-7 business days

  • Dual RCA Inputs Per Channel With Stereo Summing For Consumer Source Integration
  • Independent 24-Bit DSP Chain Per Channel For Precise Per-Source Processing
  • 10-Band Parametric EQ With Adjustable Frequency, Range, And Q Per Channel
  • Switchable High-Pass And Low-Pass Filters For System Tuning And Zone Control
  • Built-In Compressor Per Channel Reduces Dynamic Variation Without External Gear
  • Up To Four Modules Per Chassis Enable Scalable Multi-Zone Input Expansion
  • Aluminum Hair-Line Panel Finish Suits Permanent Rack And Chassis Installations
Log in or register for YOUR best price

The TOA D-001R is a plug-in line input module engineered for integration with the 9000 and 9000M2 Series digital matrix amplifier chassis. It provides two unbalanced RCA inputs per channel, with both inputs summed together, making it well suited for feeding stereo consumer sources, playback devices, or background music systems into a distributed audio infrastructure.

Each of the two input channels processes audio independently through a full 24-bit DSP chain. System integrators and installed sound engineers gain access to a 10-band parametric equalizer, bass and treble tone controls, switchable high-pass and low-pass filters at 12 dB per octave, and a compressor for each channel. This level of per-channel processing gives integrators precise control over source material without requiring external outboard gear.

Designed for permanent installation, the D-001R occupies a single module slot and up to four modules can be loaded per chassis, allowing scalable expansion as a facility grows. Its aluminum panel and compact footprint make it a practical choice for AV integrators building commercial paging, background music, or multi-zone distributed audio systems around the TOA 9000 platform.

Downloads

View full details

Specifications

Electrical
Power Supply
+24 V DC, -24 V DC, +6 V DC
Current Consumption
20 mA (at +24 V DC), 20 mA (at -24 V DC), 60 mA (at +6 V DC)
Connectivity
Input
2 channels, 2RCA/ch mixed, 10 kΩ, unbalanced, RCA pin jack
Input Sensitivity
-60, -54, -48, -42, -36, -30, -24, -18, -10 dB (selectable)
Audio
A/D Converter
24 bit ADC
Sampling Frequency
48 kHz
Frequency Response
20 Hz - 20 kHz, +1, -3 dB
Total Harmonic Distortion
0.008% (at 1 kHz, 20 Hz - 20 kHz BPF, Input sensitivity: -10 dB)
Signal to Noise Ratio
Over 70 dB (at 20 Hz - 20 kHz BPF, Input short, Input sensitivity: -10 dB)
Crosstalk
Over 75 dB (at 20 kHz, Input sensitivity: -10 dB)
Performance
Tone Control
Bass: ±12 dB (at 100 Hz), Treble: ±12 dB (at 10 kHz)
Parametric Equalizer
10 bands, Frequency: 20 Hz - 20 kHz, 31 points, Variable range: ±12 dB, Q: 0.3 - 5
High-Pass Filter
-12 dB/oct, Variable frequency range: 20 Hz - 20 kHz, 31 points
Low-Pass Filter
-12 dB/oct, Variable frequency range: 20 Hz - 20 kHz, 31 points
Compressor
Depth: 1 - 5
Environmental
Operating Temperature
-10 °C to +40 °C (14 °F to 104 °F)
Construction
Finish
Panel: Aluminum, hair-line
Dimensions
Dimensions
35 (W) x 78 (H) x 91.5 (D) mm (1.38" x 3.07" x 3.6")
Weight
Weight
82 g (0.18 lb)
Included Items
Included Accessories
Module mounting screw x2
