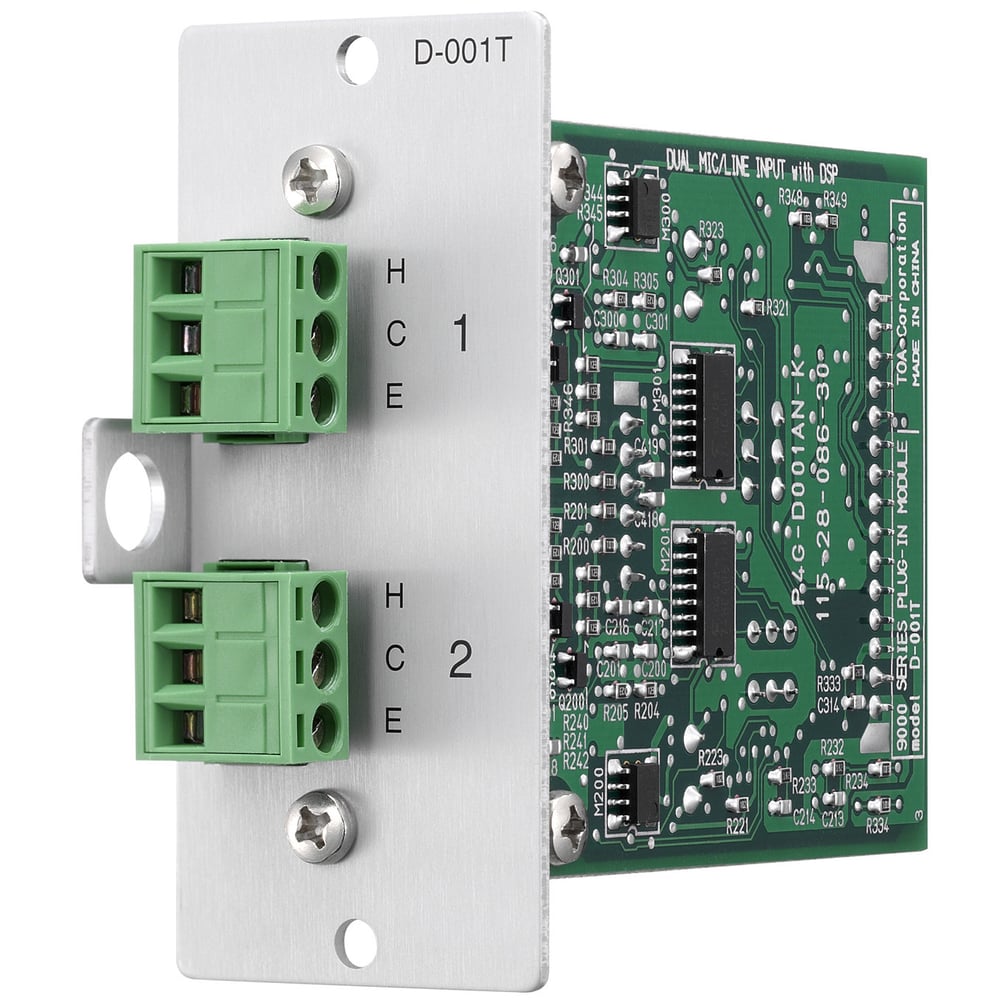

TOA D-001T Digital Matrix Mixer Input Module For 9000 Series

TOA D-001T Digital Matrix Mixer Input Module For 9000 Series

SoundPro Item: 51990 | Part Number: D-001T

$226.00
$280.00 $226.00
Your Price Sold out
MSRP: $280.00 | MAP: $226.00

Usually ships in 5-7 business days

  • Two Independent Balanced Inputs Accept Mic Through Line Level Sources
  • Adjustable Input Sensitivity Across Nine Steps For Precise Gain Staging
  • 10-Band Parametric EQ Per Channel For Detailed Frequency Shaping
  • High-Pass And Low-Pass Filters Enable System Tuning Without External Processors
  • Onboard Compressor Controls Dynamics Directly In The Signal Chain
  • Phantom Power Supports Condenser Microphone Operation
  • Removable Terminal Block Simplifies Installation And Field Servicing
Log in or register for YOUR best price

The TOA D-001T is a plug-in input module engineered specifically for the 9000 and 9000M2 Series amplifier chassis. It provides two independent, electronically-balanced inputs that accept signals from microphone level through line level, with sensitivity adjustable across nine discrete steps from -60 dB to -10 dB. Phantom power at 24V DC supports condenser microphones, making it practical for speech reinforcement, installed paging systems, and fixed-install AV environments where condenser sources are common.

Each input channel includes its own DSP chain featuring a 10-band parametric equalizer, bass and treble tone controls, high-pass and low-pass filters, and a compressor. This level of per-channel processing within a single module reduces the need for external signal processors in rack-based install systems. The removable terminal block simplifies field installation and replacement without resoldering. Up to four D-001T modules can be populated per chassis, scaling the input count to match project requirements. The module is also required for VOX function and input metering within the 9000 platform.

With a 24-bit ADC, 48 kHz sampling rate, and a frequency response of 20 Hz to 20 kHz, the D-001T delivers performance appropriate for commercial AV integration, conference systems, and distributed audio installations where DSP flexibility and clean analog front-end performance are non-negotiable.

Downloads

View full details

Specifications

Audio
Input Channels
2
Input Impedance
3 kΩ (phantom power ON) / 10 kΩ (phantom power OFF)
Input Sensitivity
-60, -54, -48, -42, -36, -30, -24, -18, -10 dB (selectable)
Input Configuration
Electronically-balanced, removable terminal block (3 pins)
A/D Converter
24 bit ADC
Sampling Frequency
48 kHz
Frequency Response
20 Hz - 20 kHz, +1, -3 dB
Total Harmonic Distortion
0.008% (at 1 kHz, 20 Hz - 20 kHz BPF, Input sensitivity: -10 dB)
Input Equivalent Noise
Under -112 dB (at 20 Hz - 20 kHz BPF, Input short, Input sensitivity: -60 dB)
Signal to Noise Ratio
Over 73 dB (at 20 Hz - 20 kHz BPF, Input short, Input sensitivity: -10 dB)
Crosstalk
Over 75 dB (at 20 kHz, Input sensitivity: -10 dB)
CMRR
Over 62 dB (at 1 kHz, Input sensitivity: -60 dB)
DSP
Tone Control
Bass: +/-12 dB (at 100 Hz), Treble: +/-12 dB (at 10 kHz)
Parametric Equalizer
10 bands, Frequency: 20 Hz - 20 kHz, 31 points, Variable range: +/-12 dB, Q: 0.3 - 5
High-Pass Filter
-12 dB/oct, Variable frequency range: 20 Hz - 20 kHz, 31 points
Low-Pass Filter
-12 dB/oct, Variable frequency range: 20 Hz - 20 kHz, 31 points
Compressor
Depth: 1 - 5
Phantom Power
+24 V DC
Electrical
Power Supply
+24 V DC, -24 V DC, +6 V DC
Current Consumption
20 mA (at +24 V DC), 20 mA (at -24 V DC), 60 mA (at +6 V DC)
Construction
Finish
Panel: Aluminum, hair-line
Environmental
Operating Temperature
-10 deg C to +40 deg C (14 F to 104 F)
Dimensions
Dimensions
35 (W) x 78 (H) x 91.5 (D) mm
Weight
Weight
82 g
Included Items
Included Accessories
Removable terminal plug (3 pins) x2, Module mounting screw x2
