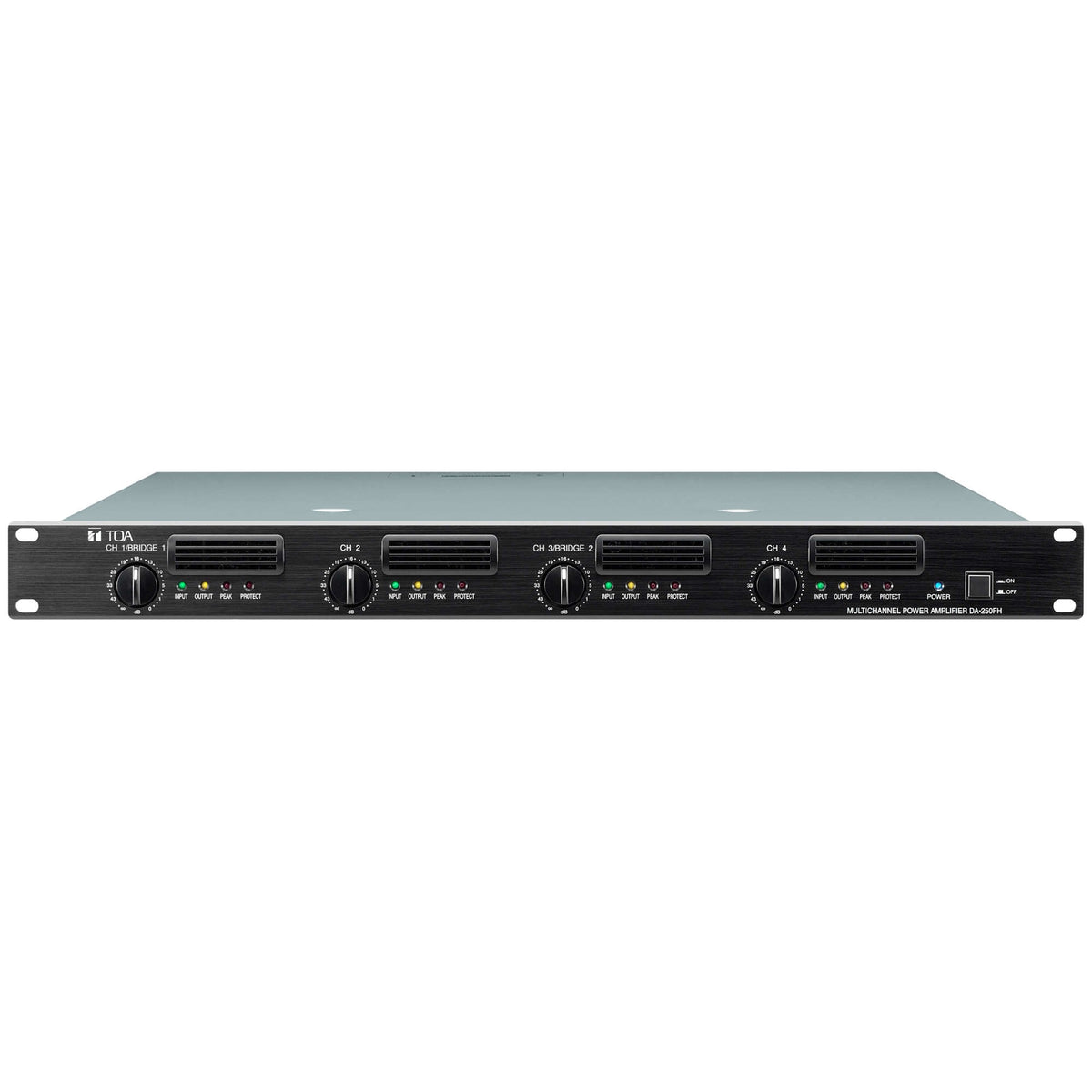

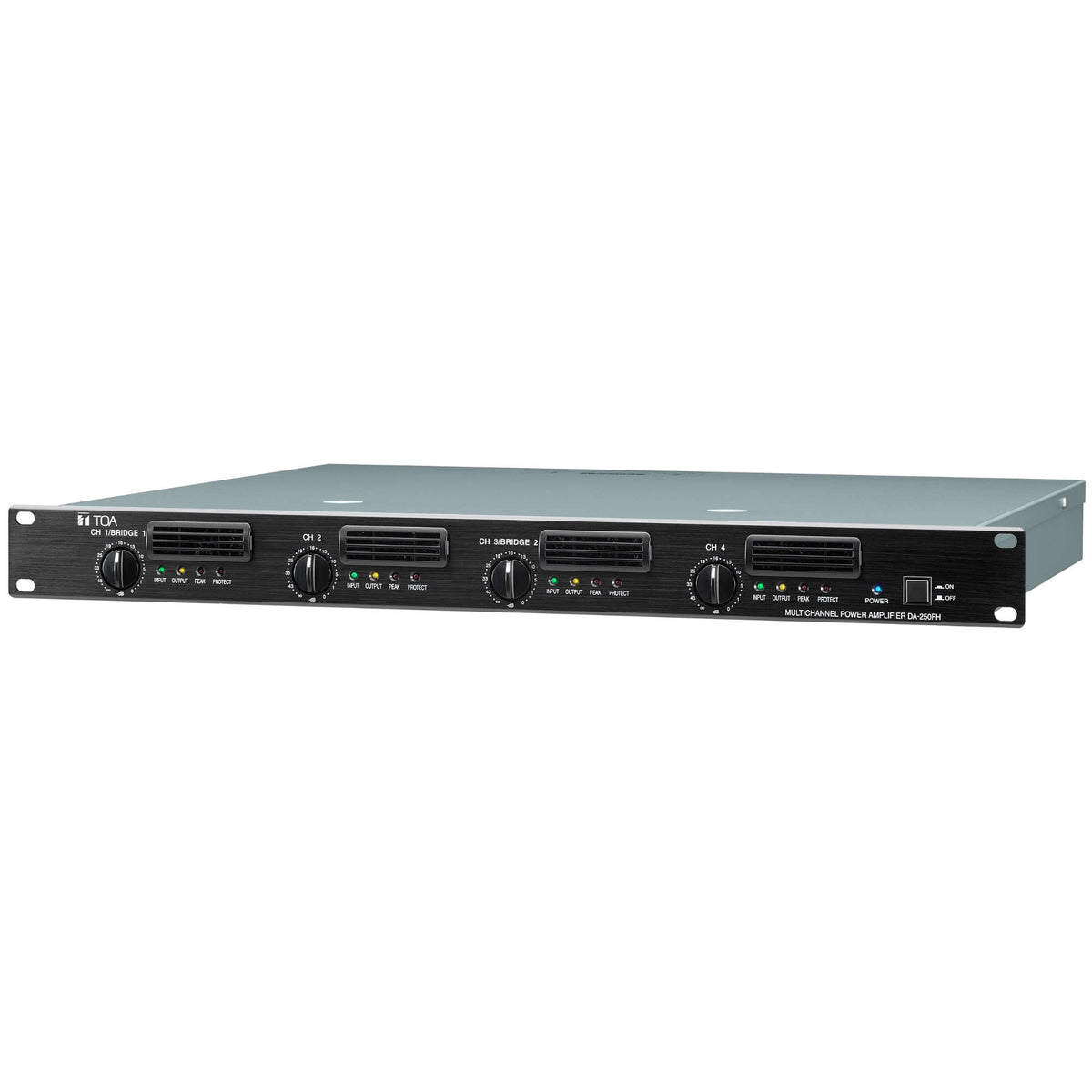

TOA DA-250FH CU 4-Channel Digital Power Amplifier For 70V Distribution

TOA DA-250FH CU 4-Channel Digital Power Amplifier For 70V Distribution

SoundPro Item: 52096 | Part Number: DA-250FH CU

$1,970.00
$2,439.00 $1,970.00
Your Price Sold out
MSRP: $2,439.00 | MAP: $1,970.00

Usually ships in 5-7 business days

  • Four Independent Power Supply Sections Prevent Single-Channel Faults From Affecting Other Zones
  • Bridgeable To Two Channels For Higher-Power 140V Line Configurations
  • Class D Switching Supply Reduces Chassis Weight For Easier Rack Integration
  • Control Covers Prevent Unauthorized Tampering After System Commissioning
  • CH 1 Mode Switch Enables Single-Input Broadcast Across All Channels
  • Low-Noise Constant-Speed Fans Maintain Cooling Without Audible Interference
  • Onboard Protection Circuitry Guards Against Overcurrent, Short Circuit, And Thermal Faults
Log in or register for YOUR best price

The TOA DA-250FH CU is a four-channel Class D power amplifier engineered specifically for 70V high-impedance speaker distribution in installed sound environments. It suits houses of worship, education facilities, airports, transit hubs, and any application where a centralized rack must drive multiple speaker zones reliably. Four independent power supply sections mean a fault in one channel does not compromise the rest of the system, a critical advantage in life-safety and paging installations where continuous uptime is required.

In bridged configuration, the amplifier consolidates to two channels at 500W each on a 140V line, giving integrators flexibility to adapt the same hardware to different zone layouts without changing equipment. The switching power supply keeps the chassis at 6.6 kg and 1U height, reducing rack load and simplifying shipping and installation labor compared to linear-topology alternatives of equivalent output. An optional MT-251H output transformer provides galvanic isolation between the amplifier and the speaker system for installations that require it.

Practical installation details are handled directly on the hardware. Control covers prevent unauthorized tampering with channel settings after commissioning. A CH 1 mode switch enables a single input to broadcast across all channels simultaneously, useful for emergency paging or whole-system announcements. Low-noise constant-speed fans maintain thermal management without audible interference in quiet listening environments, and onboard protection circuitry guards against overcurrent, short circuit, DC faults, and thermal overload.

Downloads

View full details

Specifications

Audio
Amplification System
Class D
Rated Output (4-Channel)
250 W x 4 (70 V line, 19.6 Ω)
Rated Output (Bridged 2-Channel)
500 W x 2 (140 V line, 39.2 Ω)
Frequency Response
20 - 20,000 Hz (±1 dB): HPF OFF / 50 - 20,000 Hz (-3 dB, +1 dB): HPF ON
Total Harmonic Distortion
0.1% (1 kHz), 0.3% (20 - 20,000 Hz): HPF OFF; 0.1% (1 kHz), 0.3% (100 - 20,000 Hz): HPF ON
Signal to Noise Ratio
100 dB (A-weighted)
Crosstalk
70 dB (A-weighted)
Electrical
Power Source
120 V AC, 50/60 Hz
Power Consumption
200 W (UL/CSA standby); 1200 W (rated output, 70 V line, 19.6 Ω x 4)
Connectivity
Input
4 circuits, +4 dB (1.23 V), 10 kΩ, electronically-balanced, removable terminal block (3 pins)
Input Mode Switch
CH 1 ON: CH 1 to all channels; CH 1 OFF: each channel independent
Output Terminal
M4 screw terminal, barrier spacing 8.8 mm
Performance
Protection Circuit
Overcurrent, short circuit, DC voltage fault, heat sink temp (110 °C or more), internal temp (80 °C or more)
Cooling
Forced air cooling (constant-speed fans)
LED Indicators
Power (blue) x 1, Input (green) x 4, Output (yellow) x 4, Peak (red) x 4, Protect (red) x 4
Environmental
Operating Temperature
-10 °C to +40 °C (14 °F to 104 °F)
Operating Humidity
90% RH or less (no condensation)
Construction
Finish
Panel: Aluminum, black, alumite; Case: Plated steel sheet
Dimensions
Dimensions
482 (W) x 44 (H) x 401.8 (D) mm
Rack Size
1U
Weight
Weight
6.6 kg
Included Items
Included Accessories
Power cord (2 m) x 1, Removable terminal plug (3 pins) x 4, Tamper-proof cap x 4
Identifiers
Optional Accessory
MT-251H Matching Transformer
