TOA DA-500F-HLCU 4-Channel Class D Power Amplifier 2U Rack

TOA DA-500F-HLCU 4-Channel Class D Power Amplifier 2U Rack

SoundPro Item: 52097 | Part Number: DA-500F-HLCU

$3,542.00
$4,382.00 $3,542.00
Your Price Sold out
MSRP: $4,382.00 | MAP: $3,542.00

Usually ships in 5-7 business days

  • Independent Per-Channel Power Control Via Photocoupler Input For Zone Management
  • RJ-45 Control/Monitor Port Supports CAT5 Runs Up To 600 Meters
  • Bridged Mode Delivers 1000W Per Channel Into 140V Distributed Lines

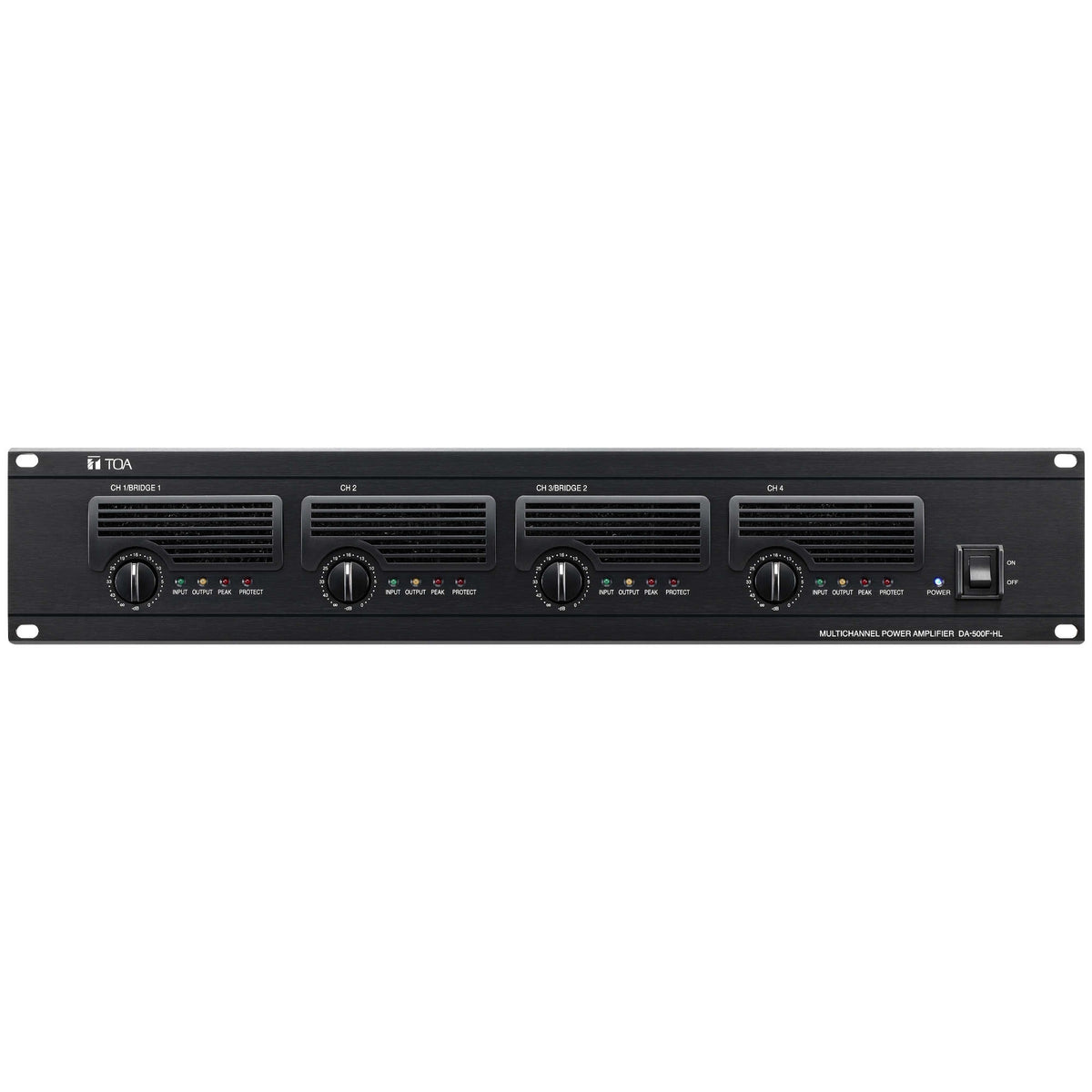

  • Front-Panel HPF Switch Enables High-Pass Filtering Without External DSP
  • Class D Switching Design Maximizes Efficiency In Continuous Multi-Zone Operation
  • Multi-Event Protection Covers Overload, Short Circuit, DC Offset, And Thermal Faults
  • LED Indicators For Input, Output, Peak, And Protect Status On Every Channel
Log in or register for YOUR best price

The TOA DA-500F-HLCU is a four-channel Class D digital power amplifier engineered for professional installed sound applications where high efficiency, compact rack footprint, and precise per-channel control are non-negotiable. At 2U, it outputs 500W per channel into 70V distributed lines or 550W into 8 ohms, and supports bridged operation at 1000W per channel into a 140V line, making it well-suited for large venue distributed audio, commercial paging systems, and multi-zone background music installations.

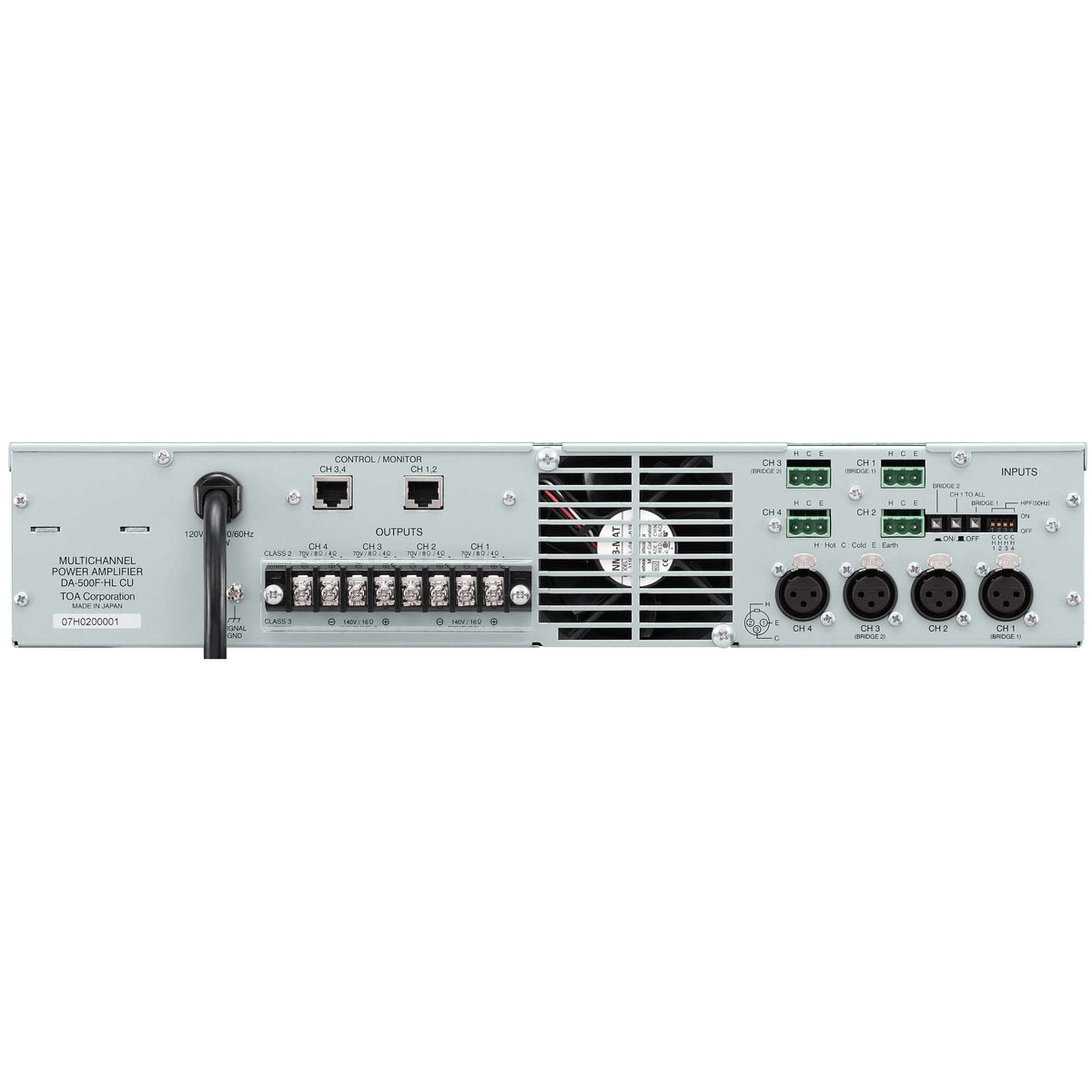

What sets this amplifier apart from conventional rack amps in its class is the Control/Monitor terminal architecture. Each channel features independent photocoupler-based power ON/OFF control and status monitoring for power state, protection events, and fan operation over a single RJ-45 connection using standard CAT5 cable up to 600 meters. This allows system integrators and AV control programmers to build fully supervised amplifier networks without proprietary control infrastructure. A front-panel HPF switch and per-channel mode switching add flexibility for multi-zone tuning without external DSP.

The switching power supply and Class D amplification keep power consumption in check while sustaining high output across all four channels simultaneously. Protection circuits guard against overload, short circuit, DC offset, and thermal events at both the amplifier and power supply heat sinks. For integrators specifying installed systems in commercial, hospitality, education, or house-of-worship environments, the DA-500F-HLCU offers a practical combination of output power, control depth, and rack efficiency that passive or analog alternatives in this power class cannot match.

Downloads

View full details

Specifications

Audio
Amplification System
Class D
Rated Output (70V Line)
500 W x 4 (9.8 Ω)
Rated Output (8 Ω)
550 W x 4
Rated Output (4 Ω)
100 W x 4
Rated Output Bridged (140V Line)
1000 W x 2 (19.6 Ω)
Rated Output Bridged (16 Ω)
1100 W x 2
Frequency Response (HPF OFF)
20 - 20,000 Hz (-2 dB, +1 dB)
Frequency Response (HPF ON)
50 - 20,000 Hz (-3 dB, +1 dB)
Total Harmonic Distortion (1 kHz)
0.1%
Total Harmonic Distortion (20-20,000 Hz, HPF OFF)
0.3%
Signal to Noise Ratio
100 dB (A-weighted)
Crosstalk
70 dB (A-weighted)
Electrical
Power Source
120 V AC, 50/60 Hz
Power Consumption (UL/CSA)
480 W
Power Consumption (Rated Output 8 Ω x 4)
2600 W
Connectivity
Input Circuits
4 circuits
Input Level
+4 dB (1.23 V)
Input Impedance
10 kΩ
Input Type
Electronically-balanced, removable terminal block (3 pins), XLR-3-31 type connector
Output Terminal
M4 screw terminal, distance between barriers: 8.8 mm (0.35")
Control/Monitor Connector
RJ-45 x 2
Control/Monitor Cable
Category 5 twisted pair (CAT5-UTP)
Maximum Control Cable Distance
600 m (656.17 yd)
Control Input Drive Voltage
9 V DC (Min) - 14 V (Max), 12 V (Typ)
Monitor Output
Photocoupler open collector, withstand voltage: 30 V DC, control current: under 12 mA
Controls
CH 1 Mode Switch
ON: CH 1 to All ch / OFF: Each ch
HPF Switch
ON/OFF (-6 dB/oct, cutoff frequency 50 Hz)
Performance
Protection Circuit
Overload, short circuit, DC voltage, heat sink thermal (amp: 100 C / 212 F, power supply: 80 C / 176 F)
Cooling
Forced air cooling
LED Indicators
Power (blue) x 1, Input (green) x 4, Output (yellow) x 4, Peak (red) x 4, Protect (red) x 4
Environmental
Operating Temperature
-10 C to +40 C (14 F to 104 F)
Operating Humidity
90% RH or less (no condensation)
Construction
Panel Finish
Aluminum, black, alumite
Case Finish
Plated steel sheet
Dimensions
Width
482 mm (18.98")
Height
88.4 mm (3.48")
Depth
404.2 mm (15.91")
Weight
Product Weight
8.8 kg (19.4 lb)
Included Items
Removable Terminal Plug (3 pins)
4
Tamper-Proof Cap
4
Identifiers
Rack Size
2U
Optional Accessory
MT-251H (matching transformer)
