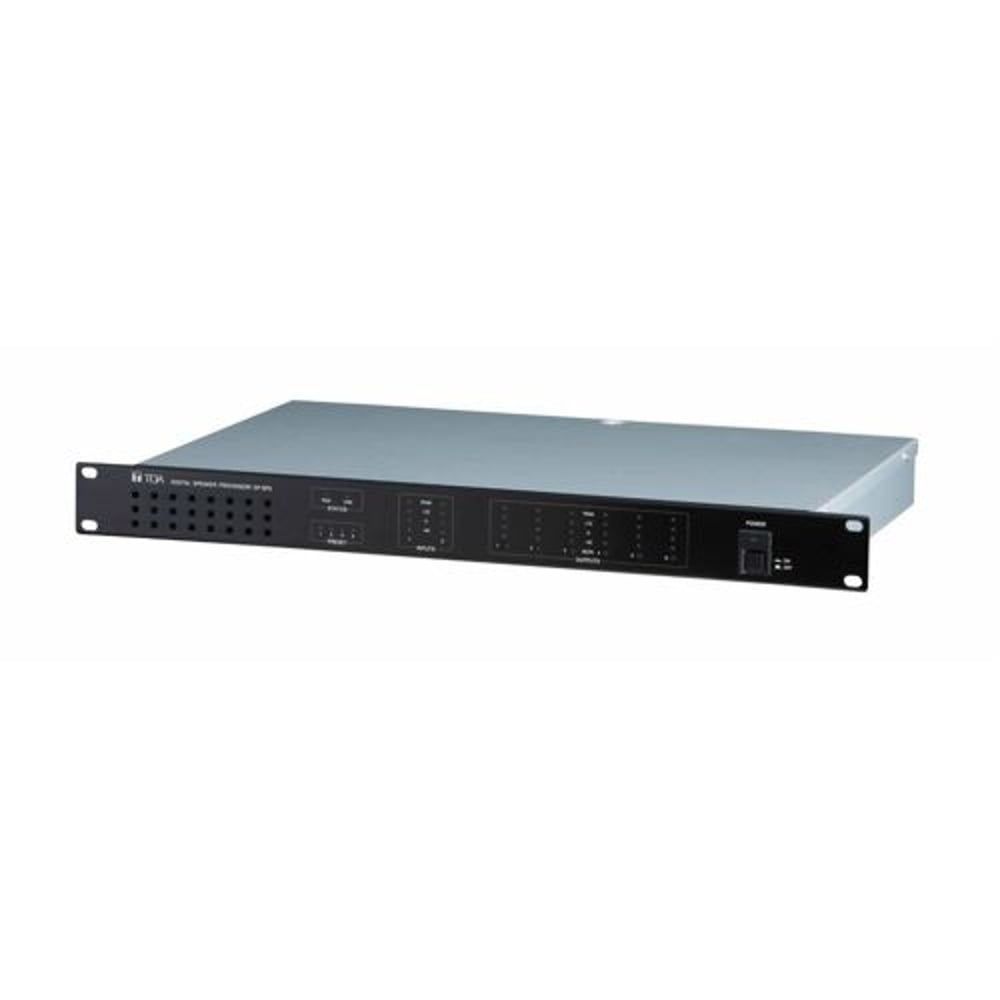

TOA DP-SP3 CU Digital Speaker Processor 2-Input 6-Output 1U Rack

TOA DP-SP3 CU Digital Speaker Processor 2-Input 6-Output 1U Rack

SoundPro Item: 11426 | Part Number: DP-SP3 CU

$1,940.00
$2,401.00 $1,940.00
Your Price Sold out
MSRP: $2,401.00 | MAP: $1,940.00

Usually ships in 5-7 business days

  • 2x6 Matrix Routing Supports 3-Way Multi-Amp Speaker System Configurations
  • Ten Input And Twelve Output Filter Slots For Thorough Acoustic Correction
  • Built-In TOA Speaker EQ Library Accelerates System Commissioning
  • LAN Connectivity Enables Full PC-Based Remote Control And Configuration
  • Per-Output Mute Switches And Analog Attenuator For Direct Level Management
  • Contact Input Terminals Allow Integration With Building Control Systems
Log in or register for YOUR best price

The TOA DP-SP3 CU is a 1U rack-mount digital speaker processor designed for systems integrators and installed audio engineers who need precise, flexible signal management between amplifiers and loudspeakers. With two inputs and six outputs, it supports 3-way multi-amp configurations and fits cleanly into standard EIA equipment racks. The onboard DSP handles the full chain of speaker optimization tasks, including parametric equalization, high-pass and low-pass crossovers, matrix routing, dynamics control via compressor, and time alignment via output delay. Ten filter slots per input and twelve per output give engineers the resolution needed to correct room acoustics and tune individual drivers without external processing hardware.

For installations using TOA loudspeakers, a built-in EQ characteristic library accelerates commissioning by loading factory-aligned filter curves for compatible cabinets. Contact input terminals allow integration with building control systems or remote triggers, and the analog output attenuator with per-output mute switches provides hands-on level management at the rack. When connected to a LAN, all settings and real-time operations are accessible through the included DP-SP3 PC Software, eliminating the need for front-panel menu diving during setup or live adjustments. The 24-bit A/D and D/A conversion chain, 96 kHz sampling rate, and 110 dB dynamic range keep the signal path transparent from input to amplifier, making the DP-SP3 CU the right tool for paging systems, permanent installations, and multi-zone venue deployments where audio quality and system control both matter.

Downloads

View full details

Specifications

Electrical
Power Source
100 - 120 V AC, 60 Hz
Power Consumption
25 W
Audio
Frequency Response
20 Hz - 20 kHz, ±1 dB
Sampling Frequency
96 kHz
Dynamic Range
110 dB or more
Distortion
0.03% or less, 1 kHz, +4 dB input/output, 20 Hz - 20 kHz BPF
Crosstalk
-80 dB or less, 1 kHz
A/D Converter
24 bits
D/A Converter
24 bits
Connectivity

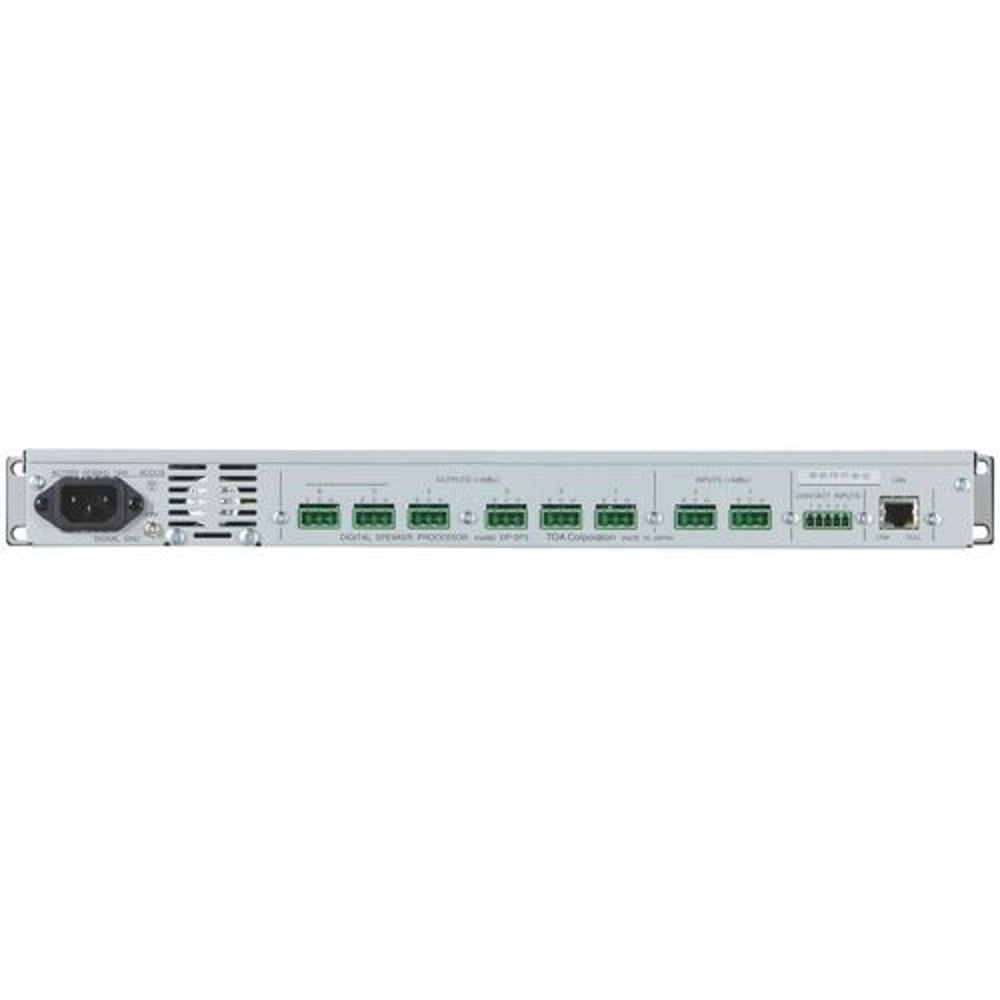

Input
2 channels, +4 dB (max. +24 dB), 10 kΩ, electronically-balanced, removable terminal block (3P)
Output
6 channels, +4 dB (max. +24 dB), applicable load 600 Ω or more, electronically-balanced, removable terminal block (3P)
Controls
Preset Memory
16
Function

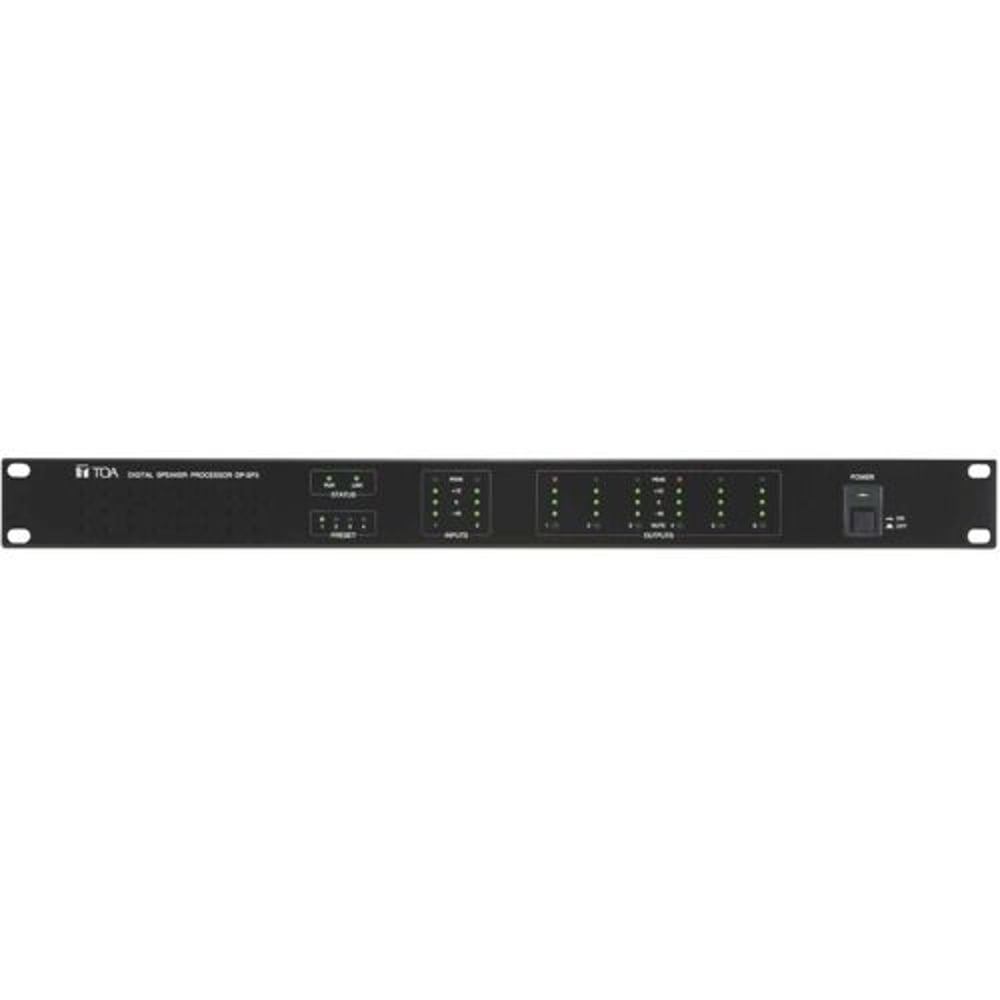

Input PAD (-16 dB), analog output attenuator (-∞ to 0 dB in 1 dB steps), EQ characteristic library for TOA speakers, input/output level indicator (4-point LED), output MUTE switch x 6
Environmental
Operating Temperature
0 to 40 ºC (32 to 104 ºF)
Operating Humidity
90 %RH (no condensation)
Construction
Finish
Panel: Aluminum, hairline, black; Case: Surface-treated steel plate
Dimensions
Dimensions
482 x 44 x 288.7 mm (18.98" x 1.73" x 11.37")
Weight
Weight
3.1 kg (6.83 lbs)
Included Items
Included Accessories
Power supply cord 2 m (6.56 ft) x 1, Removable terminal plug (3P) x 8, Removable terminal plug (5P) x 1
