TOA EV-700PS Digital Message Repeater With 256 Programs and LAN Control

TOA EV-700PS Digital Message Repeater With 256 Programs and LAN Control

SoundPro Item: 107654 | Part Number: EV-700PS

$2,846.00
$3,521.00 $2,846.00
Your Price Sold out
MSRP: $3,521.00 | MAP: $2,846.00

Usually ships in 5-7 business days

  • Emergency Priority Override Ensures Critical Broadcasts Interrupt All Active Programs
  • LAN-Based Sound Source Rewriting Allows Remote Content Updates Without On-Site Media Swaps
  • Dual CompactFlash Card Slots Support Backup Operation For Uninterrupted Playback
  • 16 Control Inputs And 8 Outputs Enable Direct Integration With Building Automation Systems
  • Up To 256 Programs Support Complex Multi-Zone Announcement Scheduling
  • Preloaded Chimes And Melodies Included On Supplied Memory Card For Immediate Use
  • R.E.M. Emergency Recording Mode Loops On-The-Spot Captures With Highest Priority
Log in or register for YOUR best price

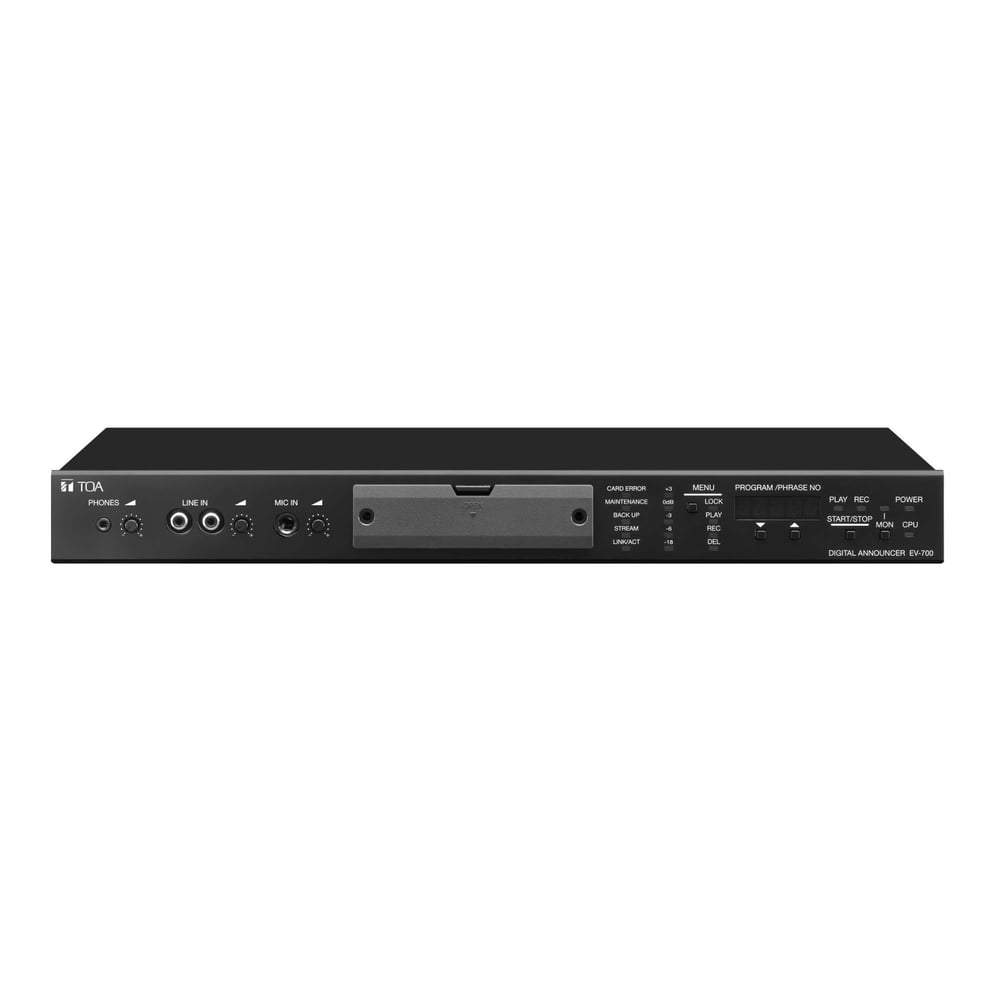

The TOA EV-700PS is a 1U rack-mount digital announcing machine designed for AV integrators and system engineers managing scheduled and emergency audio in commercial facilities, transit environments, retail spaces, and public venues. It handles periodic announcements, attention-calling chimes, and guided broadcasts from a centrally managed sound library, replacing less flexible playback solutions that lack network control or emergency priority routing.

The unit stores up to 32,768 individual phrases across 256 programs and supports both direct and binary playback modes, giving system designers precise control over announcement sequencing. Sound sources can be updated remotely over a 100BASE-TX LAN connection using the EV-700 setting software, eliminating the need for on-site media swaps during routine content updates. Emergency messages override all active programs instantly, a critical requirement for life-safety and code-compliant PA installations.

With 16 control inputs and 8 control outputs on removable terminal blocks, the EV-700PS integrates cleanly into building management systems, fire alarm interfaces, and relay-triggered automation. Dual CompactFlash card slots support backup operation, and the included AD-246 AC adapter and pre-loaded memory card allow the unit to be commissioned immediately. The optional MB-15B rack mounting bracket adapts the unit to standard EIA racks for permanent installed-sound deployments.

Downloads

View full details

Specifications

Electrical
Power Source (Unit)
External 24 V DC/400 mA via removable terminal block (2 pins) or supplied AD-246 AC adapter
Power Consumption
10 W
AD-246 Input
110-120 V AC, 50/60 Hz
AD-246 Output
24 V DC, 1 A
AD-246 Current Consumption
450 mA (rated output)
Audio
Wave Format
WAV file, monaural, 44.1 kHz or 32 kHz sampling rate, 16-bit PCM
Frequency Response
20 Hz - 20 kHz +/-3 dB (1 kHz); 50 Hz - 14 kHz +/-3 dB (IT-450 mounted, 1 kHz)
Distortion
0.3% or less (1 kHz, rated output)
Audio Output Method
Single channel monaural
Storage and Programs
Storage Media
CompactFlash specification memory card
Number of Mountable Memory Cards
2 (1 included with preset sound sources; backup operation available with 2 cards)
Number of Recordable Phrases
32,768
Number of Playback Programs
Direct mode: 16 programs; Binary mode: 256 programs
Maximum Recording Time
Approximately 3 hours at 44.1 kHz; approximately 4 hours at 32 kHz
Connectivity
Control Input
16 inputs (activations 1-16, playback, stop, recording, erasure/clear, emergency playback, emergency recording, emergency stop); no-voltage make contact; pulse make length 50 ms or more; open voltage 30 V DC; short-circuit current 10 mA; removable terminal block (12 pins, 16 pins)
Control Output
8 shorting outputs (busy), error contact; capacity 30 V DC, 0.5 A; removable terminal block (8 pins)
Network Interface
100BASE-TX; TCP/IP, UDP, HTTP, FTP; RJ45 connector
Dimensions
Unit Dimensions
420 (W) x 44 (H) x 222 (D) mm (16.54" x 1.73" x 8.74")
Weight
Unit Weight
2.4 kg (5.29 lbs)
AD-246 Weight
170 g
Construction
Panel Finish
Aluminum, black, 30% gloss, paint
Case Finish (Unit)
Pre-coated steel plate, black, 30% gloss
Case Finish (AD-246)
Heat-resistant resin, black
Operating Display
7-segment LED, 5 digits
Environmental
Operating Temperature
0 to 40 degrees C (32 to 122 degrees F)
Operating Humidity
90% RH or less (no condensation)
Connectivity (AD-246)
Cable Length
1.5 m
Plug
RC6705 positive tip
Included Items
Included Accessories
AC adapter AD-246 x1, Memory card 1 GB with prerecorded audio files x1, Rubber foot x4, Removable terminal plug 2 pins x1, Removable terminal plug 8 pins x2, Removable terminal plug 16 pins x2, Removable terminal plug 12 pins x2, Front cover fixing screw x2, Power cord 2 m x1
Identifiers
Optional Rack Bracket
MB-15B
