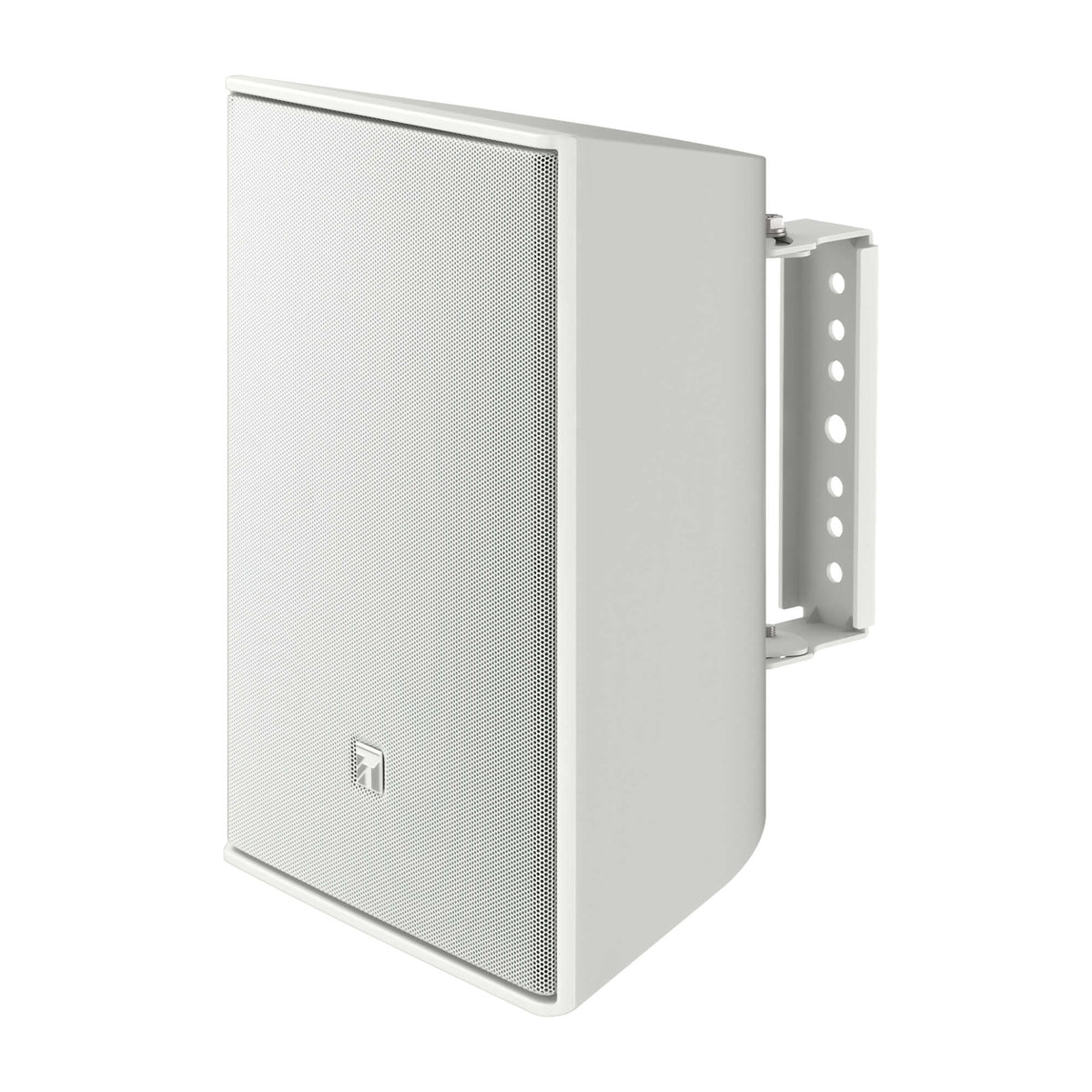

TOA F-08 Wide Dispersion Surface Mount Loudspeaker For Indoor and Outdoor Installs | White

TOA F-08 Wide Dispersion Surface Mount Loudspeaker For Indoor and Outdoor Installs | White

SoundPro Item: 203075 | Part Number: F-08WT-WP-UE

$442.00
$547.00 $442.00
Your Price Sold out
MSRP: $547.00 | MAP: $442.00

Usually ships in 5-7 business days

  • IP65 Dust And Water Resistance Enables Reliable Outdoor Deployment
  • EN 54-24 Type B And UL 1480A Certification Supports Voice Evacuation Systems
  • Triple Operation Modes Cover 100V Line, 70V Line, And Direct 8Ω Connections
  • Wide 100-Degree Dispersion Pattern Reduces Coverage Points Needed Per Zone
  • 8" PP-Cone Woofer With 1" Dome Tweeter Delivers Full-Range Reproduction
  • Adjustable Bracket System Accommodates Both Wall And Ceiling Mounting Angles
  • Available In Black And White Finishes To Match Facility Aesthetics
Log in or register for YOUR best price

The TOA F-08 Wide Dispersion Surface Mount Loudspeaker series is engineered for integrators and system designers who need a certified, weatherproof full-range speaker for permanent installation in commercial, institutional, and public address environments. Supporting 100V line, 70V line, and direct 8Ω operation, this 2-way system is equally at home on a distributed audio backbone or a conventional amplifier setup. Its 8-inch PP-cone woofer paired with a 1-inch dome tweeter delivers broad, even coverage across a 100-degree horizontal and vertical dispersion pattern, reducing the number of points required to cover a given space.

Installations that demand life-safety compliance will benefit from EN 54-24 Type B certification, making these speakers appropriate for fire alarm voice evacuation systems in outdoor and general-use environments. UL 1480A (UEAY) listing extends that suitability to North American projects. The IP65 rating keeps the enclosure sealed against dust ingress and direct water jets, supporting deployments in transit hubs, stadiums, courtyards, building facades, and covered outdoor venues where exposure to the elements is a daily reality.

The included U bracket and speaker brackets allow angle adjustment for both wall and ceiling mounting, giving installers flexibility to optimize aim without additional hardware. The M4 screw terminal input accommodates a wide range of cable gauges, and the sealed enclosure construction protects internal components throughout the operating temperature range. For projects that require matched aesthetics across a facility, the F-08 series is available in black and white finishes.

Downloads

View full details

Specifications

Certifications
Dust/Water Protection
IP65
EN 54-24
EN 54-24: 2008, Type B (outdoor applications)
UL Listing
UL 1480A (UEAY, outdoor use)
EN 54-24 DoP Number
24-105
Dimensions
Width
9.88"
Height
15.43"
Depth
8.50"
Dimensions (mm)
251 (W) x 392 (H) x 216 (D) mm
Weight
Product Weight
5.5 kg (12.13 lbs)
Audio
Frequency Response
70 Hz - 20 kHz (-10 dB, 1/2 free sound field)
Crossover Frequency
3 kHz
Sensitivity
90 dB (1 W, 1 m, 1-10 kHz, pink noise)
Directivity Angle Horizontal
100°
Directivity Angle Vertical
100°
EN 54-24 Sensitivity
75 dB (1 W, 4 m)
EN 54-24 Max SPL
92 dB (60 W, 4 m)
EN 54-24 Coverage Horizontal
-6 dB: 170° (500 Hz), 130° (1 kHz), 100° (2 kHz), 110° (4 kHz)
EN 54-24 Coverage Vertical
-6 dB: 150° (500 Hz), 130° (1 kHz), 100° (2 kHz), 90° (4 kHz)
Electrical
Rated Input
60 W (100V line, 70V line)
Rated Noise Power
90 W (8Ω)
Continuous Program Power
180 W (8Ω)
Rated Impedance (8Ω)
8Ω
100V Line Impedance Taps
170 Ω (60 W), 330 Ω (30 W), 670 Ω (15 W), 3.3 kΩ (3 W)
70V Line Impedance Taps
83 Ω (60 W), 170 Ω (30 W), 330 Ω (15 W), 670 Ω (7.5 W), 3.3 kΩ (1.5 W)
Connectivity
Input Terminal
M4 screw terminal, barrier spacing 9 mm (0.35")
Cable Diameter (Cabtyre)
6-10 mm (0.24"-0.39")
Wire Cross Section
0.3-3.3 mm² (AWG 22-12)
Construction
Enclosure Type
Sealed
Low Frequency Driver
20 cm (8") PP-cone
High Frequency Driver
25 mm (1") dome tweeter
Enclosure Material
HIPS, white (RAL 9016 equivalent), painted
Grille Material
Aluminum, white (RAL 9016 equivalent), painted
Bracket Material
Stainless steel, t2, white (RAL 9016 equivalent), painted
Finish/Color
White
Environmental
Operating Temperature
-10 °C to +50 °C (14 °F to 122 °F)
Installation Environment
Indoor and outdoor
Included Items
Included Accessories
U bracket x1, Speaker bracket x2, Bracket fixing screw x1 set, Terminal cover x1, Terminal cover mounting screw x4
