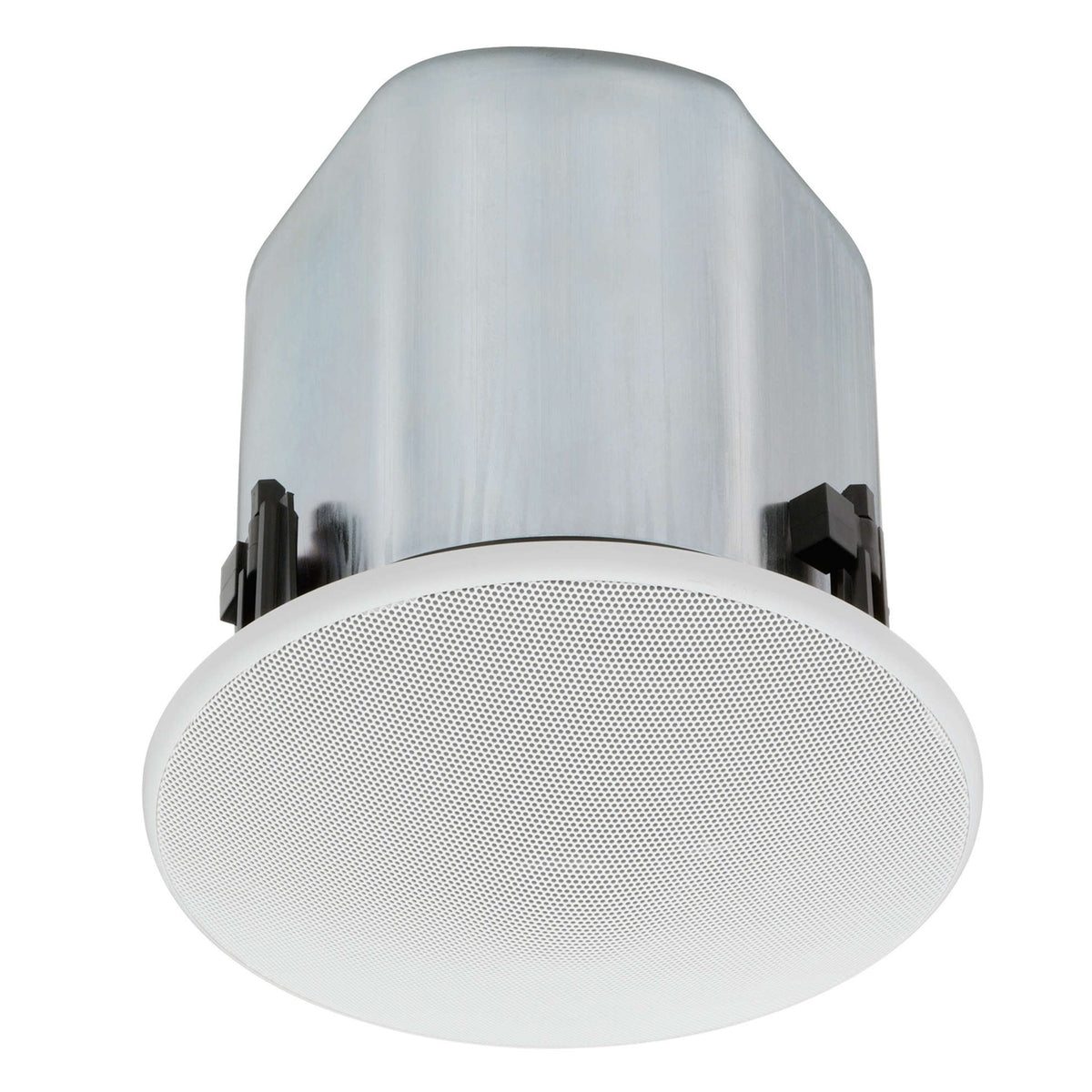

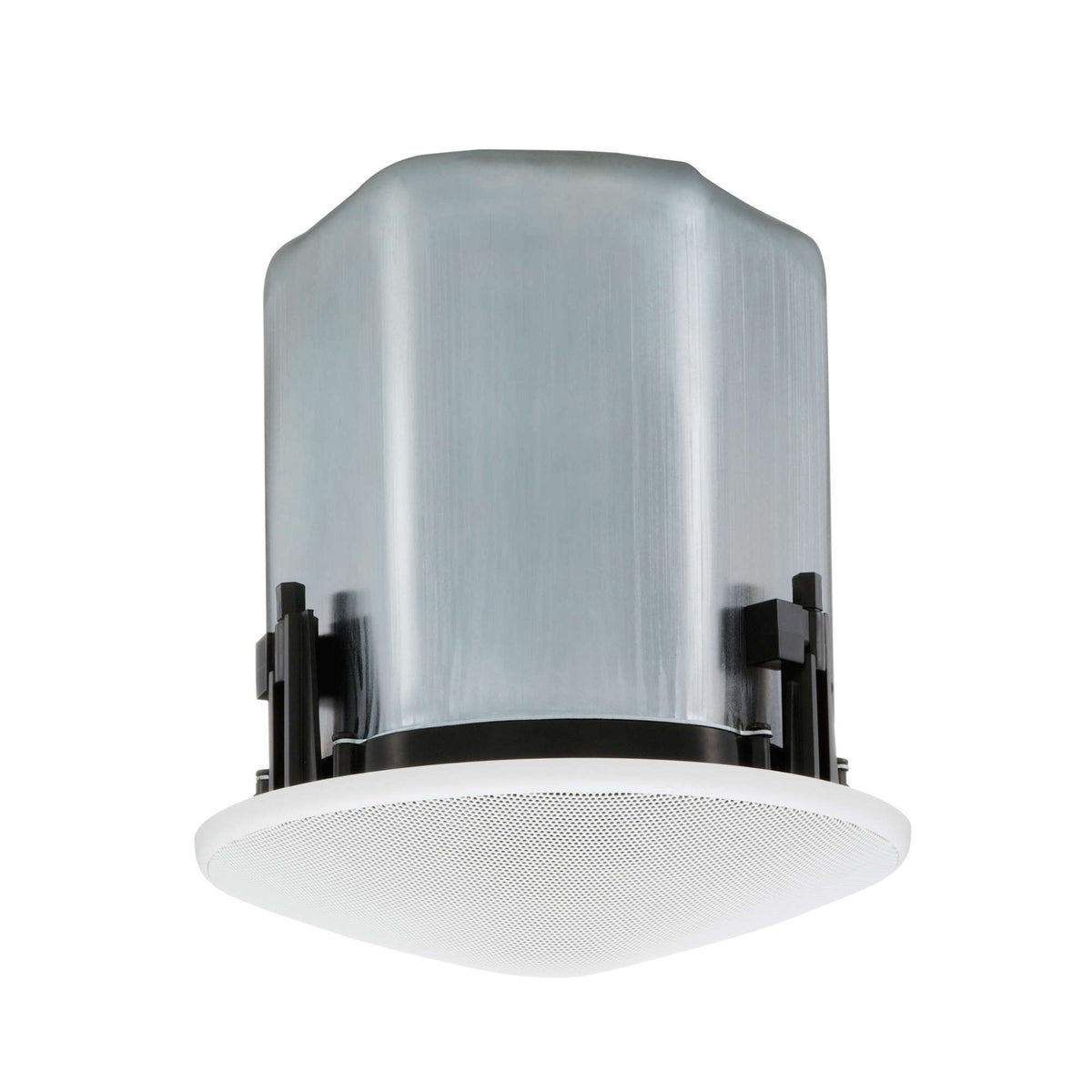

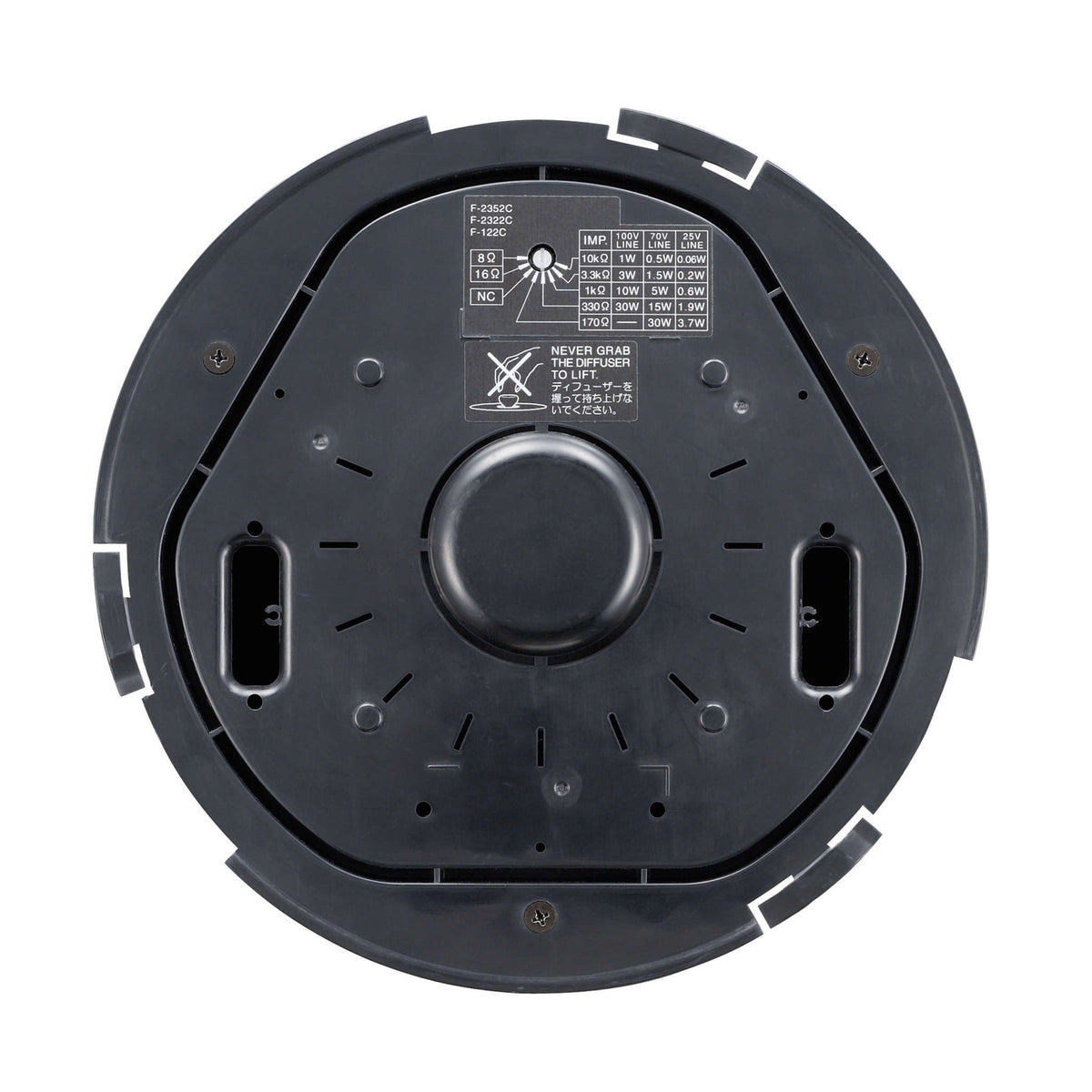

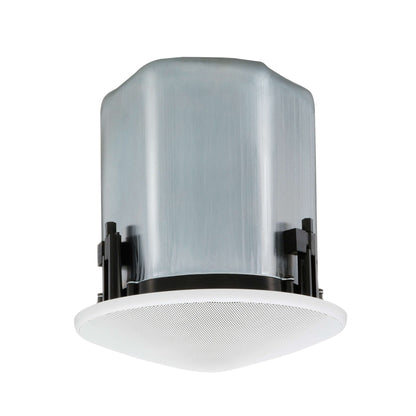

TOA F-122CU2 Full-Range Processed Ceiling Speaker 5" Wide Dispersion

TOA F-122CU2 Full-Range Processed Ceiling Speaker 5" Wide Dispersion

SoundPro Item: 96267 | Part Number: F-122CU2

$262.00
$324.00 $262.00
Your Price Sold out
MSRP: $324.00 | MAP: $262.00

Usually ships in 5-7 business days

  • Wide 180-Degree Dispersion Pattern Provides Uniform Coverage Across Large Installed Spaces
  • Special Diffuser Extends High-Frequency Response At Wide Off-Axis Angles
  • UL1480 And UL2043 Certified For Plenum And Fire-Protective Signaling Installations
  • Integral Metal Back-Can And Safety Wire Meet Commercial Installation Requirements
  • Removable Locking Terminal Block With Loop-Through Terminations Simplifies Multi-Speaker Wiring
  • Overload Protection Circuitry Safeguards Driver During High-Demand Signal Events
  • Compatible With 25 V And 70 V Line Systems For Flexible System Design
Log in or register for YOUR best price

The TOA F-122CU2 is a full-range processed ceiling speaker designed for permanent installation in commercial, institutional, and public address environments. Its 180-degree horizontal dispersion pattern across the 1-4 kHz range ensures even coverage in large open-plan spaces, corridors, and multi-zone facilities where hot spots and dead zones are unacceptable. It operates on both 25 V and 70 V distributed lines, giving integrators flexibility across a wide range of system architectures without rewiring or additional transformers.

Built for code-compliant installations, the F-122CU2 carries UL1480 (UUMW and UEAY) and UL2043 certifications, qualifying it for fire-protective signaling and air-handling plenum spaces. The integral metal back-can and included safety wire meet the structural requirements of demanding commercial buildouts. A removable locking terminal block with loop-through terminations speeds daisy-chain wiring on multi-speaker runs, and the onboard overload protection circuit safeguards the driver in high-demand signal conditions.

This speaker is engineered for use with the TOA DP-SP3 Digital Speaker Processor, which provides the DSP-based correction and system management the F-122CU2 is optimized around. For integrators specifying distributed audio for retail, hospitality, education, or corporate environments, the F-122CU2 combines fire-rated enclosure materials, a special high-frequency diffuser for wide off-axis response, and a tile bridge accessory for suspended ceiling compatibility, making it a complete solution from the ceiling grid to the amplifier rack.

Downloads

View full details

Specifications

Certifications
Compliance
UL1480 (UUMW), UL1480A (UEAY), UL2043, CAN/CSA C22.2 No.205 (UEAY7)
Audio
Rated Input
30 W (High Impedance)
Power Handling
Continuous pink noise: 60 W (8 Ω); Continuous program: 120 W (8 Ω)
Sensitivity
90 dB (1 W, 1 m)
Frequency Response
70 Hz - 20 kHz (-10 dB), 50 Hz - 20 kHz (-20 dB) at installation in 1/2 free sound field
Impedance (70 V Line)
170 Ω (30 W), 330 Ω (15 W), 1 kΩ (5 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W)
Impedance (25 V Line)
170 Ω (3.7 W), 330 Ω (1.9 W), 1 kΩ (0.6 W), 3.3 kΩ (0.2 W), 10 kΩ (0.06 W)
Impedance (Direct)
8 Ω
Construction
Enclosure Type
Bass reflex type
Speaker Component
12 cm cone-type
Enclosure Material
Steel plate, plating
Baffle Material
Fire-resistant ABS resin (UL-94 V-0), black
Rim Material
Fire-resistant ABS resin (UL-94 V-0), white, paint
Punched Net
Steel plate, white, paint
Dimensions
Diameter x Depth
Ø230 x 229 (D) mm
Mounting Hole
Ø200 mm (Maximum ceiling thickness: 37 mm)
Weight
Unit Weight
4.4 kg (including mounting accessories)
Connectivity
Input Terminal
Removable locking connector with screw-down terminals (2 input terminals, 2 bridge terminals)
Cable Requirements (Solid)
Ø1.0 - Ø1.6 mm (AWG No. 18 - 14)
Cable Requirements (Stranded)
0.75 - 2.5 mm² (AWG No. 18 - 14)
Included Items
Included Accessories
Panel x 1, Tile bridge x 1, Safety wire x 1, Paper pattern x 1
Compatibility
Required Processor
DP-SP3 Digital Speaker Processor
Optional Accessories
Controller module: E-03R, Back can: HY-BC1, Trim ring: HY-TR1
