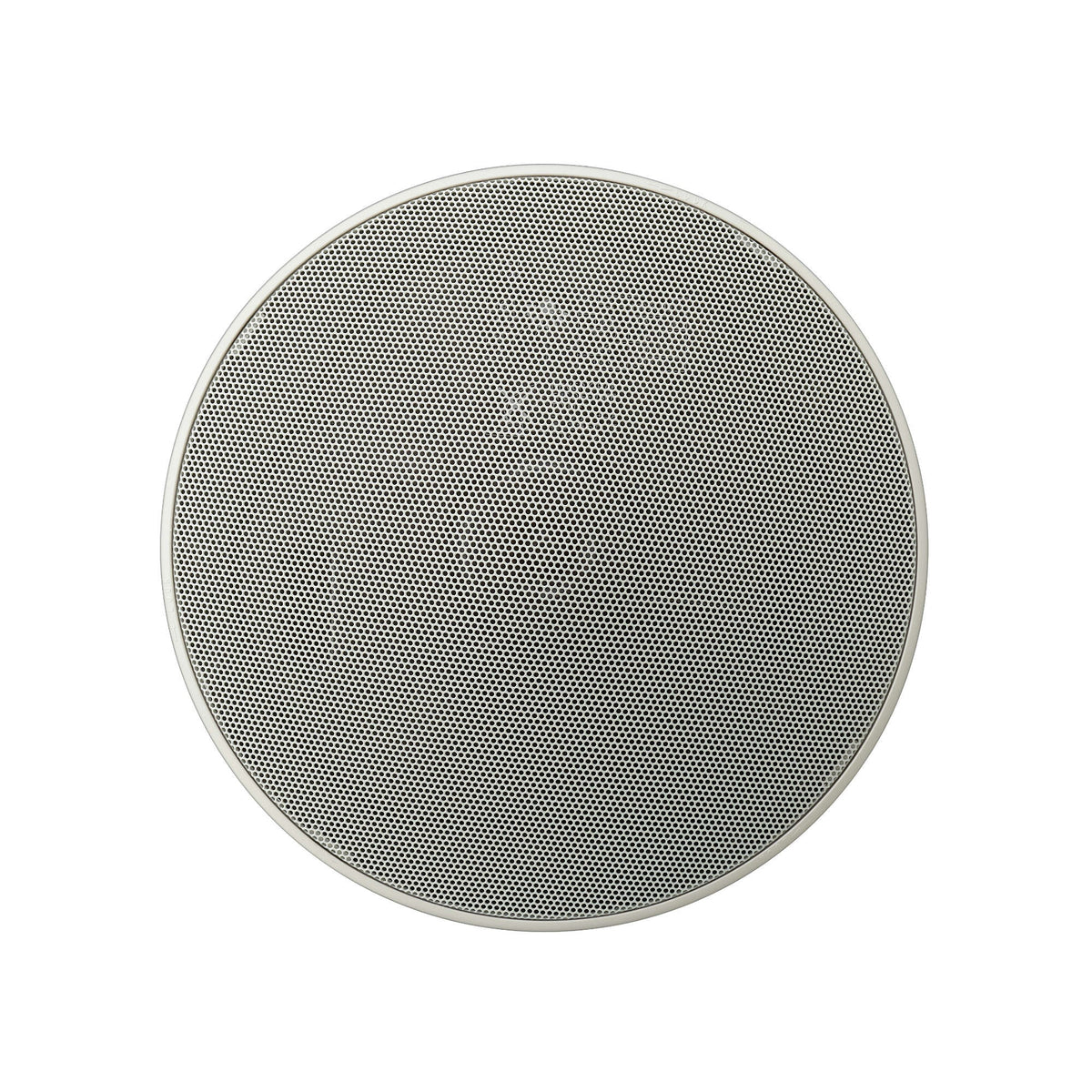

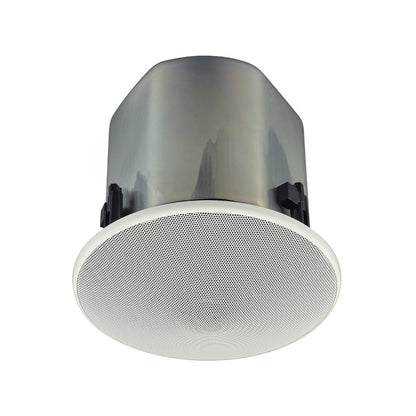

TOA F-2352C Co-Axial Ceiling Speaker For 25/70/100V Line
TOA F-2352C Co-Axial Ceiling Speaker For 25/70/100V Line
SoundPro Item: 53959 | Part Number: F-2352C
Usually ships in 5-7 business days
- Co-Axial Driver Pairing Delivers Balanced Coverage Without Localization Artifacts
- Special Diffuser Extends High-Frequency Response For Wide Off-Axis Coverage
- Compatible With 25V, 70V, And 100V Distributed Audio Lines
- Ported Bass-Reflex Enclosure Expands Low-Frequency Output Versus Sealed Designs
- Removable Locking Terminal Block With Loop-Through For Fast Daisy-Chain Wiring
- Overload Protection Circuitry Reduces Field Service Risk In Shared Zone Systems
- UL-94 V-0 Fire-Resistant ABS Baffle And Metal Back-Can For Commercial Compliance
The TOA F-2352C is built for audio integrators and system designers working on installed speech and music reinforcement in commercial and institutional environments. Its co-axial driver configuration, pairing a 5-inch cone woofer with a dome tweeter, produces well-balanced sound across the listening area without the localization artifacts common in two-driver ceiling layouts. A specialized diffuser extends high-frequency response off-axis, making it well-suited for wider seating areas, open-plan offices, retail floors, and hospitality spaces where listeners are rarely directly below the speaker.
Transformer taps across 25V, 70V, and 100V line voltages give installers flexibility to match the speaker to existing distributed audio infrastructure without rewiring. The removable locking terminal block with loop-through terminations accelerates installation on daisy-chained runs, and the included safety cable and ceiling reinforcement ring satisfy common installation requirements for suspended or drop-ceiling mounting at heights between 2 and 4 meters. The metal back-can construction and fire-resistant ABS baffle rated UL-94 V-0 address materials compliance in commercial build-outs where AHJ review is expected.
For integrators comparing ceiling speaker options, the F-2352C distinguishes itself through its ported bass-reflex enclosure, which extends low-frequency reproduction meaningfully below what sealed ceiling speakers in the same class typically deliver. Overload protection circuitry reduces field service risk in shared-zone systems where amplifier levels are not always tightly managed. Optional accessories including a trim ring, tile bar bridge, and anchor hanging bracket extend mounting compatibility to a range of ceiling types and finish requirements.
Specifications
