• TOA F-2352C 5" Coaxial Ceiling Speaker
1 1

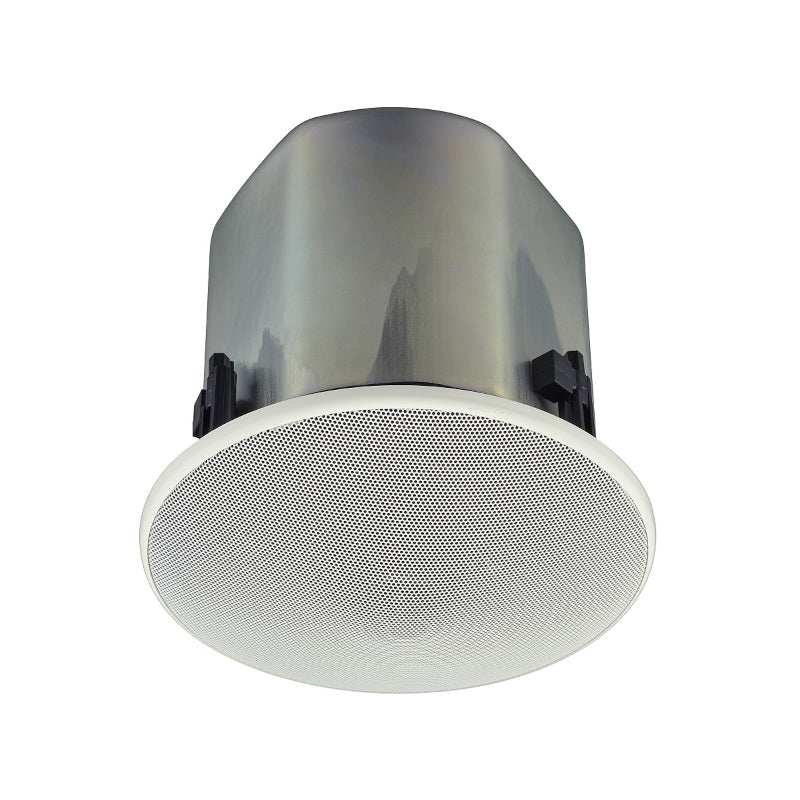

TOA F-2352C 5-Inch Ceiling Speaker

TOA F-2352C 5-Inch Ceiling Speaker

SoundPro Item: 53959 | Part Number: F-2352C

$169.00
$209.00 $169.00
Your Price Sold out
MSRP: $209.00 | MAP: $169.00

Usually ships in 5-7 business days

  • Flush-mounted ceiling speaker
  • Wide frequency range
  • High quality sound performance
  • 2-way co-axial speaker configuration
Log in or register for YOUR best price

The F-2352C ceiling-mounted speaker covers an extremely wide area and can be used for 25, 70 and 100 V line applications. Well-balanced sound can be heard uniformly at any location.

Its bass-reflex speaker system designed to provide smooth sound delivery with high power handling capability. Its wide-dispersion flush-mount ceiling speaker design employs unique acoustic construction to realize a wide area of coverage. Uniform sound output levels are achievable not only directly under the speaker, but also over a wide radius. Because the speaker provides both low- and high-impedance operating capability, it can be used in many different applications. A front panel-mounted input selector switch permits easy verification and change of current impedance/power settings, even after installation. It can be quickly and accurately mounted to ceilings and the rotating front grille can be installed/removed quickly and easily. It has an attractive exterior design specially created by an interior designer to blend naturally with any architectural space. Optional mounting hardware permits exposed installation or installation in weak ceiling panels.

View full details
  • EnclosureBass reflex type
  • Rated Input30 W (High Impedance)
  • Power Handling Capacity
    • Continuous pink noise: 60W (8Ω)
    • Continuous program: 120W (8Ω)
  • Impedance
    • 100V line: 330Ω (30W), 1kΩ (10W), 3.3kΩ (3W), 10 kΩ (1W)
    • 70V line: 170Ω (30W), 330Ω (15W), 1kΩ (5W), 3.3kΩ (1.5W), 10kΩ (0.5W)
    • 25V line: 170Ω (3.7W), 330Ω (1.9W), 1kΩ (0.6W), 3.3kΩ (0.2W), 10kΩ (0.06W) 8Ω
  • Sound Pressure Level90dB (1W, 1 m)
  • Frequency Response70Hz-20kHz (-10dB), 50Hz-20kHz (-20dB) at installation in 1/2 free sound field (Measured by installing the unit in the center of a ceiling.)
  • Speaker ComponentHigh frequency: Balanced dome-type, Low frequency: 12 cm cone-type
  • Mounting Holeφ200 mm (Maximum ceiling thickness: 37 mm)
  • Input TerminalRemovable locking connector with screw-down terminals (2 input terminals and 2 bridge terminals)
  • Usable Cable
    • Solid copper wire: φ0.5 - φ1.6 mm (equivalent to AWG No. 24-14)
    • Stranded copper wire: 0.2 - 2.5 mm22 (equivalent to AWG No. 24-14)
  • Finish
    • Enclosure: Steel plate, plating
    • Baffle: Fire-resistant ABS resin (resin material grade: UL-94 V-0), black
    • Rim: Fire-resistant ABS resin (resin material grade: UL-94 V-0), white, paint
    • Punched net: Steel plate, white, paint
  • Dimensionsφ230 × 229 (D) mm
  • Weight3.7 kg (including mounting accessories)
