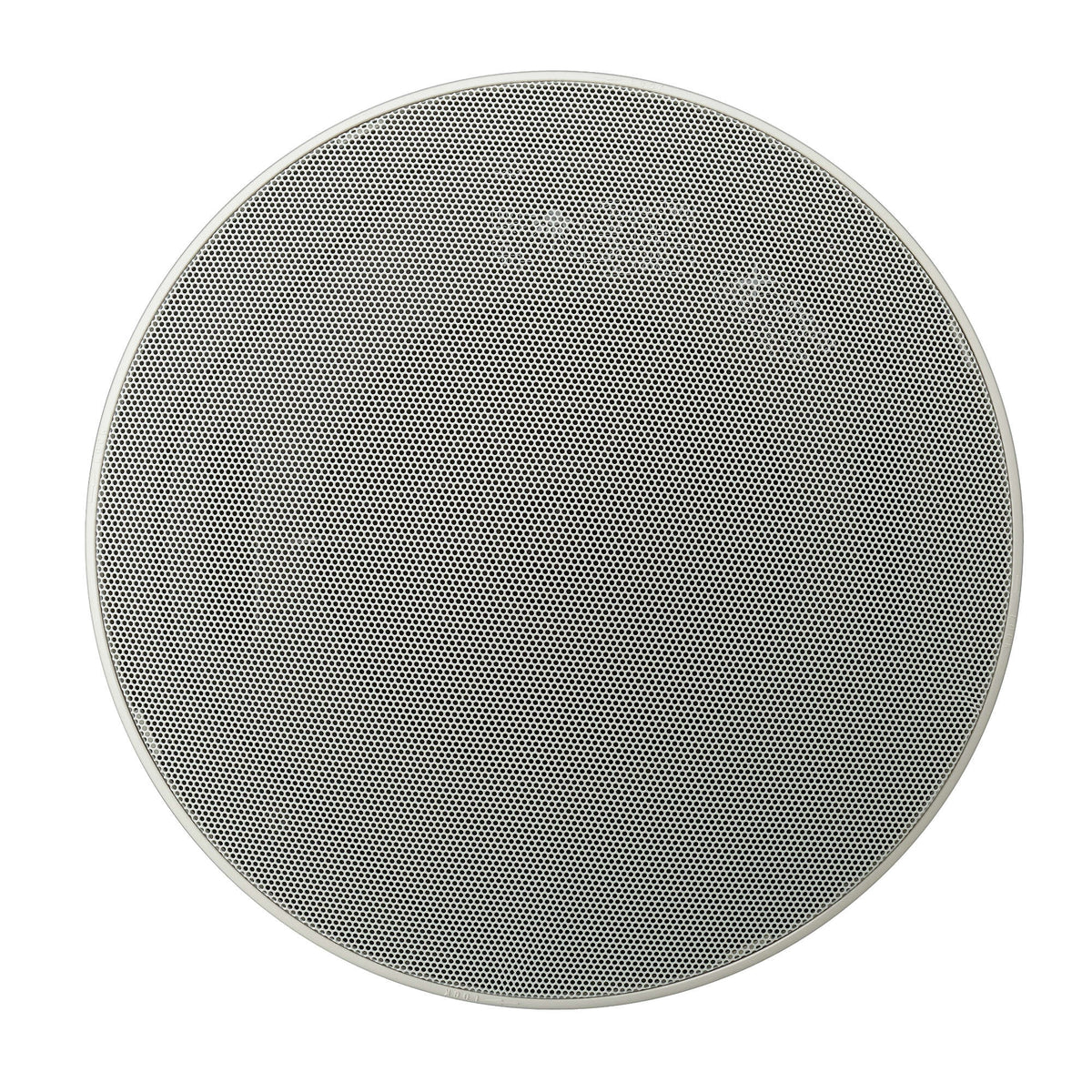

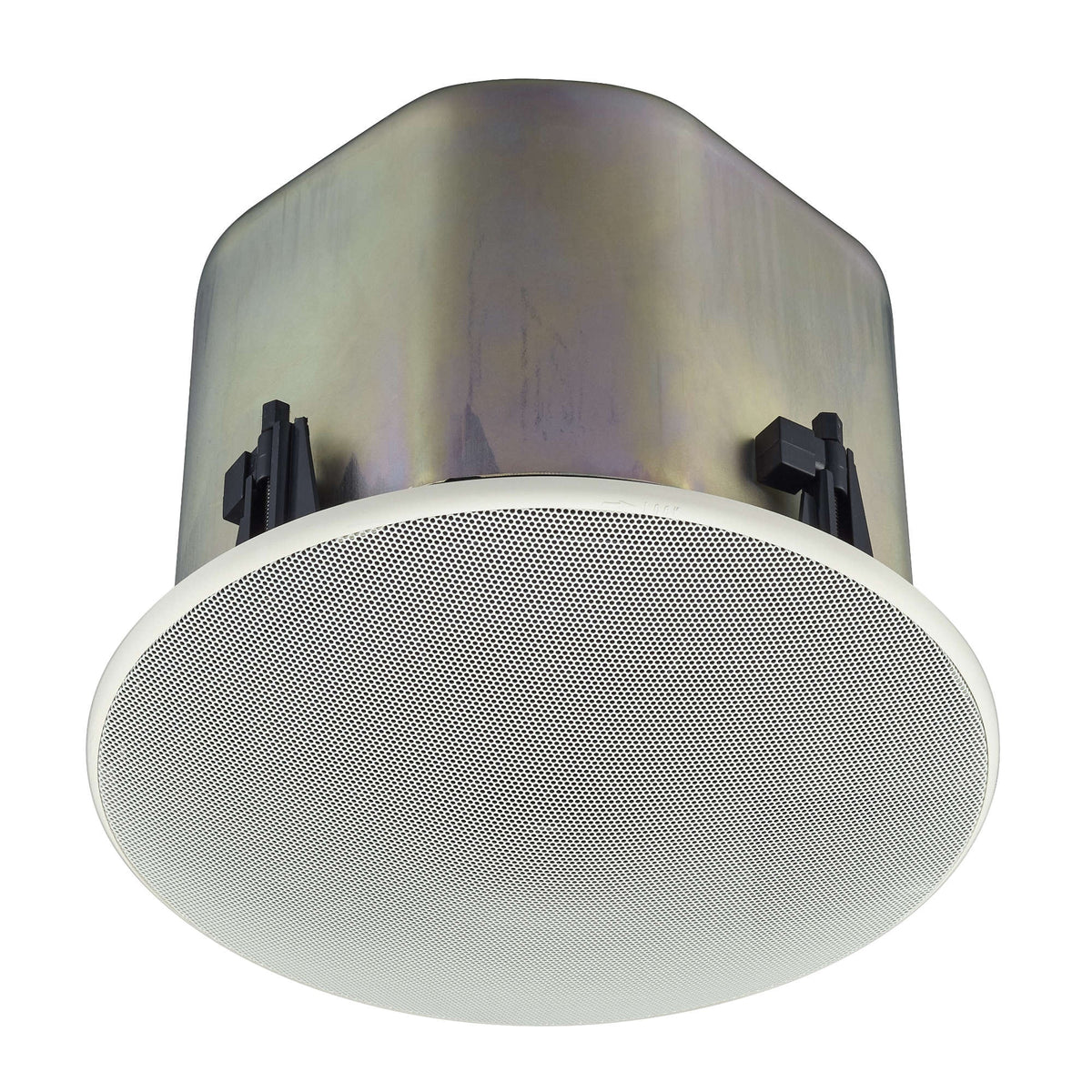

TOA F-2852C Co-Axial Wide Dispersion Ceiling Speaker 6.5"

TOA F-2852C Co-Axial Wide Dispersion Ceiling Speaker 6.5"

SoundPro Item: 53962 | Part Number: F-2852C

$244.00
$302.00 $244.00
Your Price Sold out
MSRP: $302.00 | MAP: $244.00

Usually ships in 5-7 business days

  • Co-Axial Driver Pairing Delivers Coherent Full-Range Sound From A Single Point Source
  • Ported Bass-Reflex Enclosure Extends Low-Frequency Response For High-Ceiling Spaces
  • Special Diffuser Maintains Wide Off-Axis High-Frequency Coverage Across Large Areas
  • Multi-Voltage Transformer Supports 25V, 70V, And 100V Distributed Systems
  • Removable Locking Terminal Block With Loop-Through For Simplified Daisy-Chain Wiring
  • Overload Protection Circuitry Guards Against System Damage In Continuous-Drive Scenarios
  • Fire-Resistant ABS Baffle With UL-94 V-0 Rating Meets Commercial Install Standards
Log in or register for YOUR best price

The TOA F-2852C is a ceiling-mounted coaxial loudspeaker engineered for installed audio applications where consistent, uniform coverage across a wide area is essential. The ported bass-reflex enclosure and co-axial driver configuration, pairing a 6.5" cone woofer with a dome tweeter, make it well-suited for large venues, high-ceiling spaces, transit facilities, houses of worship, and commercial installations where off-axis intelligibility is critical.

The F-2852C supports 25V, 70V, and 100V distributed line systems as well as direct 8-ohm operation, giving integrators flexibility across a wide range of system designs without requiring additional transformers or adapters. A special diffuser extends high-frequency dispersion off-axis so coverage remains balanced whether listeners are directly beneath the speaker or at the perimeter of the coverage zone.

For installation teams, the removable locking terminal block with loop-through bridging simplifies daisy-chain wiring on distributed runs. The steel back-can, included safety cable, and UL-94 V-0 rated fire-resistant ABS baffle meet the construction standards expected in commercial and public-space installs. Overload protection circuitry adds a layer of reliability in continuously driven system environments.

Downloads

View full details

Specifications

Audio
Enclosure
Bass reflex type
Rated Input
60 W (High Impedance)
Power Handling
Continuous pink noise: 90 W (8 Ω); Continuous program: 180 W (8 Ω)
Sensitivity
91 dB (1 W, 1 m)
Frequency Response
60 Hz - 20 kHz (-10 dB), 45 Hz - 20 kHz (-20 dB) at installation in 1/2 free sound field
Speaker Components
High frequency: Dome-type; Low frequency: 16 cm cone-type
Connectivity
Impedance
100 V line: 170 Ω (60 W), 330 Ω (30 W), 670 Ω (15 W), 3.3 kΩ (3 W); 70 V line: 83 Ω (60 W), 170 Ω (30 W), 330 Ω (15 W), 670 Ω (7.5 W), 3.3 kΩ (1.5 W); 25 V line: 83 Ω (7.5 W), 170 Ω (3.7 W), 330 Ω (1.9 W), 670 Ω (0.9 W), 3.3 kΩ (0.2 W); 8 Ω
Input Terminal
Removable locking connector with screw-down terminals (2 input terminals and 2 bridge terminals)
Cable Requirements
Solid copper wire: Ø0.5 - Ø1.6 mm (AWG 24-14); Stranded copper wire: 0.2 - 2.5 mm² (AWG 24-14)
Construction
Mounting Hole
Ø250 mm (Maximum ceiling thickness: 37 mm)
Finish - Enclosure
Steel plate, plating
Finish - Baffle
Fire-resistant ABS resin (UL-94 V-0), black
Finish - Rim
Fire-resistant ABS resin (UL-94 V-0), white, paint
Finish - Grille
Steel plate, white, paint
Dimensions
Overall Dimensions
Ø280 x 227 (D) mm
Weight
Product Weight
5.1 kg (including mounting accessories)
Included Items
Included Accessories
Panel x1, Ceiling reinforcement ring x1, Safety wire x1, Paper pattern x1
Compatibility
Optional Accessories
HY-AH1 (Anchor hanging bracket), HY-TB1 (Tile bar bridge)
