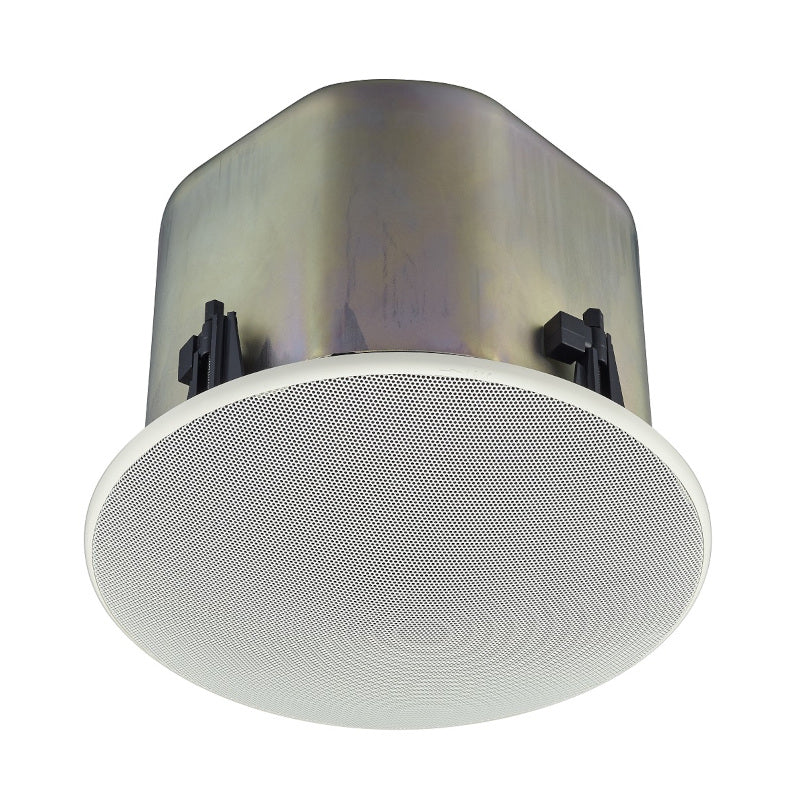

TOA F-2852C 6.5-Inch Ceiling Speaker
TOA F-2852C 6.5-Inch Ceiling Speaker
SoundPro Item: 53962 | Part Number: F-2852C
Usually ships in 5-7 business days
- 2-way, flush-mounted ceiling speaker
- Offers a wide frequency range and high-quality sound output
- Versatile mounting to match a wide range of applications and installation locations
The F-2852C ceiling-mounted speaker covers a wide area and can be used for 25, 70 and100 V line applications. Well-balanced sound can be heard uniformly at any location.
Its two-way, bass-reflex speaker system is designed to provide exceptional lows and clear highs with high power handling capability. It is ideal for locations that have high ceilings or require true-to-life sounds. The uniform sound output levels are achievable not only in the position directly under the speaker, but also over a wide radius. (Coverage angle is approximately 110°.) Because the speaker provides both low- and high-impedance operating capability, it can be used in many different applications. A front panel-mounted input selector switch permits easy verification and change of current impedance/power settings, even after installation. It can be quickly and accurately mounted to ceilings and has a rotating front grille that can be installed/removed quickly and conveniently. It has an attractive exterior design specially created by an interior designer to blend naturally with any architectural space. Optional mounting hardware permits installation in weak ceiling panels.
- EnclosureBass reflex type
- Rated Input60W (High Impedance)
- Power Handling CapacityContinuous pink noise: 90W (8Ω), 60W (16Ω)
- Continuous program180W (8Ω), 120W (16Ω)
- Impedance
- 100V line: 170Ω (60W), 330Ω (30W), 670Ω (15W), 3.3 kΩ (3W)
- 70V line: 83Ω (60W), 170Ω (30W), 330Ω (15W), 670Ω (7.5W), 3.3 kΩ (1.5W)
- 25V line: 83Ω (7.5W), 170Ω (3.7W), 330Ω (1.9W), 670Ω (0.9W), 3.3 kΩ (0.2W) 8Ω
- Sound Pressure Level91 dB (1 W, 1 m)
- Frequency Response60Hz-20kHz (-10dB), 45Hz-20kHz (-20dB) at installation in 1/2 free sound field (Measured by installing the unit in the center of a ceiling.)
- Speaker ComponentHigh frequency: Dome-type, Low frequency: 16 cm cone-type
- Mounting Holeφ250 mm (Maximum ceiling thickness: 37 mm)
- Input TerminalRemovable locking connector with screw-down terminals (2 input terminals and 2 bridge terminals)
- Usable Cable
- Solid copper wire: φ0.5 - φ1.6 mm (equivalent to AWG No. 24-14)
- Stranded copper wire: 0.2 - 2.5 mm22 (equivalent to AWG No. 24-14)
- Finish
- Enclosure: Steel plate, plating
- Baffle: Fire-resistant ABS resin (resin material grade: UL-94 V-0), black
- Rim: Fire-resistant ABS resin (resin material grade: UL-94 V-0), white, paint
- Punched net: Steel plate, white, paint
- Dimensions φ280 × 227 (D) mm
- Weight5.1 kg (including mounting accessories)
- OptionAnchor hanging bracket: HY-AH1, Tile bar bridge: HY-TB1
