TOA M-01F Mic Preamplifier Module

TOA M-01F Mic Preamplifier Module

SoundPro Item: 58382 | Part Number: M-01F

$128.00
$156.00 $128.00
Your Price Sold out
MSRP: $156.00 | MAP: $128.00

In stock and ready to ship

  • For balanced, low impedance microphone
  • High and low cut filters for tone control
  • Phantom power for condenser-type microphones
  • Connector: female XLR
Log in or register for YOUR best price

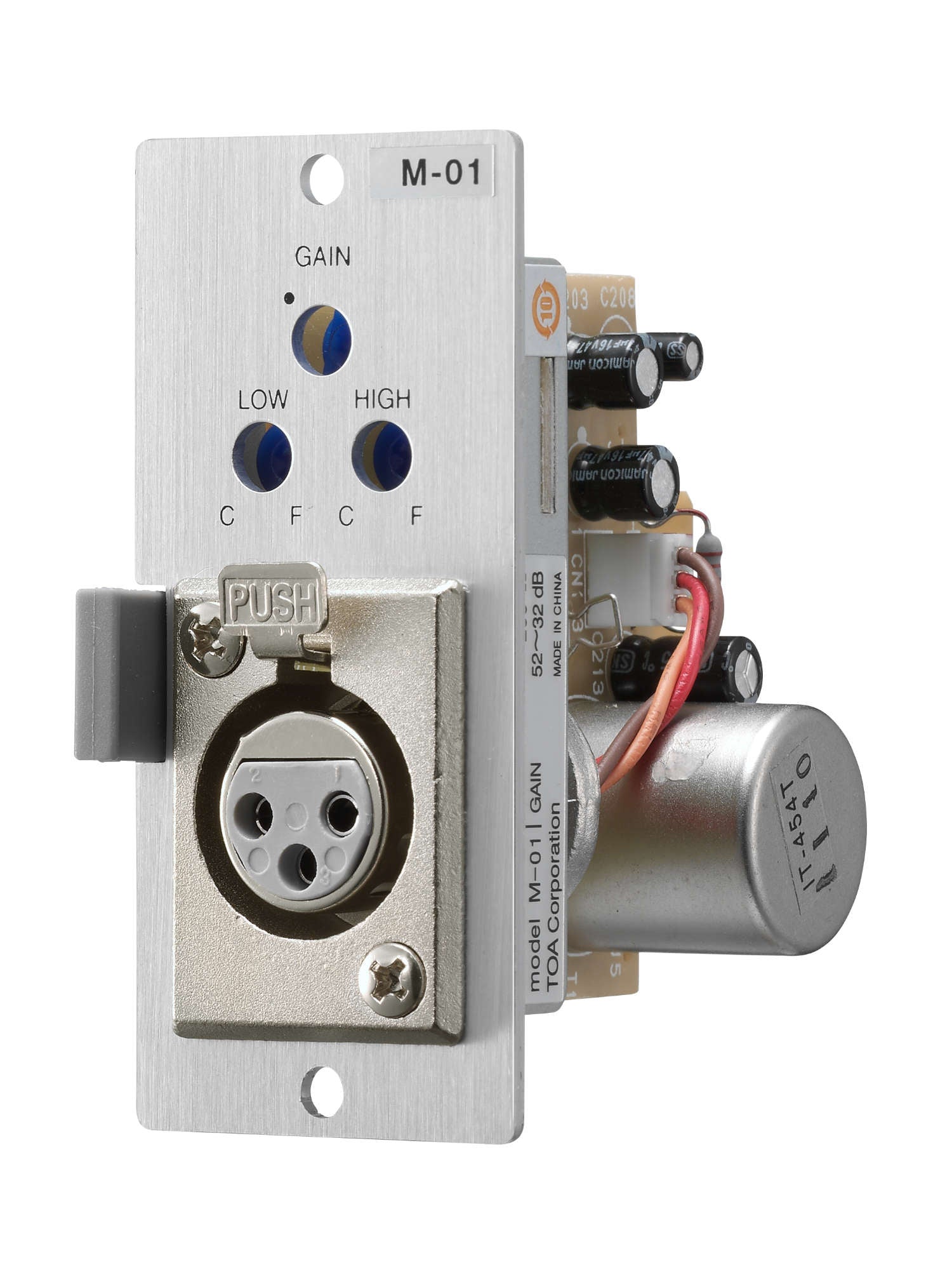

TOA M-01F Mic Input Module with Female XLR.

The M-01F is a microphone input module to be used in conjunction with the 900 series components and other TOA's equipment. It has a transformer balanced microphone input with female XLR type connector, phantom power supply function, and gain and tone controls.

View full details

Specifications

Power Supply
24 V DC (supplied from the main frame)
Current Consumption
9 mA
Input Sensitivity
-60 dB* (balanced transformer-isolated)
Input Impedance
600 O, balanced
Frequency Response
25 Hz - 20 kHz ±2.0 dB
Distortion
0.05 % or less (1 kHz, output: 0 dB*)
Noise Level
-86 dB* (20 Hz - 20 kHz BPF), input equivalent noise: -126 dB*
Gain
32 - 52 dB
Tone Control
100 Hz: 0 to -10 dB, 10 kHz: 0 to -10 dB
Phantom Power
+22 V DC (active or disable selectable)
Connector
Female XLR connector (XLR-3-31 equivalent)
Dimensions
35 (W) x 78 (H) x 88 (D) mm (1.38" x 3.07" x 3.46")
Weight
Max. 110 g (0.24 lb)
