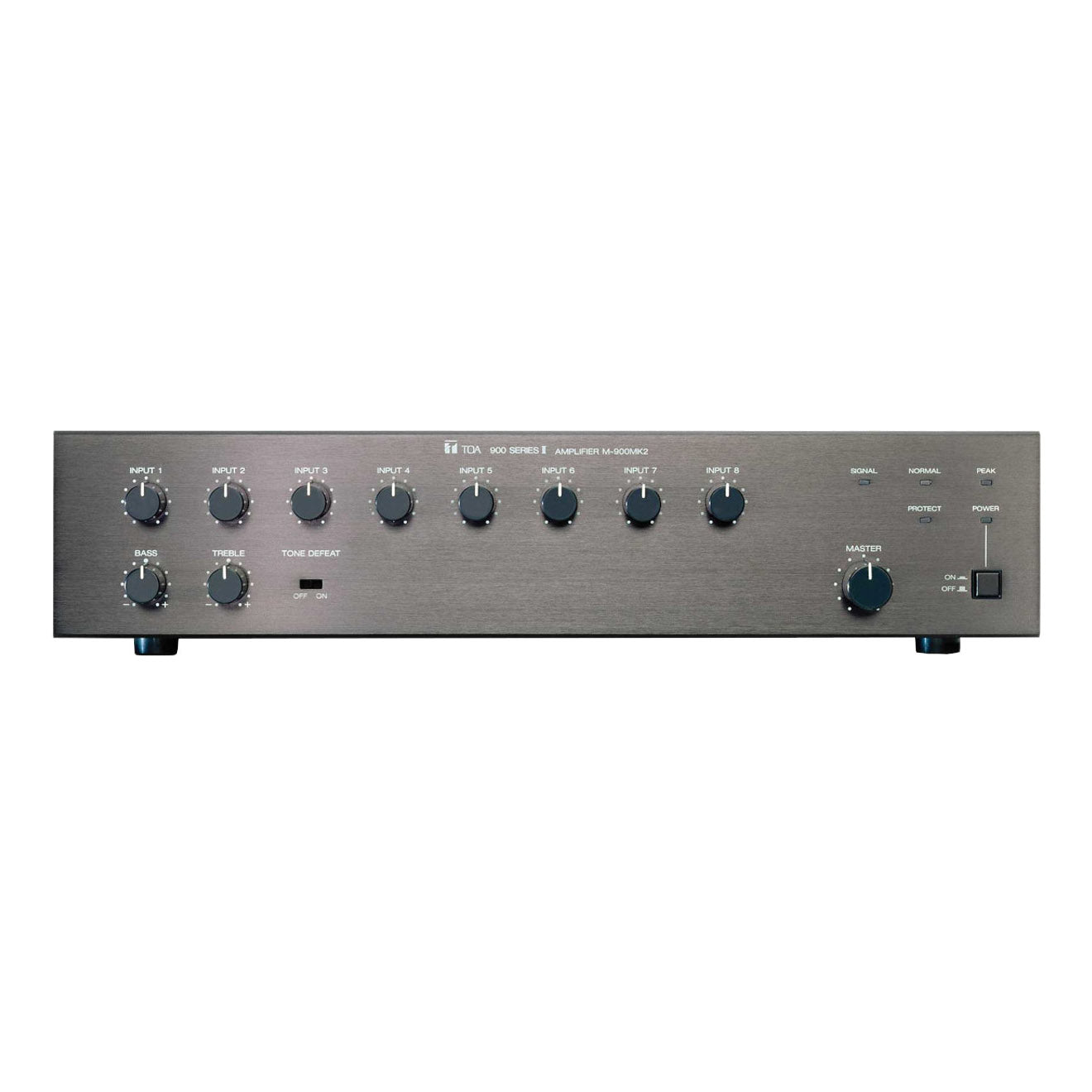

TOA M-900MK2 8-Channel Mixer/Preamplifier

TOA M-900MK2 8-Channel Mixer/Preamplifier

SoundPro Item: 58451 | Part Number: M-900MK2

$576.00
$712.00 $576.00
Your Price Sold out
MSRP: $712.00 | MAP: $576.00

Usually ships in 5-7 business days

  • Controls and mixes up to 8 independent input signals
  • Delivers up to +20 dBm of output power
Log in or register for YOUR best price

The M-900MK2 Mixer Preamplifier controls and mixes up to eight independent input signals and delivers up to +20 dBm of output power. Optional pulg in modules are available for use with mixer preamplifier to provide versatility for a wide range of operating applications.

View full details
  • Type8-channel mixer preamplifier
  • Power RequirementAC mains, 120 V, 60 Hz
  • Power Consumption18W
  • Rated Output+4 dBm, +20 dBm (max.)
  • Power Band Width
    • 30 ~ 20,000 Hz, +20 dBm 0.5% THD
    • 25 ~ 20,000 Hz, +18 dBm 0.5% THD
  • Frequency Response20 ~ 20,000 Hz, ±1 dB
  • THD0.01% at 1 kHz, rated output
  • Inputs
    • Eight Input Ports : Each port accepts any input modules
    • One Bridging Input/Output
  • Input Sensitivity / Impedance
    • Input Port #1 to #8 : 100 mV/10 kΩ
    • Bridging Input/Output : 100 mV/3.3 kΩ
  • Outputs
    • Main : Balanced, 150/600 Ω
    • AUX : Unbalanced, 10 kΩ, 0 dBm
  • Output Regulation (1kHz)Less than 1.5 dB, no load to full load
  • S/N Ratio Tone defeat switch on
    • Master volume min : 90 dB (Band Pass 20 ~ 20,000 Hz)
    • Master volume max : 77 dB (Band Pass 20 ~ 20,000 Hz)
  • Tone ControlsBass : ±10 dB at 100 Hz, Treble : ±10 dB at 10 kHz
  • Controls
    • 8 Input gain controls 1 Master gain control
    • 1 Bass control 1 Treble control
    • 1 Power ON/OFF switch 1 Tone defeat switch
  • Indicators1 Power LED, 1 Protect LED, 1 Signal LED, 1 Normal LED, 1 Peak LED
  • ProtectionSelf-protection, with AC fuse (inside)
  • Connectors
    • Input No.1 to No.8 : Card-edge connector
    • Bridging, Aux output : RCA phone jack
    • Output : Screw-terminal strip
    • Mute, Remote VR : Screw-terminal strip
    • AC power cord/plug : SJT, 3-prong type
    • AC outlet : 3-pin grounding type
  • Temperature Range-10°C ~ +60°C (12°F ~ 140°F)
  • Dimensions (WxHxD)16.54" x 3.9" x 12.11"
  • Weight11.68 pounds
