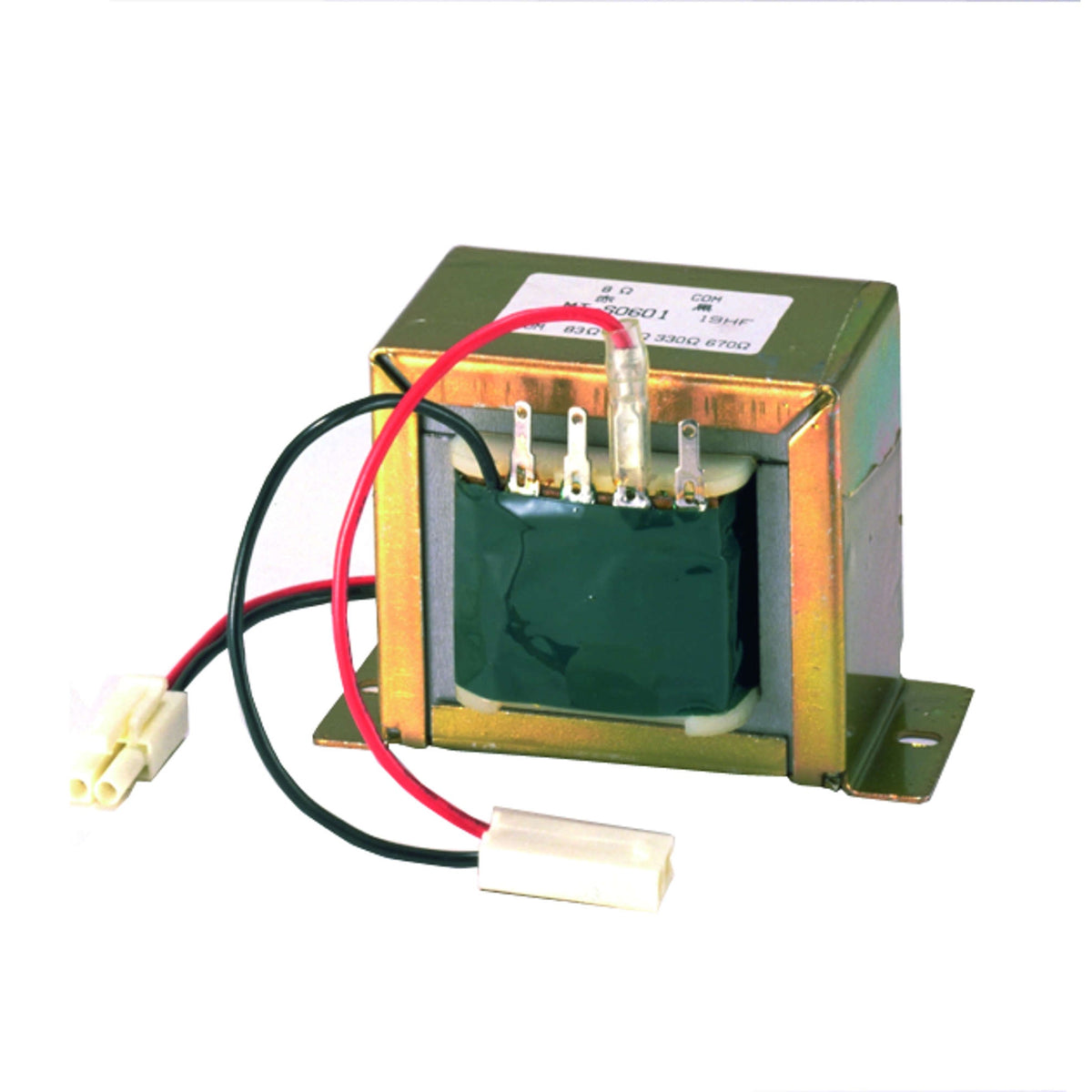

TOA MT-S0601 Impedance Matching Transformer For Line Array Speakers

The TOA MT-S0601 is an internally mounted impedance matching transformer engineered for integration directly inside compatible line array speakers, specifically the HB-1 and S-Type series. It bridges the gap between low-impedance speaker cabinets and constant-voltage distributed audio systems operating on 70V or 100V lines, a requirement common in installed sound environments such as airports, convention centers, houses of worship, and retail facilities.

For AV integrators working within large-scale distributed audio infrastructures, retrofitting low-impedance speakers without a purpose-matched transformer introduces impedance mismatches that degrade system efficiency and drive amplifier loads out of spec. The MT-S0601 eliminates that risk by providing a clean, application-specific conversion with tapped primary impedances across multiple wattage settings, giving system designers the flexibility to balance coverage zones without adding external inline transformers or additional rack equipment.

The compact form factor is sized for internal installation, keeping wiring clean and enclosure integrity intact. An included impedance indication label simplifies field identification during commissioning and future service visits, reducing troubleshooting time on complex multi-zone installations.
