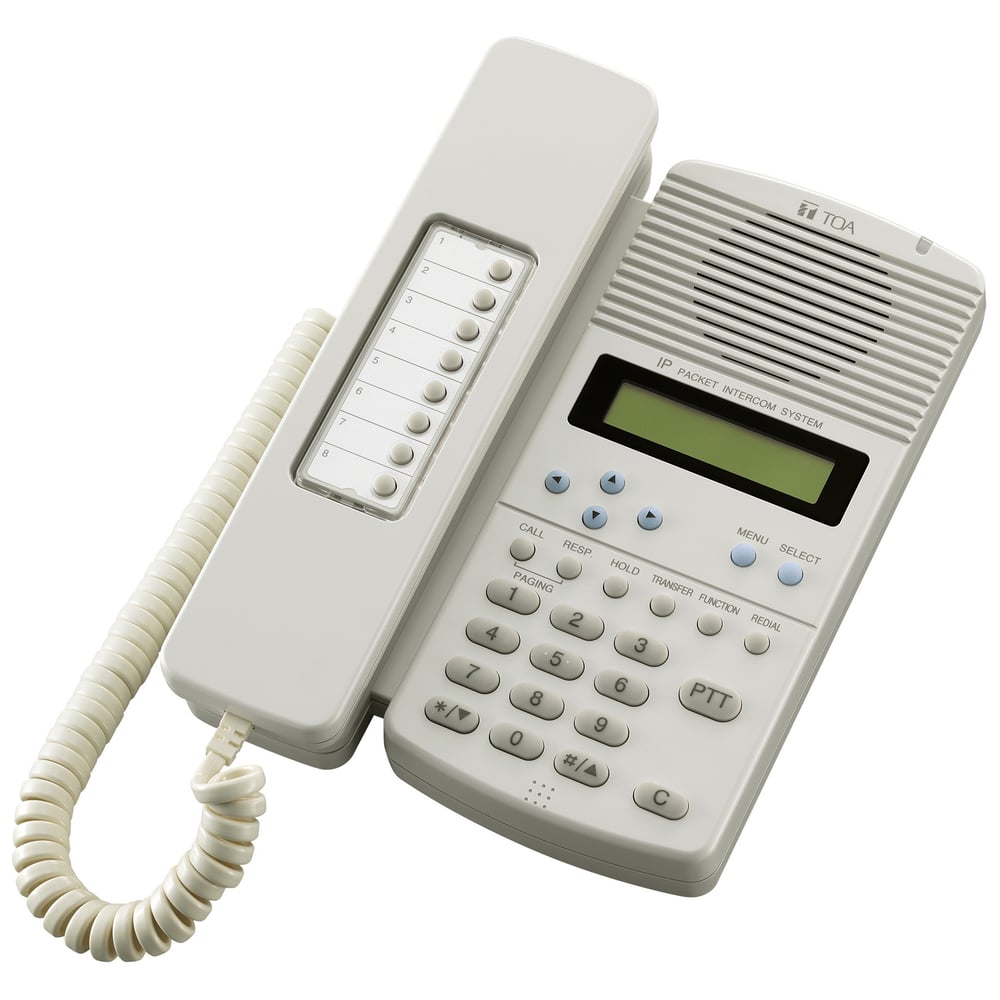

TOA N-8600MS Y IP Multifunctional Master Intercom Station

TOA N-8600MS Y IP Multifunctional Master Intercom Station

SoundPro Item: 202358 | Part Number: N-8600MS Y

Regular price $1,854.00
Regular price $2,294.00 Sale price $1,854.00
Your Price Sold out
MSRP: $2,294.00 | MAP: $1,854.00

Usually ships in 5-7 business days

  • Auto-Dialer Function Enables One-Touch Dialing For Fast Station-To-Station Calls
  • LCD Alphanumeric Display Provides Caller ID And Status At The Operator Position
  • Hands-Free And Handset Modes Suit Both Desktop And Attended Console Workflows
  • Dedicated Headset And External Speaker Terminals Extend Audio To Adjacent Coverage Areas
  • PoE Compatibility Simplifies Installation By Eliminating Local AC Power Requirements
  • Unicast And Multicast Paging Supports Large Multi-Zone IP Intercom Deployments
  • Sub-Band ADPCM Encoding With Cryptosystem Protects Voice Traffic Across The Network

The TOA N-8600MS Y is a professional IP multifunctional master station designed for facility-wide intercom systems in installations such as corporate campuses, healthcare environments, education facilities, and broadcast or production complexes. Using packet audio technology over standard IP networks, it enables high-quality, low-latency voice communication between the master station and remote intercom stations connected through an IP Intercom Exchange, or directly between multiple N-8600MS units across a LAN or WAN.

For systems integrators and AV professionals, the N-8600MS Y delivers the flexibility of both unicast and multicast paging, supporting up to 16 unicast and 191 multicast destinations per session. The built-in auto-dialer enables one-touch dialing for rapid response in time-sensitive environments, while the alphanumeric LCD provides caller identification and status at a glance. The station operates in hands-free or handset mode, and dedicated headset and external speaker terminals extend coverage to larger rooms or operator positions without additional amplification hardware.

Power is supplied via any IEEE 802.3af-compliant PoE switch, eliminating the need for local AC adapters in most deployments and simplifying cable runs. For installations where PoE is unavailable, the optional AD-1215P AC adapter provides an alternative. The desk or surface-mount form factor suits front-of-house, reception, or control room placement, and an optional YC-280 wall bracket accommodates wall-mount needs. Sub-band ADPCM encoding with cryptosystem support and voice packet loss recovery ensures reliable, intelligible audio even on congested networks.

Downloads

View full details

Specifications

Power
Power Source
IEEE 802.3af PoE compliant switching hub or 12 V DC via optional AC adapter
Power Consumption (AC Adapter, 12 V DC)
2.5 W (station only)
Power Consumption (PoE, 48 V DC)
3 W
Audio
Speech Method
Hands-free or handset conversation
Audio Frequency Range
300 Hz - 7 kHz
Hands-Free Speaker
5.7 cm (2.24") cone-type
Hands-Free Microphone
Omni-directional electret condenser microphone
Handset Receive Path
Dynamic type
Handset Send Path
Electret condenser microphone
Voice Sampling Frequency
16 kHz, 8 kHz (controllable via software)
Quantifying Bit Number
16 bits
Voice Encoding Method
Sub-band ADPCM with cryptosystem
Voice Packet Loss Recovery
Silence insertion
Audio Delay Time
80 ms, 320 ms (controllable via software)
Connectivity
Network Interface
10BASE-T/100BASE-TX (Auto-Negotiation)
Network Protocols
TCP/IP, UDP, HTTP, RTP, ARP, ICMP, IGMP
Audio Packet Transmission
Unicast, Multicast
Unicast Paging Destinations
Max. 16
Multicast Paging Destinations
Max. 191
LAN Connector
RJ45 (PoE compatible)
External Speaker Terminal
Max. output 0.5 W, 8 ohm, screwless connector (2 pins)
Headset Speaker Terminal
150 ohm, 3.5 mm (0.14") mini jack
Headset Microphone Terminal
-49 dB, 3.5 mm (0.14") mini jack
Display and Indicators
LCD
Alphanumeric, 16 characters x 2 lines
Status Indicator
Status LED lamp
Construction
Finish
ABS resin, gray (body and handset)
Installation Method
Desk/surface mounted; wall mount via optional YC-280
Dimensions
Dimensions (W x H x D)
148 x 208 x 70.5 mm (5.83" x 8.19" x 2.78") excluding curl cord section
Weight
Weight
770 g (1.7 lbs)
Environmental
Operating Temperature
0 degrees C to +40 degrees C (32 degrees F to 104 degrees F)
Operating Humidity
90% RH or less (no condensation)
Included Items
Included Accessories
CD for PC setting and maintenance use (x1)
Certifications
PoE Standard
IEEE 802.3af
