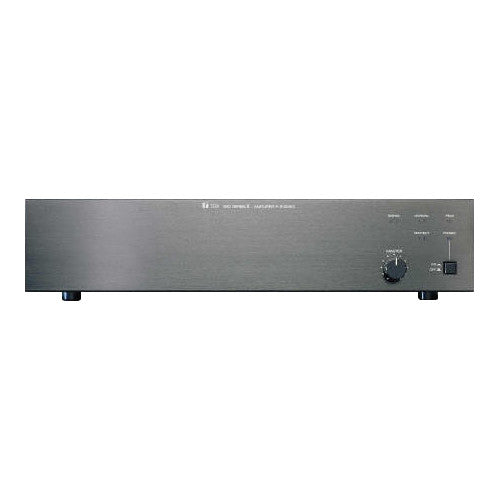

TOA P-912MK2 Single-Channel 120W Power Amplifier

TOA P-912MK2 Single-Channel 120W Power Amplifier

SoundPro Item: 61557 | Part Number: P-912MK2

$835.00
$1,031.00 $835.00
Your Price Sold out
MSRP: $1,031.00 | MAP: $835.00

Usually ships in 5-7 business days

  • Power Amplifier
  • Delivers up to 120W output power
  • Input port accepts one plug-in module
  • Includes volume control cover
Log in or register for YOUR best price

The P-912MK2 Power Amplifier delivers up to 120 watts of output power. The power amplifier has an input port to accept one plug-in module.

View full details
  • TypePower amplifier
  • Power Requirement AC mains, 120 V, 60 Hz
  • Power Consumption 180 W
  • Output Power 120 W RMS
  • Power Band Width
    • (D) 20 ~ 20,000 Hz, 0.5% THD
    • (T) 50 ~ 20,000 Hz, 0.5% THD
  • Frequency Response
    • (D) 20 ~ 20,000 Hz, ±1 dB
    • (T) 20 ~ 15,000 Hz, ±1 dB, (T) 20 ~ 20,000 Hz, +1 dB, -3 dB
  • T.H.D0.01% at 1 kHz, rated output
  • Inputs
    • One Input Port : Port accepts any input module expect T-01.
    • One Direct Input
    • * Use of direct input prohibits use of modular input port
  • Input Sensitivity /Impedance
    • Input Port : 100 mV or 1000 mV (switchable)/10 kΩ
    • Direct Input : 100 mV or 1000 mV (switchable)/10 kΩ
  • Outputs(T)=Transformer (D)=Direct
    • Main (T) : 8 Ω, 25 and 70 volts, balanced
    • Main (D) : 4 Ω, unbalanced
  • Output Regulation(1kHz)
    • (D) Less than 0.5 dB, no load to full load
    • (T) Less than 1.0 dB, no load to full load
  • S/N Ratio(Band Pass 20 ~ 20,000 Hz)
    • Input level switch in 0 dBV (1000 mV) position : 108 dB
    • Input level switch in -20 dBV (100 mV) position : 90 dB
  • Controls
    • 1 Input gain control 1 Input level switch
    • 1 Power ON/OFF switch 1 Low-Cut switch
  • Indicators1 Power LED, 1 Protect LED, 1 Signal LED, 1 Normal LED, 1 Peak LED
  • ProtectionSelf-protection, with AC fuse (inside)
  • Connectors
    • Input : Card-edge connector and screw-terminal strip
    • Output : Screw-terminal strip
    • AC outlet : 3-pin grounding type
    • AC power cord/plug : SJT, 3-prong type
  • Temperature Range-10°C ~ +60°C (12°F ~ 140°F)
  • FinishBlack
  • Dimensions(W×H×D)420(16.54") × 99.1(3.90") × 358(14.09") mm
  • Weight10.9 kg (24.03 lb.)
