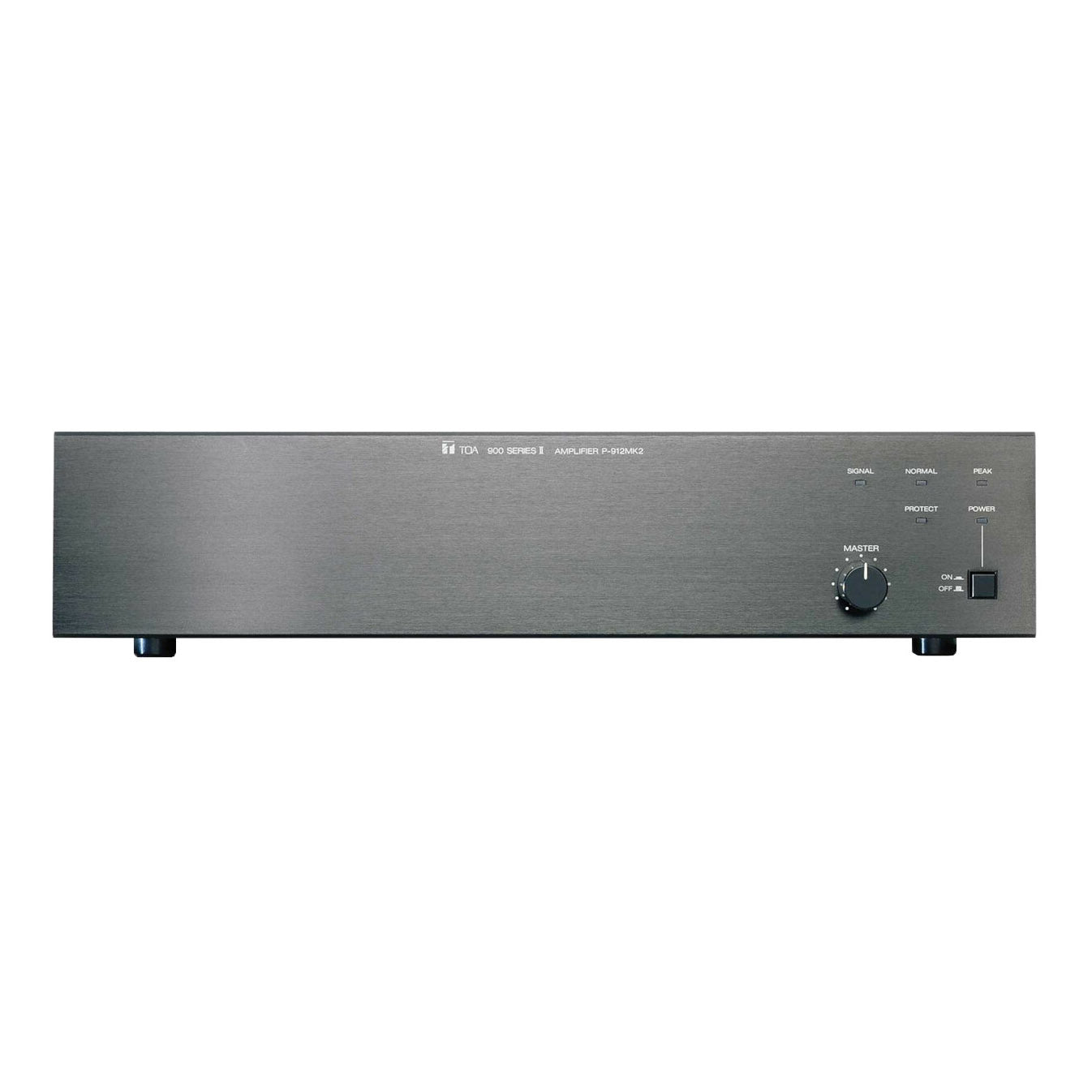

TOA P-924MK2 Single-Channel 240W Power Amplifier

TOA P-924MK2 Single-Channel 240W Power Amplifier

SoundPro Item: 61558 | Part Number: P-924MK2

$1,449.00
$1,791.00 $1,449.00
Your Price Sold out
MSRP: $1,791.00 | MAP: $1,449.00

Usually ships in 5-7 business days

  • Power Amplifier
  • Delivers up to 240W (direct) or 220W (transformer) output power
  • Input port accepts one plug-in-module
  • Includes volume control cover
Log in or register for YOUR best price

The P-924MK2 Power Amplifier from TOA delivers up to 240 watts (Direct)/220 watts (Transformer) of output power. The power amplifier has an input port to accept one plug-in module.

View full details
  • TypePower amplifier
  • Power RequirementAC mains, 120 V, 60 Hz
  • Power Consumption120 V /3 A
  • Output Power
    • (D) 240 W RMS
    • (T) 220 W RMS
  • Power Band Width
    • (D) 20 - 20,000 Hz, 0.5 % THD
    • (T) 50 - 20,000 Hz, 0.5 % THD
  • Frequency Response
    • (D) 20 - 20,000 Hz, ±1 dB
    • (T) 20 - 15,000 Hz, ±1 dB, (T) 20 - 20,000 Hz, +1 dB, -3 dB
  • T.H.D0.01 % at 1 kHz, rated output
  • Inputs
    • One Input Port: Port accepts any input module exept T-01.
    • One Direct Input
    • * Use of direct input prohibits use of modular input port
  • Input Sensitivity /Impedance
    • Input Port: 100 mV or 1000 mV (switchable)/10 kΩ
    • Direct Input: 100 mV or 1000 mV (switchable)/10 kΩ
  • Outputs(T)=Transformer (D)=Direct
    • Main (T): 8 Ω, 25 and 70 volts, balanced
    • Main (D): 4 Ω, unbalanced
  • Output Regulation(1kHz)
    • (D) Less than 0.5 dB, no load to full load
    • (T) Less than 1.0 dB, no load to full load
  • S/N Ratio(Band Pass 20-20,000Hz)
    • Input level switch in 0 dBV (1000 mV) position: 108 dB
    • Input level switch in -20 dBV (100 mV) position: 90 dB
  • Controls
    • 1 Input gain control 1 Input level switch
    • 1 Power ON/OFF switch 1 Low-Cut switch
  • Indicators1 Power LED, 1 Protect LED, 1 Signal LED, 1 Normal LED, 1 Peak LED
  • ProtectionSelf-protection, with 2AC fuses and 2DC fuses (inside)
  • Connectors
    • Input: Card-edge connector and screw-terminal strip
    • Output: Screw-terminal strip
    • AC outlet: 3-pin grounding type
    • AC power cord/plug: SJT, 3-prong type
  • Temperature Range-10 °C to +60 °C
  • FinishBlack
  • Dimensions420 (W) × 151.3 (H) × 334.2 (D) mm
  • Weight19.5 kg
