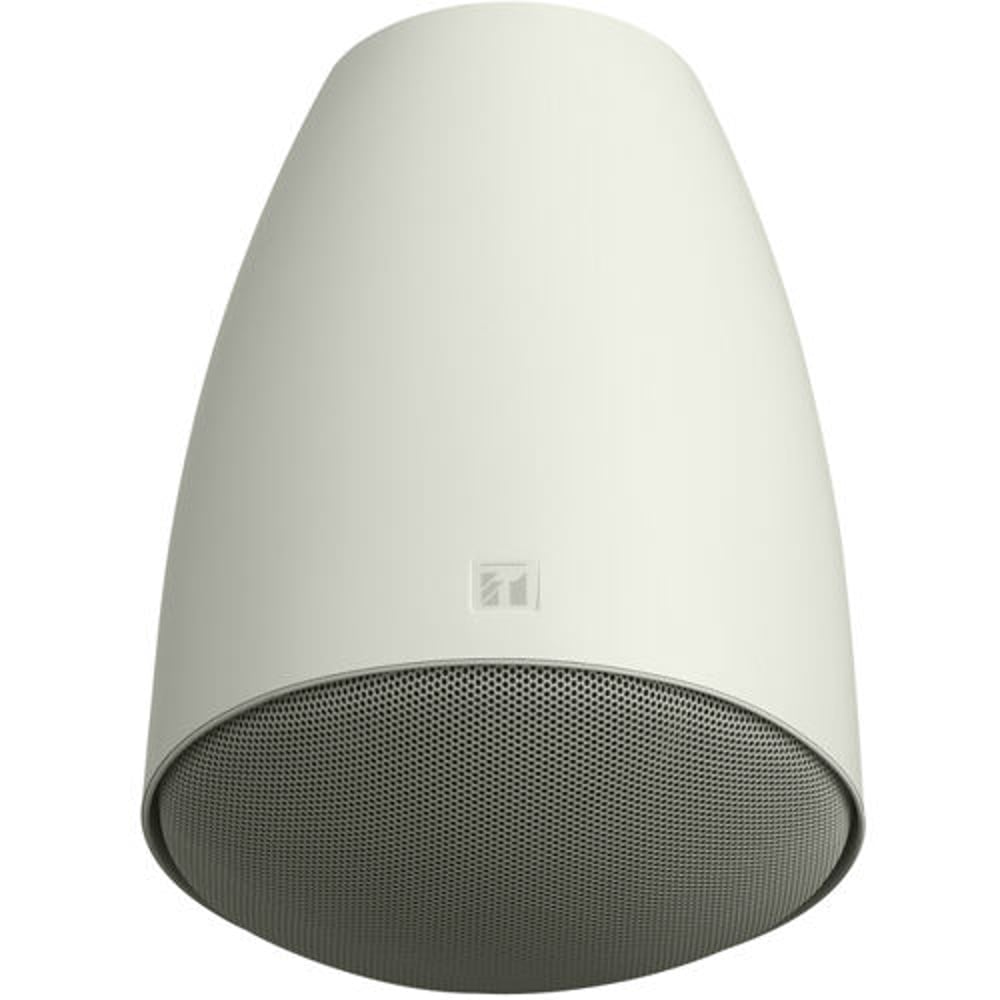

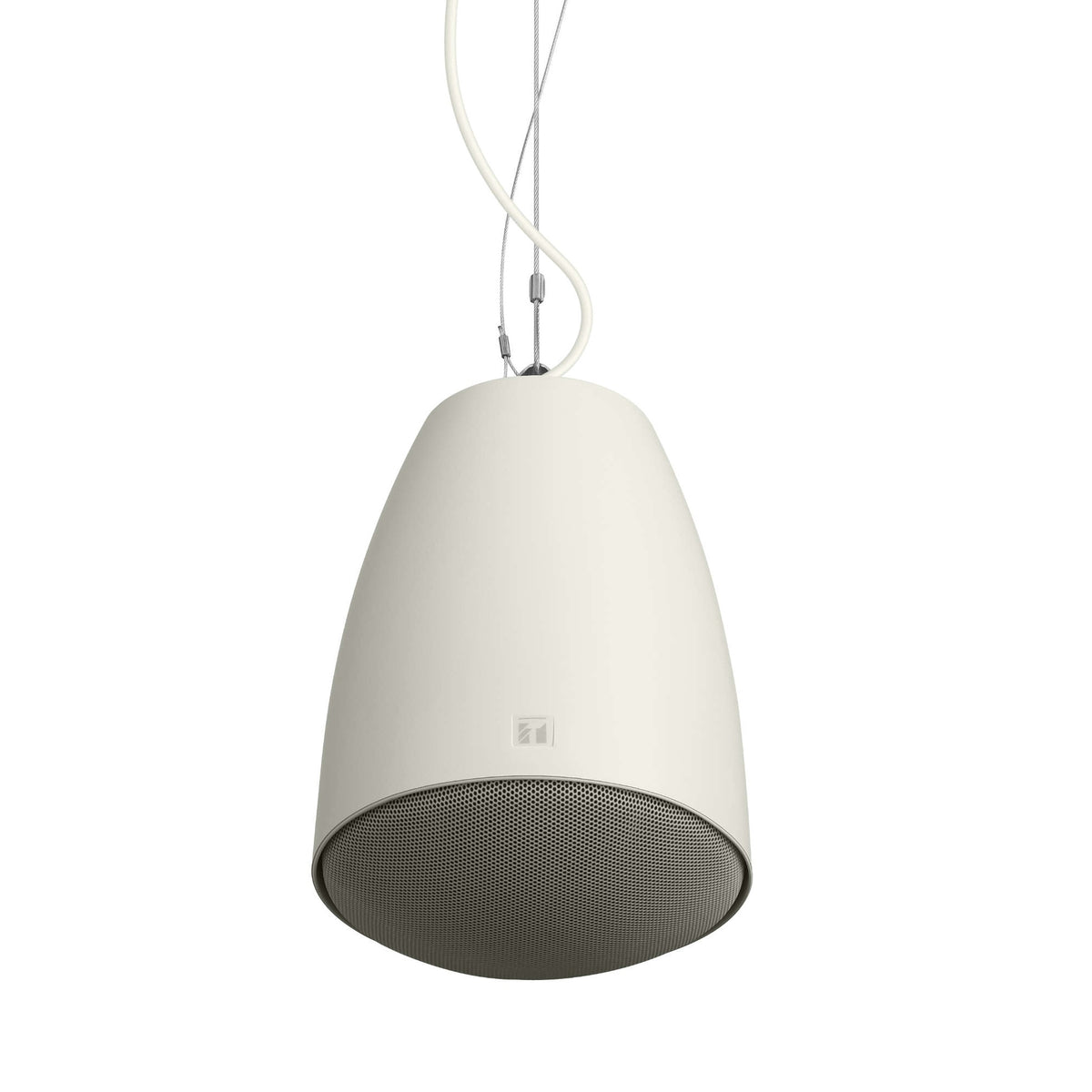

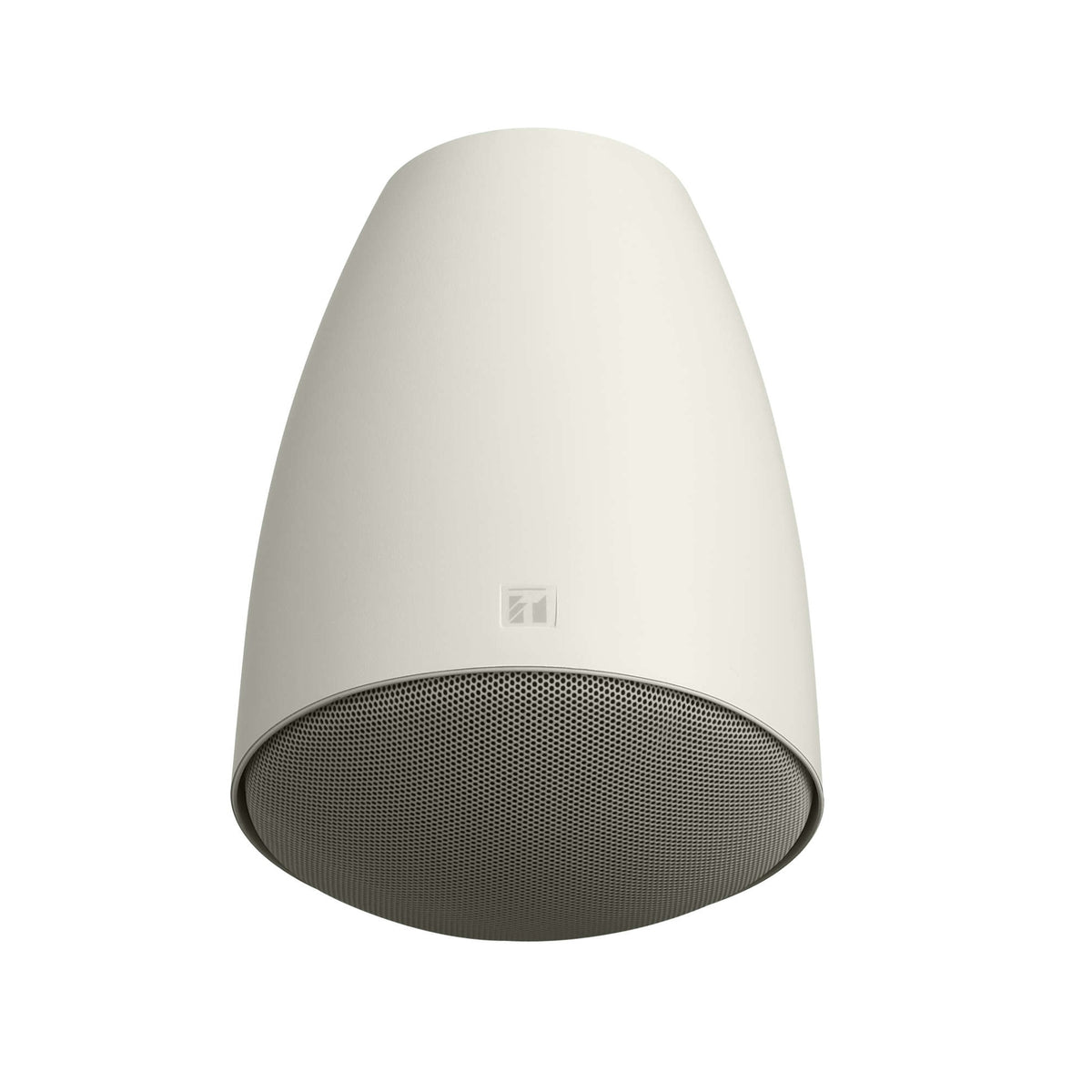

TOA PE-304 Pendant Speaker Pendant Speaker 5" 2-Way Full-Range Ceiling | White | UL Certification

TOA PE-304 Pendant Speaker Pendant Speaker 5" 2-Way Full-Range Ceiling | White | UL Certification

SoundPro Item: 61852 | Part Number: PE-304WU

$251.00
$309.00 $251.00
Your Price Sold out
MSRP: $309.00 | MAP: $251.00

Usually ships in 5-7 business days

  • Dual-Mode Operation On 8 Ohm And High-Impedance Lines Suits Multi-Zone Distributed Systems
  • Field-Adjustable Input Impedance Simplifies Tap Changes During Installation Or Commissioning
  • Bass-Reflex Enclosure Design Extends Low-Frequency Output For Full-Range Coverage
  • 5" Two-Way Driver With Dome Tweeter Covers BGM And Voice Paging Frequencies
  • Architectural Pendant Form Factor Blends With Ceiling Lighting Fixtures
  • Available In Black And White Finishes To Match Project Specifications
  • Available With Or Without UL 1480 Life Safety Certification For Code-Compliant Installs
Log in or register for YOUR best price

The TOA TOA PE-304 Pendant Speaker pendant speaker family is designed for AV integrators and systems contractors specifying ceiling suspension loudspeakers in commercial, hospitality, house of worship, and institutional environments. Each model operates on both low-impedance (8 ohm) and high-impedance distributed lines, with input power taps adjustable directly at the speaker body, simplifying multi-zone system design and on-site commissioning without requiring additional hardware.

The pendant form factor draws from architectural lighting aesthetics, making these speakers appropriate for spaces where visual integration matters as much as acoustic performance. The 5-inch, 2-way driver configuration with a dome tweeter provides coverage across the full speech-intelligibility range and beyond, supporting both background music playback and voice paging with equal capability. The family is offered in color options and UL certification levels to match project finish schedules and life-safety code requirements, giving integrators a single speaker platform that scales from standard commercial installs to UL 1480-listed fire alarm speaker applications.

Compared to generic pendant speakers, the TOA PE-304 Pendant Speaker series provides a field-adjustable impedance selector, a pre-attached suspension cable for faster rigging, and a paintable or finished enclosure that reduces finish coordination time on complex architectural projects. Whether specifying for a hotel lobby, retail environment, or a distributed announcement system in a multi-zone facility, this family covers the core requirements without requiring supplemental hardware or custom fabrication.

Downloads

View full details

Specifications

Certifications
UL Certification
UL 1480 UUMW, ULC-S541
Dimensions
Diameter
7.32"
Height
10.83"
Weight
Unit Weight
4.41 lbs
Audio
Rated Input
30 W (100 V, 70 V line, 8 ohm); 3.7 W (25 V line)
Sensitivity
90 dB (1 W, 1 m) (330 Hz - 3.3 kHz, pink noise)
Frequency Response
95 Hz - 20 kHz (-10 dB)
Speaker Component
12 cm (5") cone-type + balanced dome-tweeter (coaxial)
Enclosure
Bass-reflex type
Connectivity
Rated Impedance
100 V line: 330 ohm (30 W), 1 kohm (10 W), 3.3 kohm (3 W), 10 kohm (1.3 W); 70 V line: 170 ohm (30 W), 330 ohm (15 W), 1 kohm (5 W), 3.3 kohm (1.5 W), 10 kohm (0.6 W); 25 V line: 170 ohm (3.7 W), 330 ohm (1.9 W), 1 kohm (0.6 W), 3.3 kohm (0.2 W), 10 kohm (0.1 W); Low impedance: 8 ohm
Construction
Enclosure Material
ABS resin, white (RAL 9010 equivalent)
Grille Material
Surface-treated steel plate mesh, white (RAL 9010 equivalent), paint
Color
White
Environmental
Operating Temperature
14 degrees F to 122 degrees F (-10 degrees C to +50 degrees C)
Included Items
Included Accessories
GRIPPLE No.1 x 1, GRIPPLE No.2 x 1, Release key (for GRIPPLE) x 1, Safety wire (0.06" dia.) x 1, Hanging wire (0.08" dia.) x 1, Speaker Cable (4-core FPL listed cable 15.09 ft) x 1
