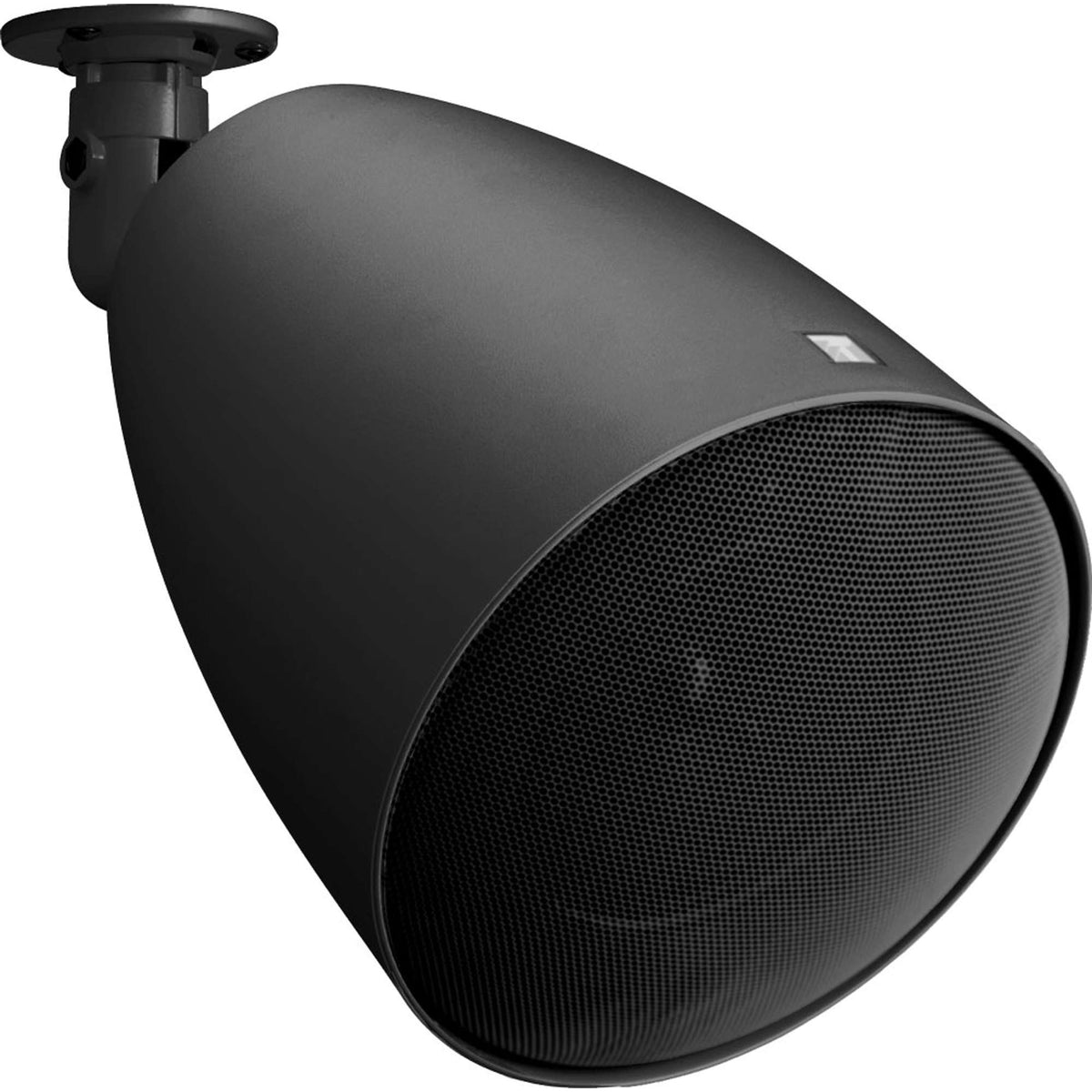

TOA Q-PJ-304BK Surface Mount Projection Speaker 70V | Black

TOA Q-PJ-304BK Surface Mount Projection Speaker 70V | Black

SoundPro Item: 124642 | Part Number: Q-PJ-304BK

$187.00
$230.00 $187.00
Your Price Sold out
MSRP: $230.00 | MAP: $187.00

Usually ships in 5-7 business days

  • Selectable 100V, 70.7V, And 8-Ohm Operation Adapts To Any Distributed Audio System
  • Included Swivel Bracket Enables Post-Installation Aiming Without Remounting
  • Architectural Pendant Profile Blends With Lighting Fixtures In Designed Interiors
  • Paintable HIPS Resin Enclosure Matches Any Interior Color Scheme
  • Bass-Reflex Enclosure Extends Low-Frequency Output For Distributed Audio Clarity
  • Dual-Driver Design Combines Cone Woofer And Dome Tweeter For Broadband Coverage
Log in or register for YOUR best price

The TOA Q-PJ-304BK is a surface-mount projection speaker built for permanent installation in commercial and institutional spaces where aesthetics matter as much as audio performance. Its pendant silhouette draws from architectural lighting design, making it a practical choice for lobbies, retail environments, houses of worship, conference centers, and hospitality venues where exposed utility hardware is not acceptable. Installers working with background music, paging, or speech intelligibility systems will find the selectable impedance particularly valuable: the 100V, 70.7V, and 8-ohm settings are accessible directly at the top of the enclosure, removing the need to rewire when system architecture changes.

The included swivel bracket provides directional flexibility that fixed-mount alternatives cannot match, allowing the coverage pattern to be aimed at a listening zone after final positioning without pulling the speaker from its mount. The bass-reflex enclosure and dual-driver configuration extend low-frequency output and high-frequency clarity beyond what single-driver ceiling speakers in the same class typically deliver. The HIPS resin enclosure accepts standard paint, giving integrators and facility managers a straightforward path to color-matching the speaker to any interior finish without voiding the design intent.

Downloads

View full details

Specifications

Audio
Rated Input
30 W (100 V, 70 V line, 8 Ω)
Rated Impedance
100 V line: 330 Ω (30 W), 500 Ω (20 W), 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W); 70 V line: 170 Ω (30 W), 250 Ω (20 W), 330 Ω (15 W), 500 Ω (10 W), 1 kΩ (5 W); 8 Ω
Sensitivity
91 dB (1 W, 1 m) (500 - 5,000 Hz, pink noise)
Frequency Response
70 - 20,000 Hz (peak -20 dB)
Speaker Component
12 cm (5") cone-type + balanced dome-tweeter
Construction
Enclosure Type
Bass-reflex
Enclosure Material
HIPS resin, black
Grille Material
Surface-treated steel plate net, black, paint
Speaker Cable
2-core cabtyre cord, 60 cm (1.97 ft), 6 mm (0.24") diameter
Dimensions
Diameter x Height
Ø186 x 251 (H) mm (Ø7.32" x 9.88") (unit only)
Weight
Unit Weight
2.1 kg (4.63 lb) (unit only)
Included Items
Swivel Bracket
1
Speaker Mounting Screw (4 x 16)
3
