TOA Q-RM9012PS Digital Matrix Paging Microphone For 12 Zones

TOA Q-RM9012PS Digital Matrix Paging Microphone For 12 Zones

SoundPro Item: 107723 | Part Number: Q-RM9012PS

$511.00
$630.00 $511.00
Your Price Sold out
MSRP: $630.00 | MAP: $511.00

Usually ships in 5-7 business days

  • Up To 12-Zone Paging Control For Flexible Distributed Audio Coverage
  • Individual And Group Zone Selection Streamlines Multi-Area Announcements
  • All-Call Button Triggers Simultaneous Broadcast Across Every Zone
  • Cancel Key Clears All Active Zone Selections Instantly
  • Unidirectional Electret Condenser Capsule Optimized For Speech Intelligibility
  • Balanced Audio Output Maintains Signal Integrity Over Long Cable Runs
  • Includes AD-246 Power Supply For Complete Out-Of-Box Integration
Log in or register for YOUR best price

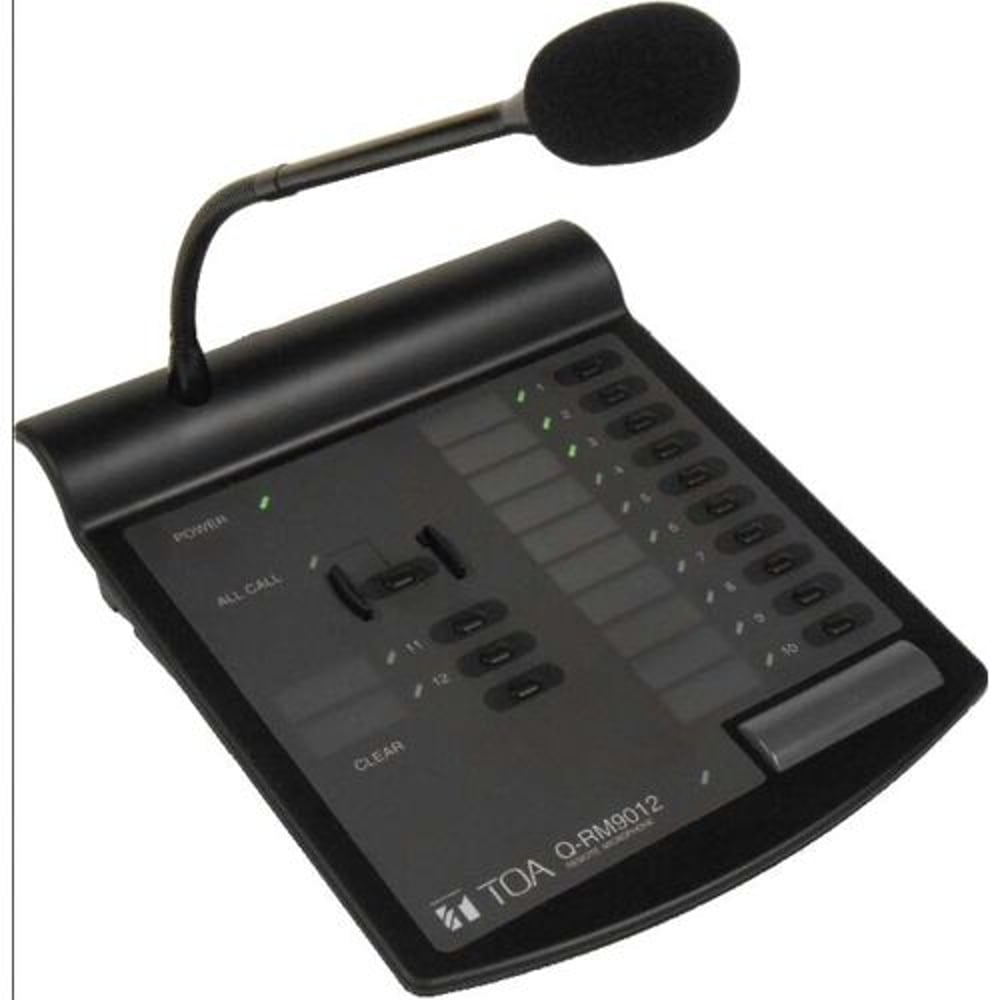

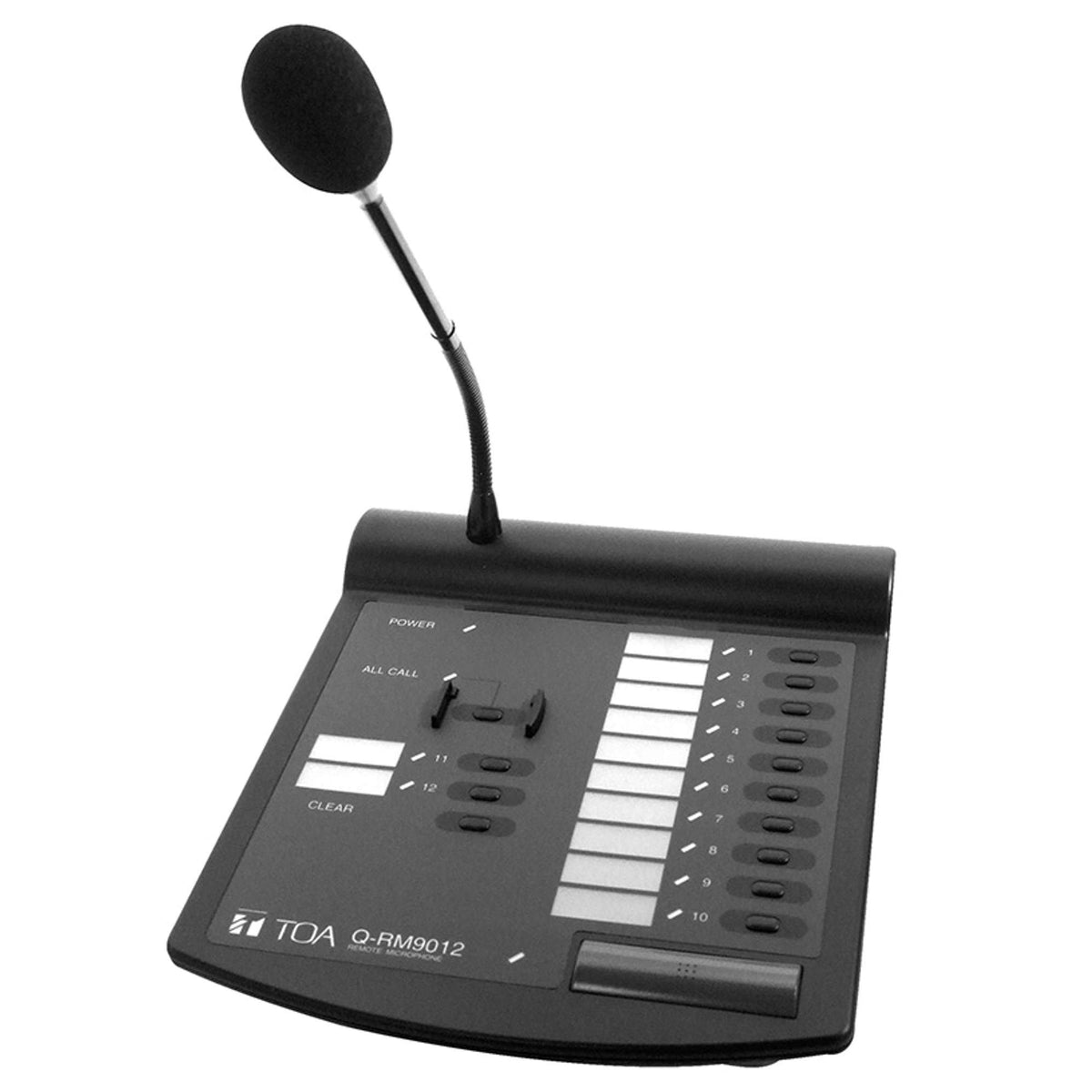

The TOA Q-RM9012PS is a purpose-built remote paging microphone designed for use with TOA M-9000M2 Series digital matrix mixer amplifiers and compatible paging systems. It provides facilities managers, installed AV integrators, and system operators with direct, flexible zone control from a single desktop unit, making it a practical choice for distributed audio installations in commercial buildings, campuses, transit facilities, and houses of worship.

The microphone delivers up to 12 contact closure outputs alongside a balanced audio signal, allowing the connected amplifier to initiate or terminate paging on demand. Zone selection is handled through dedicated per-zone keys, with group selection and an all-call key for facility-wide announcements. A cancel key clears all active selections instantly, reducing operator error during time-sensitive broadcasts. The unidirectional electret condenser capsule provides clean, intelligible voice pickup suitable for speech-critical paging environments where background noise rejection matters. The unit ships with the AD-246 power supply, so the system is ready to integrate without sourcing additional components.

Downloads

View full details

Specifications

Audio
Element
Unidirectional electret condenser microphone
Frequency Response
100-20,000 Hz
Output Terminal
0 dB, 600 Ohm transformer balanced, RJ45 connector
Controls
Talk Switch
12 zone selection keys, all call key, cancel key, talk key
Output
12 channels, open collector output, withstand voltage: 27V DC, control current: max. 50 mA, (2) RJ45 connectors
Construction
Finish
ABS resin, black
Type
Gooseneck
Dimensions
Dimensions
190 (W) x 76.5 (H) x 215 (D) mm (7.48" x 3.01" x 8.46") (Gooseneck microphone excluded)
Weight
Weight
750g (1.65 lbs)
Electrical
Power Source
24V DC from AC adaptor AD-246 or equivalent
Environmental
Operating Temperature
-10 degrees C to +40 degrees C (14 degrees F to 104 degrees F)
Included Items
Power Supply
AD-246 AC Adaptor
Identifiers
Optional Accessories
AD-246 AC Adaptor
