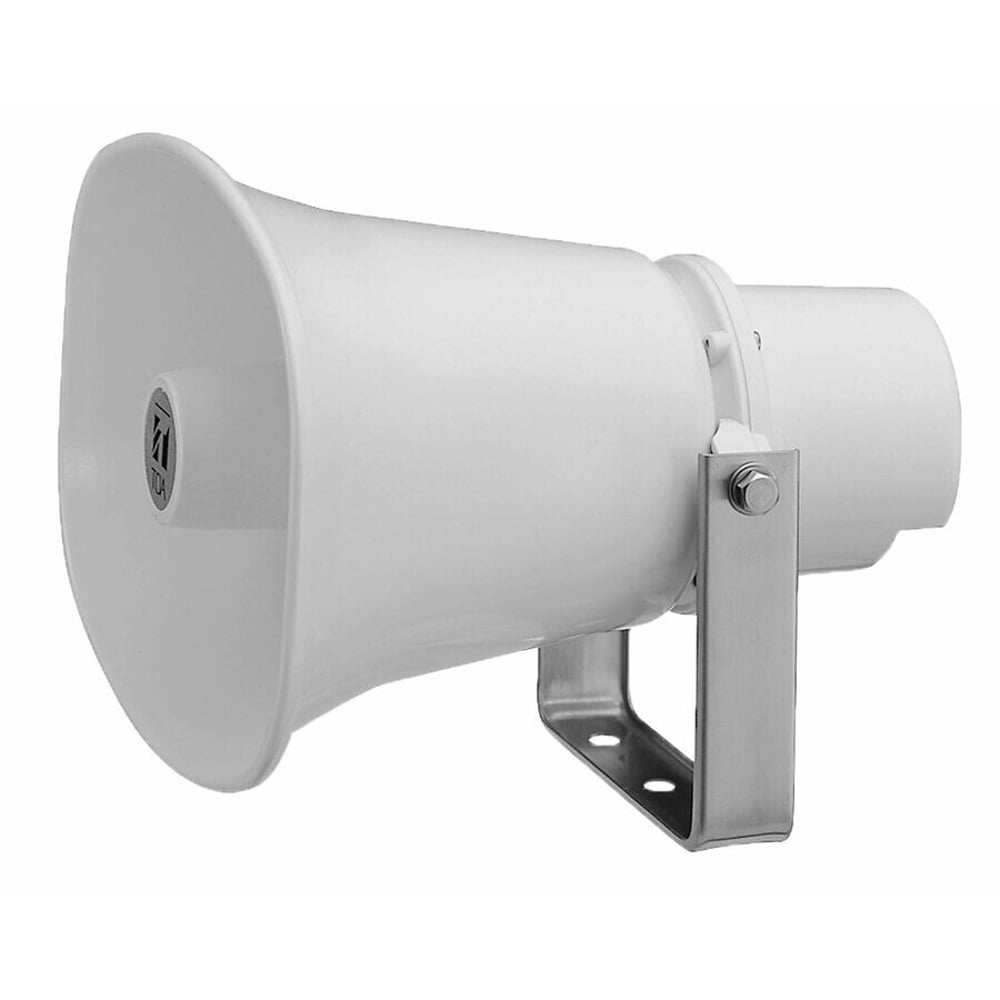

TOA Q-SC-P620 Powered Horn Speaker For Public Address

TOA Q-SC-P620 Powered Horn Speaker For Public Address

SoundPro Item: 107724 | Part Number: Q-SC-P620

$298.00
$370.00 $298.00
Your Price Sold out
MSRP: $370.00 | MAP: $298.00

Usually ships in 5-7 business days

  • Integrated Class D Amplifier Eliminates Need For External Amplification Hardware
  • Switchable Gain Settings Allow On-Site Level Calibration Without Rack Access
  • Internal Volume Control Enables Fine Tuning After Initial Installation
  • IP65 Weatherproof Rating Supports Reliable Long-Term Outdoor Deployment
  • Compatible With IP CCTV Audio Line Outputs For Surveillance-Integrated PA
  • Powder-Coated Finish With Stainless-Steel Hardware Resists Corrosion And UV Exposure
Log in or register for YOUR best price

The TOA Q-SC-P620 is built for integrators and AV professionals who need a self-contained, weather-resistant public address solution in environments where reliability cannot be compromised. Train stations, airports, transit corridors, and large outdoor venues all benefit from its compact horn form factor and intelligible high-frequency projection. Unlike passive horn systems that require a separate amplifier rack, this unit arrives ready to connect directly to a 12V DC power supply and an audio source, reducing installation complexity and rack space requirements significantly.

Integration into IP CCTV infrastructure is a primary use case. The speaker accepts an unbalanced RCA input compatible with the audio line outputs found on the majority of IP camera systems, making it a natural fit for surveillance-driven PA deployments where announcement capability is layered onto an existing video network. Switchable gain settings and an internal volume control allow on-site calibration without returning to a head-end rack, which is a practical advantage for installations spread across large facilities. The powder-coated HIPS and ABS resin construction with stainless-steel hardware supports continuous outdoor exposure across extreme temperature ranges, ensuring long-term performance in both covered and uncovered mounting positions.

Downloads

View full details

Specifications

Certifications
Dust/Water Protection
IP65
Dimensions
Width
292 mm
Height
230 mm
Depth
280 mm
Weight
Product Weight
1.8 kg
Electrical
Power Source
12V DC, 2A (DC Socket "+" Type A: 5.5 x 2.1mm)
Power Consumption
15W (1.25A) at Rated Output, 25W (2.1A) at Maximum Output
Audio
Amplifier Power
20W
Frequency Response
250 - 10,000 Hz
Sound Pressure Level
113 dB (1W, 1m at 500Hz to 2.5kHz peak); Max SPL above 120 dB
Connectivity
Input
0 dBV, 10k Ohm, Unbalanced (RCA plug)
Signal Gain
8, 16, 24, or 32 dB (Factory pre-set to 16 dB)
Controls
Volume Adjustment
Internal volume control (Factory pre-set to maximum position)
Construction
Horn Flare
HIPS resin, white (RAL9010 equivalent)
Reflector Horn and Case
ABS resin, white (RAL9010 equivalent)
Bracket, Screws and Bolts
Stainless steel
Finish
Powder-coated
Identifiers
Optional Accessories
AD-5000-2 (LTE24E-S2-1) AC Adapter
