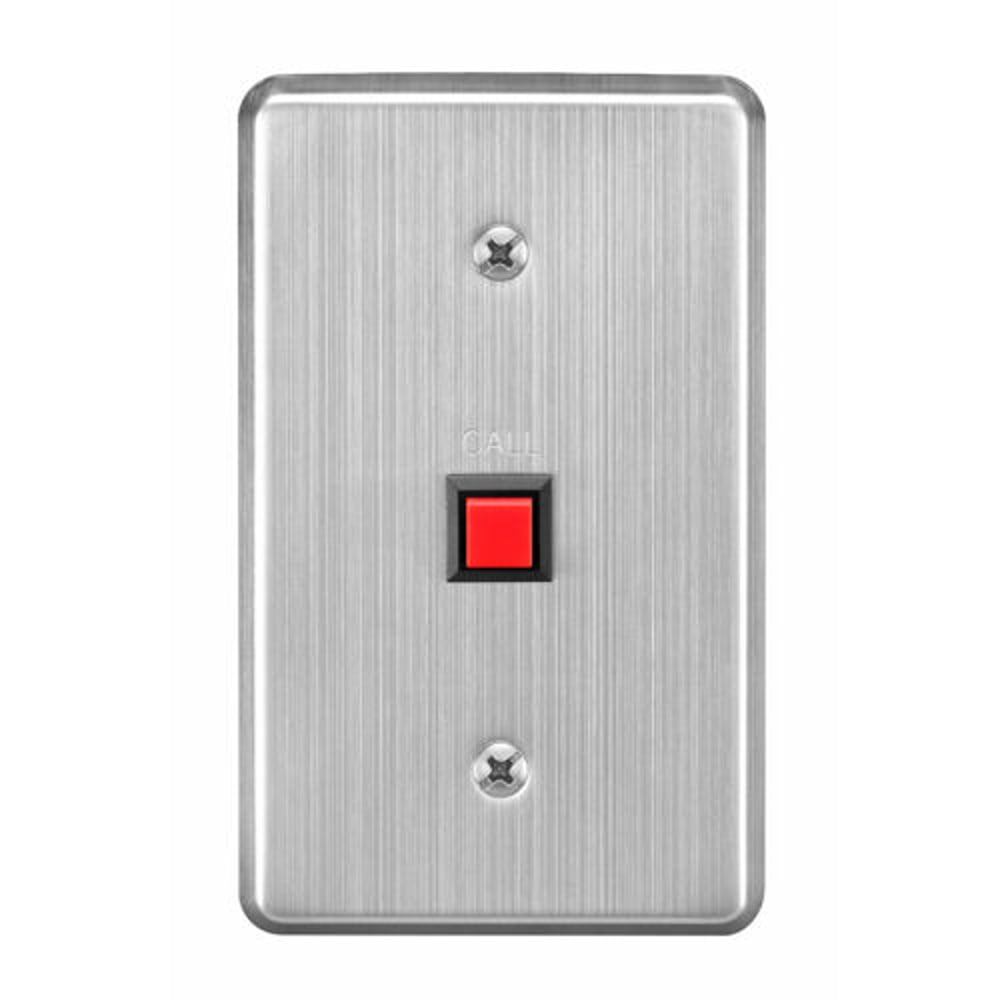

TOA RS-143 N-8000 Series IP Intercom Single Call Button Switch Plate

TOA RS-143 N-8000 Series IP Intercom Single Call Button Switch Plate

SoundPro Item: 202361 | Part Number: RS-143

$96.00
$119.00 $96.00
Your Price Sold out
MSRP: $119.00 | MAP: $96.00

Usually ships in 5-7 business days

  • Purpose-Built For N-8000RS And N-8010RS Substation Interface Units
  • Momentary Call Button Initiates Half-Duplex Conversation With Master Station
  • Optional RS-141 Handset Support Adds Private Handset Conversation
  • External High-Impedance Speaker Connection Enables Hands-Free Operation
  • Stainless Steel Hairline Finish Suits Architectural And Commercial Environments
  • 1-Gang Electrical Box Compatibility Simplifies Installation In Standard Walls
Log in or register for YOUR best price

The TOA RS-143 is a switch panel accessory designed specifically for integration with the N-8000RS or N-8010RS 2-Core Shielded Substation Interface Unit within the N-8000 Series IP intercom ecosystem. It provides a dedicated call button interface for facilities requiring a clean, low-profile station in corridors, entry points, security checkpoints, or controlled-access areas where a full substation is unnecessary.

System integrators working on installed intercom projects will find the RS-143 straightforward to deploy. It mounts in a standard 1-gang electrical box and connects via two-core shielded cable, supporting transmission distances that accommodate mid-to-large facility layouts. Hands-free operation is achievable by connecting an external high-impedance speaker, while the optional RS-141 handset adds private handset conversation for applications where open-speaker audio is not appropriate.

The stainless steel hairline-finish plate suits professional architectural environments, and the included mounting hardware supports both flush-mount and wall-mount box configurations. For N-8000 Series installations where a minimal, single-function call point is the right fit, the RS-143 delivers a purpose-built solution that avoids the cost and complexity of a full substation unit.

Downloads

View full details

Specifications

Dimensions
Width
70 mm (2.76")
Height
115 mm (4.53")
Depth
28.6 mm (1.13")
Weight
Unit Weight
80 g (0.18 lb)
Performance
Call Button
Momentary
Wiring
Two-core shielded cable
Transmission Range
0.5 km (546 yd) / 0.5 mm (AWG24); 0.8 km (874 yd) / 0.65 mm (AWG22); 1.3 km (1421 yd) / 0.9 mm (AWG19)
Environmental
Operating Temperature
0 C to +40 C (32 F to 104 F)
Installation Environment
Indoor use only
Construction
Plate Finish
Stainless steel, hairline
Call-In Switch Material
Resin, red
Included Items
Mounting Bracket
1
Bracket Mounting Screw
No.6-32UNC x 18, qty 2
Box Mounting Screw
M4 x 30, qty 2; No.6-32UNC x 30, qty 2
Compatibility
Compatible Substations
N-8000RS, N-8010RS
Flush-Mount Box
YC-801 (optional)
Wall-Mount Box
YC-802 (optional)
