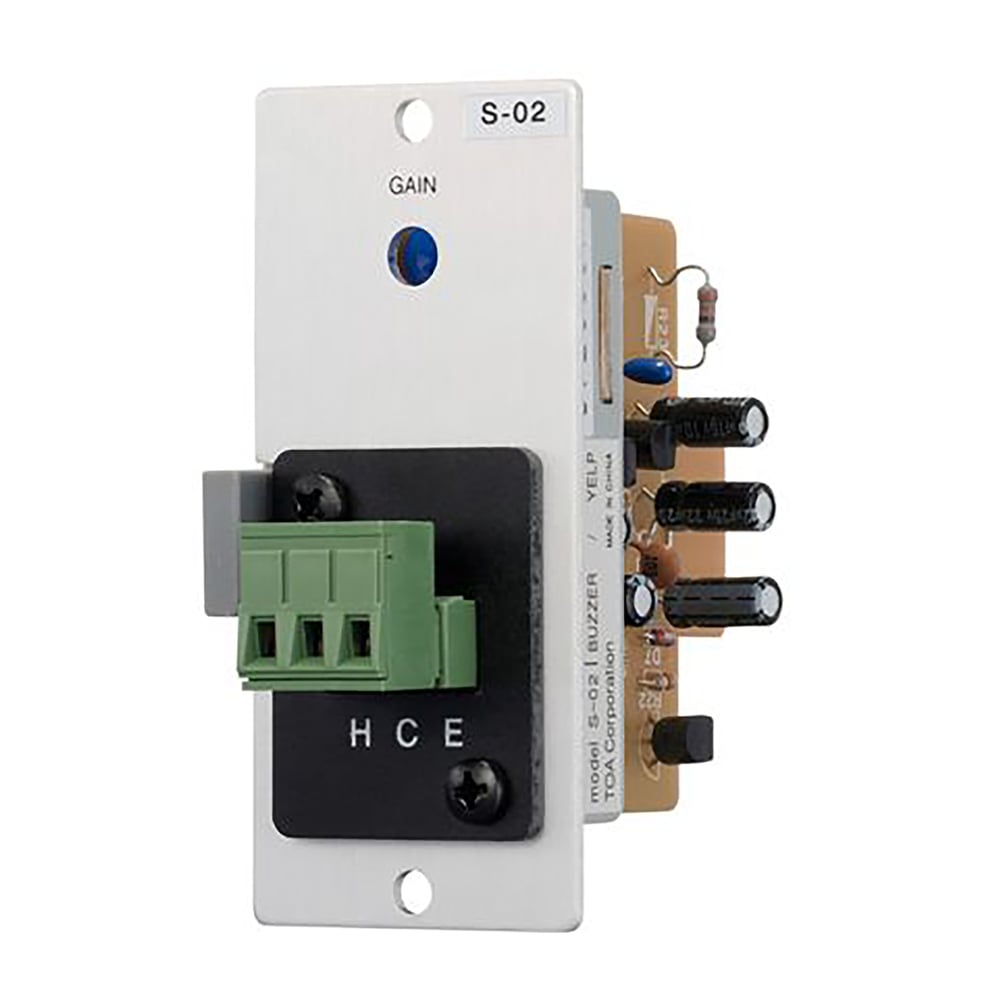

TOA 900 Series Signal Generator Module | Buzzer/Yelp (2-Tone)

TOA 900 Series Signal Generator Module | Buzzer/Yelp (2-Tone)

SoundPro Item: 107730 | Part Number: S-02S T

$105.00
$130.00 $105.00
Your Price Sold out
MSRP: $130.00 | MAP: $105.00

Usually ships in 5-7 business days

  • Direct 900 Series Frame Integration Eliminates External Power Supply Requirements
  • Switch-Closure Tone Activation Enables Simple Control From Relay Or Contact Closure
  • Gain Control Onboard For Level Matching Without Additional Attenuation Hardware
  • Available In Buzzer/Yelp And Multi-Tone Chime Versions To Suit Alert Requirements
  • Removable Terminal Block Connector Speeds Installation And Simplifies Field Servicing
Log in or register for YOUR best price

TOA 900 Series Signal Generator Modules are designed for system integrators and installed sound engineers who need reliable, repeatable tone signaling within TOA 900 Series mainframe-based paging and public address systems. Each module slots directly into the 900 Series frame and draws power from the mainframe itself, eliminating the need for an external power supply and keeping rack installations clean and compliant.

These modules address a common demand in commercial install, institutional AV, and life-safety adjacent paging environments: the need to trigger distinct audible alerts from a simple switch closure without additional signal processing hardware. Whether the application calls for single or multiple tone options, the family covers both use cases. Gain control on each module allows output level to be matched to the downstream system without an outboard attenuator.

Compared to generic tone generator accessories, these modules integrate directly with the TOA 900 Series ecosystem, ensuring electrical compatibility and consistent output levels across the signal chain. The removable terminal block connector on every variant simplifies installation and speeds up field servicing, making these modules a practical choice for permanent installations where future maintenance must be straightforward.

Downloads

View full details

Specifications

Electrical
Power Supply
24 V DC (supplied from the main frame)
Current Consumption
11 mA
Audio
Output Level
1.0 V(p-p) (rated output: -20 dB*)
Noise Level
-100 dB* (20 Hz - 20 kHz BPF)
Gain
Off - 0 dB
Available Tone
Buzzer/Yelp
Connectivity
Connector
Removable terminal block (3P)
Dimensions
Width
1.38"
Height
3.07"
Depth
3.46"
Weight
Max Weight
Max. 65 g (0.14 lb)
