TOA T-001T Digital Matrix Mixer Dual Output Module With DSP

TOA T-001T Digital Matrix Mixer Dual Output Module With DSP

SoundPro Item: 65496 | Part Number: T-001T

$184.00
$226.00 $184.00
Your Price Sold out
MSRP: $226.00 | MAP: $184.00

Usually ships in 5-7 business days

  • Two Independent Balanced Line Outputs For Flexible Zone Distribution
  • Full Per-Channel DSP Chain Eliminates The Need For External Signal Processors
  • Ten-Band Parametric EQ With Variable Q For Precise Room And Speaker Tuning
  • High-Pass And Low-Pass Filters At 12 dB Per Octave For Crossover And Noise Control
  • TOA Speaker EQ Presets Via Setup Software Speed System Commissioning
  • Removable Terminal Block Simplifies Field Wiring And Serviceability
  • Up To Three Modules Per Chassis Scales Output Capacity Without Extra Rack Units
Log in or register for YOUR best price

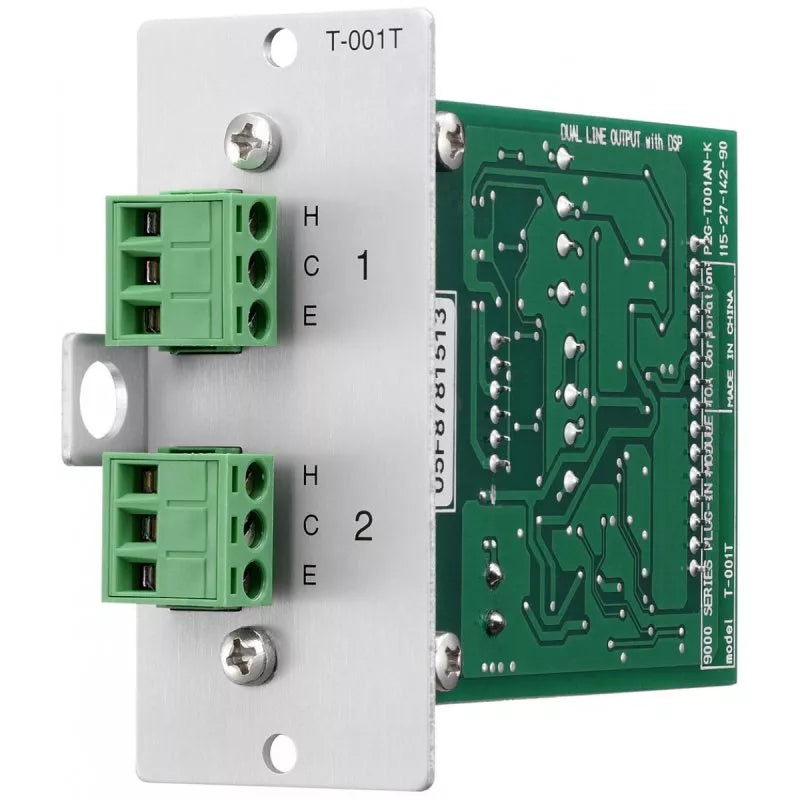

The TOA T-001T is a plug-in output module engineered for the TOA 9000 and 9000M2 Series mixer/amplifier chassis, providing systems integrators and installed-sound engineers with two independent, electronically balanced line outputs in a single module slot. Each output channel carries its own full DSP chain, including a 10-band parametric equalizer, bass/treble tone controls, loudness processing, high-pass and low-pass filters at 12 dB per octave, and a compressor. This makes the T-001T a practical choice for zone-distributed installed audio systems where individual output tuning is required without external processing hardware.

The module drives loads as low as 600 ohms and supports levels up to +20 dB into a 10 kilohm load, giving integrators the headroom needed for long cable runs to remote amplifiers or active loudspeakers in commercial installation environments. TOA speaker EQ presets, available via setup software, reduce commissioning time on systems using TOA loudspeakers. Up to three output modules can be populated in a single 9000 Series chassis, scaling the system without additional rack space. The removable terminal block simplifies field wiring and accelerates installation in environments such as conference centers, houses of worship, education facilities, and corporate AV systems where clean, permanent wiring is a priority.

With a 24-bit DAC, 48 kHz sampling rate, and measured THD of 0.005 percent at 1 kHz, the T-001T delivers audio performance consistent with professional installed-sound standards. A signal-to-noise ratio exceeding 73 dB and crosstalk suppression of over 87 dB at 20 kHz keep audio integrity intact across multiple simultaneous output zones.

Downloads

View full details

Specifications

Audio
Output Channels
2 channels, electronically-balanced
Maximum Output Level
max. +20 dB (at 10 kΩ load)
Output Impedance
600 Ω
Connector Type
Removable terminal block, 3 pins
D/A Converter
24-bit DAC
Sampling Frequency
48 kHz
Frequency Response
20 Hz - 20 kHz, +1, -3 dB
Total Harmonic Distortion
0.005% (at 1 kHz, 20 Hz - 20 kHz BPF, 5 V output, 10 kΩ load)
Signal To Noise Ratio
Over 73 dB (at 20 Hz - 20 kHz BPF)
Residual Noise
Under -91 dB (at 20 Hz - 20 kHz BPF, VOL: -70 dB)
Crosstalk
Over 87 dB (at 20 kHz)
DSP
Tone Control
Bass: ±12 dB (at 100 Hz); Treble: ±12 dB (at 10 kHz)
Parametric Equalizer
10 bands; Frequency: 20 Hz - 20 kHz, 31 points; Variable range: ±12 dB; Q: 0.3 - 5
Speaker Equalizer Presets
10 onboard (setup software includes 30 TOA speaker presets)
High-Pass Filter
-12 dB/oct; Variable frequency range: 20 Hz - 20 kHz, 31 points
Low-Pass Filter
-12 dB/oct; Variable frequency range: 20 Hz - 20 kHz, 31 points
Compressor Depth
1 - 5
Delay
0 - 40 ms (1 ms step), maximum 40 ms (CH 1 + CH 2), mixer mode only
Electrical
Power Supply
+24 V DC, -24 V DC, +6 V DC
Current Consumption
35 mA (at +24 V DC), 35 mA (at -24 V DC), 60 mA (at +6 V DC)
Construction
Panel Finish
Aluminum, hair-line
Environmental
Operating Temperature
-10 °C to +40 °C
Dimensions
Dimensions
35 (W) x 78 (H) x 91.5 (D) mm
Weight
Weight
82 g
Included Items
Included Accessories
Removable terminal plug (3 pins) x2, Module mounting screw x2
