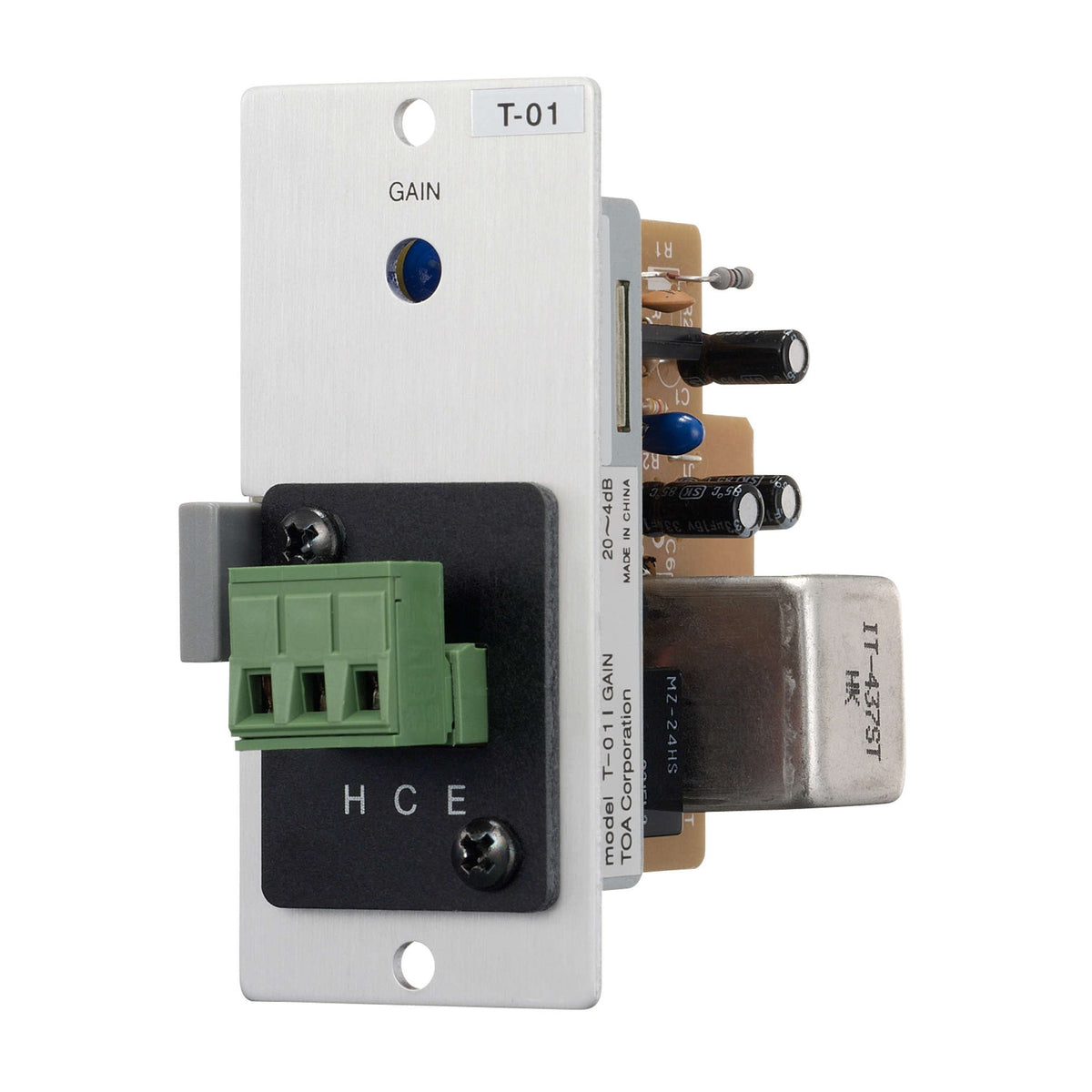

TOA T-01S T 900 Series Transformer Balanced Line Output Module

TOA T-01S T 900 Series Transformer Balanced Line Output Module

SoundPro Item: 65497 | Part Number: T-01S T

$140.00
$171.00 $140.00
Your Price Sold out
MSRP: $171.00 | MAP: $140.00

Usually ships in 5-7 business days

  • Transformer-Isolated Balanced Output Minimizes Ground Loops In Installed Systems
  • Adjustable Output Level Control For Fine-Tuning Signal To Each Destination
  • Removable Terminal Block Connector Simplifies Install And Future Servicing
  • Powered From 900 Series Main Frame With No External Supply Required
  • Wide Frequency Response Preserves Signal Integrity Across The Full Audio Band
Log in or register for YOUR best price

The TOA T-01S T is a line output module designed for integration within TOA 900 Series modular systems. It extracts a balanced, transformer-isolated signal from the mixing bus and routes it to downstream equipment including remote mixers, power amplifiers, and recording devices. Transformer isolation minimizes ground loops and common-mode noise, making this module a reliable solution for installed sound systems in houses of worship, conference centers, and commercial AV environments where multiple signal destinations must be driven cleanly from a single source.

Powered directly from the 900 Series main frame via 24 V DC, the T-01S T requires no external power supply and slots into the modular architecture without additional cabling overhead. The adjustable output level control and wide frequency response allow system integrators to optimize signal delivery to each destination independently, reducing the need for additional outboard gain management. The removable terminal block connector simplifies on-site installation and future serviceability, which is a critical consideration for permanently installed systems.

Downloads

View full details

Specifications

Audio
Output Level
Adjustable -22 to -6 dB (at 600 Ohm terminated, input: -20 dB)
Frequency Response
20 Hz - 20 kHz +/-2.5 dB
Distortion
0.1% or less (1 kHz, output: 0 dB)
Noise Level
-90 dB (20 Hz - 20 kHz BPF)
Gain
4 - 20 dB
Electrical
Power Supply
24 V DC (supplied from the main frame)
Current Consumption
35 mA
Connectivity
Connector
Removable terminal block (3P)
Dimensions
Width
35 mm (1.38")
Height
78 mm (3.07")
Depth
88 mm (3.46")
Weight
Unit Weight
Max. 95 g (0.21 lb)
