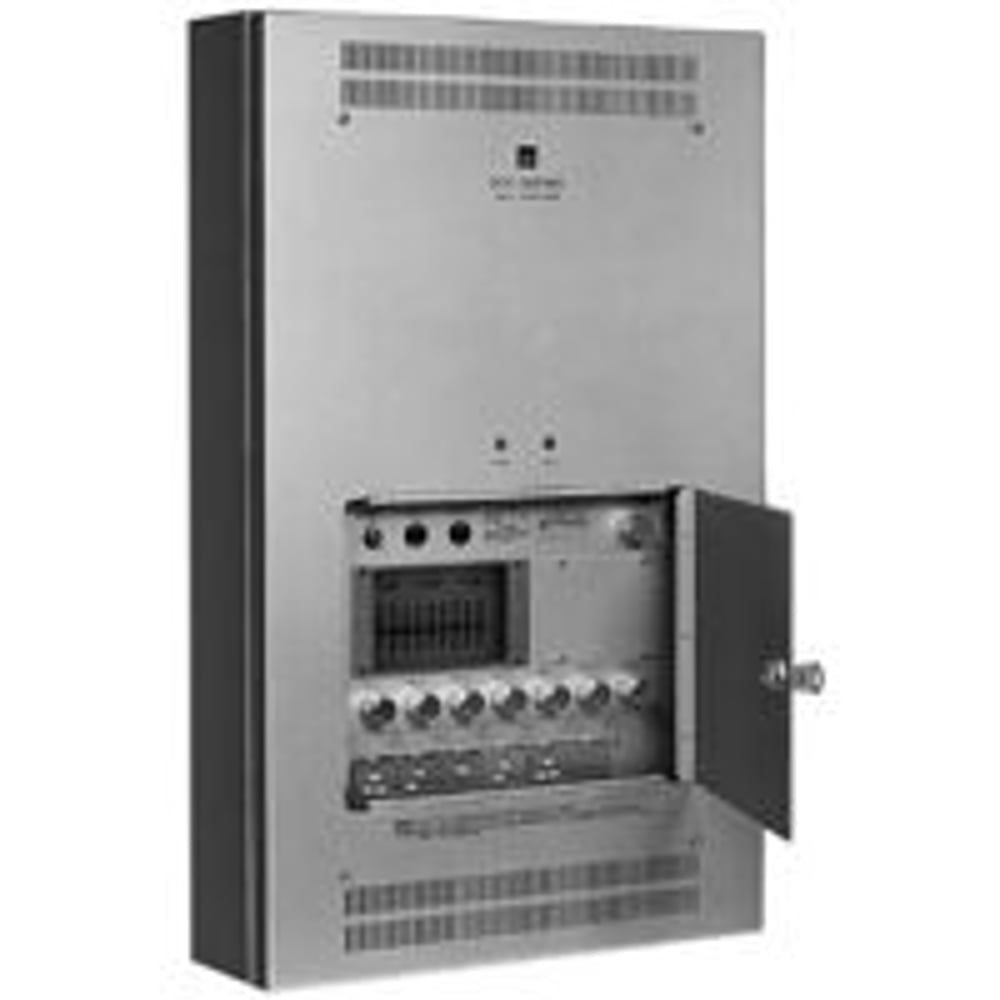

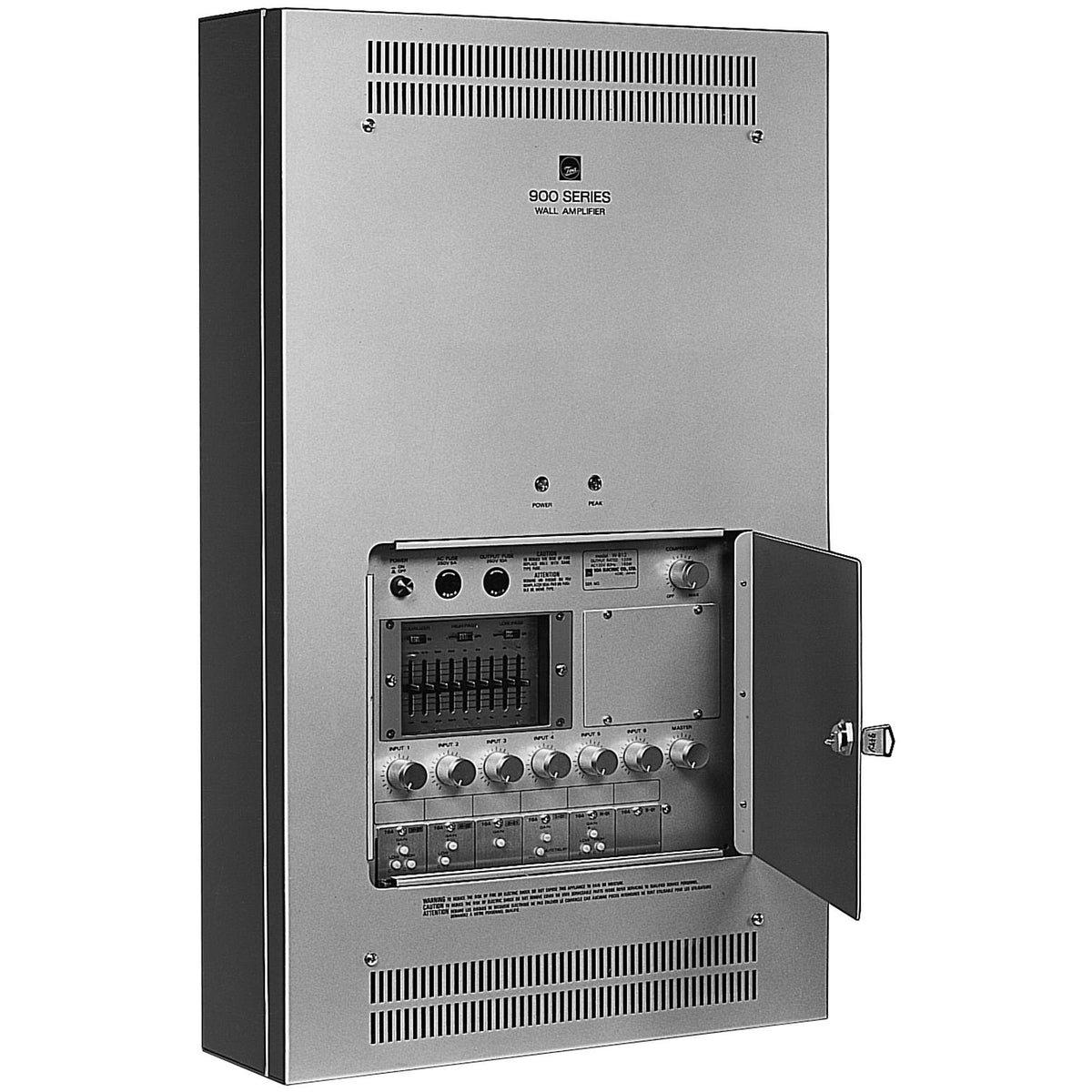

TOA 900 Series In-Wall Mixer/Amplifier 6-Channel Expandable Wall Unit | 60 W

TOA 900 Series In-Wall Mixer/Amplifier 6-Channel Expandable Wall Unit | 60 W

SoundPro Item: 67017 | Part Number: W-906A UL

$1,711.00
$2,116.00 $1,711.00
Your Price Sold out
MSRP: $2,116.00 | MAP: $1,711.00

Usually ships in 5-7 business days

  • Six Front-Panel Module Ports Accept The Full TOA Plug-In Module Range
  • Expandable To Eight Inputs Via Optional WE-2 Kit For Growing Installations
  • Built-In 9-Band One-Octave Graphic EQ Addresses Room Acoustics At The Amplifier
  • Built-In Compressor With Adjustable Threshold Protects Against Output Distortion
  • Supports 4 And 8 Ohm Loads Plus 25 V And 70 V Constant-Voltage Distribution
  • Key-Locked Hinged Door Prevents Unauthorized Adjustment Of Controls
  • Flush And Surface Mounting Options Suit A Wide Range Of Wall Configurations
Log in or register for YOUR best price

The TOA 900 Series In-Wall Mixer/Amplifier is engineered for commercial installed audio environments where a clean, low-profile solution is needed to drive a single-zone speaker system. Facilities managers, systems integrators, and AV installers working in corporate, educational, retail, and institutional spaces will find this series well-suited for background music, paging, and public address applications where reliability and intelligibility are the primary demands.

Six front-panel module ports accept the full range of TOA plug-in input modules, and the optional WE-2 expanding kit adds two additional input ports for systems that grow over time. The built-in 9-band one-octave graphic equalizer addresses room acoustics directly at the amplifier, reducing feedback tendencies and improving speech intelligibility without requiring an external processor. A built-in compressor with adjustable threshold protects against output distortion from excessive input levels and maintains consistent volume. Output terminals support 4 and 8 ohm speaker loads as well as 25 V and 70 V constant-voltage distribution systems, making the unit compatible with a wide range of installed speaker configurations.

Available in 60 W and 120 W output versions, the series offers integrators a scalable choice based on zone size and coverage requirements. A key-locked hinged front door protects controls from tampering, and the unit supports both flush and surface mounting. LED power and peak indicators provide at-a-glance system status. Compared to rack-mount commercial amplifiers, this wall-mount format eliminates the need for a dedicated equipment room, simplifying installation in smaller facilities.

Downloads

View full details

Specifications

Audio
Output Power
60W RMS
Power Bandwidth (Direct)
20 to 20,000 Hz, 0.5% THD
Power Bandwidth (Transformer)
50 to 20,000 Hz, 0.5% THD
Frequency Response (Direct)
30 to 20,000 Hz ±1 dB
Frequency Response (Transformer)
30 to 15,000 Hz ±1 dB / 30 to 20,000 Hz +1dB, -2 dB
Total Harmonic Distortion
0.02% at 1 kHz, Rated Output
Signal to Noise Ratio (Controls OFF)
90 dB (Band Pass: 20 to 20,000 Hz)
Signal to Noise Ratio (Equalizer IN)
88 dB
Signal to Noise Ratio (Master Volume Max)
77 dB
Signal to Noise Ratio (Compressor IN)
84 dB
Output Regulation at 1kHz (Direct)
Less Than 0.5 dB, No Load to Full Load
Output Regulation at 1kHz (Transformer)
Less Than 1.0 dB, No Load to Full Load
Electrical
Power Source
120 V AC, 60 Hz
Power Consumption
100 W
Connectivity
Input Ports
Six Card-Edge Connectors; 100mV / 10kohms each
Bridging Input/Output
Screw-Terminal Strip; 100mV / 3.3kohms
Output Connector
Screw-Terminal Strip
Mute Connector
Screw-Terminal Strip
Performance
Equalizer
9-Band One-Octave Graphic; ISO Center Frequencies: 63, 125, 250, 500, 1k, 2k, 4k, 8k, 16kHz; Range ±12 dB
Compressor Attack Time
No Greater Than 2msec
Compressor Compression Range
30 dB
Compressor Release Time
Variable 20msec to 2 sec
Compressor Distortion
Less Than 1%
High-Pass Filter
180 Hz, 12 dB/octave
Low-Pass Filter
7kHz, 12 dB/octave
Construction
Finish
Silver
Indicators
1 LED Power Indicator, 1 LED Peak Indicator
Protection
2 AC Fuse (1 inside), Output Circuitry, Overheat Protection
Dimensions
Size (W x H x D)
101.6 x 60.3 x 95.3 mm (4" x 2.4" x 3.8")
Weight
Unit Weight
13.7 kg (30.20 lbs), Without Input Modules and Back Box
Included Items
Included Accessories
Volume Control Cover x 3 pcs
