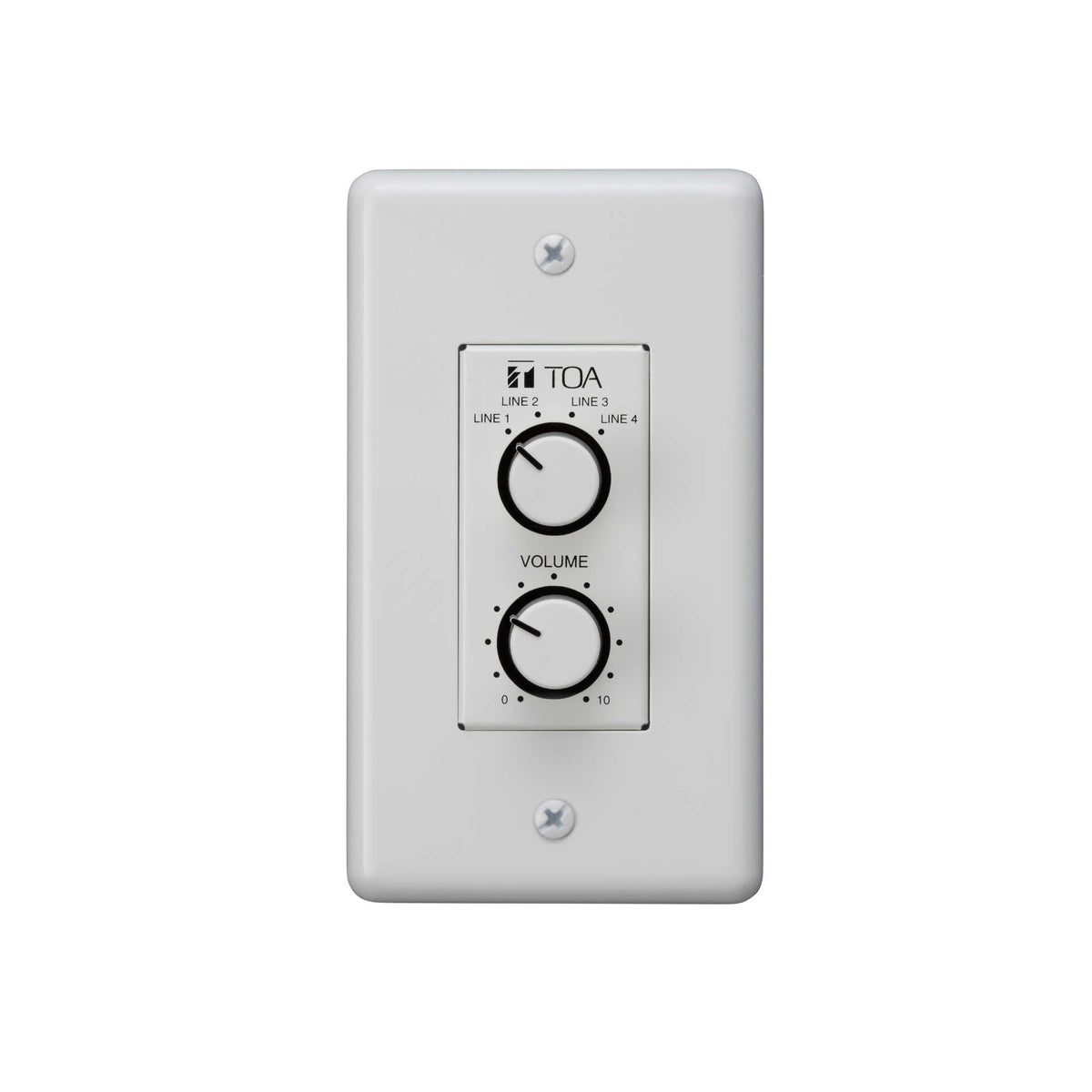

TOA WP-700-AM BGM Input Select and Volume Wall Panel Remote

TOA WP-700-AM BGM Input Select and Volume Wall Panel Remote

SoundPro Item: 107773 | Part Number: WP-700-AM

$92.00
$113.00 $92.00
Your Price Sold out
MSRP: $113.00 | MAP: $92.00

Usually ships in 5-7 business days

  • Single-Cable Control Over STP Ethernet Keeps Install Infrastructure Minimal
  • Flush 1-Gang Electrical Box Mount Integrates Cleanly Into Architectural Interiors
  • RAL 9016 White Steel Plate Finish Suits Commercial And Hospitality Environments
  • RJ45 Termination Supports Standard Network Cable Runs To The Host Amplifier
  • Dedicated Input Select Switch And Volume Knob For Localized Zone Control
Log in or register for YOUR best price

The TOA WP-700-AM is a remote control wall panel engineered for installed audio systems built around the MA-725F or MM-700F matrix amplifiers. It gives facility managers and system operators direct, localized control over background music source selection and volume levels without requiring access to the central amplifier rack. This makes it a practical solution for multi-zone retail, corporate, hospitality, and house-of-worship installations where different zones need independent control points.

Connection to the host amplifier runs over a standard CAT5, CAT5e, or CAT6 shielded twisted-pair cable terminated with an RJ45 connector, keeping infrastructure costs low and installation straightforward. The panel mounts flush in a standard 1-gang electrical box, integrating cleanly into architectural millwork alongside lighting switches and other building controls. The surface-treated steel plate construction with white RAL 9016 finish matches commercial interior environments and holds up to the wear of daily operation in public-facing spaces.

Downloads

View full details

Specifications

Connectivity
Terminal
RJ45 connector
Cable Requirements
CAT 5 / 5e / 6 STP cable
Controls
Input Select
Input select switch x 1
Volume Control
Volume control knob x 1
Dimensions
Width
2.83"
Height
5.04"
Depth
2.36"
Dimensions (mm)
72 (W) x 128 (H) x 60 (D) mm
Weight
Unit Weight
0.463 lbs (210 g)
Construction
Finish
Surface treated steel plate, white paint (RAL 9016)
Environmental
Operating Temperature
14 °F to 104 °F (-10 °C to 40 °C)
Included Items
Included Accessories
Box mounting screw No.6-32UNC x 30, Panel mounting screw No. 6-32UNC x 6
