TOA WT-4820 US UHF Dual Channel Wireless Receiver With Modular Design

TOA WT-4820 US UHF Dual Channel Wireless Receiver With Modular Design

SoundPro Item: 67375 | Part Number: WT-4820 US

$247.00
$306.00 $247.00
Your Price Sold out
MSRP: $306.00 | MAP: $247.00

Usually ships in 5-7 business days

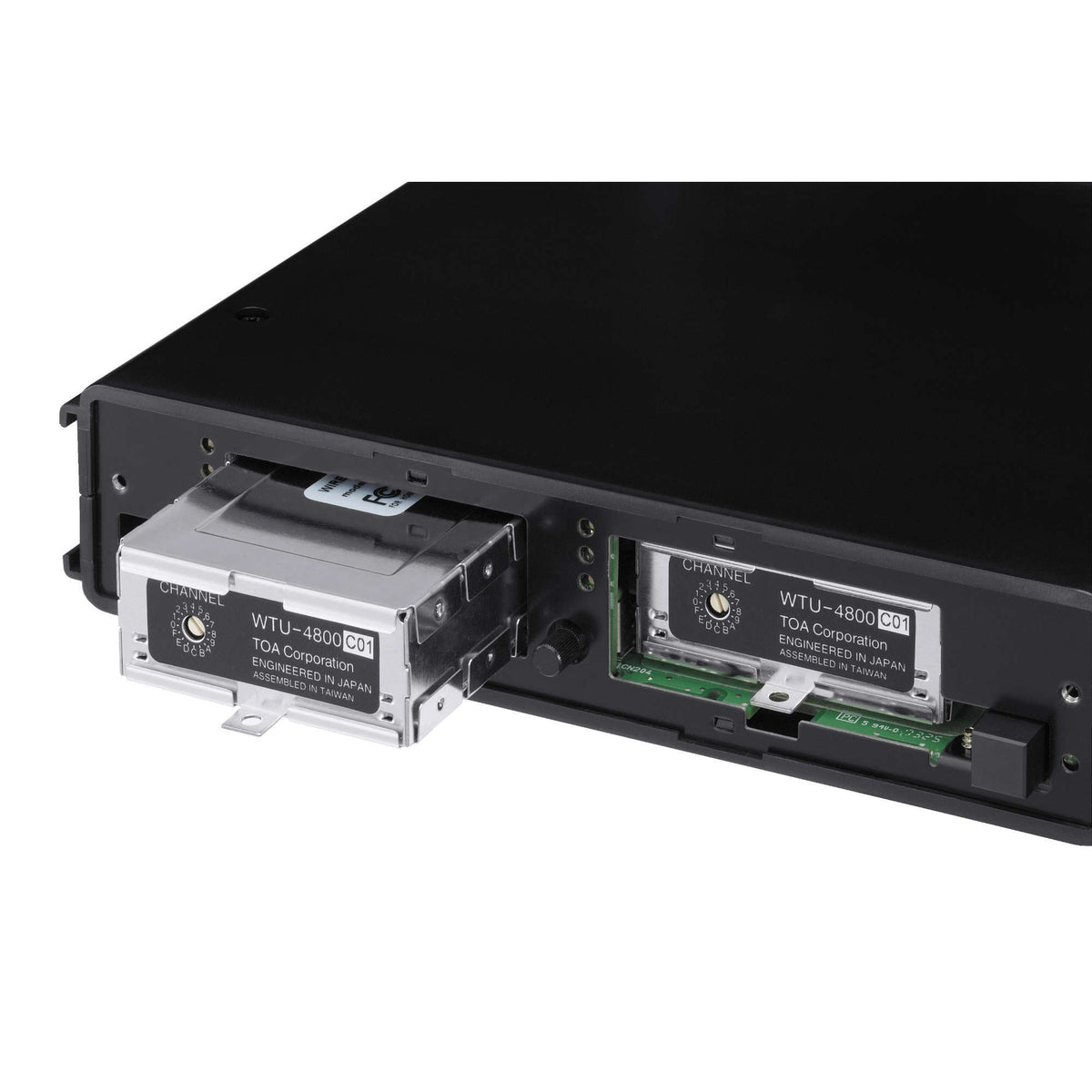

  • Dual Channel Modular Design Accepts Up To Two WTU-4800 Tuner Modules
  • Phantom-Powered BNC Antenna Inputs Support Active Antenna Distribution
  • Balanced XLR And Unbalanced Phone Jack Outputs For Flexible Console Integration

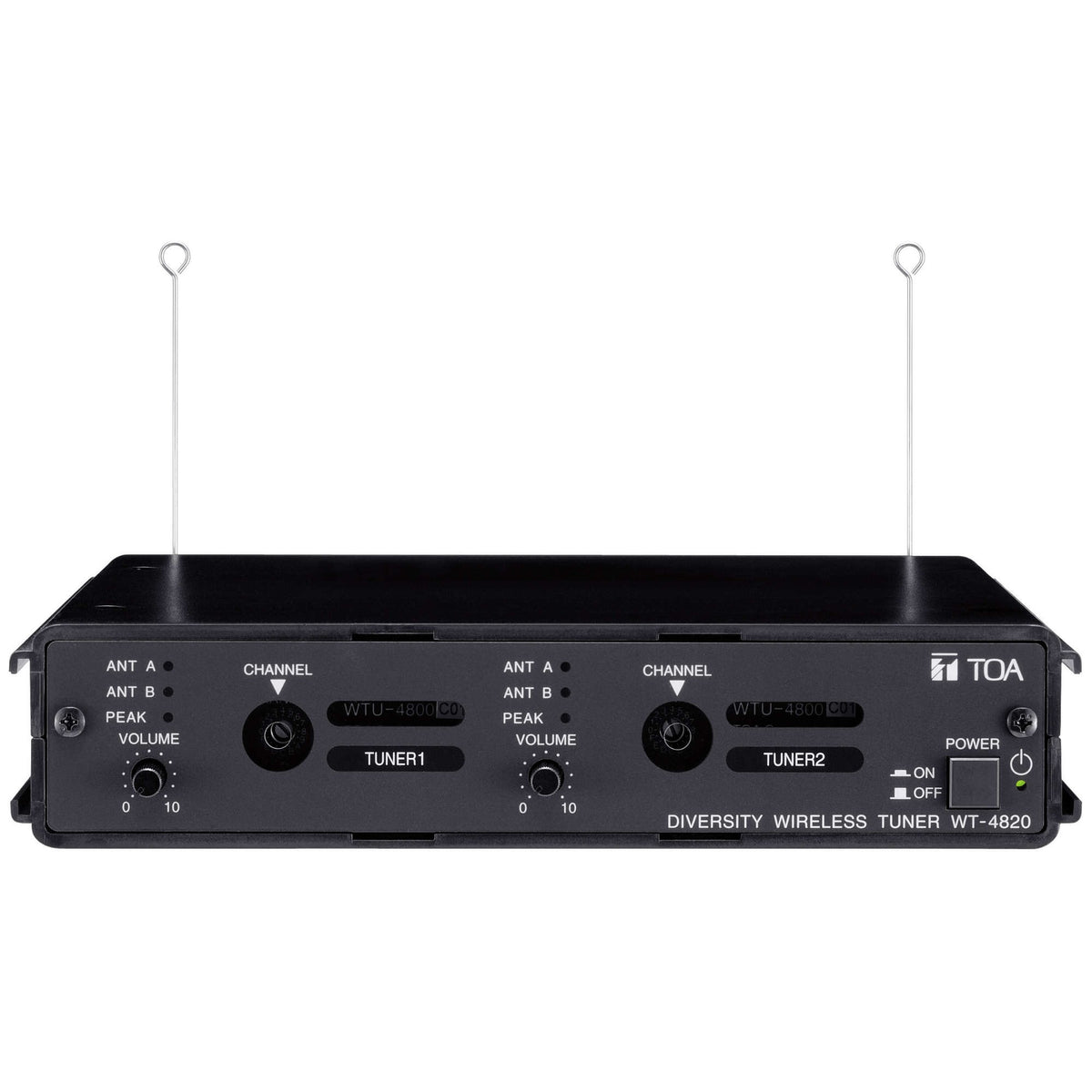

  • Mix And Solo Switching With AF Peak And Antenna A/B Status Indicators
  • Noise Squelch Circuitry Minimizes Interference During Live Operation
  • Optional Rack Brackets Enable Single Or Paired 19" Rack Mounting
Log in or register for YOUR best price

The TOA WT-4820 US is a 1U modular UHF diversity receiver designed for installed sound and live production environments where scalability and signal reliability are non-negotiable. By accepting up to two WTU-4800 tuner modules, it consolidates dual wireless channels into a single rack space, reducing clutter and simplifying system expansion in houses of worship, conference facilities, and performance venues.

For integrators and RF engineers, the receiver covers 506-865 MHz UHF with USA/Canada-restricted operation across 506-606 MHz and 614-698 MHz, offering broad frequency agility for interference-heavy environments. Balanced XLR output with a 102 dB signal-to-noise ratio ensures clean signal transfer to mixing consoles and DSP systems, while the phantom-powered BNC antenna inputs support active antenna distribution for extended range installations. Mix and solo switching, AF peak monitoring, and antenna A/B status indicators give front-of-house engineers real-time system visibility without secondary monitoring hardware.

Compared to fixed-channel UHF receivers, the WT-4820 US modular architecture allows staged deployment, buying and installing modules as channel count demands grow rather than replacing the entire receiver. Optional mounting brackets MB-WT3 and MB-WT4 enable single or paired rack installation, making it adaptable to both shallow and full-depth rack enclosures across permanent install and touring applications.

Downloads

View full details

Specifications

Electrical
Power Source
AC mains (supplied AC adapter must be used.)
Power Consumption
250 mA (12 V DC, when operating with two tuner modules)
RF Performance
Receiving Frequency
506 - 865 MHz, UHF (506 - 606 MHz and 614 - 698 MHz for USA/Canada)
Antenna Input
75 Ohm, BNC (phantom powering for antenna), 9 V DC, 30 mA (max)
Antenna Output
75 Ohm, BNC (Gain 0 dB)
Audio
Audio Output
Mixing/Channel 1 (selectable): -20 dB (+6 dB Max.), 600 Ohm, unbalanced, phone jack; -14 dB (+12 dB Max.), 600 Ohm, balanced, XLR-3-32 type connector; Channel 2: -20 dB (+6 dB Max.), 600 Ohm, unbalanced, phone jack
Mixing Input
-20 dB, 10 kOhm, unbalanced, phone jack
Harmonic Distortion
1% or less
Signal to Noise Ratio
102 dB or more (A-weighted, balanced output)
Frequency Response
50 Hz - 18 kHz, +/-3 dB
Indicators
Indicator
ANT A/B, Audio (peak), Power
Environmental
Operating Temperature
-10 degrees C to +50 degrees C (14 degrees F to 122 degrees F)
Operating Humidity
30% to 85% RH (no condensation)
Construction
Finish
Resin, black
Dimensions
Dimensions
210 (W) x 44 (H) x 181 (D) mm (8.27" x 1.83" x 7.13")
Weight
Weight
770 g (1.71 lbs) (without tuner module)
Included Items
Included Accessories
AC adapter x 1, Whip antenna x 2, Rubber foot x 4
Optional Accessories
Optional Accessories
MB-WT3 (rack mounting one WT-4820 unit), MB-WT4 (rack mounting two WT-4820 units)
