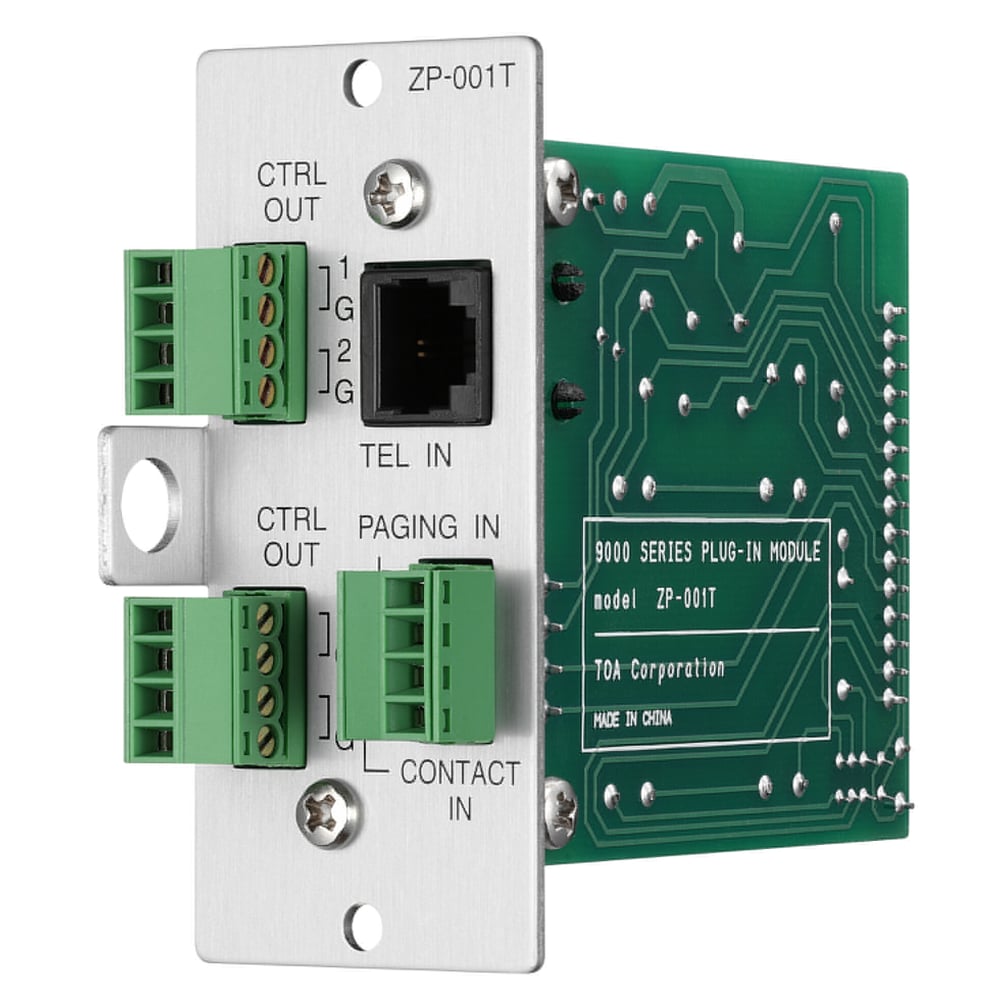

TOA ZP-001T Digital Zone Paging Module For 9000 Series Mixers

TOA ZP-001T Digital Zone Paging Module For 9000 Series Mixers

SoundPro Item: 67904 | Part Number: ZP-001T

$209.00
$258.00 $209.00
Your Price Sold out
MSRP: $258.00 | MAP: $209.00

Usually ships in 5-7 business days

  • DTMF Dialing Enables Selective Paging to Up To Eight Output Zones in One Operation
  • Dual Operation Modes Support Ring Signal and Paging Port Configurations
  • Transformer-Isolated Balanced Telephone Line Prevents Ground Loops in Installed Systems
  • Selectable Loop-Start or Ground-Start Signaling Matches Host PABX Requirements
  • RJ-11 and Removable Terminal Block Connectivity Simplifies Field Wiring
  • Four Open-Collector Control Outputs Support External Zone Logic Integration
  • Panel-Mount Module Design Installs Directly Into 9000 Series Chassis
Log in or register for YOUR best price

The TOA ZP-001T is a plug-in zone paging module engineered specifically for the TOA 9000 Series mixer/amplifier platform. It bridges an analog PABX or compatible page port to the 9000 Series chassis, enabling telephone-initiated broadcast and selective zone paging from within an existing phone system. Two operation modes, ring signal and paging port, provide flexibility for different facility configurations, and broadcast can be initiated in either mode. With DTMF dialing access, an operator can select up to 8 output zones in a single dialing operation, making it well suited for corporate campuses, healthcare facilities, educational institutions, and any installed audio system where paging is centrally managed through a telephone infrastructure.

Connection to the telephone line is handled via a transformer-isolated, balanced RJ-11 interface supporting loop-start or ground-start signaling, selectable to match the host PABX. A removable screw-terminal block provides an alternative paging input and accommodates control input and output wiring without specialized tooling. Four open-collector control outputs allow integration with external zone logic or relay hardware. One ZP-001T module is supported per 9000 Series chassis, keeping the signal path clean and the system topology straightforward for integrators commissioning permanent installations.

Downloads

View full details

Specifications

Electrical
Power Supply
+24 V DC, +6 V DC
Current Consumption
38 mA (at +24 V DC), 18 mA (at +6 V DC)
Audio
Number of Line
1 line
Type of Selectable Signal
DTMF signal
Signaling System
Loop-Start (or Ground-Start, selectable)
TEL Line
0 dB, 600 Ω, balanced, transformer-isolated, loop voltage: 24 V DC or more, RJ-11 connector
Paging Input
0 dB, 600 Ω, balanced, transformer-isolated audio input, removable terminal block (4 pins)
Connectivity
Control Input
1 channel, no-voltage make contact, open voltage: 5 V DC, short-circuit current: 0.5 mA, removable terminal block (4 pins)
Control Output
4 channels, open collector output (isolated), withstand voltage: 35 V DC, control current: max. 50 mA, removable terminal block (4 pins)
Construction
Finish
Panel: Aluminum, hair-line
Dimensions
Dimensions
35 (W) x 78 (H) x 91.5 (D) mm
Weight
Weight
153 g
Environmental
Operating Temperature
-10 °C to +40 °C
Included Items
Included Accessories
Removable terminal plug (4 pins) x3, Module mounting screw x2
