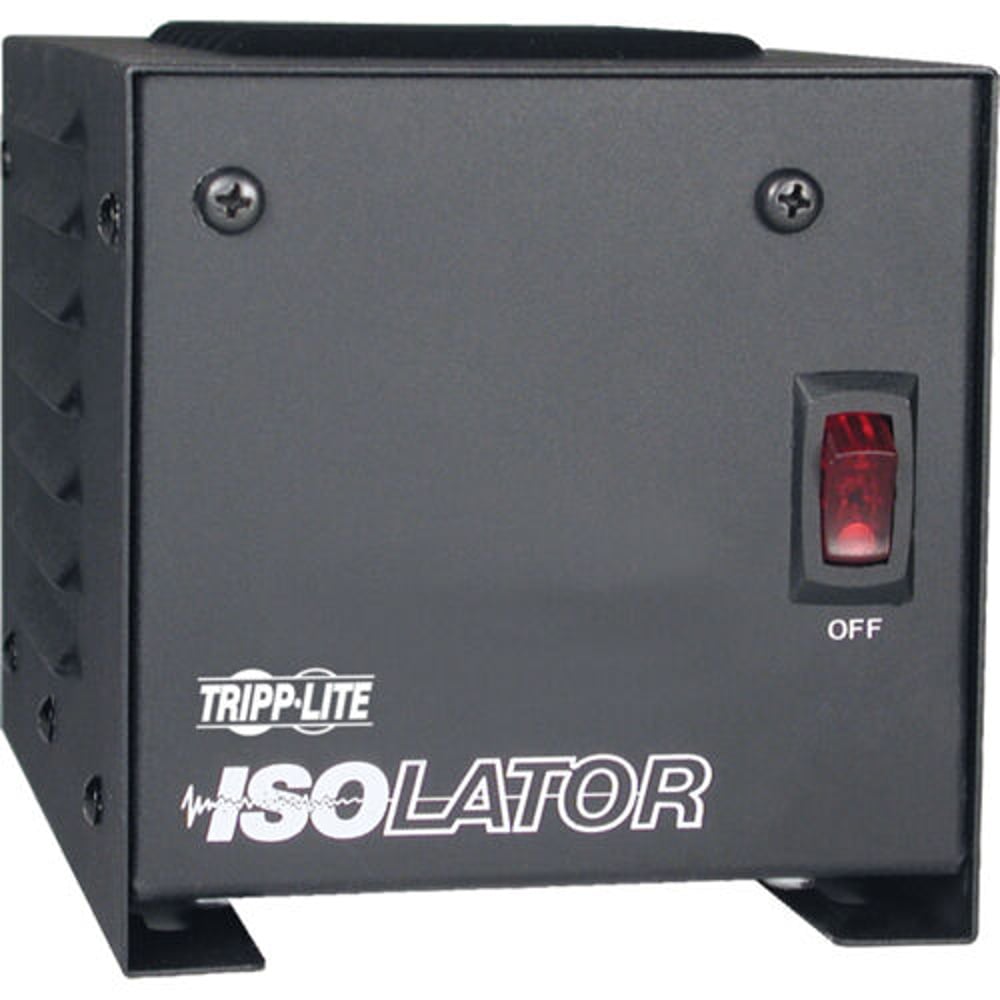

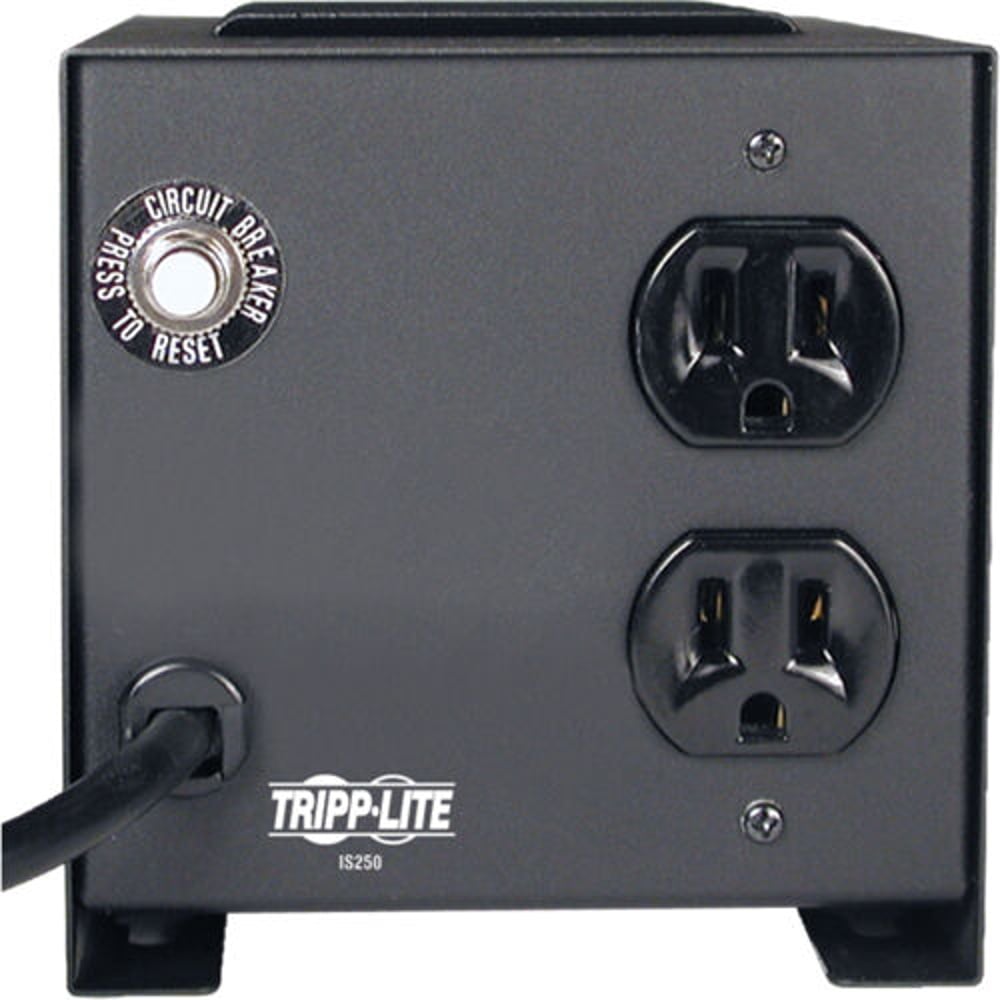

TRIPPLITE IS-250 Isolator Series 120V 250W Isolation Transformer-Based Power Conditioner

TRIPPLITE IS-250 Isolator Series 120V 250W Isolation Transformer-Based Power Conditioner

SoundPro Item: 200838 | Part Number: IS-250

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • Complete line isolation, noise filtering and surge suppression is ideal for sensitive equipment
  • Complete line isolation, noise filtering and surge suppression is ideal for sensitive equipment
  • 250 watts, 2 outlets, 6-ft. power cord
  • 250 watts, 2 outlets, 6-ft. power cord
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Log in or register for YOUR best price

Tripp Lite Isolator series isolation transformer-based power conditioners offer complete line isolation, continuous noise filtering and enhanced normal and common mode surge suppression. Internal low-impedance isolation transformer component with Faraday Shield offers 100% isolation from the input AC line. Secondary neutral to ground bonding eliminates common mode noise, providing an isolated ground reference for sensitive equipment and an inexpensive alternative to the installation of dedicated circuits and site electrical upgrades. Removes EMI/RFI noise, utility switching transients, background spikes generated by other on-site loads and utility or lightning related surge conditions. Additional surge suppression components placed at both the line input and transformer output combined with full line isolation offers continuous line filtering of a full range of power line noise in all modes. Continuous transformer filtering with no wearable parts uniquely reduces surges in the worst of power environments to harmless levels. Reduces 6000V IEEE C62.41 Cat A&B ring wave and combination wave test surges to only 0.5V common mode. Model IS250 offers 250 watts capacity with 2 widely spaced output receptacles, a 6-ft power cord, circuit breaker overload protection and lighted power switch. Rugged all-metal unit housing ships ready for upright tower or wallmount placement in industrial, medical, office or network environment.

View full details

Specifications

'General Information
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
IS250
Brand Name
Tripp Lite by Eaton
Product Model
IS250
Product Name
IS250 Isolation Transformer System
Product Type
Surge Suppressor/Protector
Technical Information
Plug/Connector Type
NEMA 5-15P
Receptacles
2 x NEMA 5-15R
Protection Type
Surge
Power Description
Input Voltage
120 V AC
Output Voltage
120 V AC
Maximum Line Current
2.10 A
Power Handling
250 VA
Surge Energy Rating
680 J
Circuit Breaker
Yes
Physical Characteristics
Color Family
Black
Product Color
Black
Power Cord/Cable Length
6 ft
Form Factor
External
Miscellaneous
Package Contents
IS250 Isolation Transformer SystemInstruction Manual with Warranty Information
Additional Information
Let-through Voltage (Combination Wave): L-N: <130V L-G: <10V N-G: <0.5V IEEE C62.41 Cat. BLet-through Voltage (Ring Wave): L-N: <10V L-G: <10V N-G: <0.5V IEEE C62.41 Cat. ANoise Suppression Rating: 33-65dB normal mode; >80dB common modeSurge Test Conditions: Per ANSI/IEEE C62.41 - (IEEE587) Cat. A & B test waveformsTotal Harmonic Distortion: less than 1%Transformer Type: Low impedence isolation transformer
Compatibility
Point of Sale (POS) EquipmentTelecommunications SystemsDiagnostic Testing and Precise Measurement DevicesSophisticated CAD/CAM WorkstationsComputer Networking Equipment
Certifications & Standards
UL, cUL
Environmentally Friendly
Yes
Country of Origin
Taiwan
TAA Compliant
Yes
Warranty
Limited Warranty
2 Year
