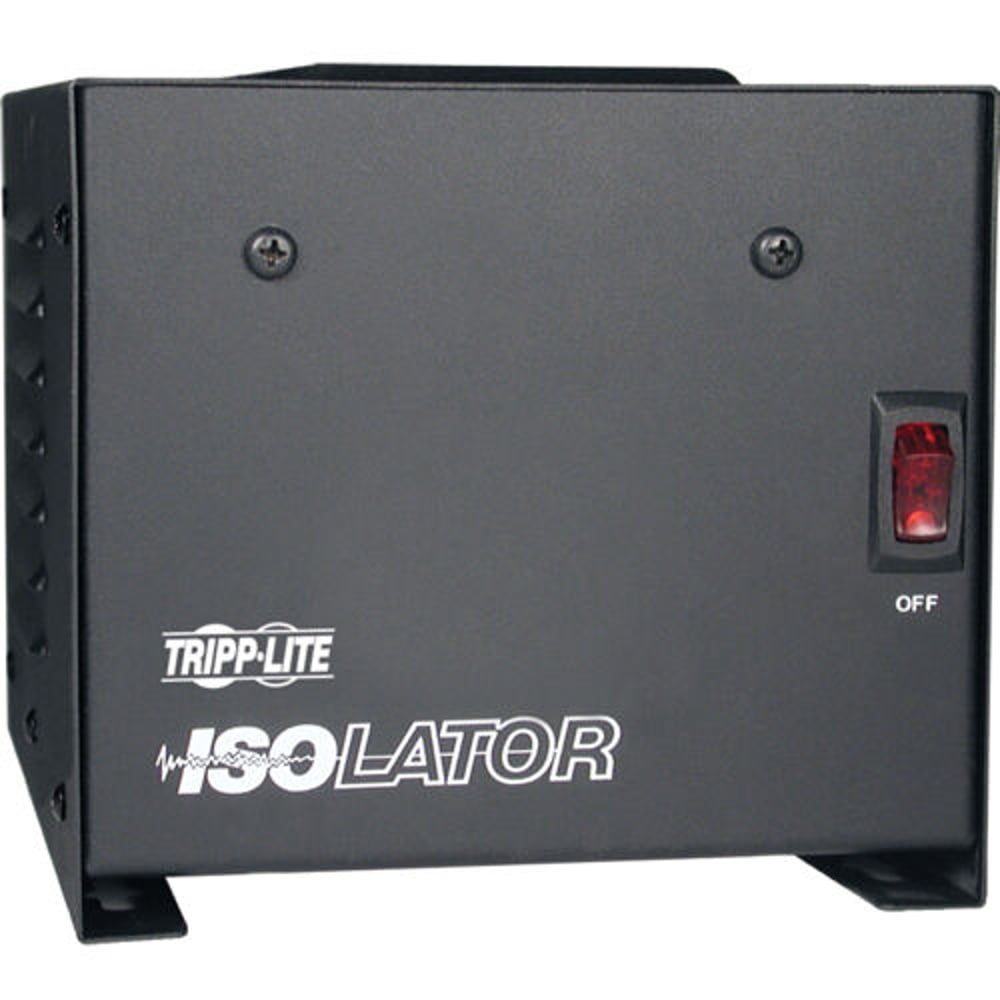

TRIPPLITE IS-500 Isolator Series 120V 500W Isolation Transformer-Based Power Conditioner

TRIPPLITE IS-500 Isolator Series 120V 500W Isolation Transformer-Based Power Conditioner

SoundPro Item: 200837 | Part Number: IS-500

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • Complete line isolation, noise filtering and surge suppression is ideal for sensitive equipment
  • Complete line isolation, noise filtering and surge suppression is ideal for sensitive equipment

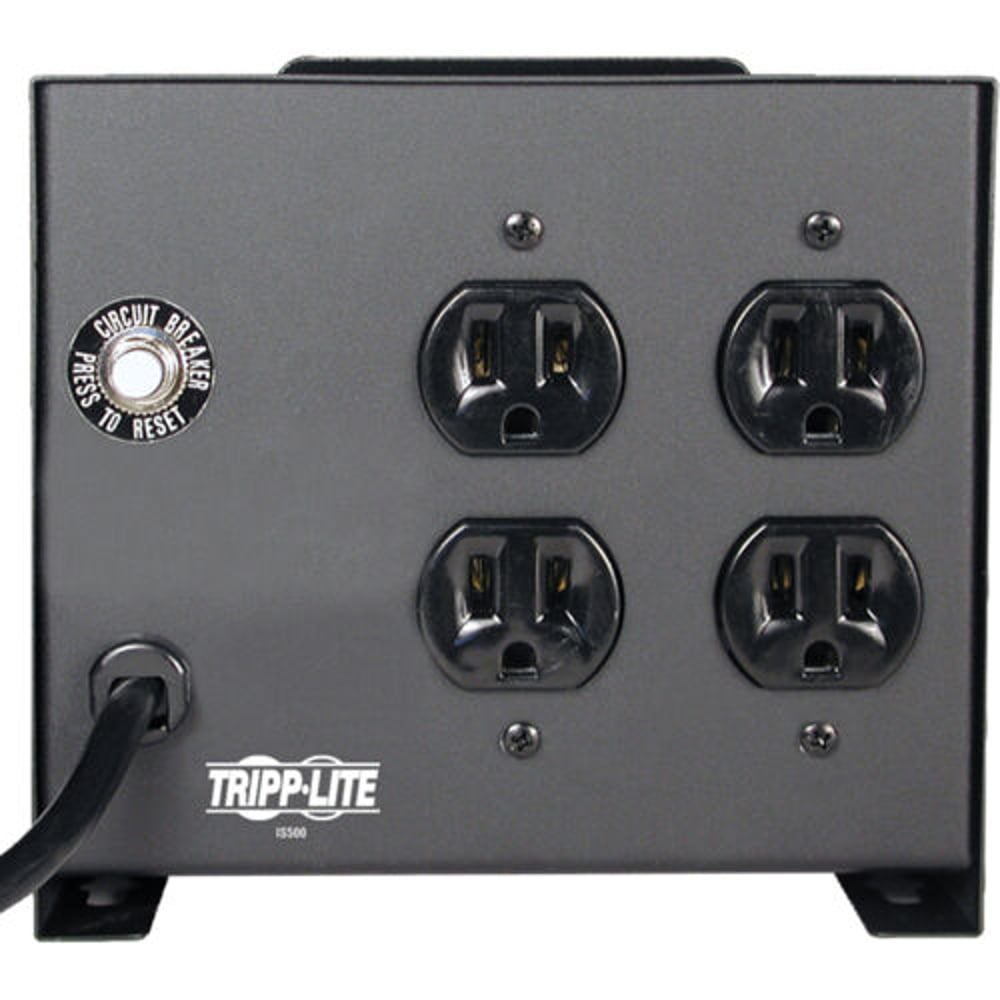

  • 500 watts, 4 outlets, 6-ft. power cord
  • 500 watts, 4 outlets, 6-ft. power cord
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Log in or register for YOUR best price

Tripp Lite Isolator series isolation transformers offer complete line isolation, continuous noise filtering and enhanced common mode surge suppression. Internal low-impedance isolation transformer component with Faraday Shield offers 100% isolation from the input AC line. Secondary neutral to ground bonding eliminates common mode noise, providing an isolated ground reference for sensitive equipment and an inexpensive alternative to the installation of dedicated circuits and site electrical upgrades. Removes EMI/RFI noise, utility switching transients, backround spikes generated by other on-site loads and utility or lightning related surge conditions. Additional surge suppression components placed at both the line input and transformer output combined with full line isolation offers continuous line filtering of a full range of power line noise in all modes. Active transformer filtering with no wearable parts is uniquely able to reduce surges in the worst of power environments to harmless levels. Reduces 6000V IEEE587 Cat A&B ring wave and combination wave test surges to only 0.5V common mode. Model IS500 offers 500 watts capacity with 4 widely spaced output receptacles, a 6-ft power cord, circuit breaker overload protection and lighted power switch. Rugged all-metal unit housing ships ready for upright tower or wallmount placement in industrial, medical, office or network environment. 2 year manufacturers warranty.

View full details

Specifications

'General Information
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
IS500
Brand Name
Tripp Lite by Eaton
Product Model
IS500
Product Name
IS500 Isolation Transformer System
Product Type
Isolation Transformer
Technical Information
Power Rating
500 VA
Output Receptacle Type
NEMA 5-15R
Output Receptacle Detail
4 x NEMA 5-15R
Power Description
Input Voltage
110 V AC
Physical Characteristics
Form Factor
Wall Mountable
Miscellaneous
Additional Information
EMI/RFI FilteringOverload Protection: 4.5A Circuit BreakerTransformer based line isolation with Faraday shieldLet-through Voltage (Combination Wave): L-N: 250V L-G: 250V N-G: 0.5VLet-through Voltage (Ring Wave): L-N: 20V L-G: 20V N-G: 0.5VCooling method: Convection
Package Contents
IS500 Isolation Transformer SystemInstruction Manual with Warranty Information
Compatibility
Telecommunications SystemsDiagnostic Testing & Precise Measurement DevicesSophisticated CAD/CAM WorkstationsComputer Networking EquipmentSensitive Electronic Equipment
Country of Origin
Taiwan
TAA Compliant
Yes
Warranty
Limited Warranty
2 Year
