TRIPPLITE PDUMV20 120 Volts 20 Amps (16) 5-15R/20R Ac Receptacles (1) 20 Amp Circuit

TRIPPLITE PDUMV20 120 Volts 20 Amps (16) 5-15R/20R Ac Receptacles (1) 20 Amp Circuit

SoundPro Item: 145882 | Part Number: PDUMV20

$379.97
$379.97 $379.97
Your Price Sold out
MSRP: $379.97 | MAP: $379.97

Usually ships in 5-7 business days

  • Metered single phase 120V 20A 0U 60in / 152cm vertical rackmount PDU
  • Metered single phase 120V 20A 0U 60in / 152cm vertical rackmount PDU

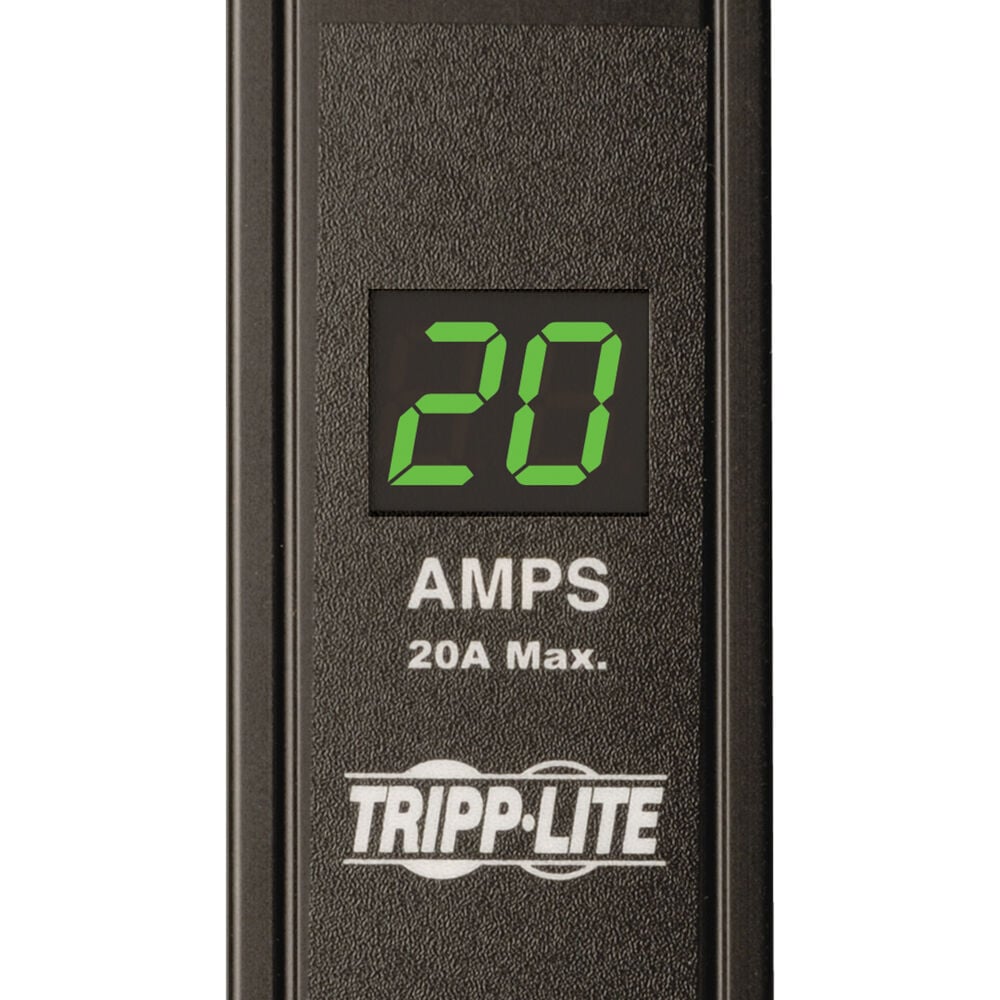

  • Two-digit current meter reports output current in amps
  • Two-digit current meter reports output current in amps

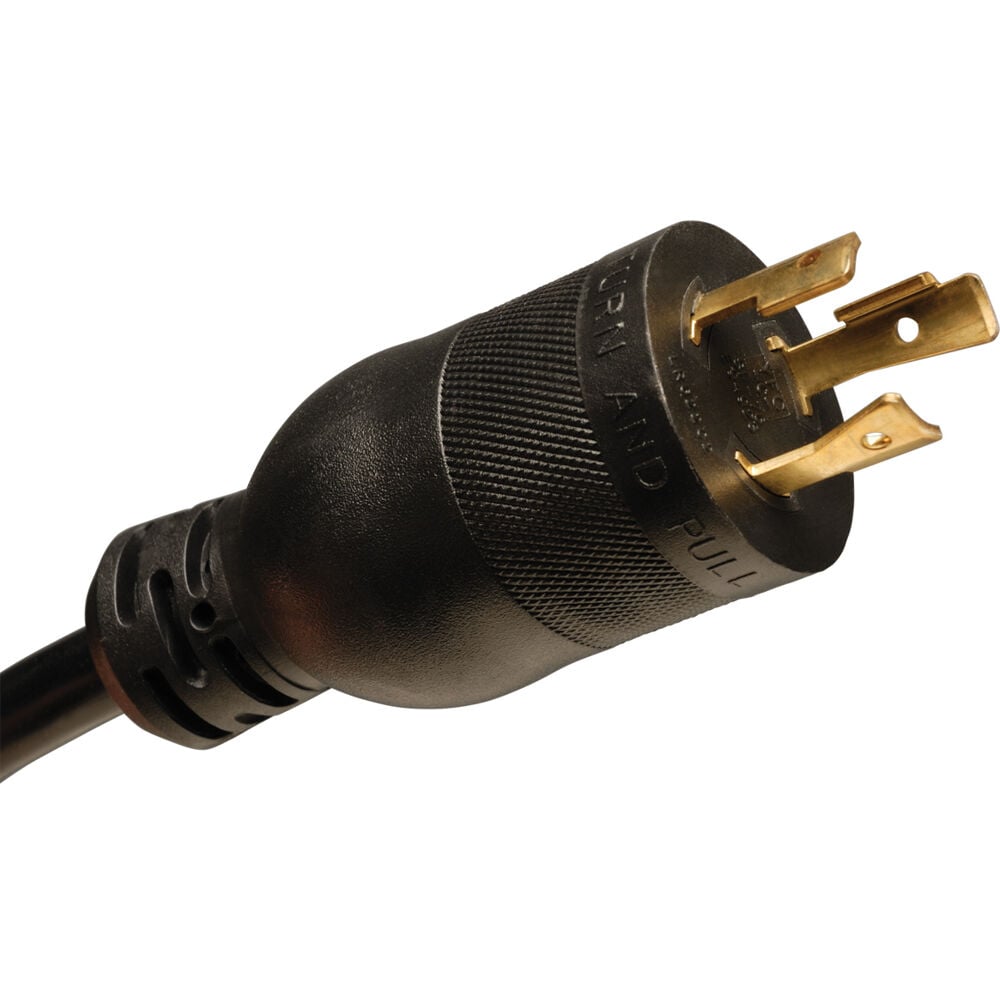

  • Attached 15ft / 4.6m cord with NEMA L5-20P plug and 5-20P adapter
  • Attached 15ft / 4.6m cord with NEMA L5-20P plug and 5-20P adapter
  • 28 NEMA 5-15/20R outlets
  • 28 NEMA 5-15/20R outlets
  • Toolless button mount and bolt-down bracket installation hardware included
  • Toolless button mount and bolt-down bracket installation hardware included
  • Width: 60"
  • Depth: 1.5"
  • Weight (Approximate): 5.20 lb
  • Environmentally Friendly: Yes
  • Country of Origin: China
  • Limited Warranty: 2 Year
Log in or register for YOUR best price

Tripp Lite single phase Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital display. Enables visual monitoring of PDU load levels to prevent overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.

View full details

Specifications

'General Information
Manufacturer
Tripp Lite
Manufacturer Part Number
PDUMV20
Brand Name
Tripp Lite
Product Model
PDUMV20
Product Name
PDUMV20 PDU Metered 120V 20A 28 Outlet
Product Type
PDU
Technical Information
Input Receptacles
NEMA L5-20P
Output Receptacles
28 x NEMA 5-15/20R
Protection Type
Overload Protection
Power Description
Input Voltage
120 V AC
Output Voltage
120 V AC
Current
20 A Output Current
20 A Input Current
Frequency
50 Hz
60 Hz
Power Rating
2.40 kVA
Circuit Breaker
20 A -
Physical Characteristics
Form Factor
Zero U Vertical Rackmount
Power Cord/Cable
15 ft
Dimensions
3.0" Height x 60.0" Width x 1.5" Depth
Weight (Approximate)
5.20 lb
Miscellaneous

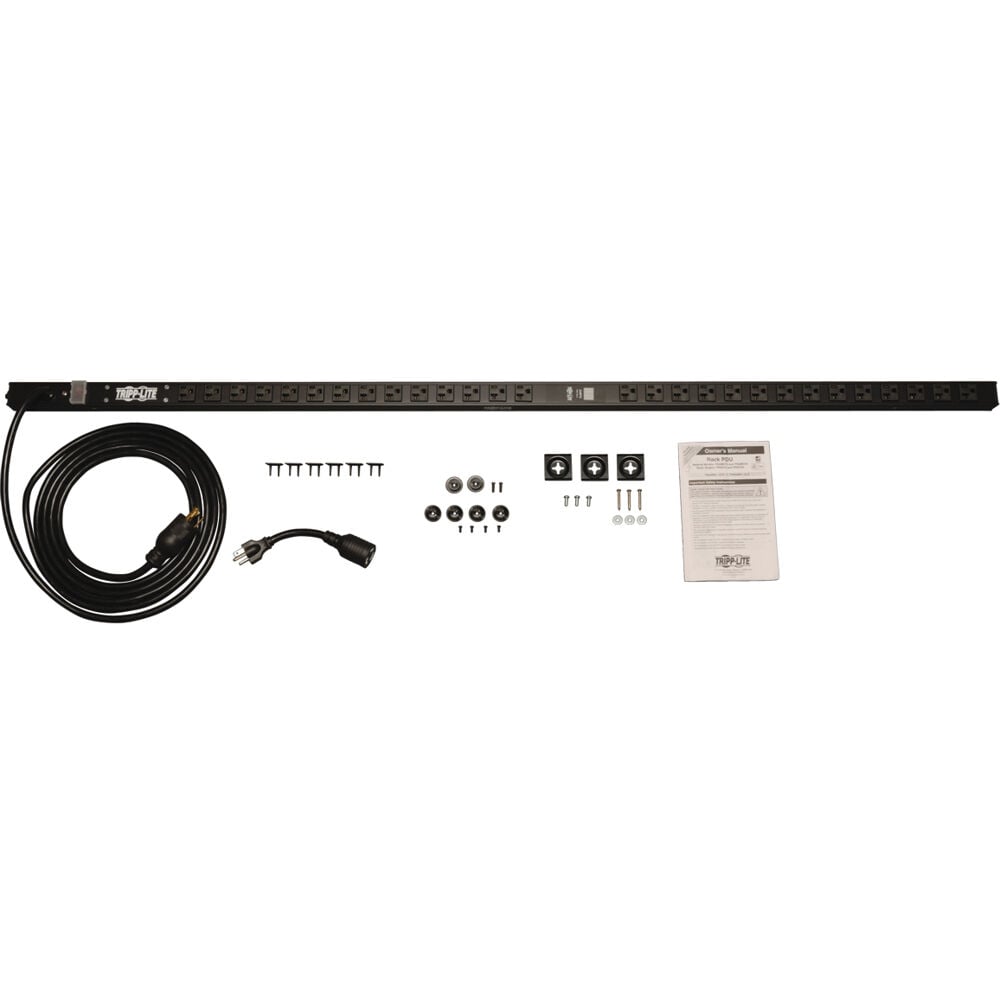

Package Contents
PDUMV20 PDU Metered 120V 20A 28 Outlet (1) L5-20P to 5-20P plug adapter Mounting hardware Six protective outlet covers Instruction manual with warranty information
Certifications & Standards
UL60950-1 CAN/CSA C22.2 No. 60950-1-03 RoHS Compliant
Green Compliant
Yes
Warranty
Limited Warranty
Lifetime
