TRIPPLITE PDUMV30HV Tripp Lite Pdu Metered 208V / 240V 30A 6 C19 24; C13 L6-30P Vertical

TRIPPLITE PDUMV30HV Tripp Lite Pdu Metered 208V / 240V 30A 6 C19 24; C13 L6-30P Vertical

SoundPro Item: 142047 | Part Number: PDUMV30HV

$636.00
$636.00 $636.00
Your Price Sold out
MSRP: $636.00 | MAP: $636.00

Usually ships in 5-7 business days

  • Metered single phase 30A 208/240V, 0U 63.75in / 162cm vertical rackmount PDU
  • Metered single phase 30A 208/240V, 0U 63.75in / 162cm vertical rackmount PDU
  • Pair of digital meters report output current in amps for each load bank
  • Pair of digital meters report output current in amps for each load bank
  • Attached 10ft / 3m cord with NEMA L6-30P input plug
  • Attached 10ft / 3m cord with NEMA L6-30P input plug
  • 30 outlets (6 C19, 24 C13) in two separately breakered load banks
  • 30 outlets (6 C19, 24 C13) in two separately breakered load banks
  • Input Voltage Range: 208 V AC - 240 V AC
  • Output Voltage: 240 V AC
  • Output Voltage: 208 V AC
  • Mounting Orientation: Vertical
  • Mount Type: Rack-mountable
  • Mount Type: Wall-mountable
  • Height: 63.8"
  • Width: 2.3"
  • Depth: 3.8"
  • Weight (Approximate): 8 lb
  • Country of Origin: China
Log in or register for YOUR best price

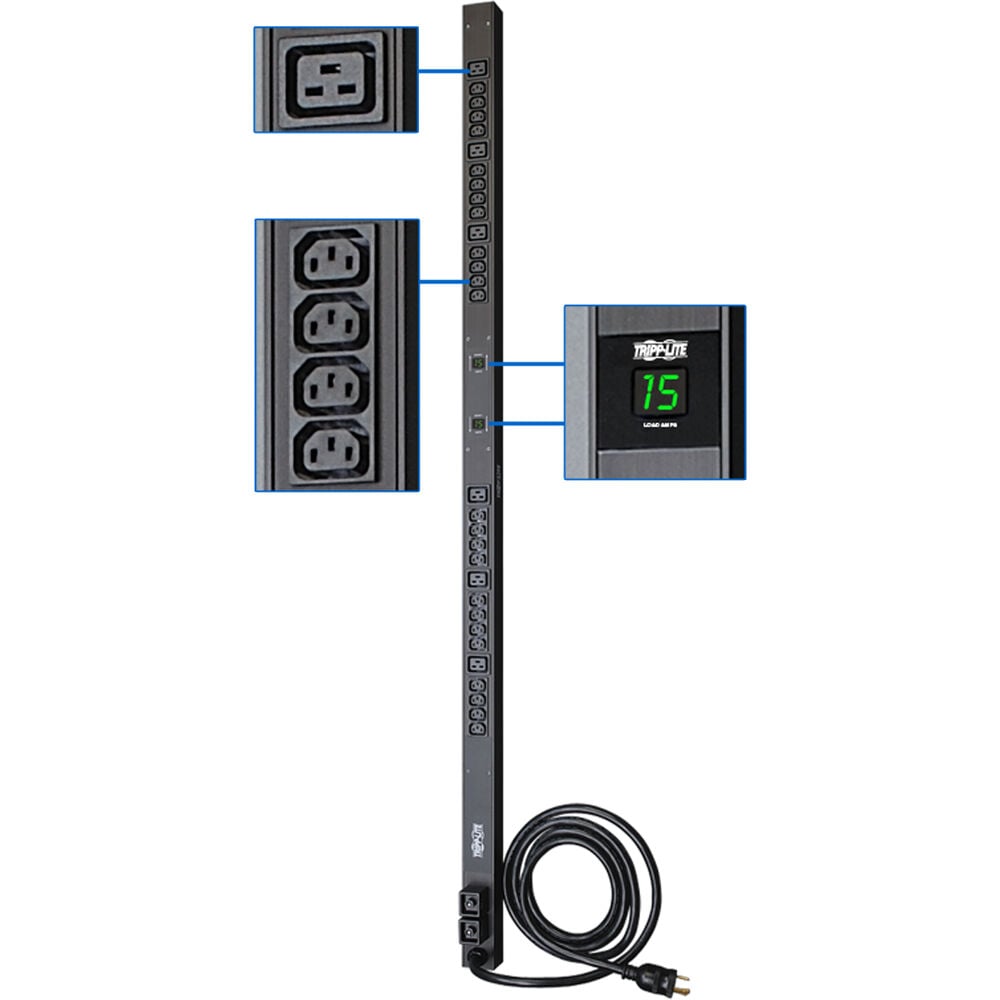

PDUMV30HV 63.75 in. vertical 0U metered rack PDU supports 30A maximum capacity at 208/240V. Includes 10 ft attached line cord with L6-30P input plug. 24 C13 and 6 C19 outlets support up to 30 directly connected pieces of networking equipment. Outlets are arranged in two separately metered and breakered 15A load banks (each with 3 C19 and 12 C13 outlets). Set of 2 built-in 2 character displays offer continuous information on PDU power consumption for each of the two built-in loading banks. Each built-in, easy to read, two-character LED display offers continuous PDU current monitoring data in one-amp increments. Tooless mounting enables simple installation in button-mount compatible racks. Included mounting brackets support vertical installation in standard 2 and 4 post racks or other surfaces, such as under-counter or wallmount configurations. Plug retention brackets keep vital equipment plugged in and continuously powered.

View full details

Specifications

'General Information
Manufacturer
Tripp Lite
Manufacturer Part Number
PDUMV30HV
Brand Name
Tripp Lite
Product Model
PDUMV30HV
Product Name
PDUMV30HV PDU Metered 208V - 240V 30A 30 Outlet
Product Type
PDU
Technical Information
Input Receptacles
NEMA L6-30P
Output Receptacles
6 x IEC 60320 C19
24 x IEC 60320 C13
Protection Type
Overload Protection
Short Circuit Protection
Power Description
Input Voltage
230 V AC
Input Voltage Range
208 V AC - 240 V AC
Output Voltage
208 V AC
240 V AC
Physical Characteristics
Mounting Orientation
Vertical
Placement
Rack
Wall
Miscellaneous
Package Contents
PDUMV30HV PDU Metered 208V - 240V 30A 30 OutletPDUMV30HV 63.75 inch basic PDU with owner's manualSet of 2 bolt-on plug retention brackets and installation hardwareSet of mounting brackets and installation hardware
Warranty
Limited Warranty
2 Year
