TRIPPLITE SMART1500LCD 1500 Va Ups System Smart Pro Rack/Shelf/Tower Digital Lcd Line Ia 120V

TRIPPLITE SMART1500LCD 1500 Va Ups System Smart Pro Rack/Shelf/Tower Digital Lcd Line Ia 120V

SoundPro Item: 138632 | Part Number: SMART1500LCD

$644.48
$644.48 $644.48
Your Price Sold out
MSRP: $644.48 | MAP: $644.48

Usually ships in 5-7 business days

  • Supports a half-load (450W) up to 13 min. during power outage
  • Provides reliable 1500VA/900W power protection for your desktop computer, network workstation, homelab, audio/video components or media center. Protects against surges, line noise, blackouts and brownouts
  • Protects equipment against blackouts, brownouts, overvoltages, surges and line noise
  • Supports a full load (900W) up to 3.5 min. during power outage

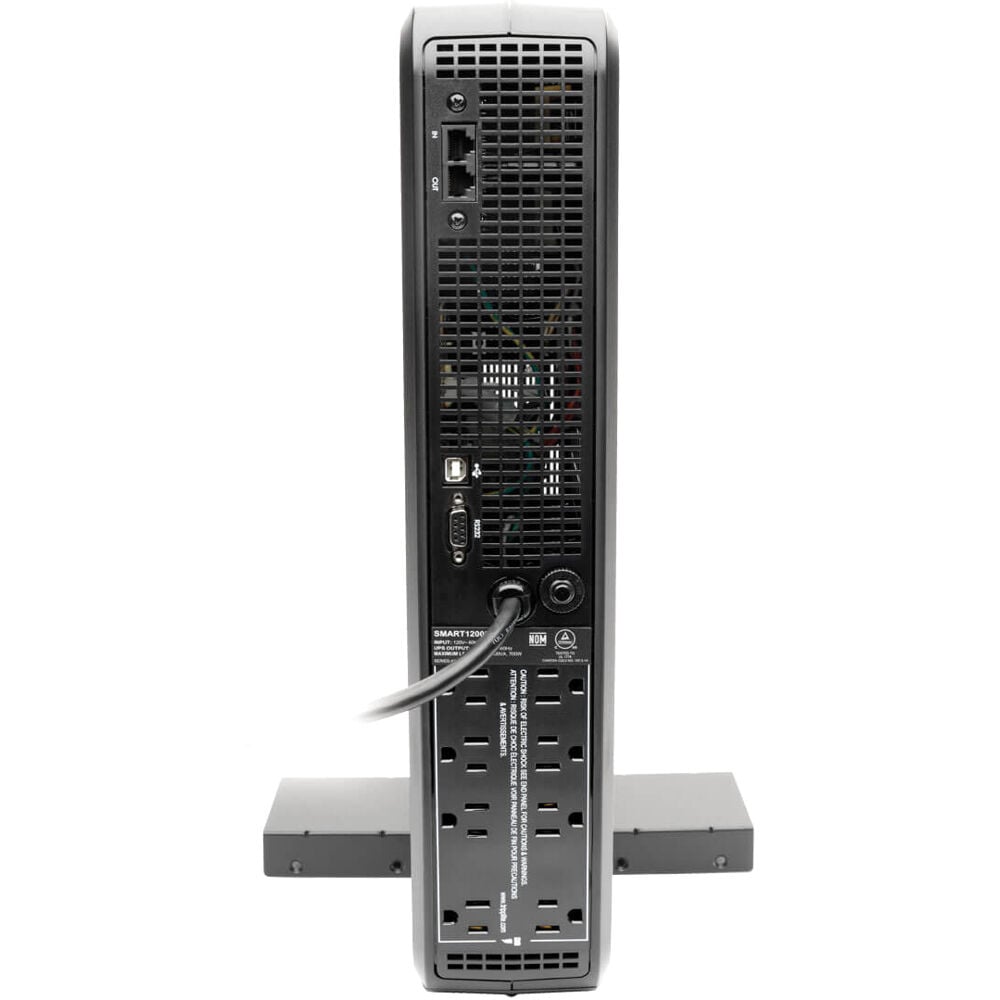

  • Features 8 protected NEMA 5-15R outlets
  • Keeps AC power running during blackouts to allow time for file saves and safe shutdown
  • Maintains continuous 120V nominal output during brownouts and overvoltages
  • Offers automatic voltage regulation (AVR)

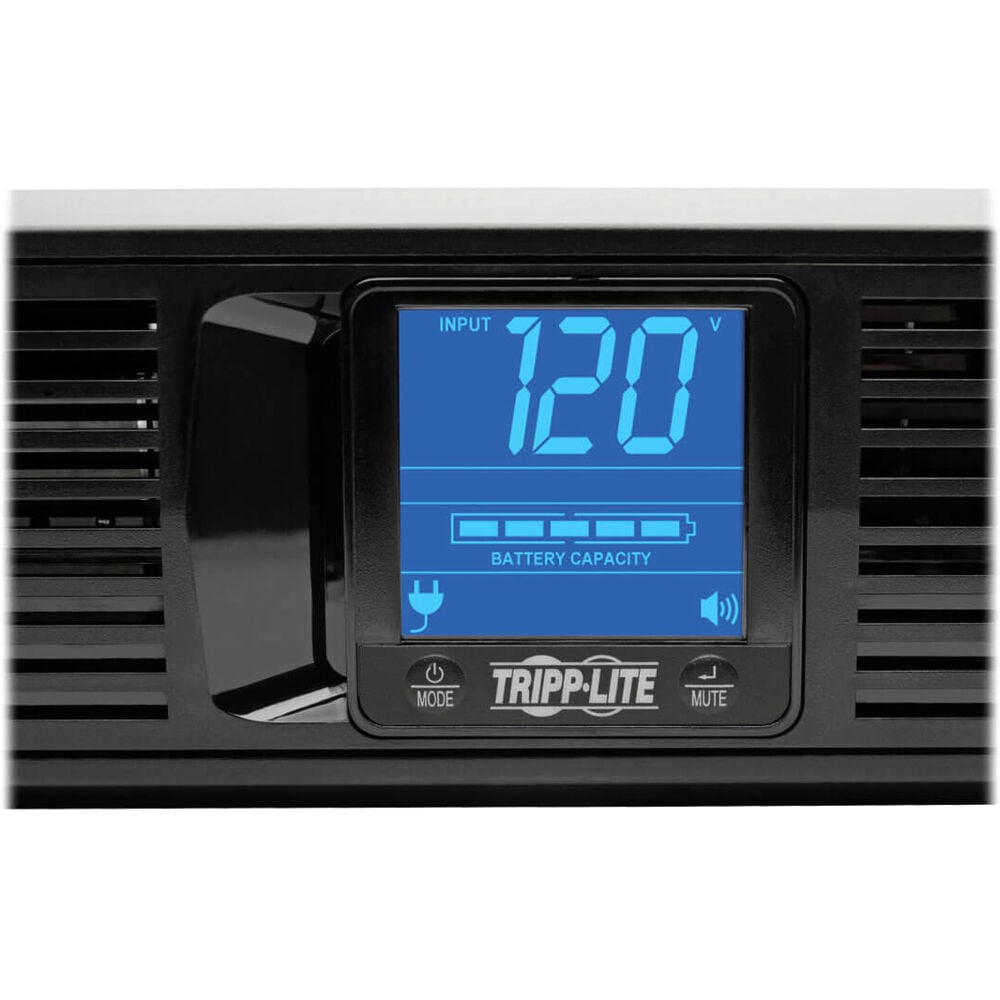

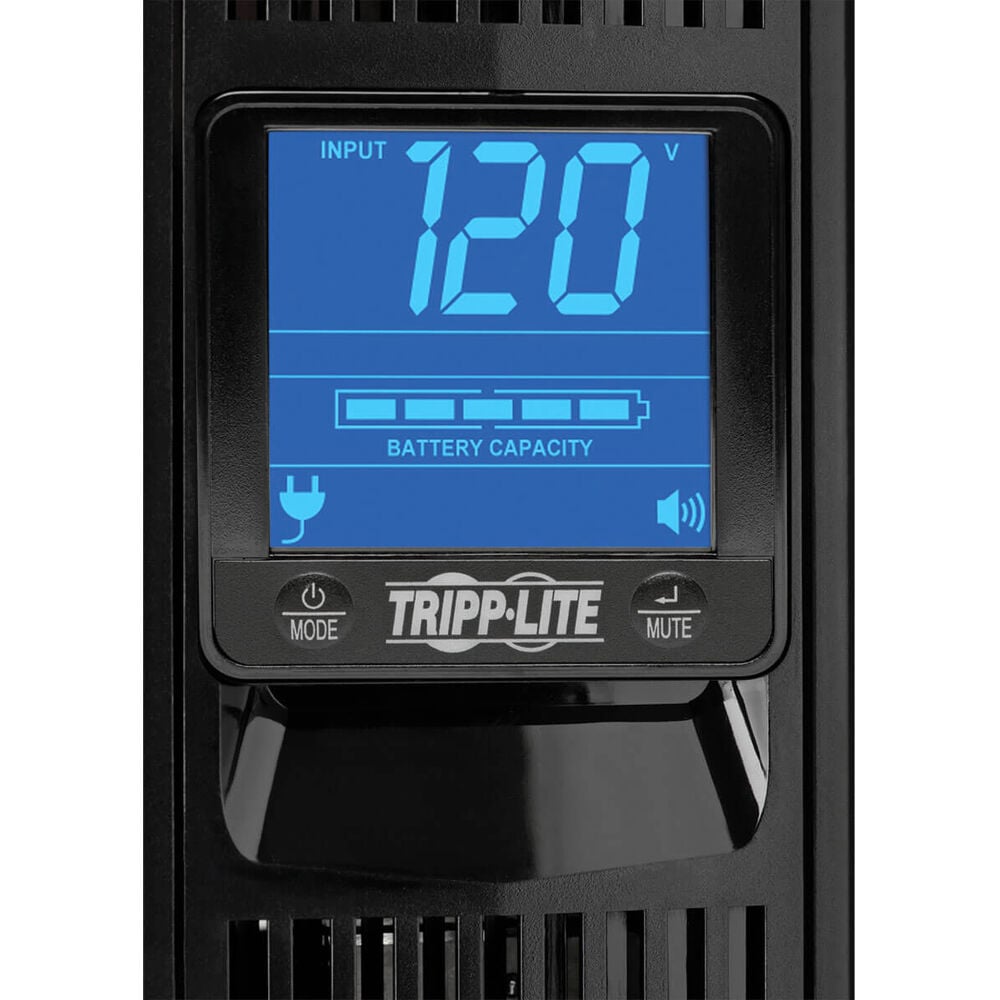

  • LCD screen reports real-time UPS and power status
  • ENERGY STAR-certified to save electricity, lower costs and protect the environment
  • Front-panel LCD reports detailed voltage, runtime, load and battery information
  • 3-year limited warranty & $250,000 Ultimate Lifetime Insurance
  • Rack Height: 2U
  • Form Factor: Rack/Tower
  • Weight (Approximate): 29 lb
  • Country of Origin: Switzerland
  • Limited Warranty: 3 Year
Log in or register for YOUR best price

Line-Interactive Digital UPS System offers voltage regulation, surge suppression and long-lasting battery support for personal computers, network workstations, entertainment systems and more. System prevents data loss, viewing interruptions, lost recordings and loss of programming. AVR circuits regulate brownouts and overvoltages from 75V to 147V back to usable levels without using battery power. Complete power protection with support for upright tower, flat shelfmount or 2U rackmount installation. Includes 8 battery-supported outlets. Built-in USB and DB9 serial port enables optional unattended system shutdown; cabling included. HID-compliant USB interface enables full integration with built-in power management and auto shutdown features of Windows, Mac OS X and Linux. Built-in single-line RJ-45 jacks offer protection for equipment with single-line tel/DSL or network Ethernet connection. UPS system offers a 13 minute, half-load runtime.

View full details

Specifications

'General Information
Manufacturer
Tripp Lite
Manufacturer Part Number
SMART1500LCD
Brand Name
Tripp Lite
Product Line
SmartPro
Product Model
SMART1500LCD
Product Name
SmartPro 1500 VA Rackmount/Tower Digital UPS
Product Type
Line-interactive UPS
Technical Information
Plug/Connector Type
NEMA 5-15P
Receptacles
8 x NEMA 5-15R - Battery/Surge-protected
Switching Time
4 ms
Dataline Protection
RJ-45 Dialup Phone/DSL line/Network Ethernet
Protection Type
Brownout
Over Voltage
Power Description
Load Capacity
1.50 kVA/900 W
Input Voltage
110 V AC
Input Voltage Range
120 V AC
Output Voltage
115 V AC Battery Operation
120 V AC Nominal
Frequency
60 Hz Output
Voltage Handling
±5% Battery Regulation
Current
8.50 A Utility
Waveform Type
Pulse-width Modulated Sine Wave
Surge Energy Rating
480 J
Filtering
EMI/RFI
Management
Overload Protection
Input circuit breaker
Interfaces/Ports
Interfaces/Ports
DB-9 RS-232 Serial
USB
Battery Information
Backup/Run Time
0.06 Hour 900 W Full Load
0.22 Hour 450 W Half Load
Battery Recharge Time
8 Hour
Environmental Conditions
Temperature
32°F (0°C) to 104°F (40°C) Operating
5°F (-15°C) to 122°F (50°C) Storage
Humidity
0 to 95% Non-condensing Relative Humidity
Physical Characteristics
Color
Black
Height
17.3"
Width
3.5"
Depth
10.5"
Power Cord/Cable
6 ft
Form Factor
2U Tower/Rack Mountable
Weight (Approximate)
29.00 lb
Miscellaneous

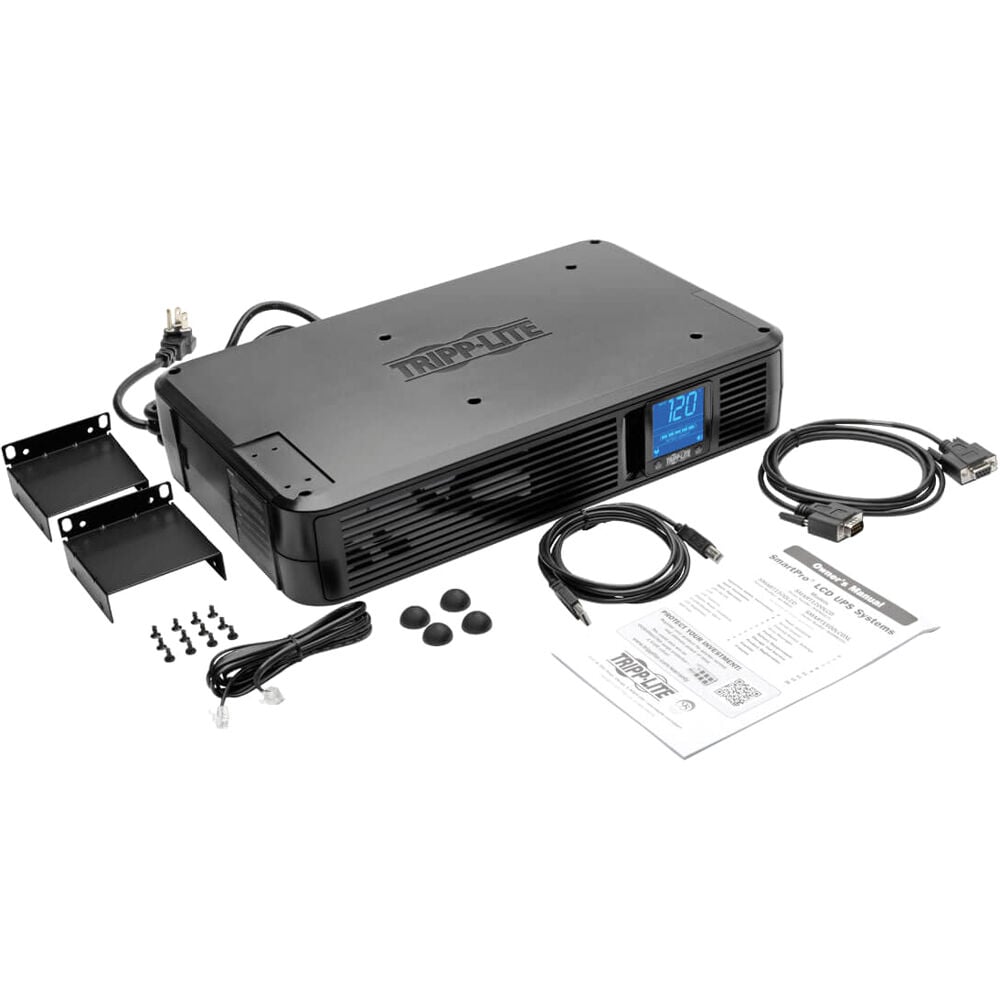

Package Contents

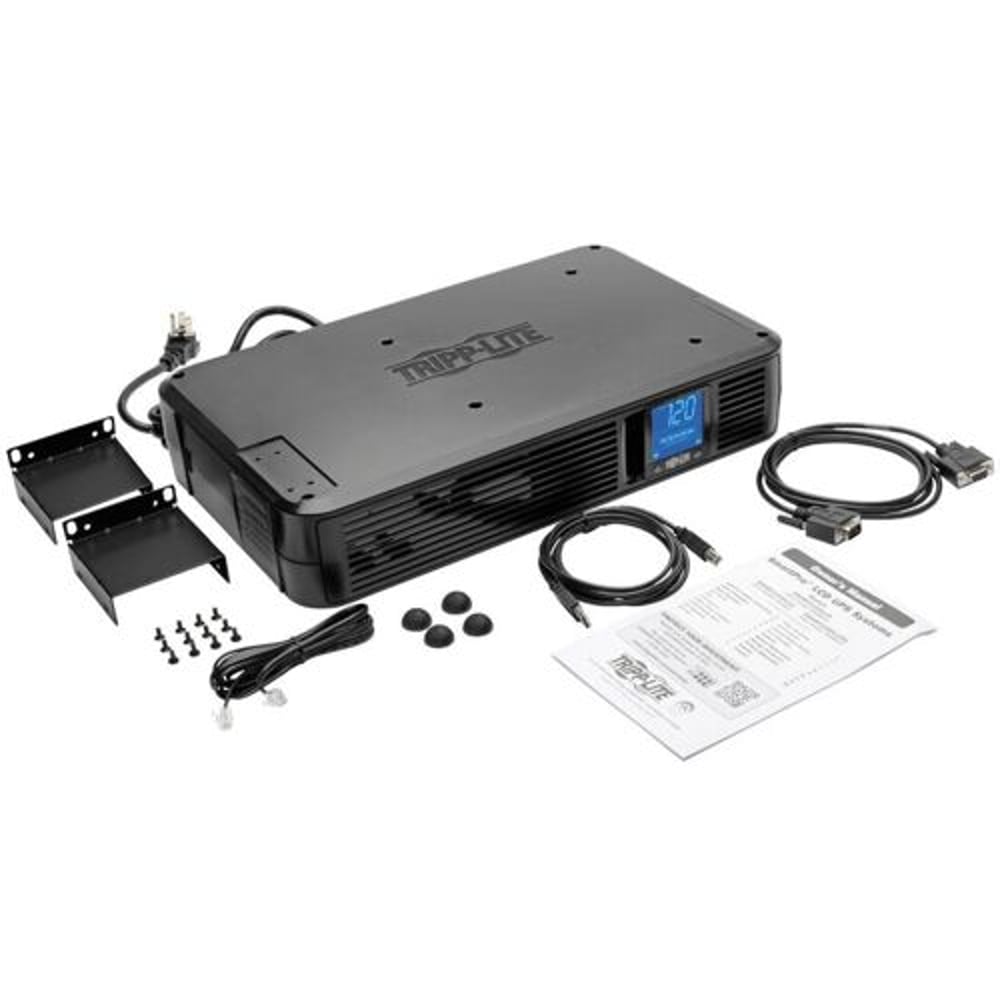

SmartPro 1500 VA Rackmount/Tower Digital UPS USB Cable Serial Cable Mounting Hardware Manual with Warranty Information
Additional Information
Cold Start Capable Automatic Voltage Regulation (AVR) LCD display indicates input voltage, battery capacity and a variety of operating conditions Switches: Two front panel switches - one main on/off power switch and one dual-function "alarm cancel"/"self test" button
Certifications & Standards
CSA NOM UL1778 FCC Class B FCC part 68
Warranty
Limited Warranty
3 Year
