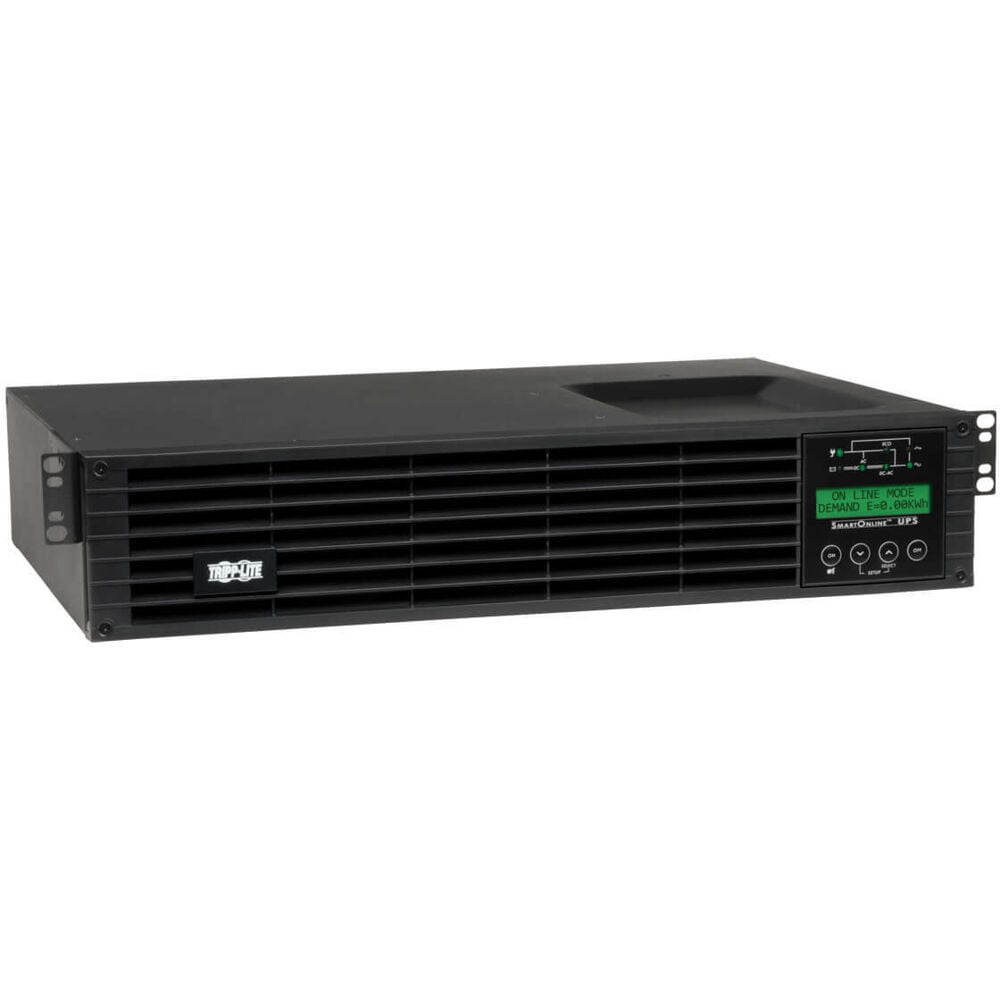

TRIPPLITE SU1500RTXLCD2U 1500Va 1350W Ups Smart Online Rackmount Lcd 100V-120V Usb 2Urm

TRIPPLITE SU1500RTXLCD2U 1500Va 1350W Ups Smart Online Rackmount Lcd 100V-120V Usb 2Urm

SoundPro Item: 145855 | Part Number: SU1500RTXLCD2U

$2,110.00
$2,110.00 $2,110.00
Your Price Sold out
MSRP: $2,110.00 | MAP: $2,110.00

Usually ships in 5-7 business days

  • 100/110/120/127V 50/60Hz output; High efficiency economy mode option
  • Provides battery backup, power protection and sine wave output for mission-critical IT installations, edge networks and other advanced network applications
  • Offers network-grade protection against power failures and voltage fluctuations
  • 1500VA / 1.5kVA / 1350W on-line double-conversion 2U rack / tower UPS
  • Expandable runtime, Hot-swap batteries, 18.5 in / 47cm depth
  • Zero transfer time between on-line and battery modes for uninterrupted operation
  • Keeps equipment running during outages to allow time for file saves and safe shutdown
  • Interactive LCD with 9 selectable screens of UPS and site power data
  • Energy Star Qualified
  • Optional WEBCARDLXE network interface allows 24/7 remote access from anywhere
  • 2-line front-panel LCD with 10 selectable screens reports detailed UPS and site power info
  • 2-year limited warranty
  • $250,000 Ultimate Lifetime Insurance
  • Typical Battery Recharge Time: 3 Hour
  • Height: 3.5"
  • Width: 17.5"
  • Depth: 18.5"
  • Rack Height: 2U
  • Form Factor: Rack/Tower
Log in or register for YOUR best price

Tripp Lite Smart Online UPS systems offer high performance power protection ideal for critical server and network equipment in datacenters, computer rooms and network closets. Online, double-conversion Uninterruptible Power Supply (UPS) with Transformerless, IGBT technology maintains perfectly regulated output power by continuously converting raw AC input to DC, then re-converting output back to AC. Fully regulated sine wave AC output with +/-2% voltage regulation powers network equipment continuously, even during severe brownouts and overvoltages, all without depleting UPS battery reserves. Maintains battery-derived AC output during power failures with zero transfer time. Extended runtime options available. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Highly efficient operation in optional economy mode saves BTU heat output and energy costs. Network management interfaces support communications via USB, RS-232, contact-closure and slot for network management card options. Built-in DB9 port offers both enhanced RS-232 data and basic contact closure monitoring ability. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. PowerAlert UPS monitoring software is available via free download. Emergency Power Off (EPO) interface. LED display reports UPS operating mode, line power availability, battery mode operation, inverter operation, ECO mode status and output power availability. LED/LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode LCD configuration options. Programmable self-test. Fault-tolerant auto-bypass mode. Field-replaceable, hot-swappable internal batteries and external battery packs.

View full details

Specifications

'General Information
Manufacturer
Tripp Lite
Manufacturer Part Number
SU1500RTXLCD2U
Brand Name
Tripp Lite
Product Line
SmartOnline
Product Model
SU1500RTXLCD2U
Product Name
SmartOnline SU1500RTXLCD2U 1500VA Tower/Rack Mountable UPS
Product Type
Dual Conversion Online UPS
Technical Information
Plug/Connector Type
NEMA 5-15P
Receptacles
6 x NEMA 5-15R - Battery Backup System
Switching Time
0 ns
Dataline Protection
Phone/DSL
Network
Power Description
Load Capacity
1.50 kVA/1.35 kW
Input Voltage
110 V AC
Input Voltage Range
100 V AC Nominal
115 V AC Nominal
120 V AC Nominal
127 V AC Nominal
Output Voltage
100 V AC Nominal
110 V AC Nominal
115 V AC Nominal
120 V AC Nominal
127 V AC Nominal
Frequency
60 Hz Output
Voltage Handling
±2% Line Mode
±10% Economy Line Mode
±3% Battery Regulation
Current
12 A Input
Filtering
EMI/RFI
Management
Network Management
SNMP Manageable Optional
Bypass Switch
Automatic
Emergency Power OFF
Yes
Interfaces/Ports
Interfaces/Ports
USB
DB-9 RS-232 Serial
Modular Slots
Communications Slot
Battery Information
Batteries
User Replaceable Hot-swappable
Backup/Run Time
0.07 Hour 1.35 kW Full Load
0.23 Hour 675 W Half Load
Battery Recharge Time
<3 Hour
Physical Characteristics
Height
3.5"
Width
17.5"
Depth
18.5"
Form Factor
2U Tower/Rack Mountable
Weight (Approximate)
45.00 lb
Miscellaneous

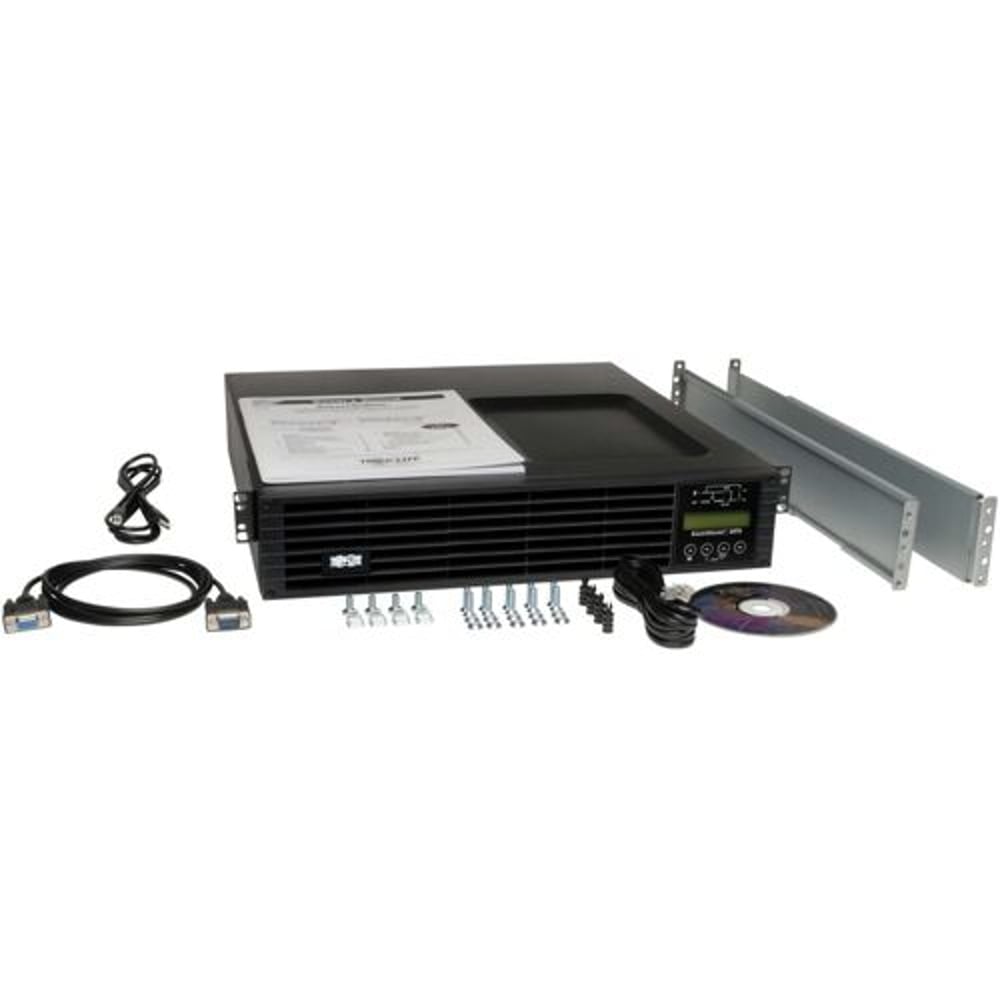

Package Contents
SmartOnline SU1500RTXLCD2U 1500VA Tower/Rack Mountable UPSPowerAlert Software CDUSB CableSerial CableEPO Cable4 Post Rackmount Installation KitInstruction Manual
Certifications & Standards
CSAUL1778FCC Part 15 Category A (EMI)
Software Included
PowerAlert Software
Green Compliant
Yes
Green Compliance Certificate/Authority
RoHS
Warranty
Limited Warranty
2 Year
