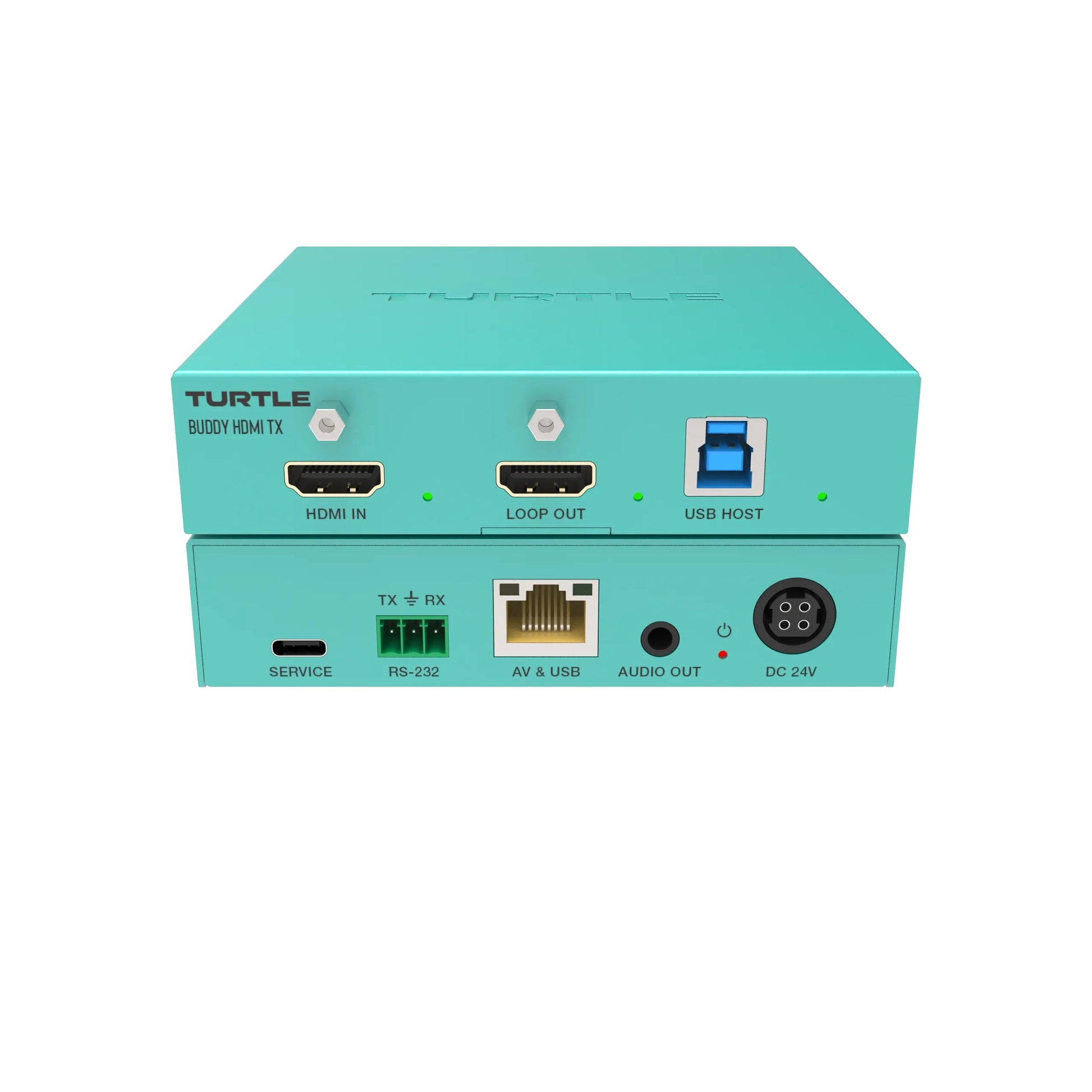

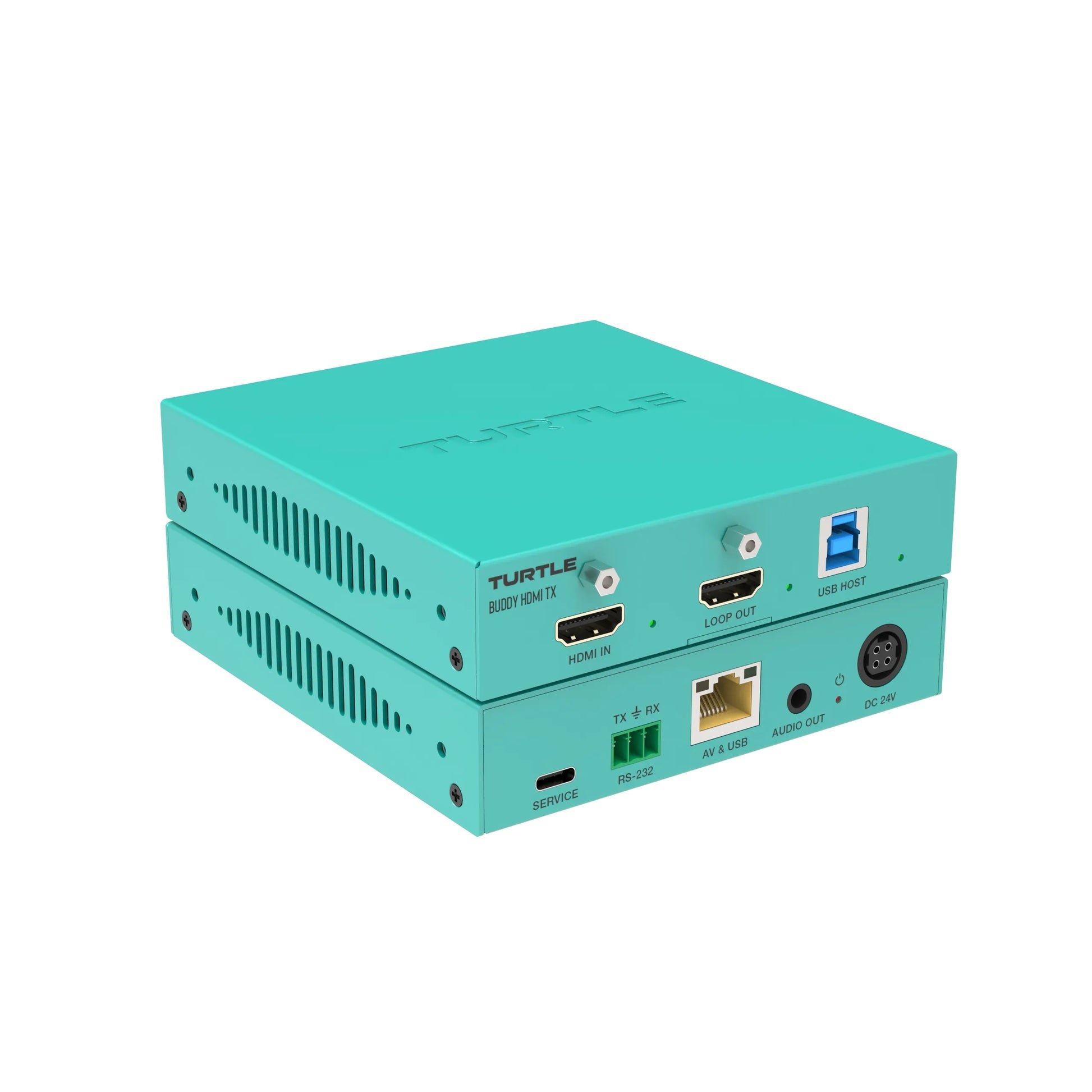

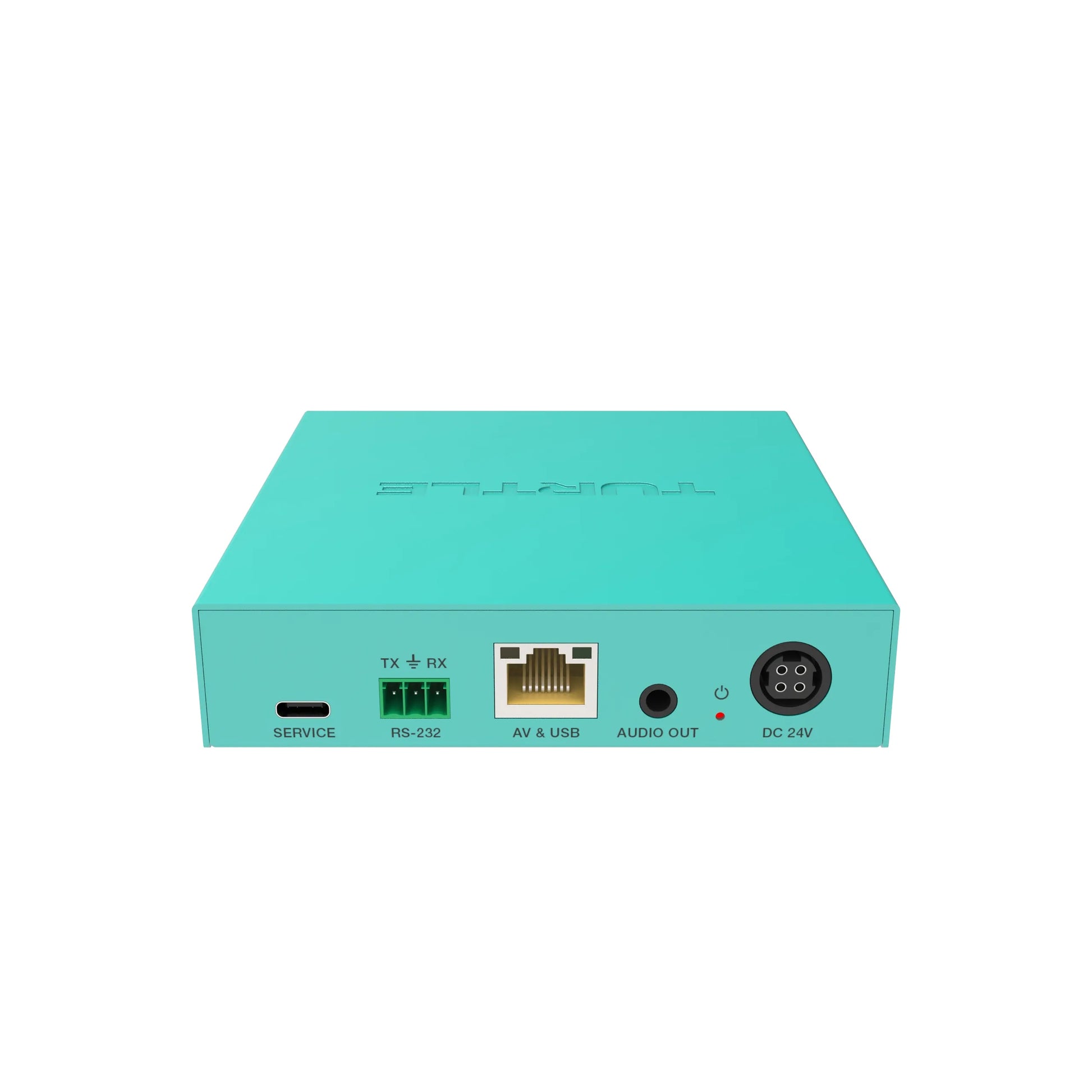

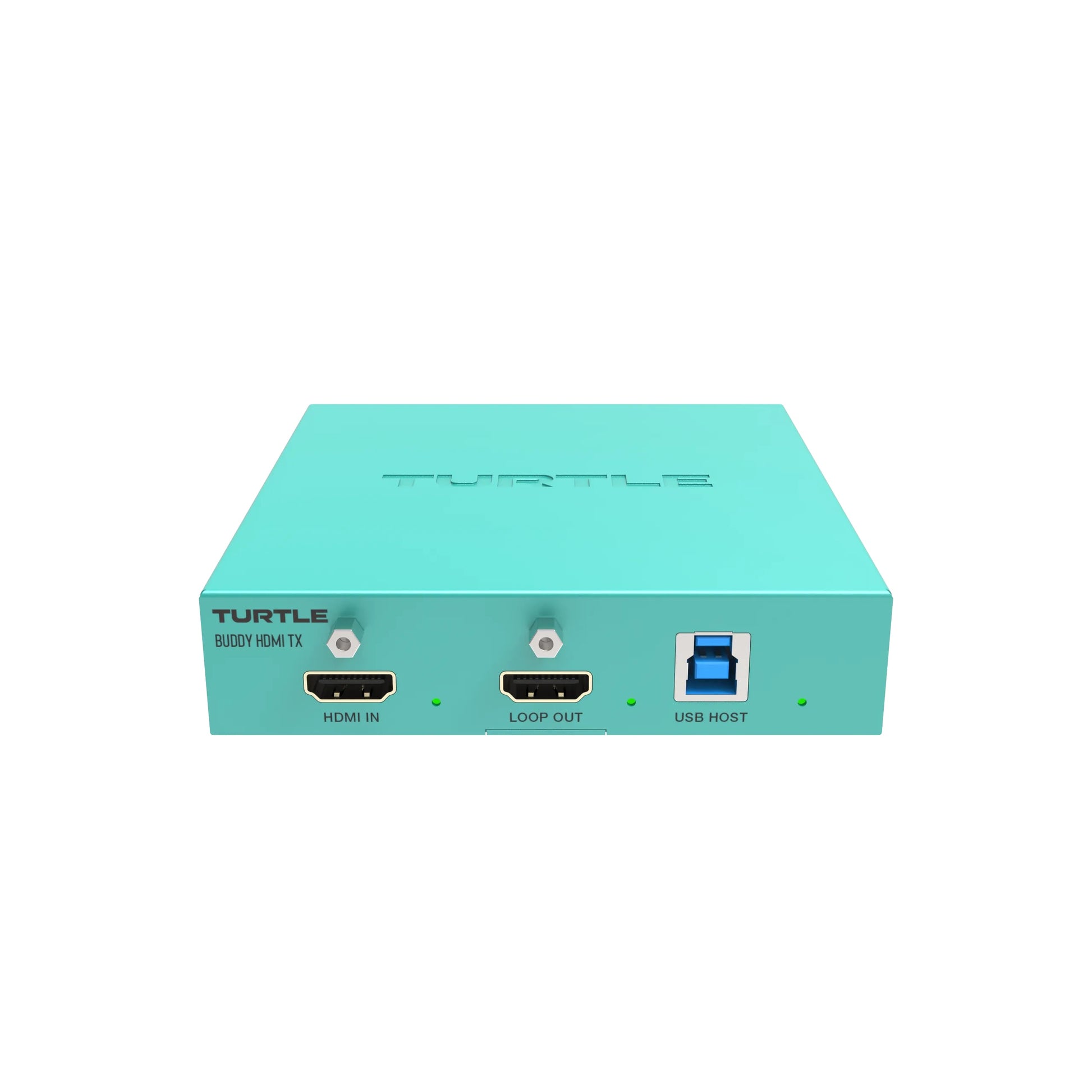

Turtle AV TAV-BBHDMI-TX Boardroom Buddy HDMI Transmitter

Turtle AV TAV-BBHDMI-TX Boardroom Buddy HDMI Transmitter

SoundPro Item: 207348 | Part Number: TAV-BBHDMI-TX

$699.00
$699.00 $699.00
Your Price Sold out
MSRP: $699.00 | MAP: $699.00

Usually ships in 5-7 business days

  • Uncompressed 4K60 4:4:4 Video Transmission Maintains Pixel-Perfect Clarity For Detailed Spreadsheets And Presentations
  • USB 3.2 Gen 1 With 2.5Gbps Throughput Supports Cameras And Peripherals Without Bandwidth Limitations
  • 100W Power Delivery Charges Connected Laptops While Transmitting Video And Data Simultaneously
  • Power Over Cable Eliminates External Injectors By Delivering Power To Receiver Through Transmission Cable
  • EDID Management Prevents Resolution Conflicts Across MacBook Windows And Chromebook Devices
  • RS-232 Integration Enables Control System Compatibility With Existing Infrastructure
  • Locking Connectors Secure Power And USB-C Connections Against Accidental Disconnection During Sessions
Log in or register for YOUR best price

Turtle AV Boardroom Buddy HDMI Transmitter eliminates the complexity of traditional AV extension systems by combining uncompressed 4K60 4:4:4 video, USB 3.2 Gen 1 data at 2.5Gbps, and up to 100W Power Delivery over a single CAT6a cable run up to 130 feet. Designed for corporate meeting spaces and collaborative environments, this transmitter removes the need for external power injectors, additional PSUs, or hidden infrastructure boxes. Power over Cable technology distributes power to the remote receiver through the same cable carrying video and data.

Integrators gain flexible deployment options through mix-and-match pairing with compatible receivers, supporting USB-C to HDMI, USB-C to USB-C, HDMI to USB-C, and HDMI to HDMI configurations. EDID management allows direct loading of display profiles, ensuring consistent compatibility across MacBook, Windows, and Chromebook devices without resolution negotiation failures. RS-232 integration provides control system compatibility for existing AV infrastructure. TAA compliance meets federal procurement standards for government installation projects.

Locking power and USB-C connectors prevent accidental disconnection during presentations. HDR10, HDR10+, Dolby Vision, and Hybrid Log Gamma support preserve dynamic range across supported displays. HDCP 2.3 ensures protected content playback. The 5-year warranty includes advance replacement service, reducing downtime in mission-critical meeting environments.

View full details

Specifications

Certifications
Compliance
CE, FCC, UL, TAA
HDCP Support
Yes: Version 2.3
Video
Video Bandwidth
18 Gb/s
HDR Support
HDR10/HDR10+/Dolby Vision/Hybrid Log Gamma
Max Transmission Distance
131.2' / 40 m (Cat 6a)
Video Format
5120 x 2160p: 50/60 fps, 4096 x 2160p: 23.98/24/25/29.97/30/50/59.94/60 fps, 3840 x 2160p: 23.98/24/25/29.97/30/50/59.94/60 fps, 1920 x 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps, 1920 x 1080i: 50/59.94/60 fps, 1280 x 720p: 50/59.94/60 fps
Audio
Supported Audio System
DTS/DTS 96/24/DTS Express/DTS-HD High Resolution/DTS-HD Master Audio/Dolby Atmos/Dolby Digital/Dolby Digital EX/Dolby Digital Plus/Dolby TrueHD
Supported Sample Rates
Up to 192 kHz (LPCM)
Embedded Audio
HDMI, RJ45
Connectivity
HDMI Input
1x HDMI Female (2.0b)
USB Input
1x USB-B Female (2.0)
HDMI Loop-Out
1x HDMI Female (2.0b)
RJ45 Output
1x RJ45 Female
USB-C Output
1x USB-C Female (3.1/3.2 Gen 1)
Analog Audio Output
1x 1/8" / 3.5 mm TRS Female
Firmware Input
1x USB-C Female
RS-232
1x Block 3-Pin Female (Input/Output)
Supported Cable Types
Cat 6a
Power
Power Input
1x DIN 4-Pin (24 VDC at 2 A)
PoE Support
Yes: PoE Proprietary
Environmental
Operating Conditions
32 to 104°F / 0 to 40°C at 20 to 80% Humidity
Storage Conditions
-4 to 140°F / -20 to 60°C at 10 to 90% Humidity
Dimensions
Dimensions
4.6" x 4.4" x 1"
Weight
Weight
13.5 oz / 383 g
Included Items
What's In The Box
Boardroom Buddy HDMI Transmitter, Power Supply
