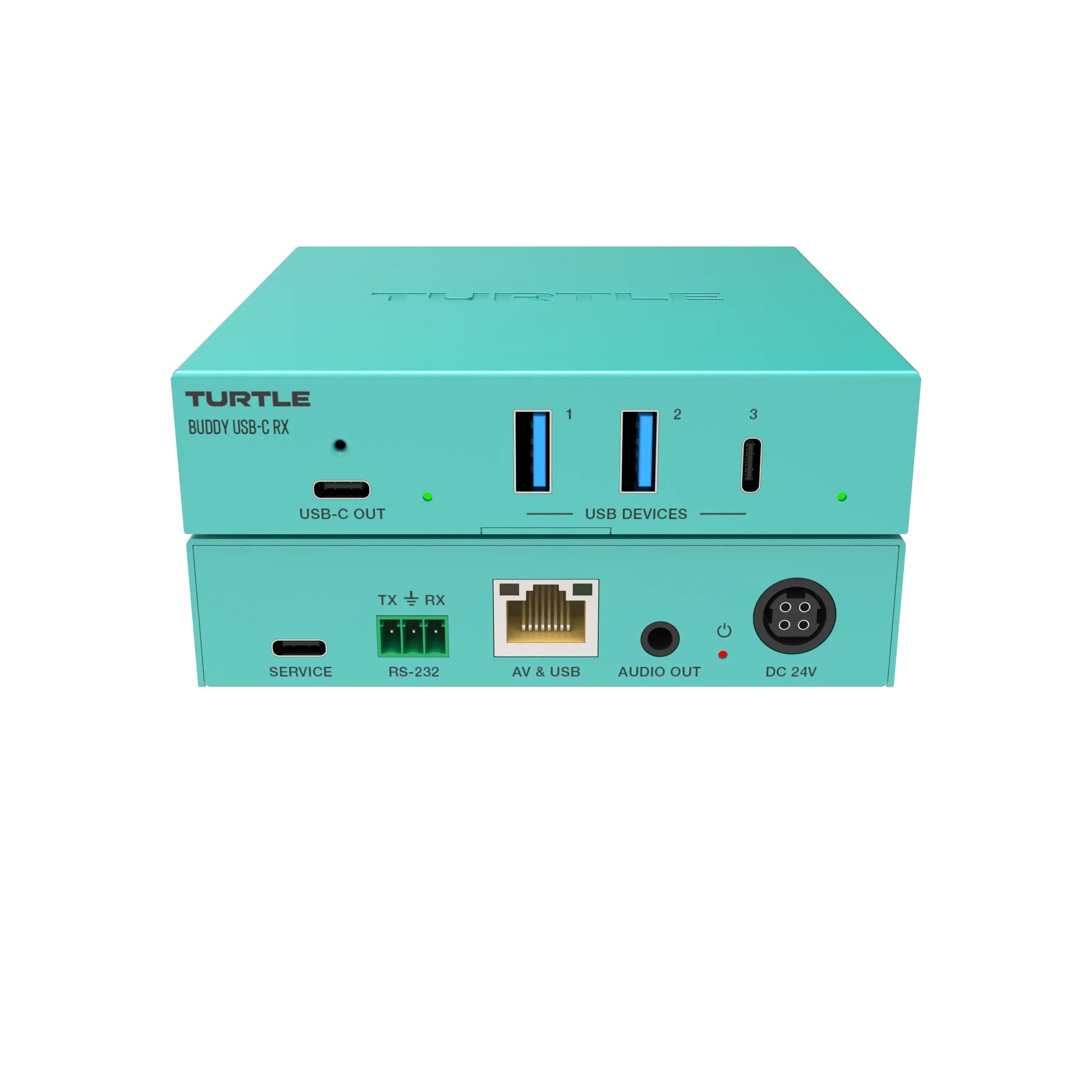

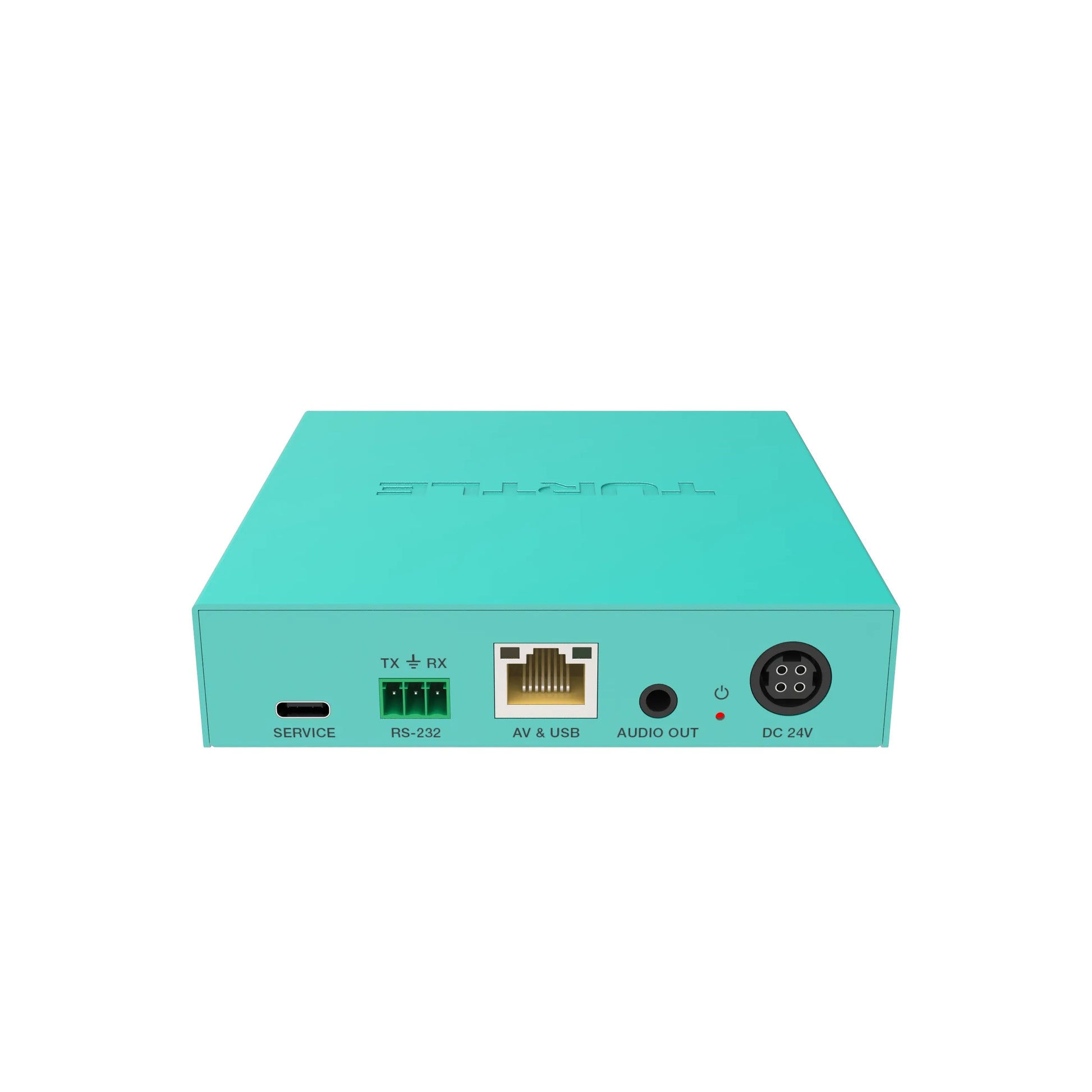

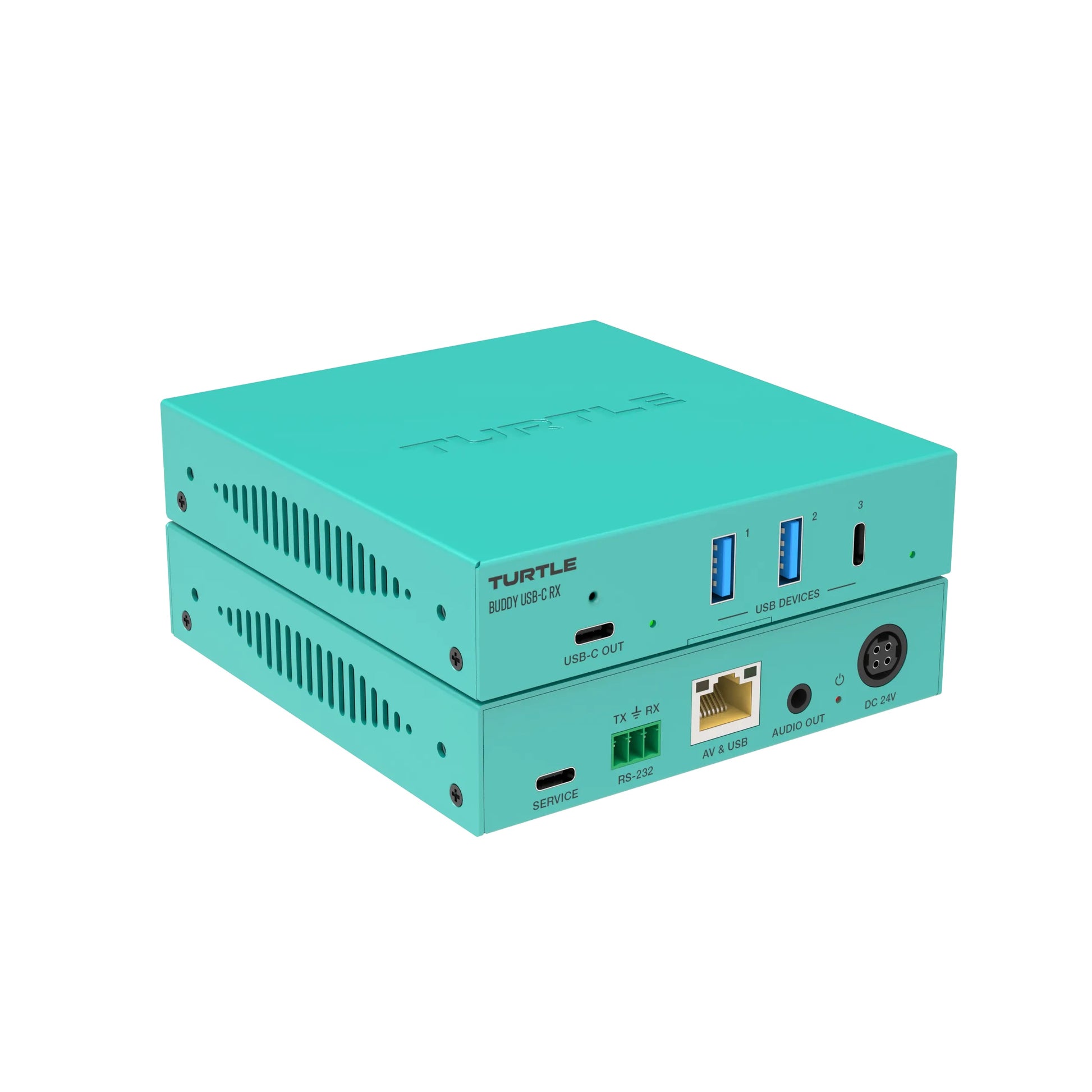

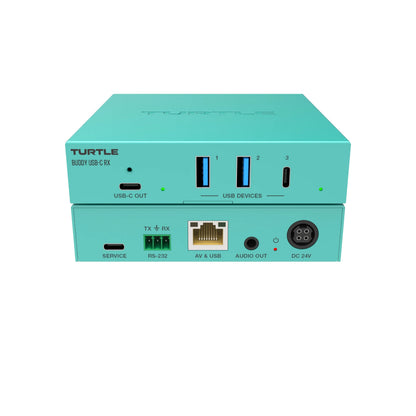

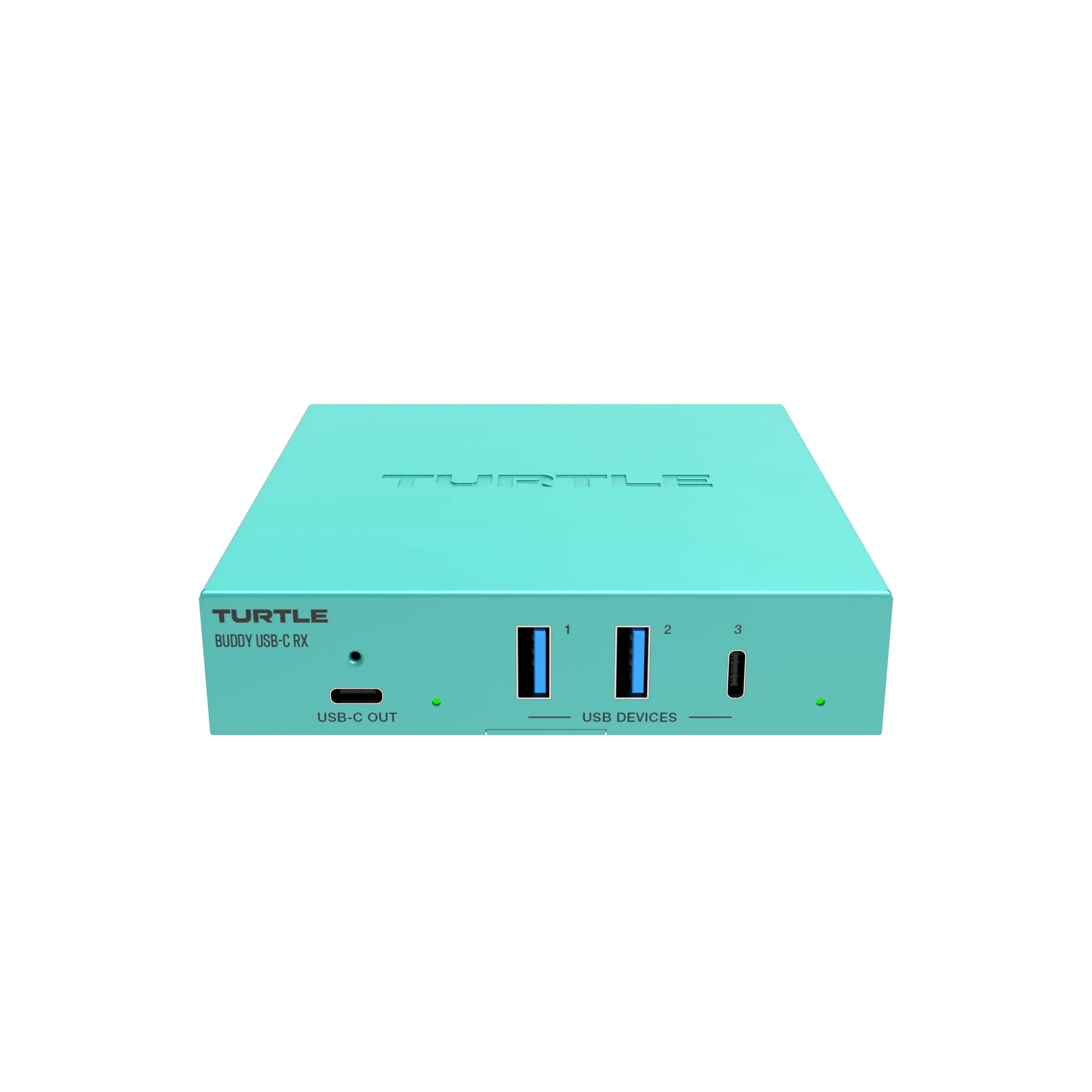

Turtle AV TAV-BBUSBC-RX Boardroom Buddy USB-C Receiver

Turtle AV TAV-BBUSBC-RX Boardroom Buddy USB-C Receiver

SoundPro Item: 207351 | Part Number: TAV-BBUSBC-RX

$699.00
$699.00 $699.00
Your Price Sold out
MSRP: $699.00 | MAP: $699.00

Usually ships in 5-7 business days

  • Uncompressed 4K60 4:4:4 Signal Transport Preserves Native Color Space For Accurate Content Reproduction
  • USB 3.2 Gen 1 Data Path At 2.5Gbps Supports High-Bandwidth Cameras And Collaboration Peripherals
  • Power Over Cable Architecture Eliminates Remote Power Supply Requirements At Receiver Location
  • Integrated RS-232 Passthrough Enables Direct Control System Communication Without Additional Infrastructure
  • Onboard EDID Storage Resolves Display Negotiation Across Mac, Windows, And Chromebook Sources
  • Locking USB-C And Power Connectors Prevent Accidental Disconnection In High-Traffic Conference Environments
  • TAA Compliance Meets Federal Procurement Standards For Government And Defense Sector Installations
Log in or register for YOUR best price

Designed for professional AV integrators deploying BYOD collaboration systems, this receiver delivers uncompressed 4K60 4:4:4 video and USB 3.2 Gen 1 data over a single CAT6a cable run up to 131 feet. Pair with any Boardroom Buddy transmitter to create flexible USB-C to HDMI, USB-C to USB-C, HDMI to USB-C, or HDMI to HDMI signal paths that adapt to evolving meeting space requirements without infrastructure changes.

Power over Cable architecture eliminates remote power supplies by delivering operating voltage through the CAT6a transmission line. The receiver provides two USB-A ports and one USB-C port for camera, speakerphone, and peripheral connectivity at 2.5Gbps throughput. Integrated RS-232 support enables control system integration in corporate and higher education installations. Onboard EDID management resolves Mac and PC display negotiation without user intervention.

Locking power and USB-C connectors prevent accidental disconnection in high-traffic conference environments. TAA compliance meets federal procurement requirements for government and defense sector projects. CE, FCC, and UL certifications ensure global deployment compatibility with five-year advance replacement warranty coverage.

View full details

Specifications

Standards
HDCP Support
Version 2.3
HDR Support
HDR10, HDR10+, Dolby Vision, Hybrid Log Gamma
EDID Management
Yes
Transmission
Maximum Extension Distance
131.2' / 40 m via Cat 6a at 4K60
Supported Cable Type
Cat 6a
Video Bandwidth
18 Gb/s
Supported Resolutions
4096 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps, 3840 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps, 1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps, 1920 x 1080i at 50/59.94/60 fps, 1280 x 720p at 50/59.94/60 fps, additional resolutions down to 640 x 480p at 60 fps
Color Depth
8-bit, 10-bit, 12-bit
Color Space
4:4:4, 4:2:2, 4:2:0 RGB and YCC
Audio
Supported Audio Formats
DTS, DTS 96/24, DTS Express, DTS-HD High Resolution, DTS-HD Master Audio, Dolby Atmos, Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD, LPCM
Maximum Sample Rate
192 kHz (LPCM)
Connectivity
RJ45 Input
1x Female
USB-C Output
1x Female (USB 3.1/3.2 Gen 1), 1x Female
USB-A Output
2x Female
3.5mm TRS Analog Audio Output
1x Female
RS-232
1x Block 3-Pin Female Input/Output
USB-C Firmware Input
1x Female
Power
Power Input
1x DIN 4-Pin (24 VDC)
PoE Support
Proprietary Power Over Cable
Environmental
Operating Temperature
32 to 104°F / 0 to 40°C
Operating Humidity
20 to 80%
Storage Temperature
-4 to 140°F / -20 to 60°C
Storage Humidity
10 to 90%
Certifications
Compliance
CE, FCC, UL, TAA
Dimensions
Unit Dimensions
4.6 x 4.4 x 1" / 118 x 111 x 25.5 mm
Weight
Unit Weight
12.9 oz / 365 g
Included Items
Included Accessories
Power Supply
Warranty
Limited 5-Year Manufacturer Warranty with Advance Replacement
