Turtle AV TAV-CHAZY4K-MV Dante AV-A Multiviewer With HDMI
Turtle AV TAV-CHAZY4K-MV Dante AV-A Multiviewer With HDMI
SoundPro Item: 207347 | Part Number: TAV-CHAZY4K-MV
Usually ships in 5-7 business days
- Four 4K Dante AV-A Stream Inputs Combine Into Single Configurable Multiview Output
- Simultaneous Local Display And Network Distribution For Unlimited Receiver Deployment
- HDMI And DisplayPort Combo Connector Accepts Either Cable Standard On One Physical Port
- True Windowing KVM With Mouse Roaming Enables Cursor Movement Across Source Boundaries

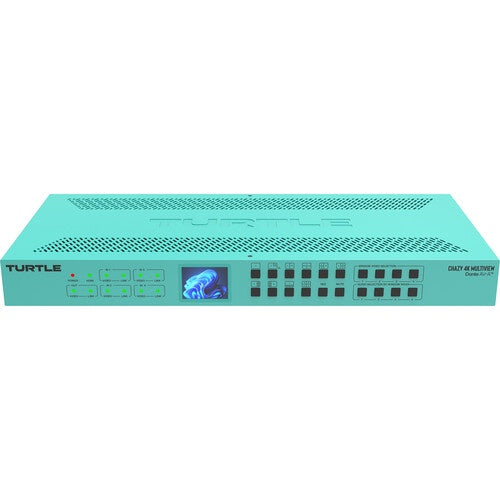

- Front Panel Buttons And OLED Confidence Monitor Provide Browser-Free Operation And Status
- Native Q-SYS Plugin And OpenAVC Support With Open API For Custom Integration Workflows
- Locking Power Connector And TAA Compliant Construction For Government And Enterprise Installations
Chazy 4K Multiview is engineered for control rooms, live production environments, and corporate installations requiring flexible video monitoring over IP infrastructure. Receive four separate 4K Dante AV-A streams from anywhere on the network and combine them into a unified multiview display with drag-and-drop window positioning, custom scaling, and preset recall functionality. Output simultaneously to a local display via the integrated HDMI and DisplayPort combo connector while redistributing the assembled multiview back onto the network as a Dante AV-A stream, enabling reception on unlimited downstream Chazy 4K RX devices without additional processing hardware.
True Windowing KVM with Mouse Roaming allows operators to move their cursor naturally across source boundaries as though controlling a single continuous surface, eliminating fixed zone switching and manual input selection. Front panel controls provide immediate access to layout presets and system functions without requiring browser access, while the built-in OLED confidence monitor delivers real-time system status at a glance. Integration support includes native Q-SYS plugins, Bitfocus Companion, OpenAVC, and an open API for custom control implementations. RS-232 connectivity ensures compatibility with legacy control infrastructure already deployed in professional installations.
Dante audio is embedded and extracted via Euroblock analog breakout connectors. The locking power connector prevents accidental disconnection during permanent installations. TAA compliant construction meets government and enterprise procurement requirements. Packaged in a compact 1RU chassis with a 5-year advance replacement warranty included.
Specifications
