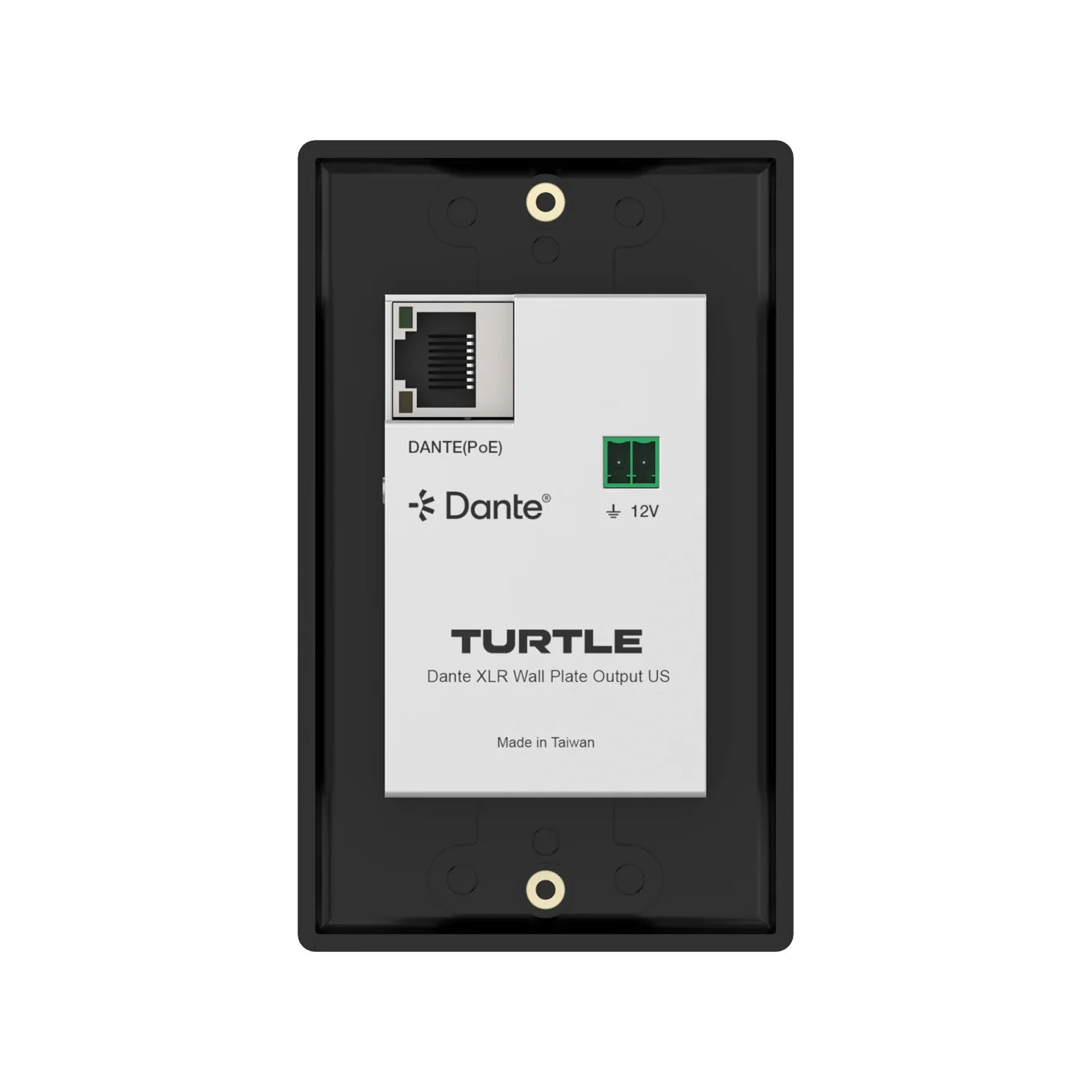

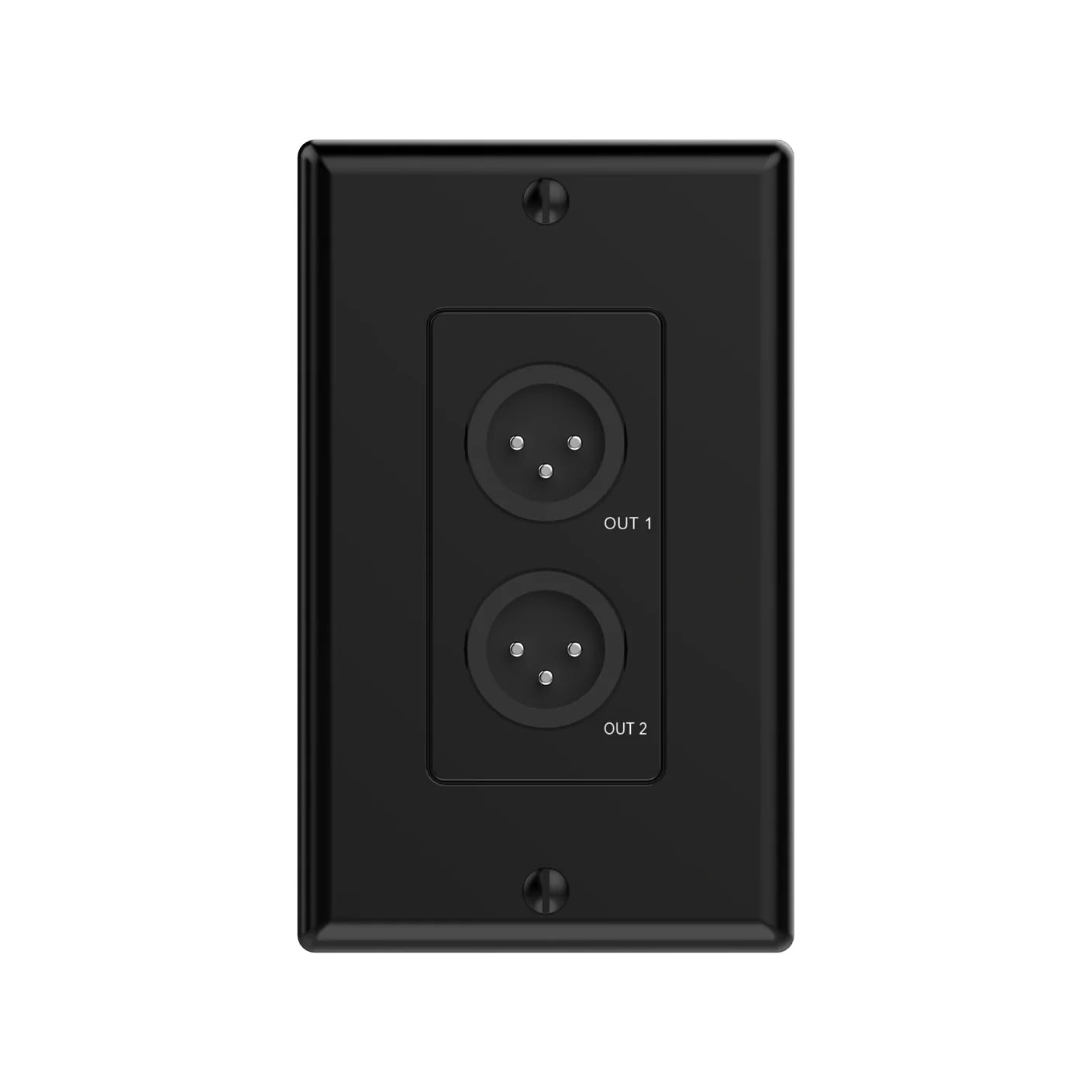

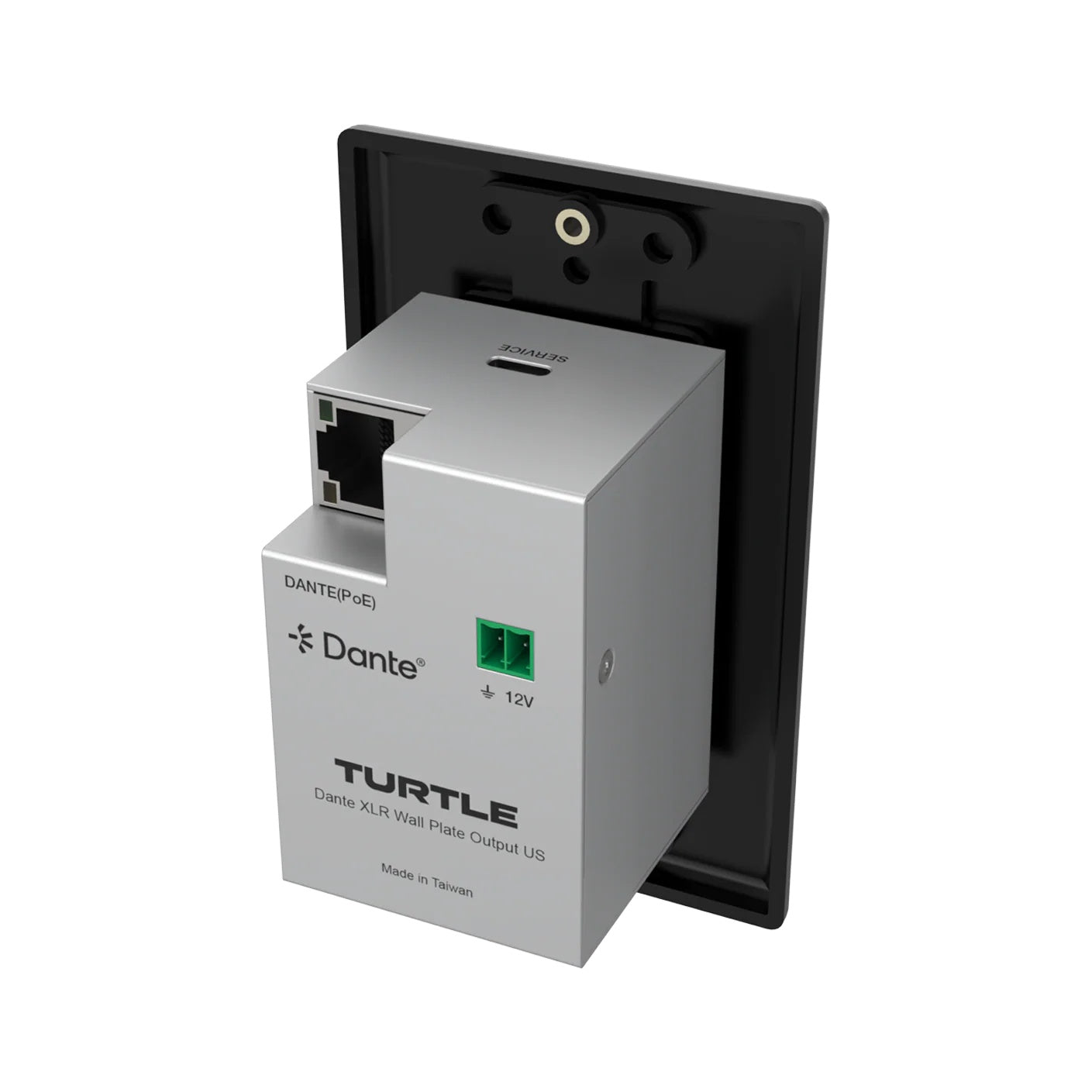

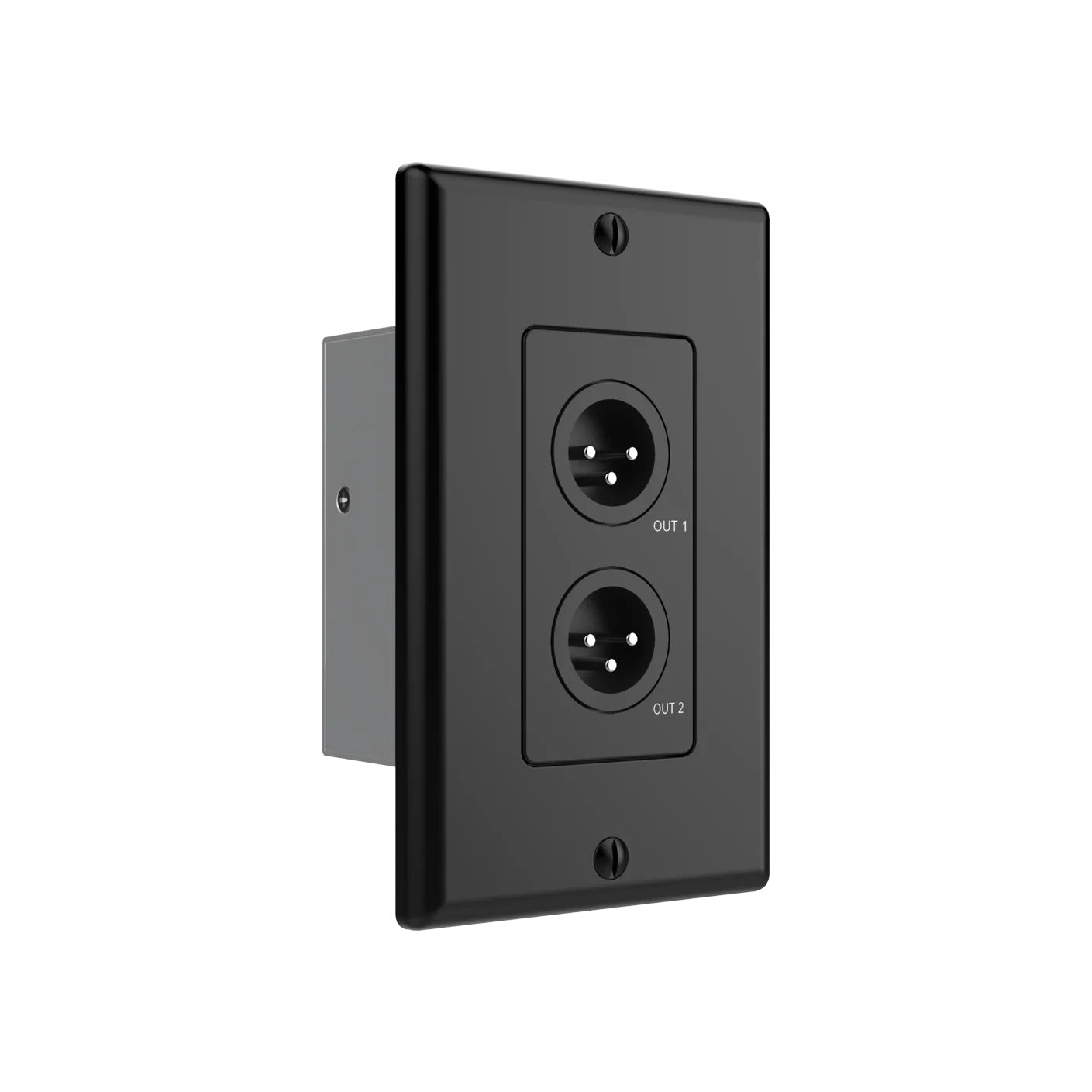

Turtle AV Dante XLR Output Wall Plate US 1-Gang Decora | Black

Turtle AV Dante XLR Output Wall Plate US 1-Gang Decora | Black

SoundPro Item: 207358 | Part Number: TAV-XLRWP-OUT-US-B

$599.00
$599.00 $599.00
Your Price Sold out
MSRP: $599.00 | MAP: $599.00

Usually ships in 5-7 business days

  • Integrated Mic Preamps With Selectable Phantom Power Accept Dynamic And Condenser Sources
  • Browser-Based DSP Provides Parametric EQ, Filters, Compressor, And Expander Without External Processors
  • Dante Controller And AES67 Compatibility Ensures Interoperability Across Networked Audio Platforms
  • Configurable Latency Settings Accommodate Real-Time Monitoring And Zoned Distribution Needs
  • Native Q-SYS Plugin And Network API Enable Centralized Control And Third-Party Automation
  • Redundant PoE And Terminal Block Power Inputs Simplify Installation And Improve Reliability
  • TAA Compliance Meets Federal Procurement Standards For Government And Military Contracts
Log in or register for YOUR best price

Designed for integrators deploying networked audio in corporate, education, and performance venues, this wall-mounted Dante interface combines dual XLR mic/line inputs with onboard signal processing. Integrated preamps accept dynamic and condenser microphones, with selectable 48V phantom power switched per channel. Eight-band parametric EQ, high-pass and low-pass filters, compressor, expander, and gain adjustment are accessible through any browser via the embedded WebUI, eliminating the need for external DSP or control hardware.

Full compatibility with Dante Controller, Dante Domain Manager, and AES67 transport ensures seamless integration into existing AV-over-IP ecosystems. Configurable latency settings of 1, 2, or 5 milliseconds accommodate real-time monitoring and distributed zoning requirements. Native Q-SYS plugin support and network API access enable third-party automation and centralized system management.

Redundant powering through PoE or 12V DC terminal block simplifies deployment in retrofit and new construction scenarios. TAA-compliant manufacturing meets federal procurement standards. Decora form factor fits US 1-gang electrical boxes without custom fabrication, maintaining architectural consistency across installed environments.

View full details

Specifications

General
Compatibility
Dante Software
Sample Rate
44.1, 48, and 96 kHz at 24-Bit
Latency
1, 2, or 5 ms Configurable via Dante Controller
Audio Signal Format
AES67 RTP Audio Transport
Audio
Audio I/O
1x RJ45 Dante Input/Output, 2x XLR 3-Pin Line/Mic Output
Connectivity
Other I/O
1 x 2-Pin Terminal Block (Power), 1 x Micro-USB (Service)
Power
Power Source
DC Input, PoE
DC Input Power
12 VDC
Physical
Mounting
1x US 1-Gang Decora Style
Color
Black
