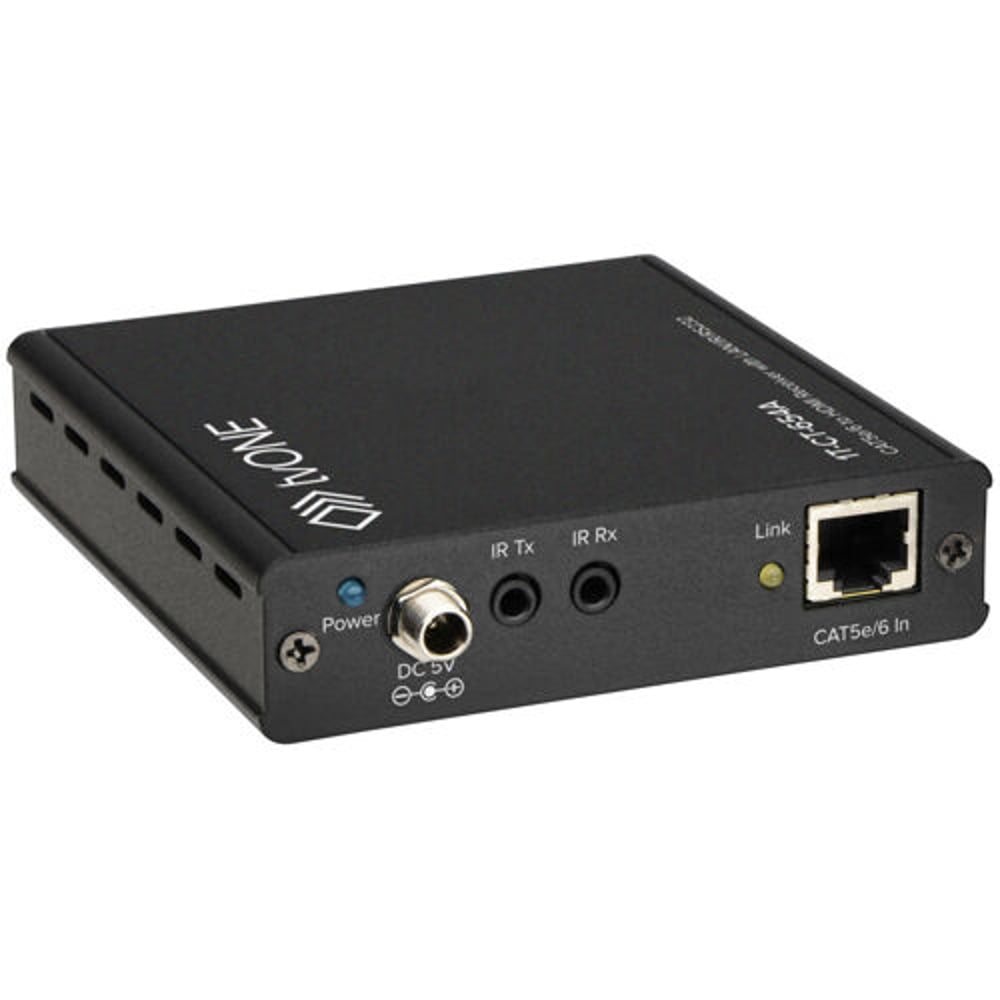

TVONE 1T-CT-654A HDBaseT Receiver
TVONE 1T-CT-654A HDBaseT Receiver
SoundPro Item: 203081 | Part Number: 1T-CT-654A
Usually ships in 5-7 business days
- Connectivity Technology: Wired
- Number of Output Devices Supported: 1
- Maximum Operating Distance: 328.08 ft
- Graphics Modes: 4K
- Network (RJ-45): Yes
- HDMI Out: Yes
- Number of Network (RJ-45) Ports: 1
- Number of HDMI Outputs: 1
- Media Type Supported: Twisted Pair
- Twisted Pair Cable Standard: Category 6
- Transmitter Height: 0.98"
- Transmitter Width: 4.02"
- Transmitter Depth: 107"
- Transmitter Weight (Approximate): 9.03 oz
- Environmentally Friendly: Yes
- Limited Warranty: 3 Year
- Limited Warranty: 3 Year
- Limited Warranty: 3 Year
1T-CT-653/1T-CT-654A HDMI over Single Cat.5e/Cat.6 system consists of a 1T-CT-653 Transmitter coupled with a 1T-CT-654A Receiver (each purchased separately) which employs HDMI v1.4 capability and HDBaseT 5Play™ technology to allow transmission of uncompressed, 1080p high definition television signals over a single Cat.5e or Cat.6 cable. HDMI v1.4 signals - including 3D and 4k UHD formats - are supported and the system will also allow DVI signal transmission with appropriate DVI to HDMI Cable adapters. In addition, embedded LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio capability is standard. Control signals can be passed via Ethernet, Infrared or RS-232. The 1T-CT-653/1T-CT-654A system can achieve signal distribution distances of up to 100 meters (325 feet) for uncompressed 1080p signals without signal degradation. Power over HDBaseT (PoH) support allows the Receiver to be powered by a PoH Transmitter (1T-CT-653, MX-8488) if a local power connection is not available.
