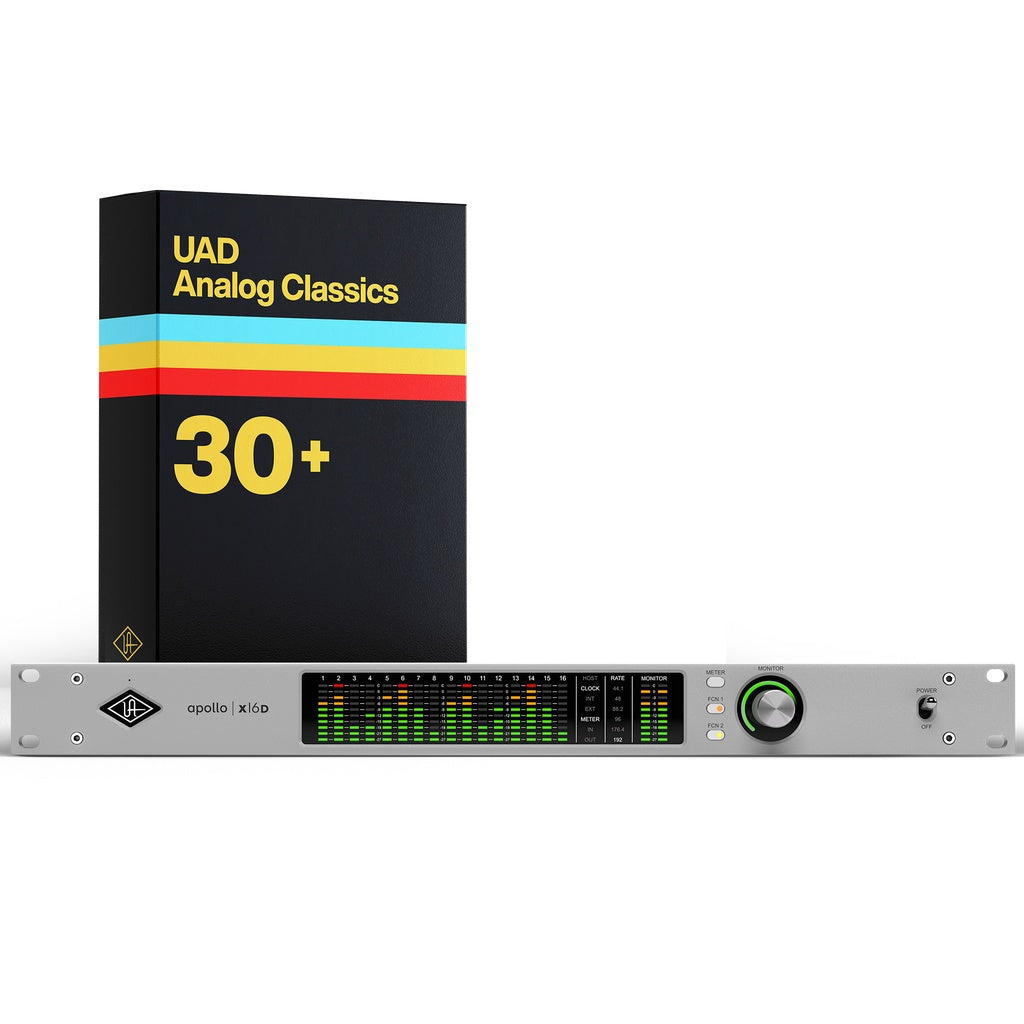

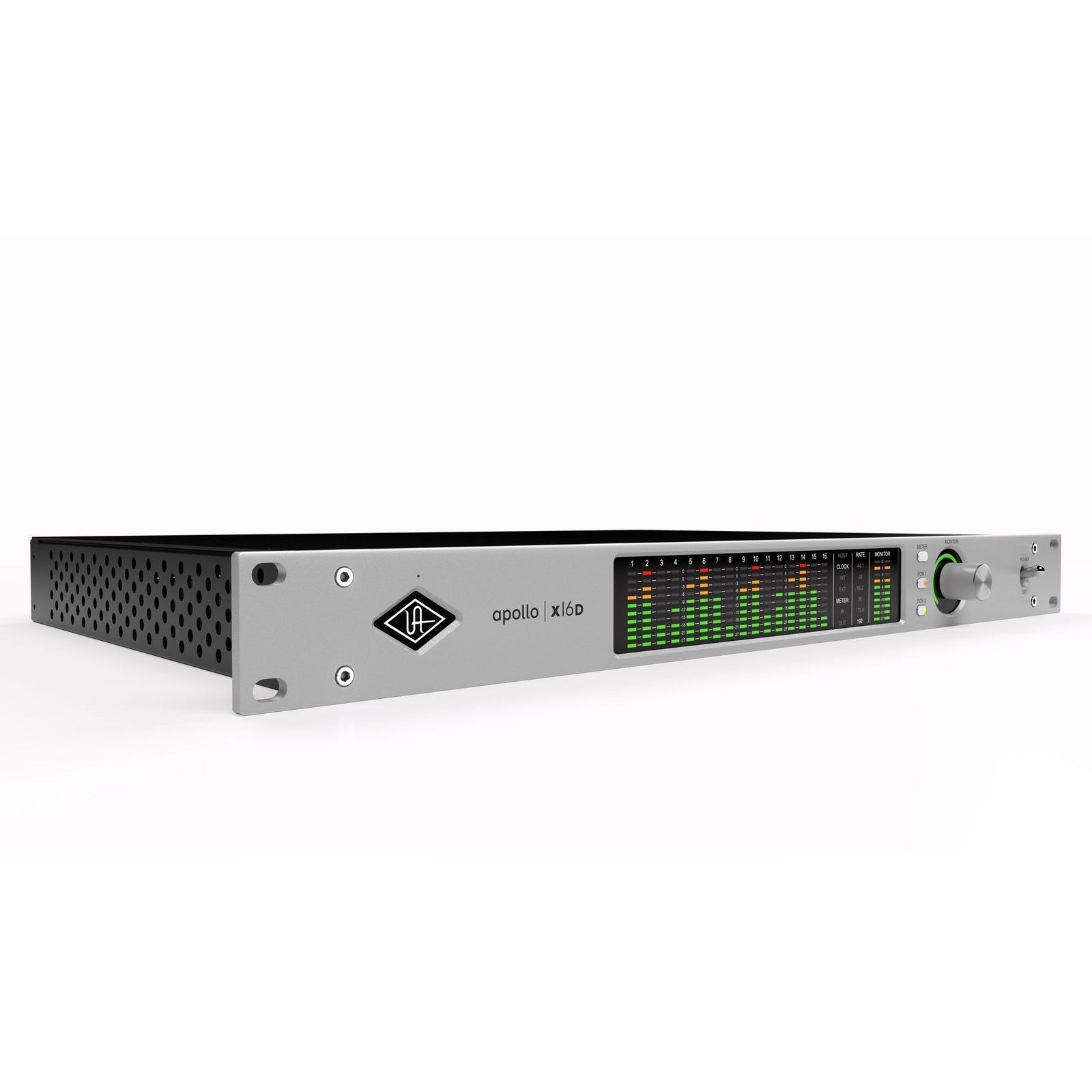

Universal Audio Apollo x16D Networked Audio Interface Dante Thunderbolt | UAD Analog Classics

Universal Audio Apollo x16D Networked Audio Interface Dante Thunderbolt | UAD Analog Classics

SoundPro Item: 145320 | Part Number: APX16DG2-ESS

$2,999.00
$3,749.00 $2,999.00
Your Price Sold out
MSRP: $3,749.00 | MAP: $2,999.00

Usually ships in 5-7 business days

  • HEXA Core DSP Enables Real-Time UAD Plug-In Processing Without Taxing The Host CPU
  • Dual RJ45 Dante Ports Support Switched Or Redundant Network Modes For Stage Reliability
  • Plug-In Scenes Allow Instant Recall Over MIDI Without Interrupting Live Performance
  • Immersive Monitoring Hub Supports Formats Up To 9.1.6 Including Dolby Atmos And Auro-3D
  • Apollo Monitor Correction Powered By Sonarworks Calibrates Stereo And Immersive Outputs
  • Fully Featured Monitor Controller With Alternate Speaker Switching And Integrated Talkback
  • Brooklyn 3 Chipset By Audinate Enables Dante Domain Manager And Dante Director Support
Log in or register for YOUR best price

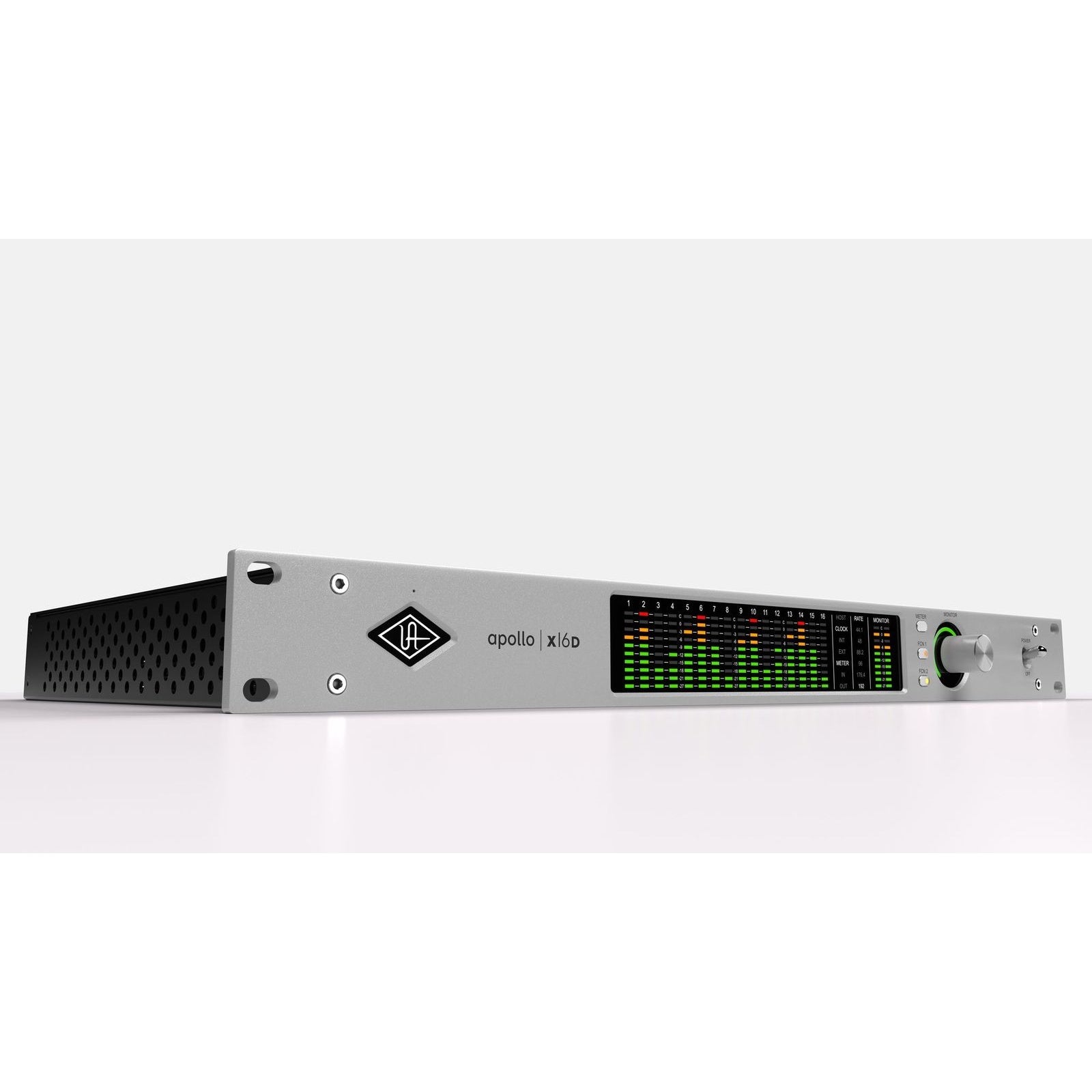

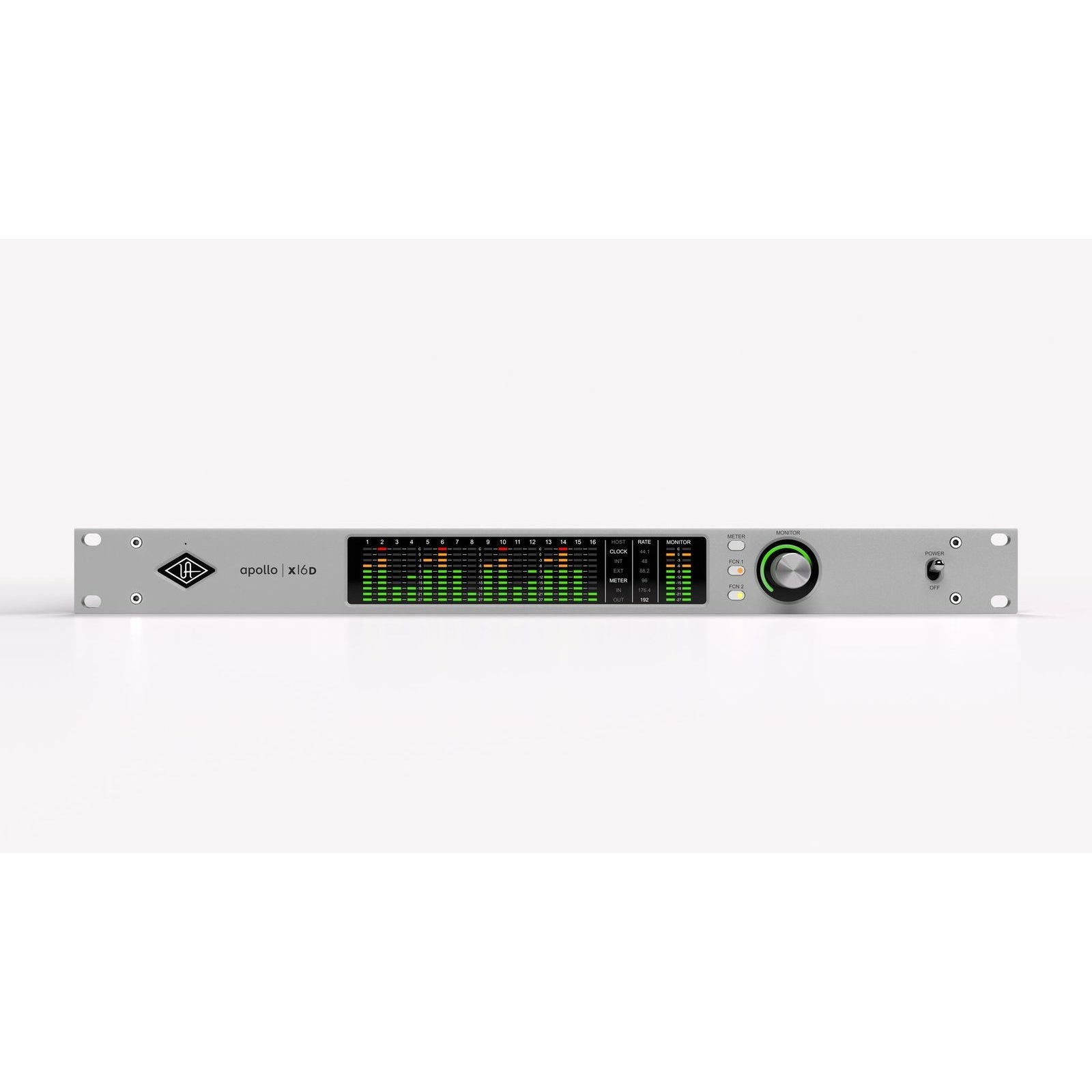

The Universal Audio Apollo x16D is built for live sound engineers and networked recording studios that demand professional-grade conversion, scalable Dante routing, and real-time UAD plug-in processing in a single rack space. Its HEXA Core DSP — the most powerful onboard processing system Universal Audio offers — lets engineers run over 200 UAD plug-ins from Neve, SSL, API, Teletronix, and Auto-Tune at near-zero latency without taxing the host CPU, whether at front-of-house or inside a control room.

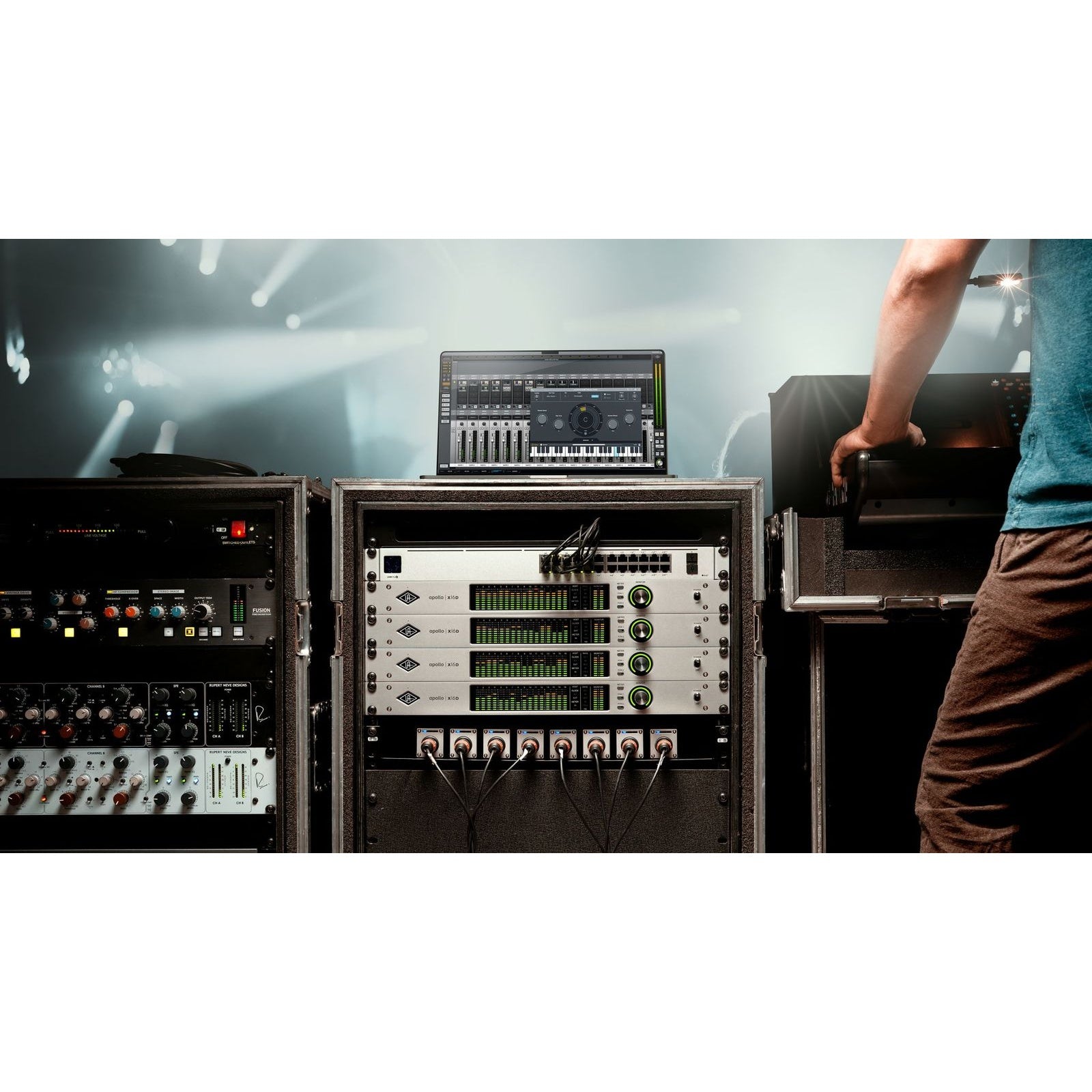

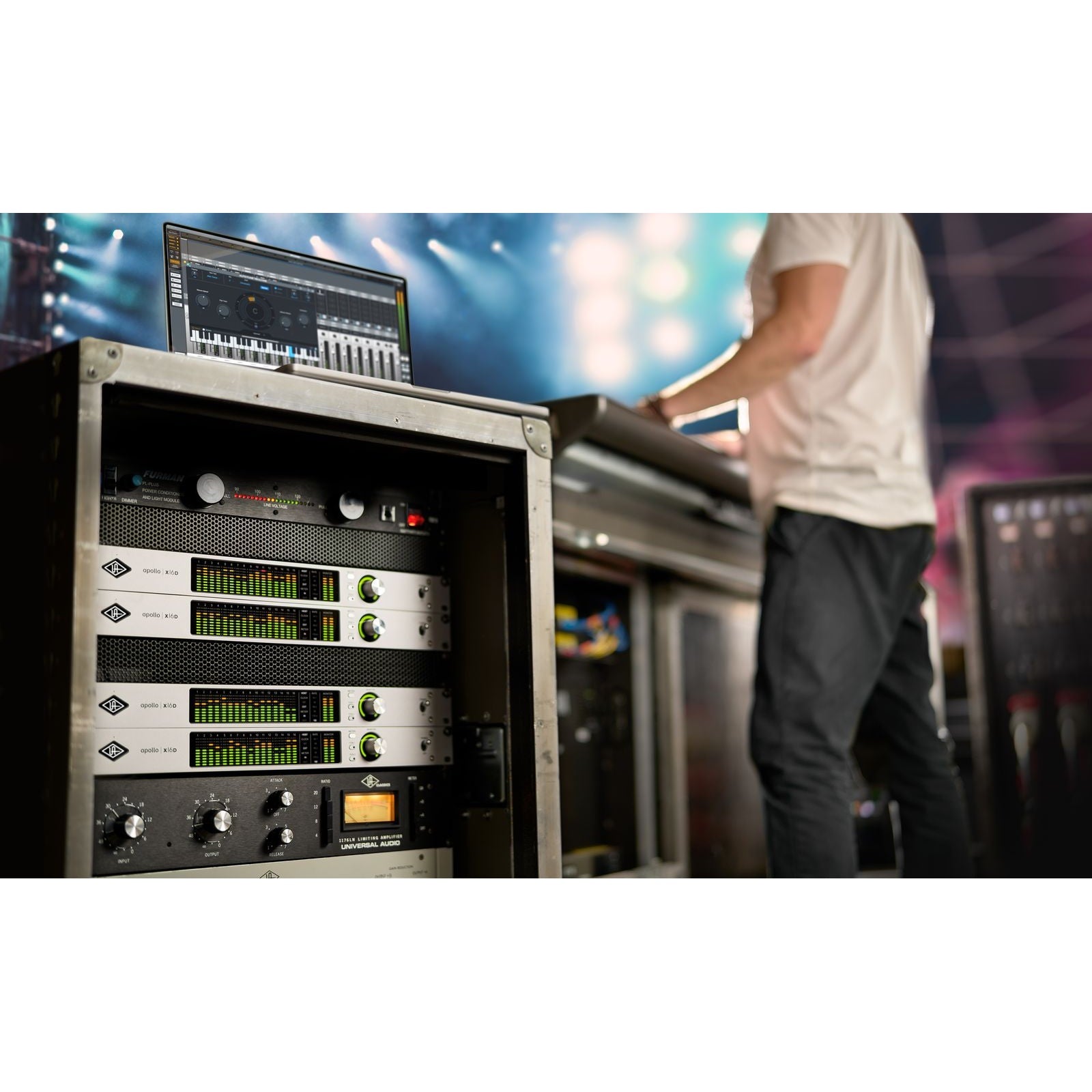

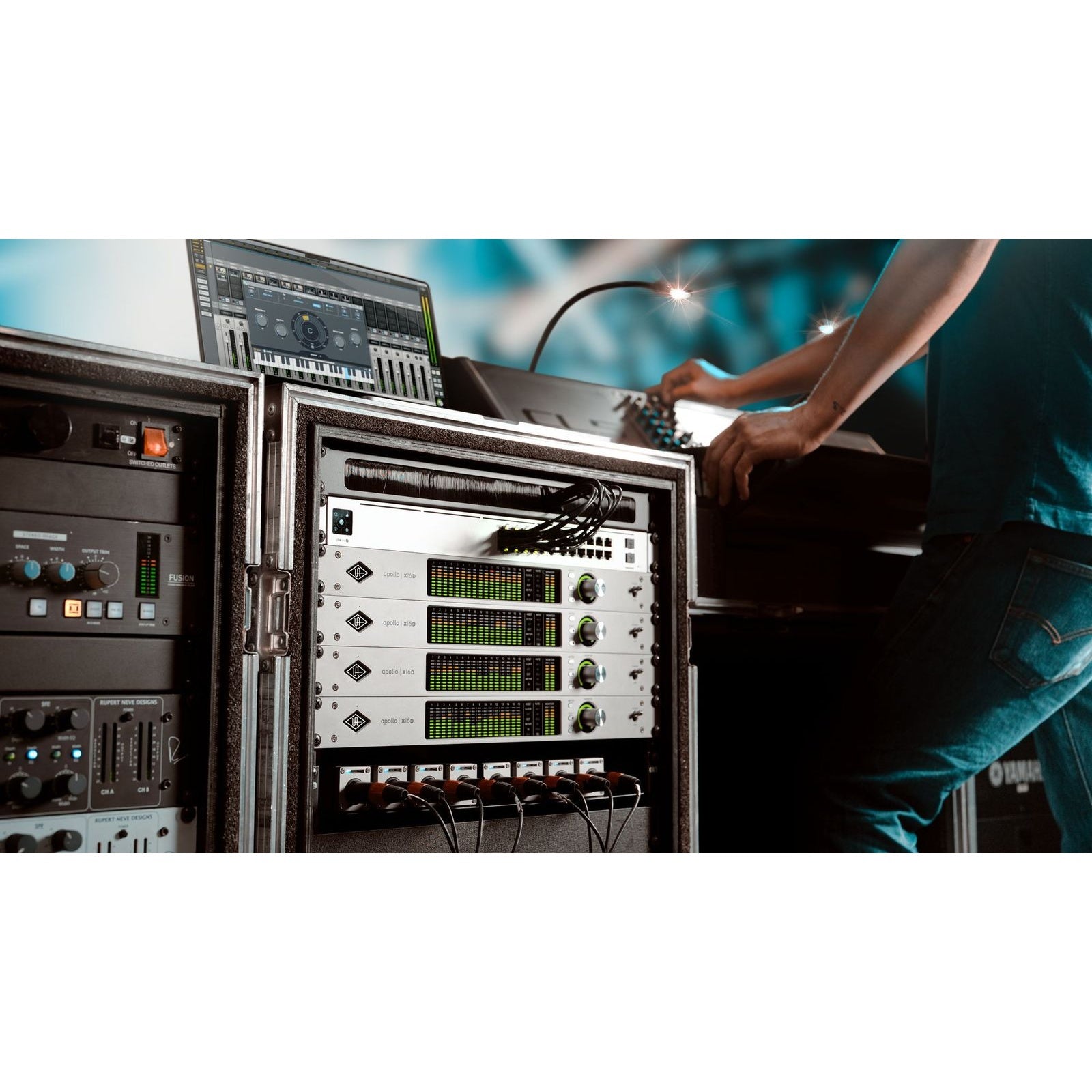

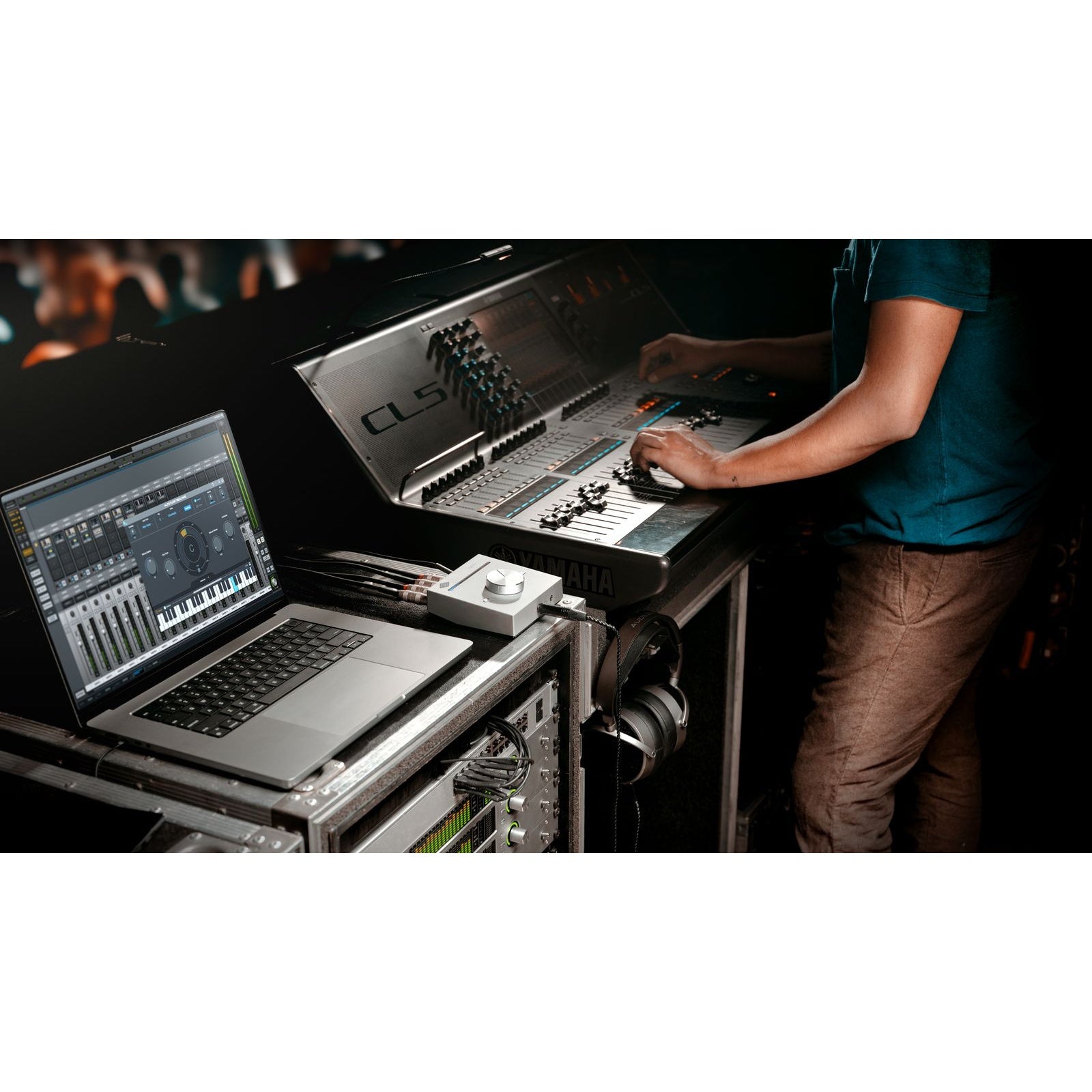

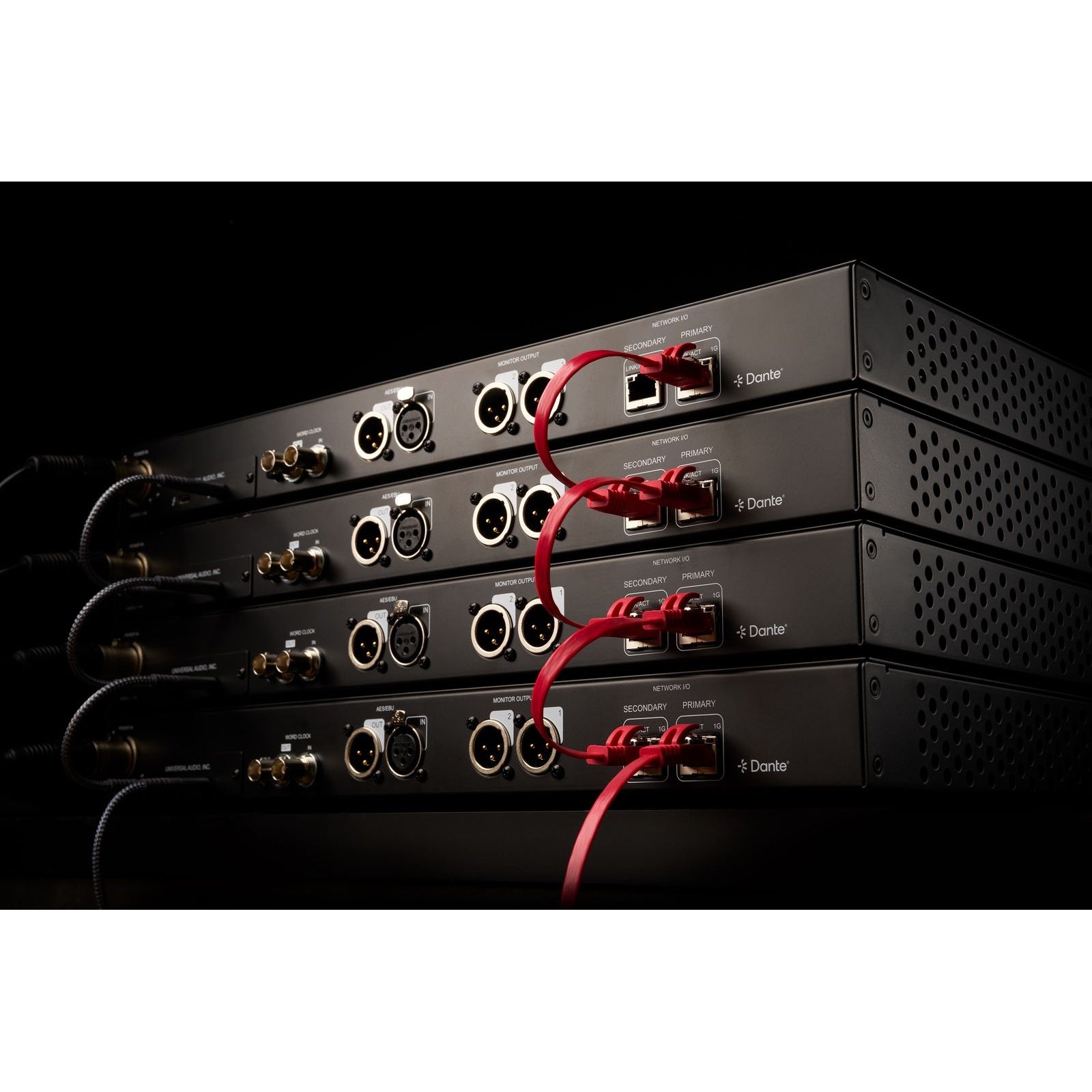

With 16 channels of bidirectional Dante I/O via dual RJ45 ports and full AES67 compatibility, the Apollo x16D connects directly to digital mixing consoles and Dante-enabled stagebox systems, eliminating the need for separate audio networking hardware. Up to four units can be linked for a 64-channel Dante system with network redundancy, and Apollo e1x and e2m peripherals extend coverage over Power-over-Ethernet for complete stage rigs. Thunderbolt 3 connectivity keeps sessions running natively with DAWs including Pro Tools, Logic Pro, Cubase, and Ableton Live.

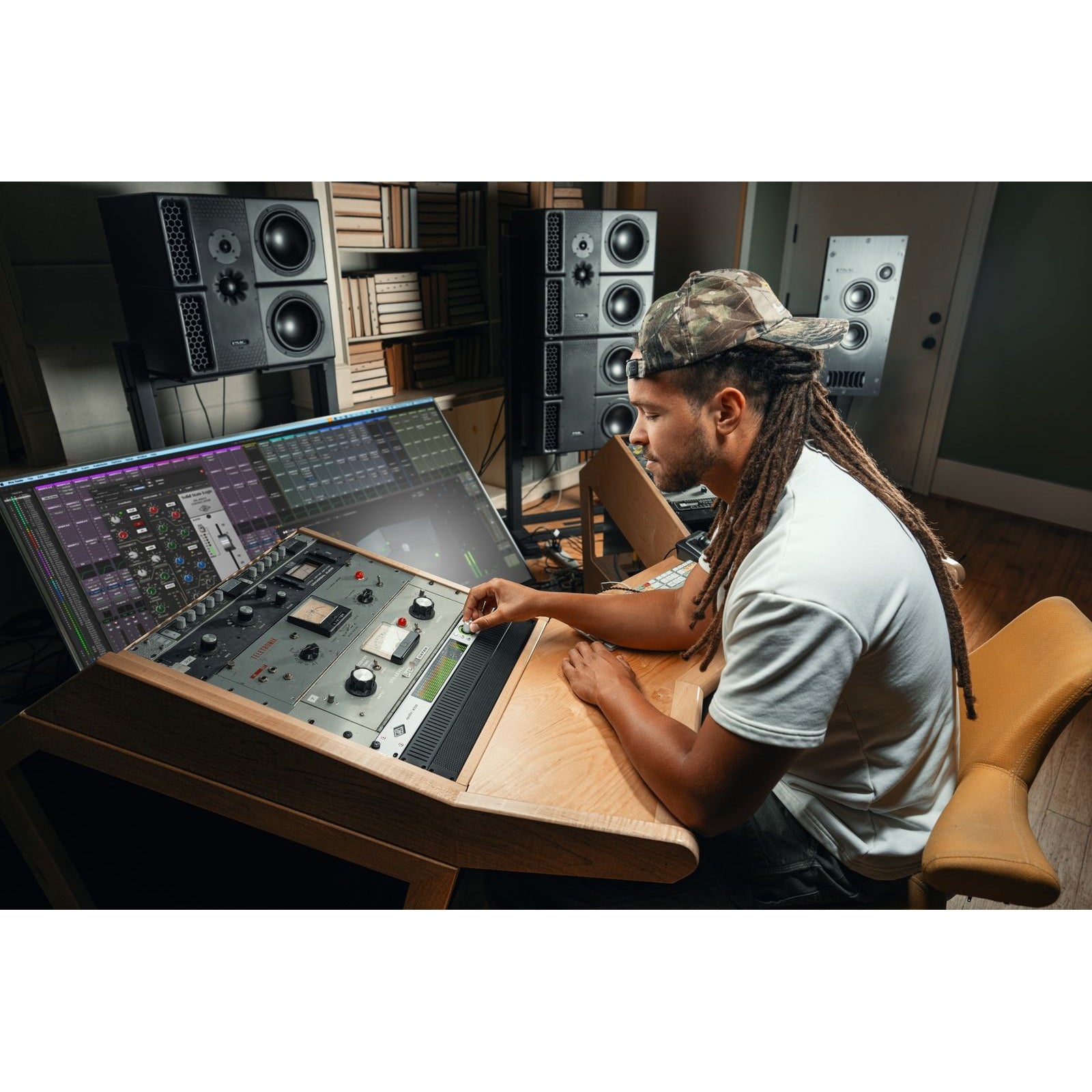

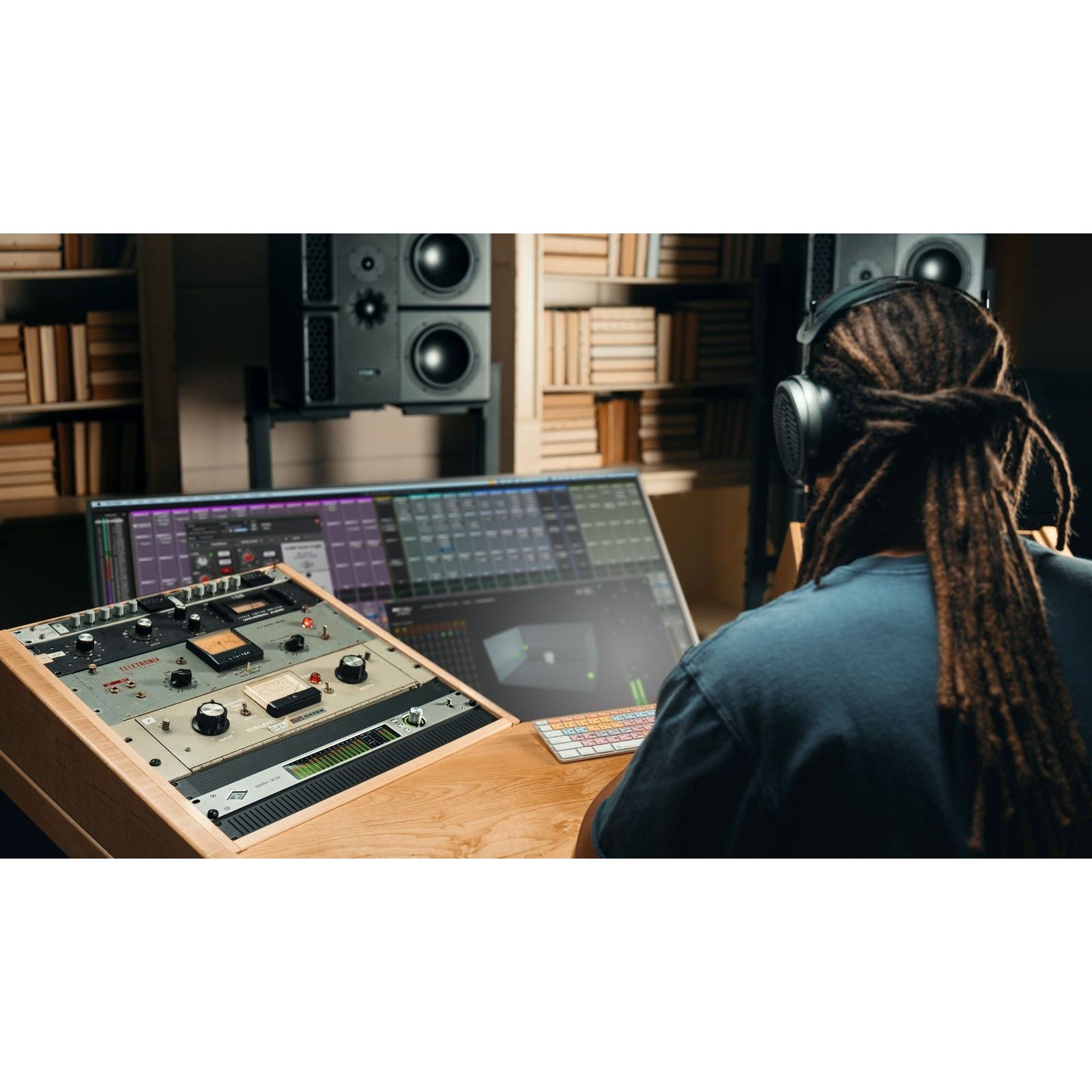

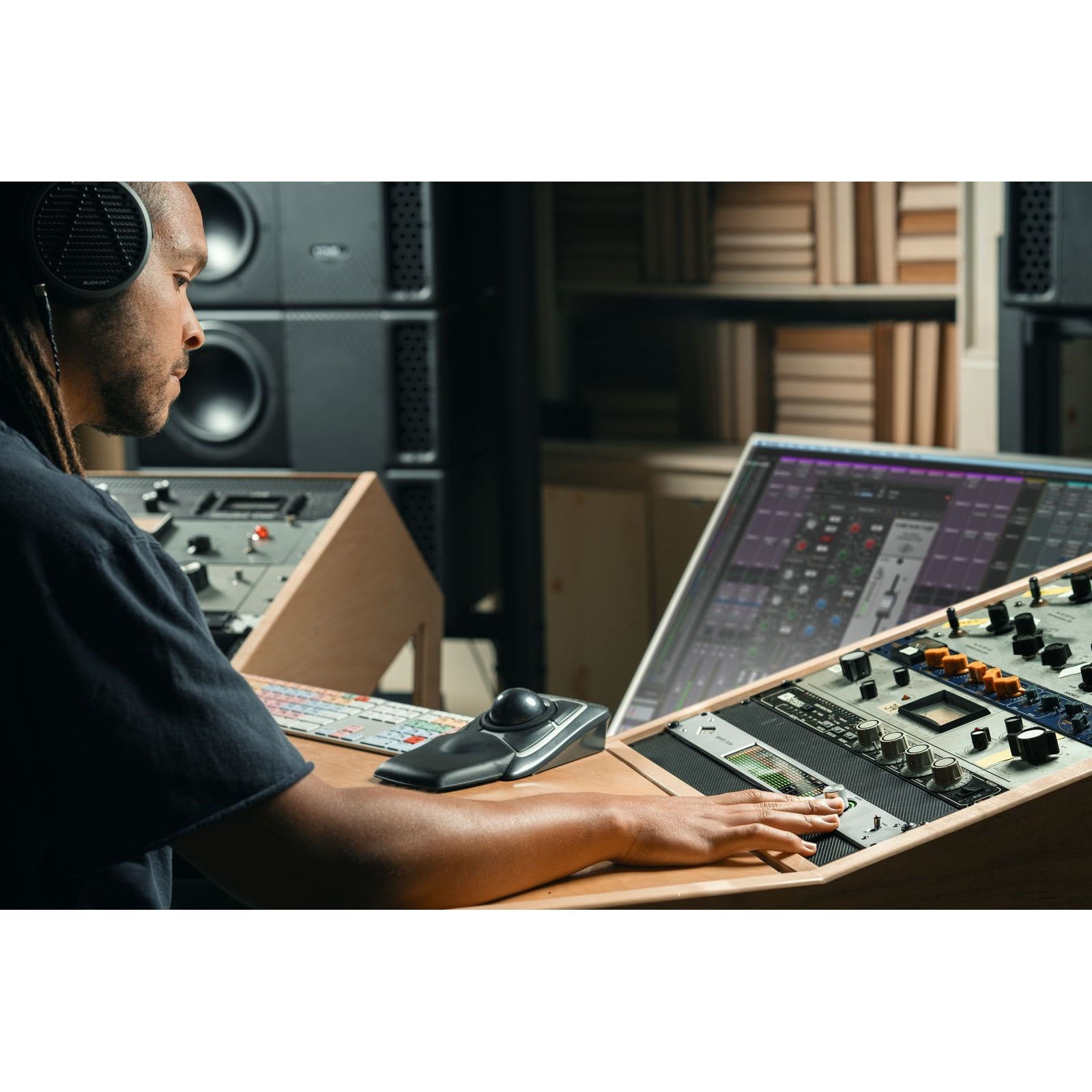

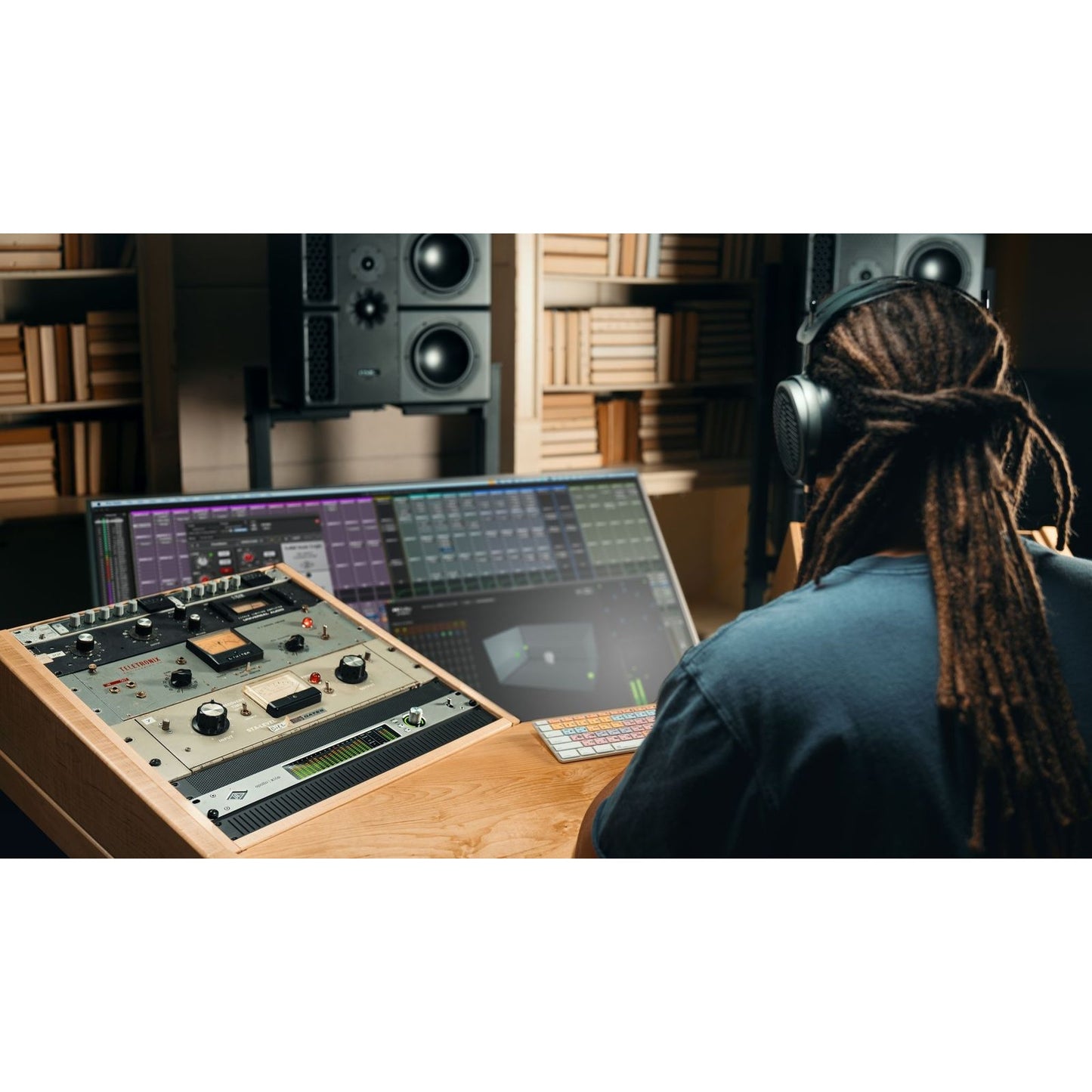

Back in the studio, the Apollo x16D functions as a full immersive monitoring hub supporting formats up to 9.1.6 — Dolby Atmos, Auro-3D, and Sony 360 Reality Audio — with Apollo Monitor Correction powered by Sonarworks for calibrated playback in any room. The Apollo x16D ships with either the UAD Analog Classics or UAD Complete plug-in bundle, giving engineers a production-ready toolkit from day one without additional licensing costs.

Downloads

View full details

Specifications

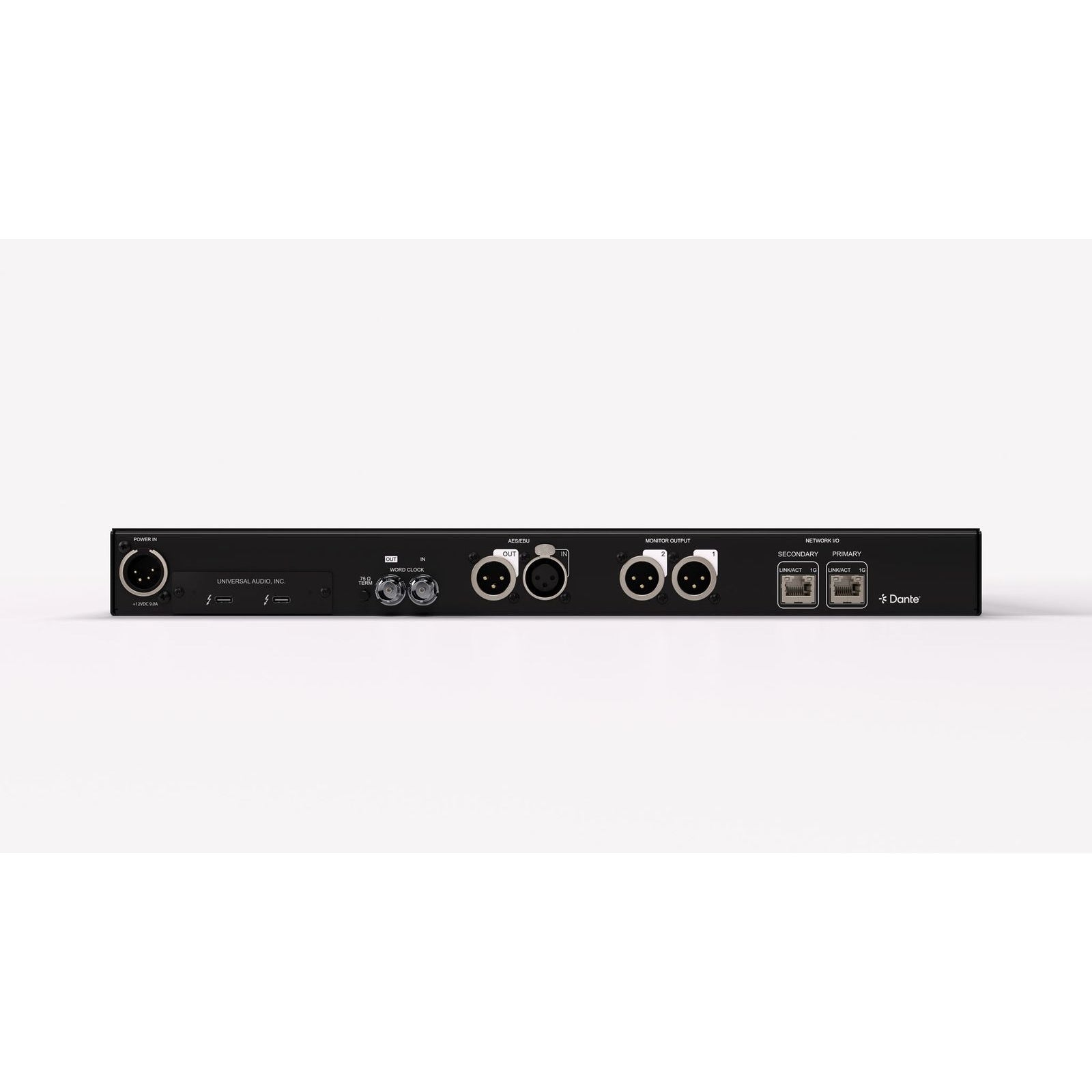

System
Network Audio Ports (1 Gbps Ethernet)
Two
Analog Monitor Outputs (DC Coupled)
Two (one stereo pair)
AES/EBU
One stereo input, one stereo output
Thunderbolt 3 Ports
Two
Word Clock
One input, one output
Talkback Mic (Built-In)
One
A/D Conversion
1 channel (Talkback mic)
D/A Conversion
2 channels (stereo monitor outputs)
Supported Sample Rates (kHz)
44.1, 48, 88.2, 96, 176.4, 192
Bit Depth Per Sample
24
Analog I/O
Frequency Response
20 Hz – 20 kHz, ±0.02 dB
Dynamic Range
133 dB (A-weighted)
THD + Noise Ratio (1 kHz @ -1 dBFS)
-129 dB (0.000037%)
Maximum Output Level (Reference Level @ +4 dBu)
24 dBu (21.8 dBV)
Maximum Output Level (Reference Level @ -10 dBV)
10 dBV (12.2 dBu)
Output Impedance
100 Ohms
Monitor Output Connector Type
Balanced Male XLR (pin 2 hot)
Digital I/O
Networked Audio I/O
16 inputs, 16 outputs
Network Format
Dante or AES67 (switchable)
Network Connector Type
Dual RJ45 (primary, secondary)
Network Bit Depth Per Sample
24
Network I/O Round-Trip Latency
0.8 ms @ 96 kHz
Network to Monitor Round-Trip Latency
1.0 ms @ 96 kHz
Dante Chipset
Brooklyn 3 audio networking module by Audinate
Dante Latency (ms, selectable)
0.25, 0.5, 1.0, 2.0, 5.0
Dante Audio Flows
32 Transmitter, 32 Receiver
Pull-Up/Pull-Down Support
No
Dante Domain Manager/Dante Director Support
Yes
AES67 Supported Sample Rates (kHz)
48
AES/EBU Connector Type
XLR
AES/EBU Format
IEC 60958 Type I
Word Clock Connector Type
BNC
Word Clock Lock Range
±4% of any supported sample rate
Word Clock Input Termination
75 Ohms, switchable
Synchronization Sources
Internal, Word Clock, AES/EBU, Dante
Electrical
Power Supply
External AC-to-DC Power Supply, Level VI compliant
AC Input Connector Type
IEC Male
AC Requirements
100V – 240V AC, 50 – 60 Hz
DC Connector Type
XLR 4-Pin Locking Male (Neutrik P/N NC4MDM3-H)
DC Requirements
12 VDC, 9 A
Maximum Power Consumption
72W (30W typical)
Environmental
Ambient Temperature Range
32° to 104° F (0° to 40° C)
Dimensions
Width
19 in (48.26 cm)
Height (1U Rack Space)
1.74 in (4.42 cm)
Depth, Chassis Only
12 in (30.5 cm)
Depth, Including Knob & Jack Protrusions
13.5 in (34.31 cm)
Shipping Box (Width x Depth x Height)
23.5 in x 17 in x 7.5 in
Weight
Weight (Bare Unit)
8 lbs (3.63 kg)
Shipping Weight (With Box & Accessories)
18 lbs (7.7 kg)
Included Items
Apollo x16D Networked Audio Interface
Included
External Power Supply
Included
AC Power Cable (IEC), Region Specific
Included
Set of (4) Rack-Mount Screws
Included
Getting Started URL Card
Included
Software Bundle
UAD Analog Classics (30+ plug-ins)
Identifiers
MPN
APX16DG2-ESS
