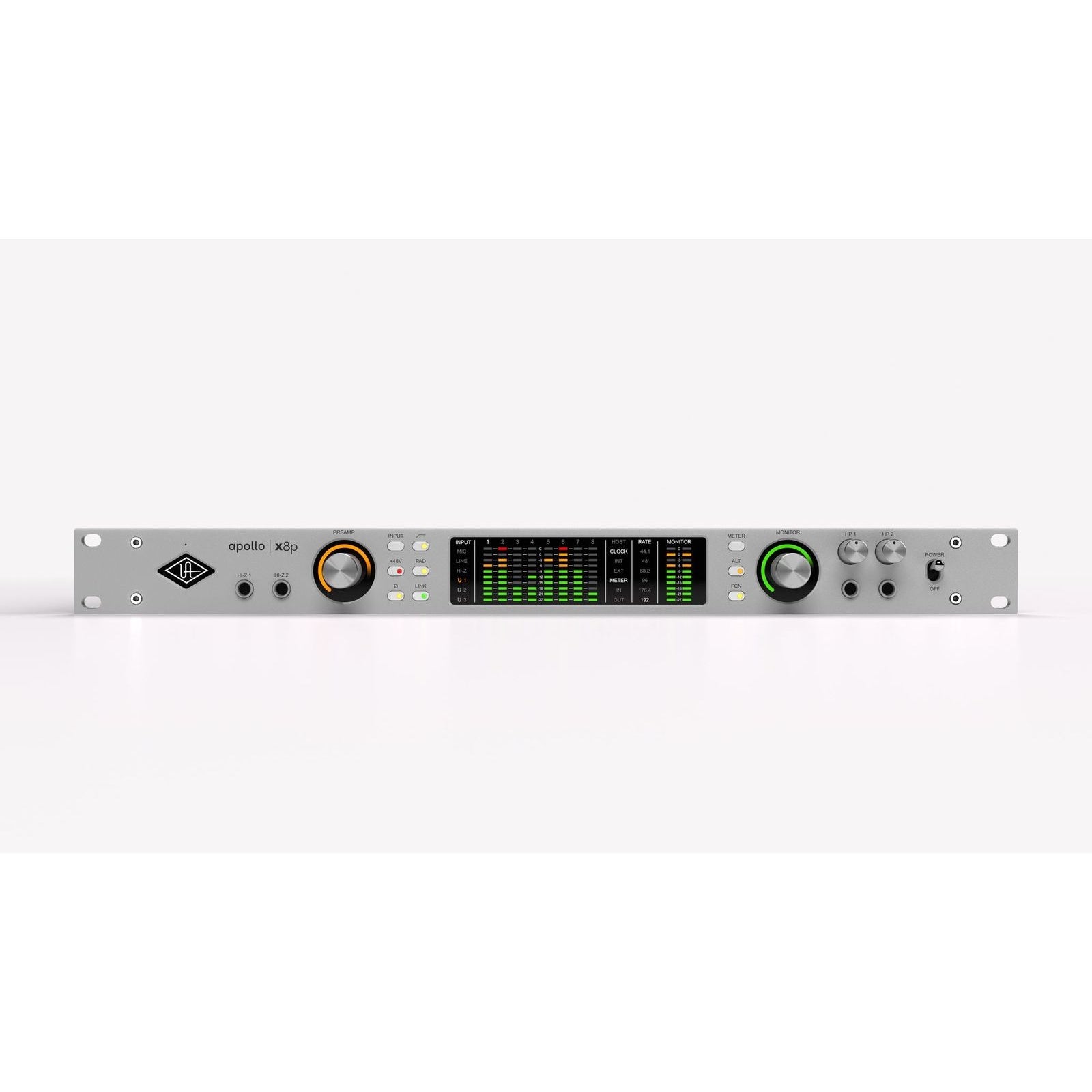

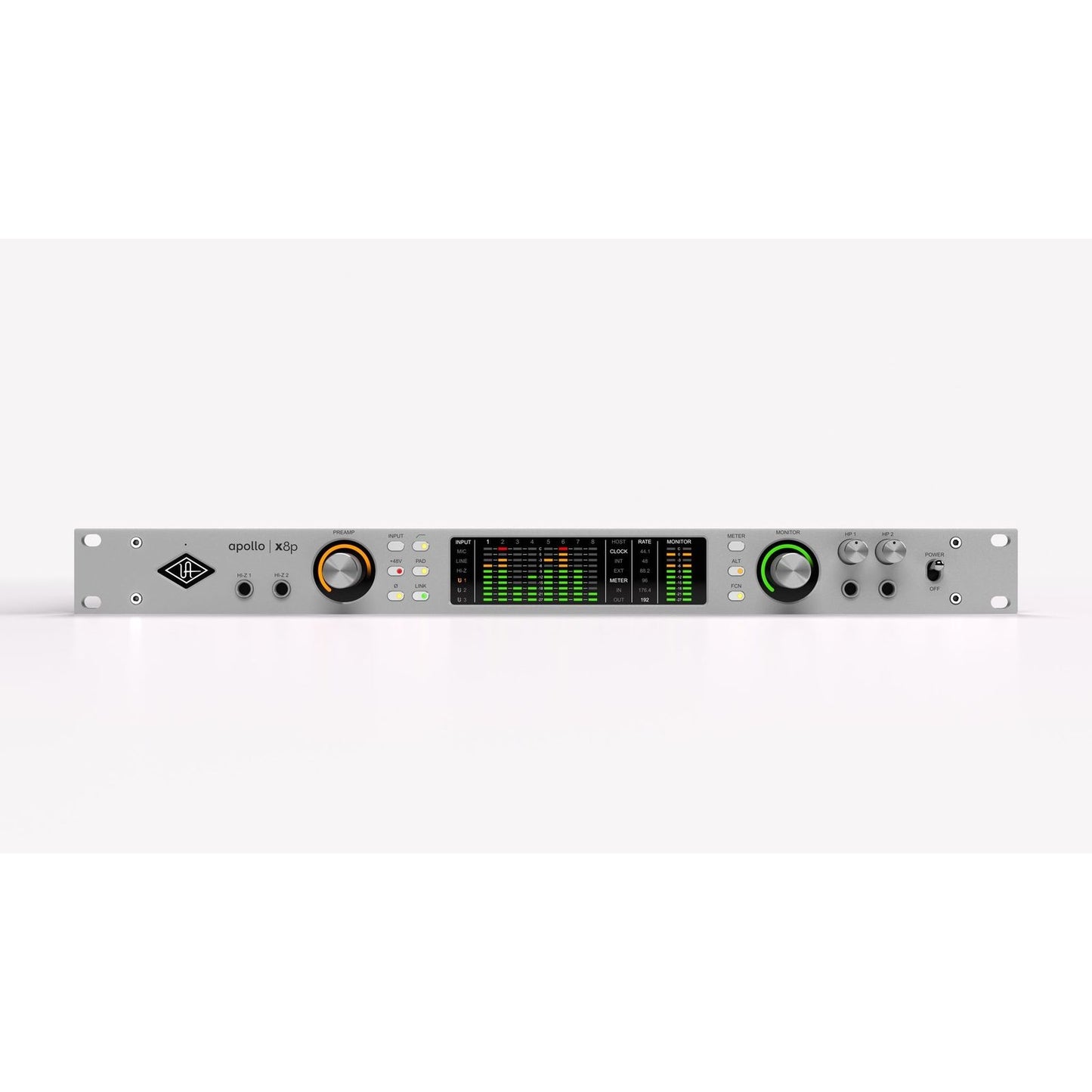

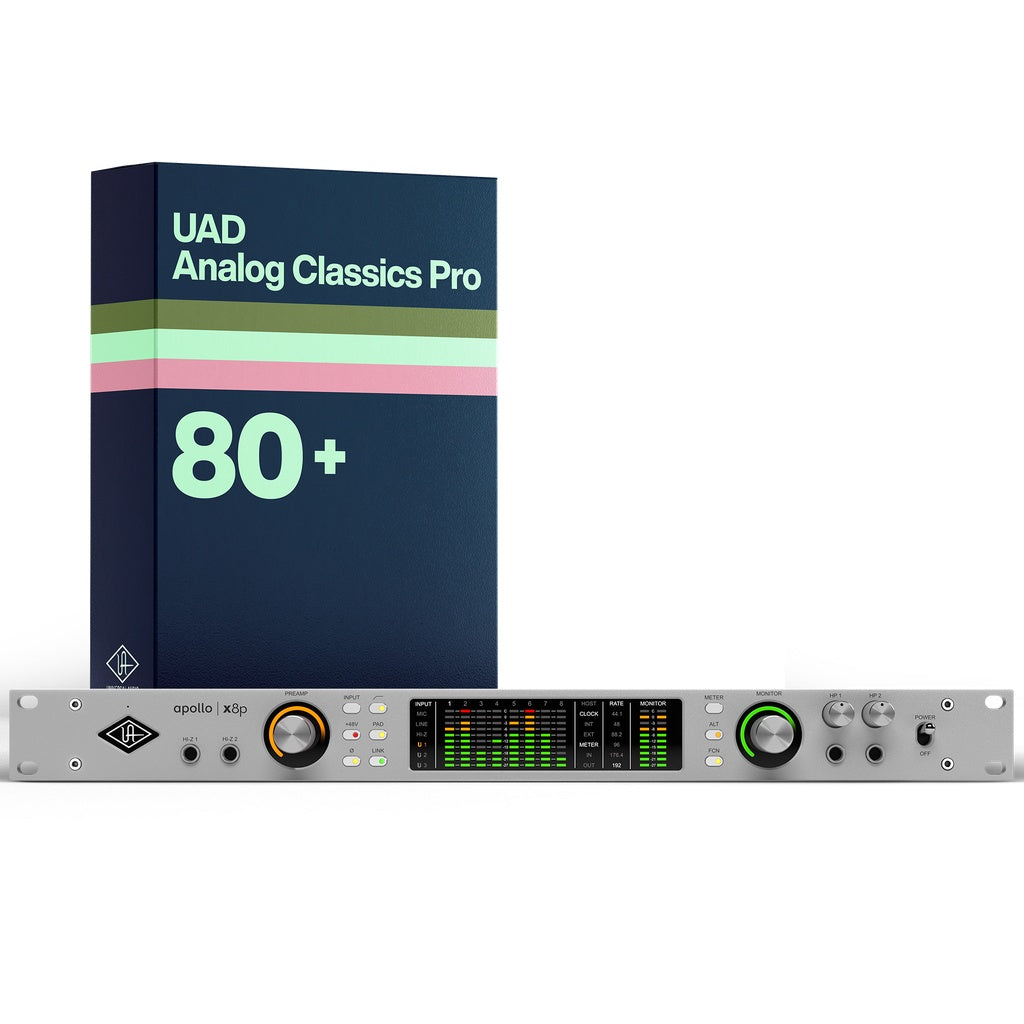

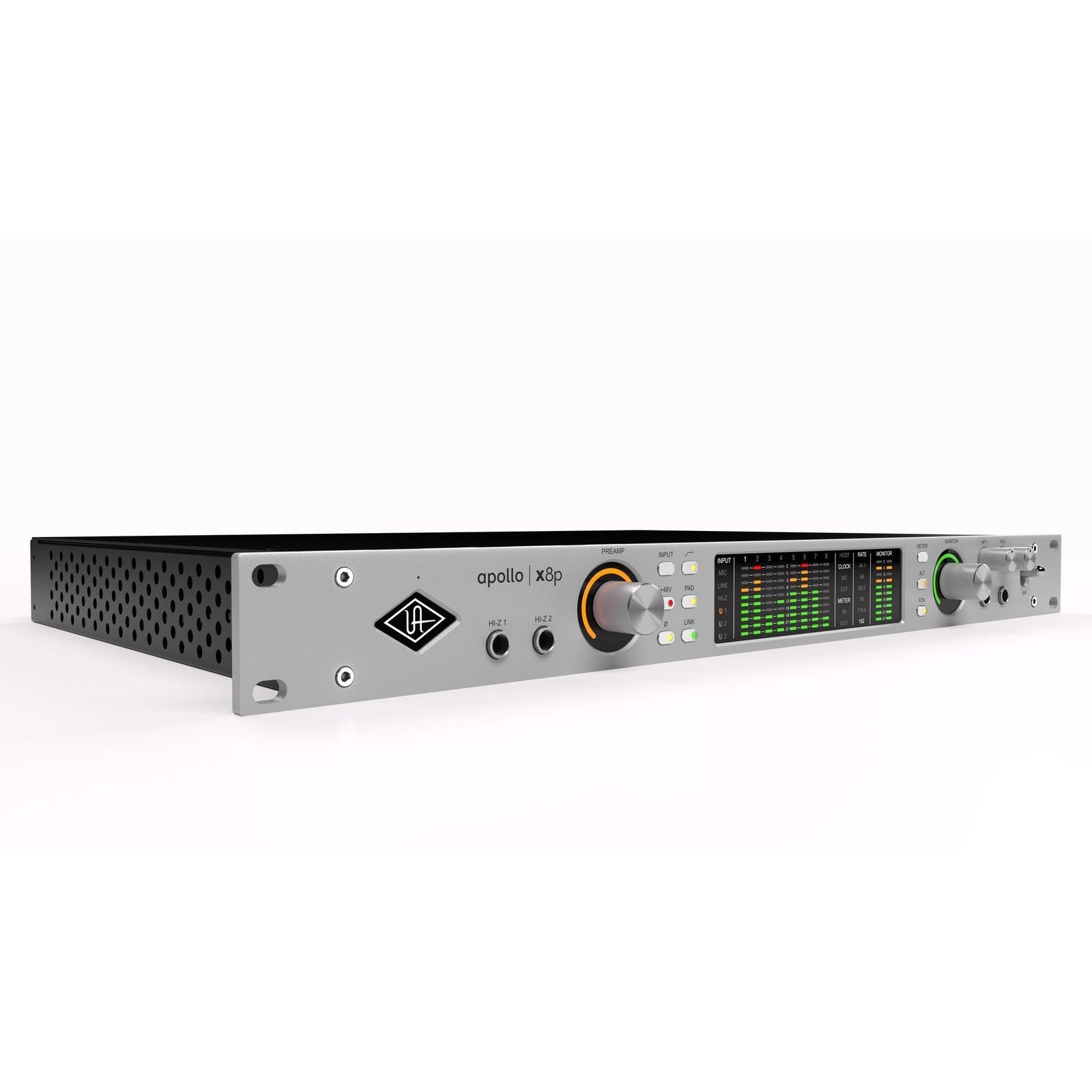

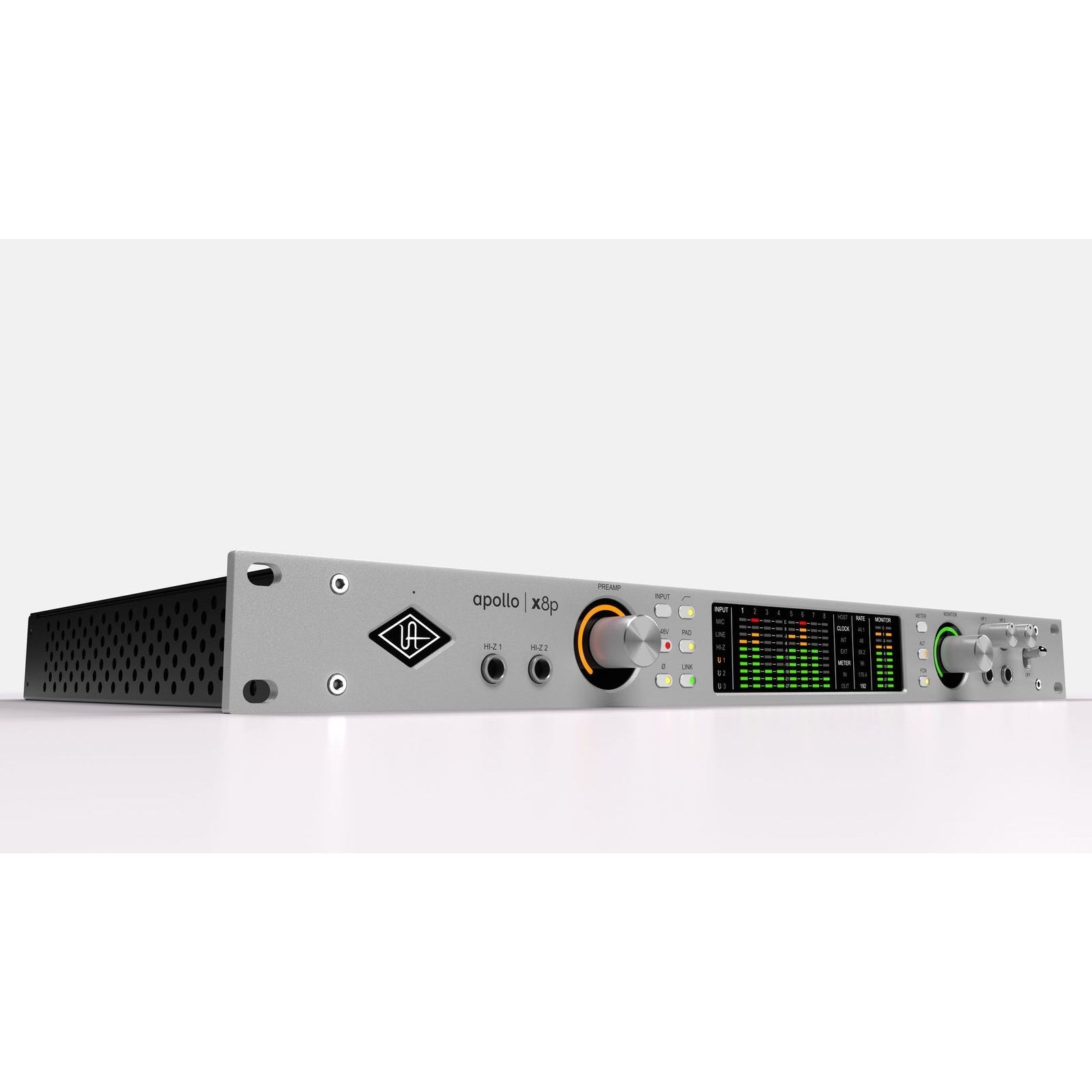

Universal Audio Apollo x8p Gen 2 Audio Interface 16x22 Thunderbolt With HEXA Core DSP | UAD Analog Classics Pro

Universal Audio Apollo x8p Gen 2 Audio Interface 16x22 Thunderbolt With HEXA Core DSP | UAD Analog Classics Pro

SoundPro Item: 146479 | Part Number: APX8PG2-STU

$3,799.00
$4,749.00 $3,799.00
Your Price Sold out
MSRP: $4,749.00 | MAP: $3,799.00

Usually ships in 5-7 business days

  • Gen 2 Apollo X Converters Deliver The Widest Dynamic Range And Lowest Distortion In Apollo History
  • Unison Preamp Technology Physically Models Impedance And Gain Of Classic Hardware Preamps In Realtime
  • HEXA Core DSP Enables Complex UAD Plug-In Chains Without Taxing Host CPU Resources
  • Apollo Monitor Correction Powered By Sonarworks Calibrates Monitor And Headphone Outputs For Accurate Playback
  • Auto-Gain Automatically Sets Optimal Input Levels Across Multiple Channels Simultaneously
  • Bass Management Integrates A Subwoofer Into Monitor Setup For Full-Range Low-End Reference

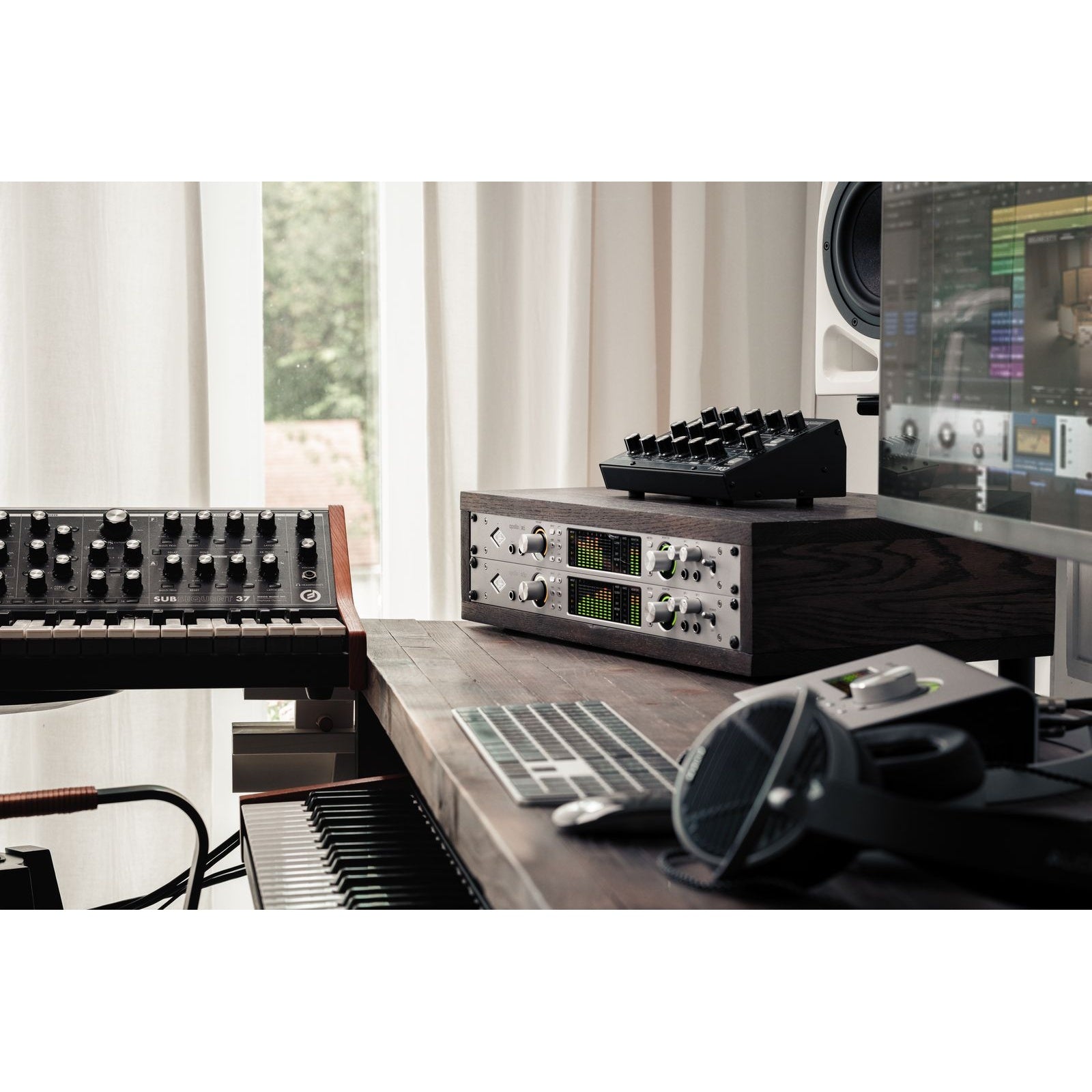

  • Expandable Via Thunderbolt Daisy-Chaining Or Dante For Scalable Multi-Unit Studio Configurations
Log in or register for YOUR best price

The Apollo x8p Gen 2 is built for professional producers and recording engineers who demand elite-class conversion, deep analog emulation, and onboard DSP horsepower in a single rack unit. With eight Unison mic preamps that physically reconfigure input impedance to authentically replicate classic hardware from Neve, API, Avalon, and others, it eliminates the compromise between tracking speed and tone. The Gen 2 design advances the Apollo X lineage with UA's highest-resolution D/A converters yet, delivering a 130 dB dynamic range on monitor outputs and THD of -127 dB — performance that positions it above competing Thunderbolt interfaces in its class.

For studio integration, the Apollo x8p Gen 2 handles large-format sessions with 16 x 22 simultaneous I/O in ADAT mode, dual Thunderbolt 3 ports for daisy-chaining up to four Apollo units, and HEXA Core DSP that sustains real-time UAD plug-in processing without taxing the host CPU. Apollo Monitor Correction powered by Sonarworks brings reference-grade calibration to any monitoring environment, making mix decisions translate reliably regardless of room or headphone. The UAD Console app consolidates routing, Auto-Gain, Bass Management, 7.1 surround support, and Plug-In Scenes into a single workflow hub compatible with LUNA, Pro Tools, Logic Pro, Cubase, and Ableton Live.

The UAD Analog Classics bundle included with this SKU delivers over 30 production-ready plug-ins at launch — spanning compressors, channel strips, EQs, tape emulations, reverbs, and guitar amps — giving engineers an immediately deployable toolkit drawn from the full UAD library of 200-plus titles. Expandability over Thunderbolt or Dante ensures the interface scales with growing studio demands.

Downloads

View full details

Specifications

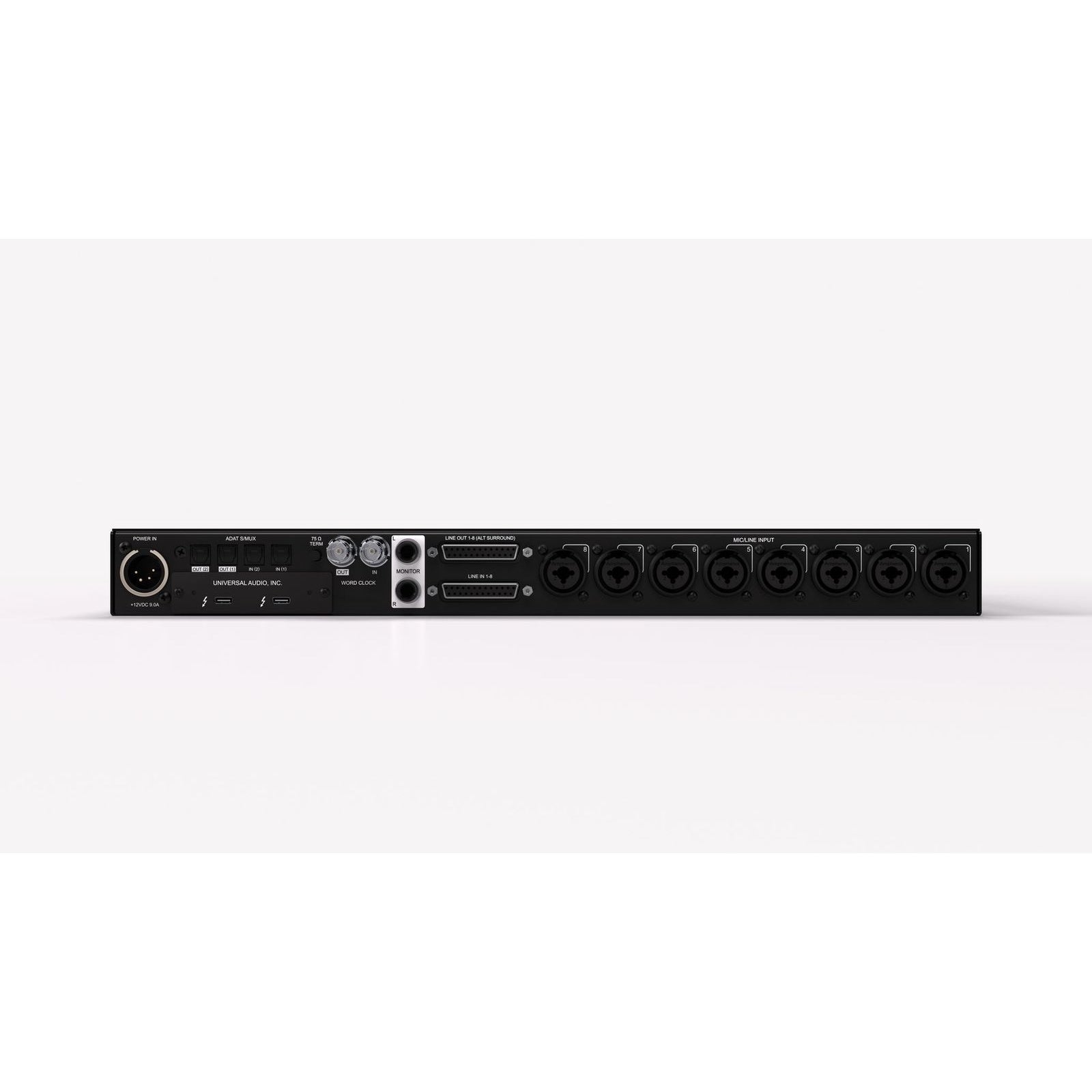

I/O Complement
Simultaneous Channel I/O Count (analog + digital)
16 x 22 (ADAT mode)
Microphone Inputs
Eight
High Impedance (Hi-Z) Instrument Inputs
Two
Analog Line Inputs
Eight
Analog Line Outputs (DC coupled)
Eight (10 including Monitor outputs)
Analog Monitor Outputs (DC coupled)
Two (one stereo pair)
Headphone Outputs
Two stereo
Digital Audio Ports (ADAT or S/PDIF, selectable)
Two inputs, two outputs
Thunderbolt 3 Ports
Two (Mac only: Thunderbolt 1 and 2 via Apple Thunderbolt 3 to Thunderbolt 2 adapter)
Word Clock
One input, one output
A/D - D/A Conversion
Simultaneous A/D Conversion
Eight channels
Simultaneous D/A Conversion
14 channels
Supported Sample Rates (kHz)
44.1, 48, 88.2, 96, 176.4, 192
Bit Depth Per Sample
24
Analog Round-Trip Latency
1.1 milliseconds @ 96 kHz sample rate
Analog Round-Trip Latency through four UAD legacy plug-ins (included) via UAD Console software
1.1 milliseconds @ 96 kHz sample rate (no additional latency via Realtime UAD Processing)
Microphone Inputs 1-8
Frequency Response
20 Hz - 20 kHz, +/-0.07 dB
Dynamic Range
123 dB (A-weighted)
THD + Noise (1 kHz @ 25 dBu, -1 dBFS)
-115 dB (0.00018%)
Maximum Input Level (PAD on)
26 dBu
Default Input Impedance (variable via Unison plug-ins)
5.4 K Ohm
Gain Range
+10 dB to +65 dB
Pad Attenuation (switchable per mic input)
20 dB (variable via Unison plug-ins)
Phantom Power (switchable per mic input)
+48V
Connector Type
XLR female, pin 2 positive (combo XLR/TRS)
Hi-Z Inputs 1 & 2 (600 K Ohm input termination)
Frequency Response
20 Hz - 20 kHz, +/-0.08 dB
Dynamic Range
122 dB (A-weighted)
THD + Noise (1 kHz @ 9.6 dBu, -1 dBFS)
-111 dB (0.00028%)
Maximum Input Level (at minimum gain)
12.6 dBu
Default Input Impedance (variable via Unison plug-ins)
1 M Ohm
Gain Range
+10 dB to +65 dB
Connector Type
1/4" female TS unbalanced
Line Inputs 1-8
Frequency Response
20 Hz - 20 kHz, +/-0.07 dB
Dynamic Range
124 dB (A-weighted)
THD + Noise (1 kHz @ 23 dBu, -1 dBFS)
-116 dB (0.00016%)
Maximum Input Level
24 dBu
Input Impedance
10 K Ohm
Gain Range
+10 dB to +65 dB
Connector Type
Eight 1/4" female TRS balanced (combo XLR/TRS); One female DB25 (Tascam wiring), normalled
Line Outputs 1-8
Frequency Response
20 Hz - 20 kHz, +/-0.05 dB
Dynamic Range
127 dB (A-weighted)
THD + Noise (1 kHz @ 23 dBu, -1 dBFS)
-119 dB (0.00011%)
Maximum Output Level @ +4 dBu reference
24 dBu
Maximum Output Level @ -10 dBV reference
10 dBV (12.2 dBu)
Output Impedance
100 Ohm
Connector Type
Female DB25 (Tascam wiring)
Monitor Outputs L & R
Frequency Response
20 Hz - 20 kHz, +/-0.02 dB
Dynamic Range
130 dB (A-weighted)
THD + Noise (1 kHz @ 23 dBu, -1 dBFS)
-127 dB (0.000045%)
Maximum Output Level @ +4 dBu reference
24 dBu
Maximum Output Level @ -10 dBV reference
10 dBV (12.2 dBu)
Output Impedance
100 Ohm
Connector Type
1/4" Female TRS Balanced
Stereo Headphone Outputs 1-2
Frequency Response
20 Hz - 20 kHz, +/-0.02 dB
Dynamic Range
126 dB (A-weighted)
THD + Noise, 300 Ohm load (1 kHz @ 16.8 dBu, -1 dBFS)
-117 dB (0.00014%)
THD + Noise, 600 Ohm load (1 kHz @ 17.3 dBu, -1 dBFS)
-118 dB (0.00013%)
Maximum Output Level, 300 Ohm load (1 kHz, 0 dBFS)
17.8 dBu
Maximum Output Level, 600 Ohm load (1 kHz, 0 dBFS)
18.3 dBu
Maximum Output Power (RMS), 300 Ohm load (1 kHz @ 17.8 dBu, 0 dBFS)
120 mW
Maximum Output Power (RMS), 600 Ohm load (1 kHz @ 18.3 dBu, 0 dBFS)
67 mW
Connector Type
1/4" female TRS stereo
Digital I/O
Connector Type (S/PDIF or ADAT, selectable)
Optical TOSLINK JIS F05
S/PDIF
Format
IEC 958
Supported Sample Rates (kHz)
44.1, 48, 88.2, 96
S/PDIF Channels
One stereo input, one stereo output
ADAT
Connector Type (shared with S/PDIF)
Optical TOSLINK JIS F05
Format
ADAT Lightpipe with S/MUX
Supported Sample Rates (kHz)
44.1, 48, 88.2, 96, 176.4, 192
Channel Assignments @ 44.1 kHz, 48 kHz
Port 1 = Channels 1-8, Port 2 = 1-8 (mirrored)
Channel Assignments @ 88.2 kHz, 96 kHz
Port 1 = Channels 1-4, Port 2 = Channels 5-8
Channel Assignments @ 176.4 kHz, 192 kHz
Port 1 = Channels 1-2, Port 2 = Channels 3-4
Word Clock
Connector Type
BNC
Lock Range
+/-4% of any supported sample rate
Word Clock Input Termination
75 Ohm, switchable
Synchronization Sources
Internal, Word Clock, ADAT, S/PDIF
Electrical
Power Supply
External AC-to-DC power supply, level VI compliant
AC Input Connector Type
IEC male
AC Requirements
100V - 240V AC, 47 - 63 Hz, 1.6 A max
DC Connector Type
XLR 4-pin locking male (Neutrik P/N NC4MDM3-H)
DC Requirements
12 VDC, 9 A
Maximum Power Consumption
72 Watts (30 W typical)
Environmental
Ambient Temperature Range
32 to 104 F (0 to 40 C)
Dimensions
Width
19" (482.6 mm)
Height (1U rack space)
1.74" (44.2 mm)
Depth, Chassis Only
12" (305 mm)
Depth, Including Knob & Jack Protrusions
13.5" (343.1 mm)
Shipping Box (Width x Depth x Height)
23.62" x 16.73" x 7.68" (600 mm x 425 mm x 195 mm)
Weight
Shipping Weight (with box & accessories)
17.2 lbs (7.8 kg)
Weight (bare unit)
8.9 lbs (4.02 kg)
Package Contents
Included
Apollo x8p Audio Interface; External Power Supply; AC Power Cable (IEC, region specific: USA, EU, UK, ANZ, or Japan); Set of (4) Rack-Mount Screws; Getting Started URL Card
Included Plug-Ins
Software Bundle
UAD Analog Classics Pro (80+ plug-ins)
