VADDIO 999-5625-000 Productionview Hd Mv

VADDIO 999-5625-000 Productionview Hd Mv

SoundPro Item: 27756 | Part Number: 999-5625-000

$9,147.60
$10,164.00 $9,147.60
Your Price Sold out
MSRP: $10,164.00 | MAP: $9,147.60

Usually ships in 5-7 business days

  • Analog HD YPbPr video, RGBHV, SD (Y/C and CVBS) inputs
  • Both analog (YPbPr, RGBHV, Y/C & CVBS) and digital (DVI-D & HDMI) outputs
  • HD resolutions up to 1080/60p supported
  • Up to 12 stored preset video thumbnails
  • Transitions including cross fade, nine wipes, cut, and fade to black
  • Lower Screen Graphics feature for inserting graphics over video
  • Display Type: LCD
  • Serial: Yes
  • Network (RJ-45): Yes
  • Height: 4"
  • Width: 16"
  • Depth: 10"
  • Weight (Approximate): 9.50 lb
  • Limited Warranty: 2 Year
Log in or register for YOUR best price

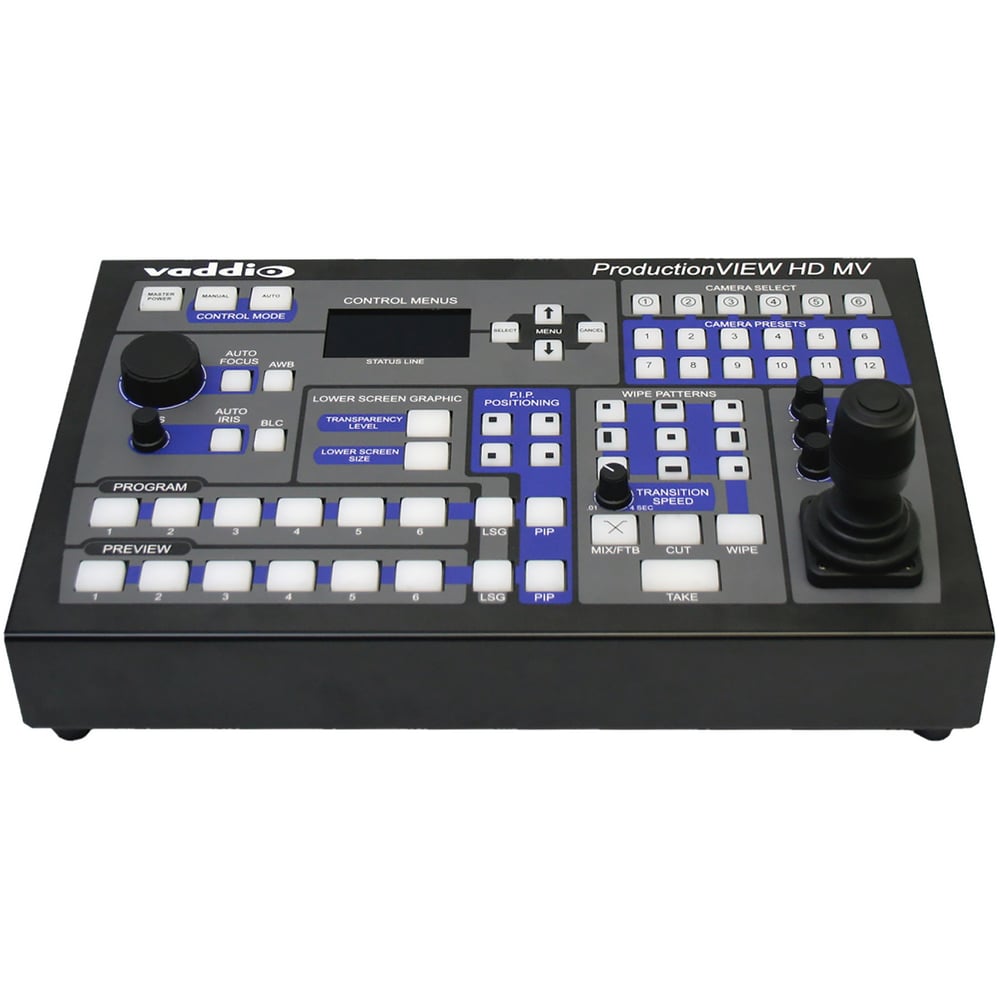

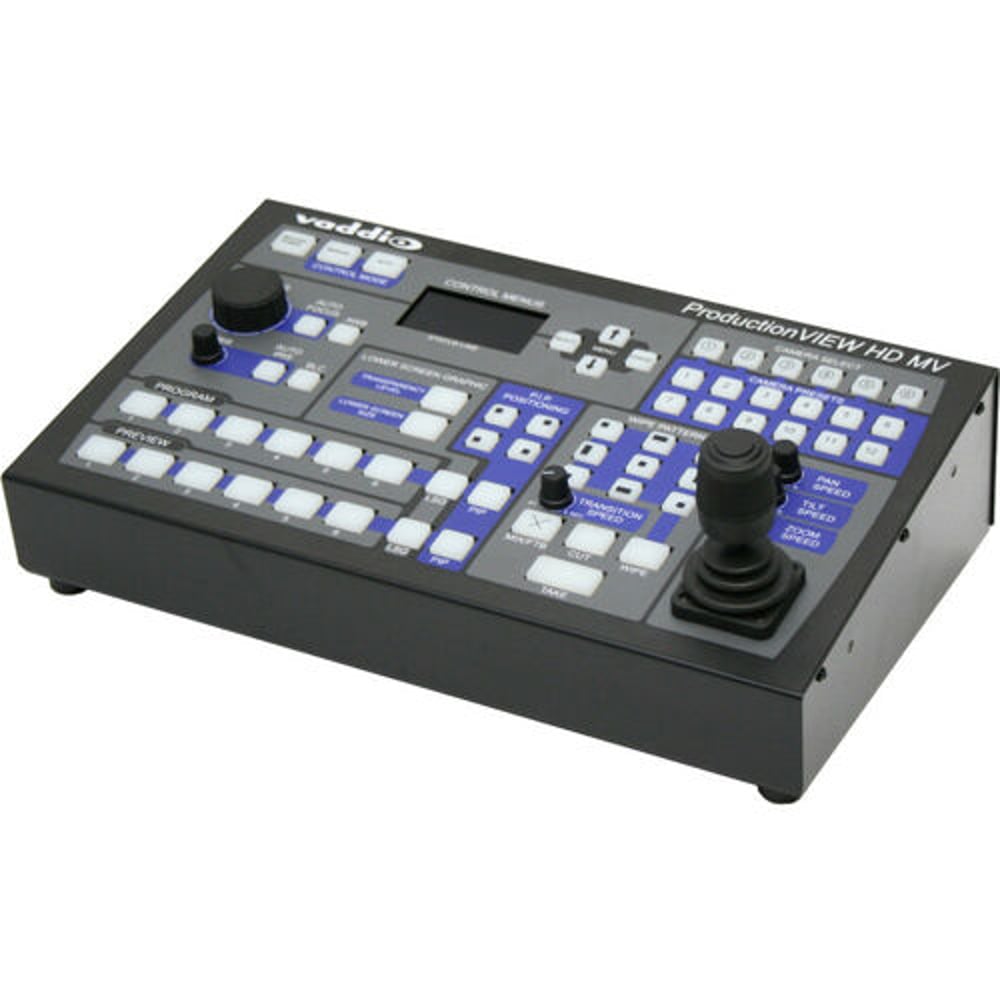

ProductionVIEW™ HD MV is a camera control console with multiviewer capabilities, digital inputs/outputs, HD, RGBHV and SD video mixing, transitions, lower screen graphics and automated control functionality.

With Vaddio's™ TeleTouch™ touch screen monitors, all live video feeds can be selected and up to 12 video thumbnail presets can be created, recalled and stored by simply touching the monitor. The thumbnails are a snapshot of what the camera preset shot looks like, to make storing and recalling presets even easier. Simply touch a thumbnail and the camera will pan, tilt and zoom to that position. The Cut, Wipe and Fade buttons illuminate on the multiviewer display, giving a visual indication of which effect is active.

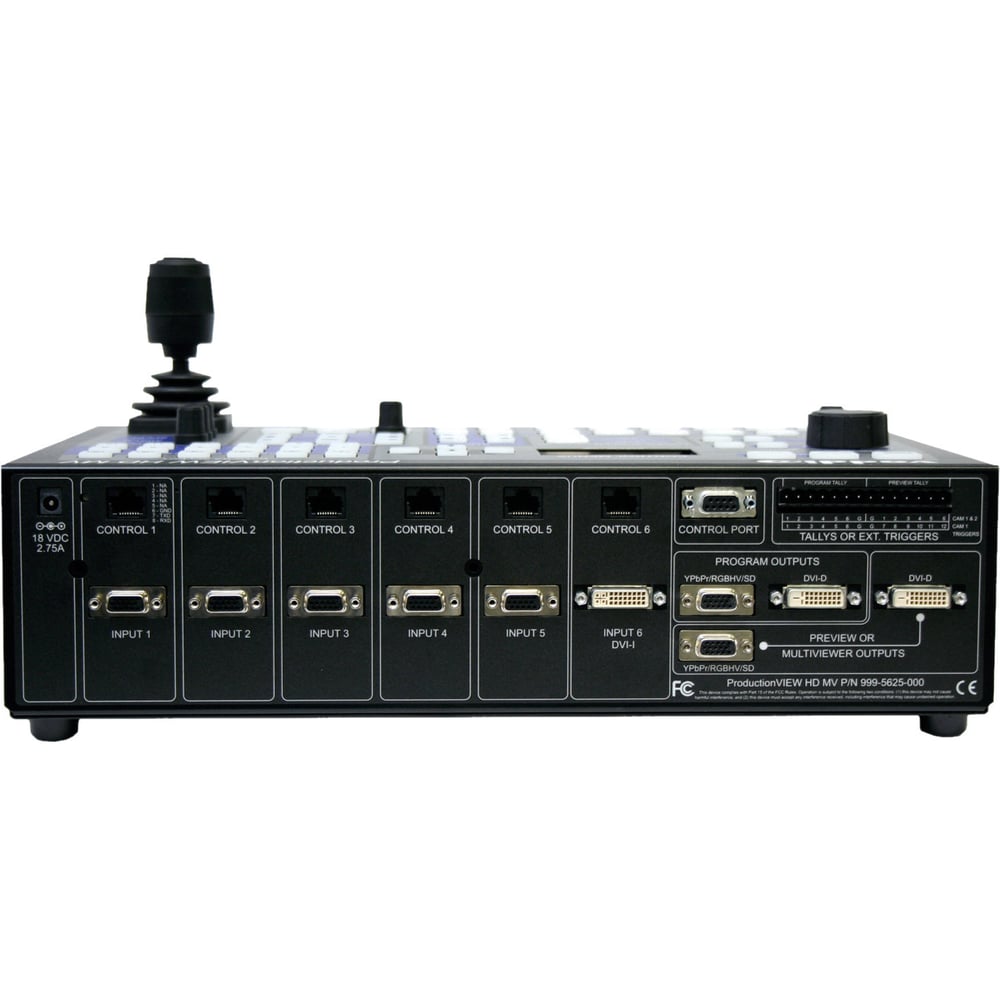

The 6 x 2 multi-format, seamless video mixer provides two discrete outputs for dual bus program feeds (two independent 6 x 1 mixers). Input signals include analog HD YPbPr video, RGBHV, SD (Y/C and CVBS), and Input 6 provides a DVI-I input for RGBHV, DVI-D and HDMI. The Program and Preview outputs have both analog (YPbPr, RGBHV, Y/C and CVBS) and digital (DVI-D and HDMI) outputs. HD resolutions up to 1080/60p are supported.
View full details

Specifications

'General Information
Manufacturer
Vaddio
Manufacturer Part Number
999-5625-000
Brand Name
Vaddio
Product Line
ProductionVIEW HD MV
Product Name
ProductionVIEW HD MV Surveillance Control Panel
Product Type
Surveillance Control Panel
Technical Information
Number of Controllable Cameras
12
Control Type
Pan
Tilt
Zoom
Joystick Type
3D
Features
Auto
Display & Graphics
Display Type
LCD
Interfaces/Ports
Serial
Yes
Network (RJ-45)
Yes
Miscellaneous
Package Contents
ProductionVIEW HD MV Surveillance Control Panel 18 VDC Power Supply with AC Power Cord Documentation
Warranty
Limited Warranty
2 Year
