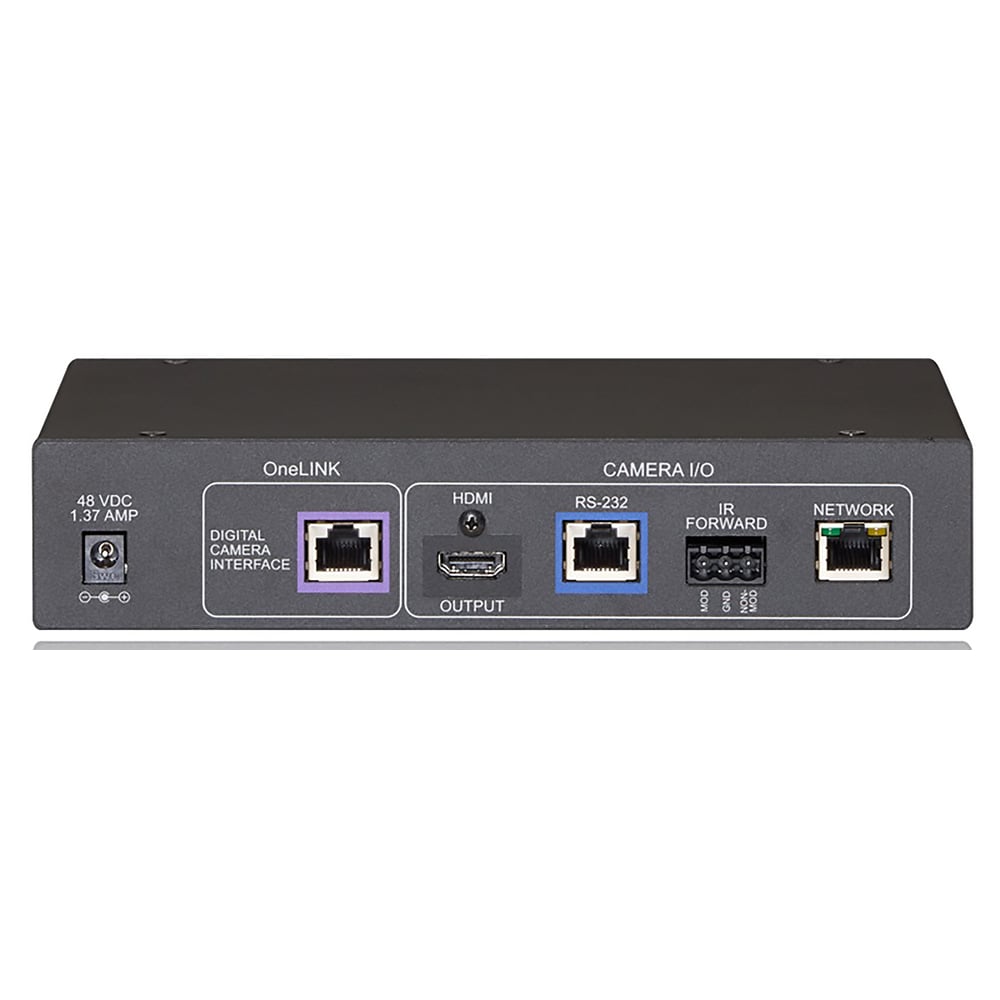

VADDIO 999-9530-000 Onelink For Sony And Panasonic Hdmi Cameras

VADDIO 999-9530-000 Onelink For Sony And Panasonic Hdmi Cameras

SoundPro Item: 107356 | Part Number: 999-9530-000

$2,089.80
$2,322.00 $2,089.80
Your Price Sold out
MSRP: $2,322.00 | MAP: $2,089.80

Usually ships in 5-7 business days

  • Quick, clutter-free camera installation - power, control, video, and network connectivity over single cable
  • Extends camera installation distance up to 328 ft. (100 m) using Cat-6 cable; 230 ft (70 m) using Cat-5e
  • Passes uncompressed HDMI® video up to 2160p/29.97
  • Administrative control via web interface; passes web, Telnet, and RS-232 serial control to connected devices
  • Compatible with legacy RoboSHOT HDMI and other HDMI cameras
  • Available in system configurations with Vaddio cameras; kits available for use with Polycom and Cisco codecs and HDMI cameras
Log in or register for YOUR best price

The 999-9530-000, by Vaddio, is a OneLINK System for Panasonic HE-series cameras is a digital camera extension system that extends HDMI video, power, network and RS-232 control on a single Cat-5e/6 cable at distances of up to 328 feet (100m). This new OneLINK system allows for easier, faster, simplified installations. The OneLINK system sends and regulates power to the camera, provides a bi-directional control channel for Ethernet and RS-232 and transmits/receives uncompressed HDMI video up to 1080p/60 (and up to 2160p/30 for the future).

View full details

Specifications

'General Information
Manufacturer
Legrand Group
Manufacturer Part Number
999-9530-000
Brand Name
Vaddio
Product Line
OneLINK
Product Name
OneLINK System for Sony & Panasonic HDMI Cameras
Product Type
Video Extender Transmitter/Receiver
Technical Information
Connectivity Technology
Wired
Number of Input Devices Supported
1
Number of Output Devices Supported
1
Maximum Operating Distance
328.08 ft
Video
Graphics Modes
4K
Supported Video Modes
2160p
Maximum Video Resolution
3840 x 2160
Interfaces/Ports
Network (RJ-45)
Yes
HDMI In
Yes
HDMI Out
Yes
Number of Network (RJ-45) Ports
2
Number of HDMI Inputs
1
Number of HDMI Outputs
1
Media & Performance
Media Type Supported
Twisted Pair
Twisted Pair Cable Standard
Category 6
Physical Characteristics
Transmitter Height
3.86"
Transmitter Width
4.31"
Transmitter Depth
1.24"
Receiver Height
1.72"
Receiver Width
8.38"
Receiver Depth
6"
Form Factor
Wall Mountable
Transmitter Weight (Approximate)
8.85 oz
Receiver Weight (Approximate)
1.55 lb
Miscellaneous
Package Contents
1 x OneLINK HDMI Interface 1 x OneLINK EZIM for the Camera Side 1 x 48 VDC, 1.36 Amp Switching Power Supply 1 x AC Cord Set 1 x 12" (305mm) HDMI Cable 1 x 12" (305mm) Sony 12 VDC Power Cable 1 x 12" (305mm) Panasonic 12 VDC Power Cable 1 x 12" (305mm) Cat-5e Patch Cable for Network 1 x 12" (305mm) RJ-45 to 8-Pin Mini Din for RS-232 1 x Thin Profile Wall Mount (black) that fits Sony SRG120DH, SRG-300H and Panasonic AW-HE40H 2 x 6-32 x .188" Black Phillips Flat Head Screws
Country of Origin
United States
