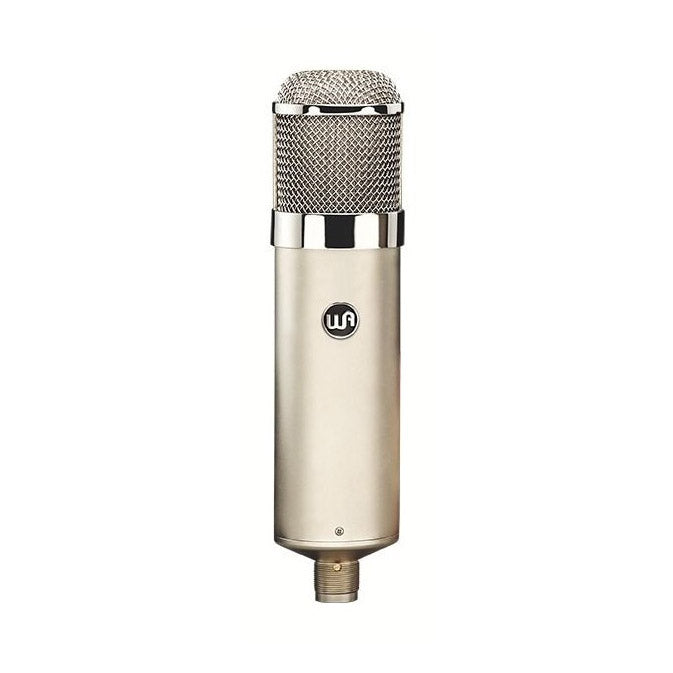

• Warm Audio WA-47 Large-diaphragm Tube Condenser Microphone
1 1

Warm Audio WA-47 Large Diaphragm Tube Condenser Microphone

Warm Audio WA-47 Large Diaphragm Tube Condenser Microphone

SoundPro Item: 13110 | Part Number: 323636

$999.00
$999.00 $999.00
Your Price Sold out
MSRP: $999.00 | MAP: $999.00

Usually ships in 5-7 business days

  • Custom True '47 Capsule Reproduction (K47 Style) - Model# WA-47-B-80v
  • Capsule Makeup: Gold Sputtered, Dual Large Diaphragm, Single Backplate, 6 Microns NOS Mylar (PET Film)
  • TAB-Funkenwerk (AMI) USA Output Transformer
  • Sovtek 5751 Vacuum Tube
  • Gotham 3 meter GAC-7, 7-pin tube microphone cable
  • Wima, Solen French, And Polystyrene Capacitors
Log in or register for YOUR best price

The WA-47 is for pro studio, home studio, live, and broadcast applications. It’s ideal for vocals, guitars, bass, drums, piano, strings, brass/woodwinds, etc.

The WA-47 is an all vacuum tube, large diaphragm, transformer balanced, multi-pattern (9), large condenser microphone, based on the classic '47 that has been used on countless hit records for the last 50+ years. The classic '47 became extremely popular in the 1960's and is now considered one of the greatest microphones ever made. The classic '47 is still widely used today in professional recording studios but have become extremely rare and expensive to acquire. Includes wood presentation box, shockmount, and external PSU.

View full details

Specifications

Dimensions
Mic Diameter
60mm
Mic Length
254mm
Weight
Total Weight
9 Lbs
Electrical
Rated Load Impedance
≥2kOhms
Audio
Polar Patterns (selectable)
9 Patterns - Cardioid, Omni, Figure-Of-Eight + 6 Mixed Patterns
Output Impedance
200 ohms
General
Transducer Type
Condenser
Self-Noise
11dBA
Dynamic Range
130dBA
Maximum SPL
140dB (<0.5% THD)
S/N Ratio
82dBA
Equivalent Noise
10dBA (IEC651)
RF
Frequency Range
20 Hz - 20 kHz
