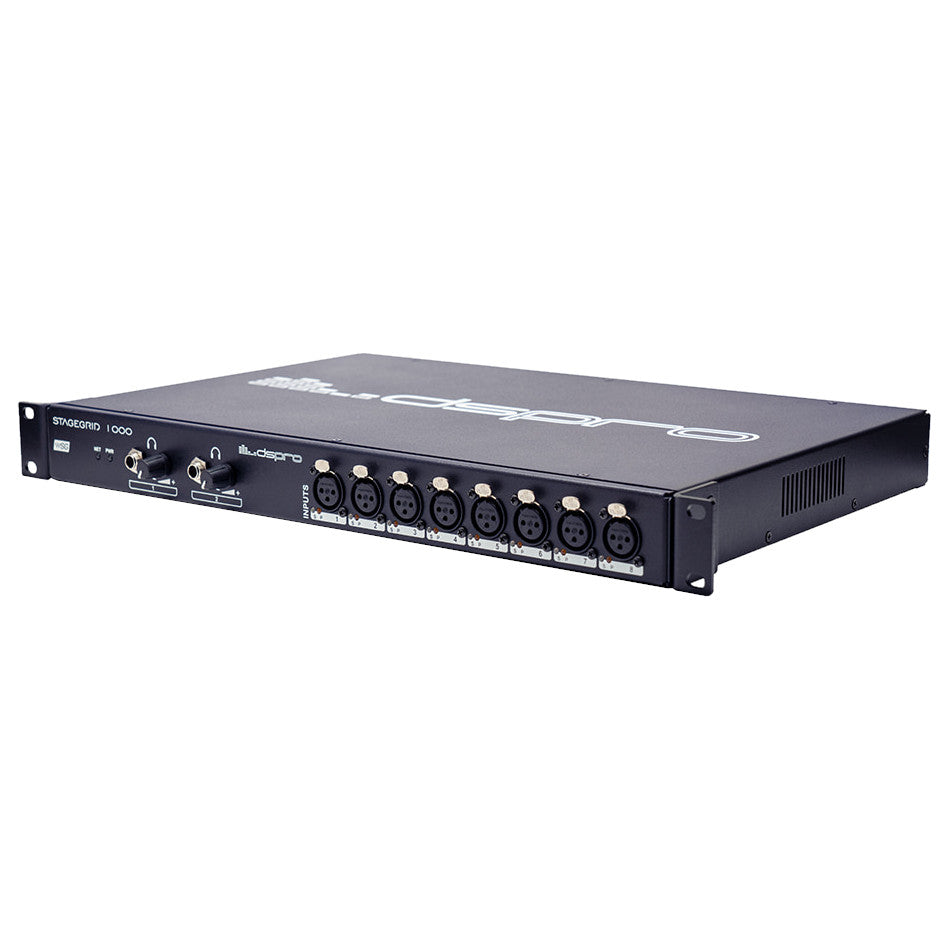

Waves DSPRO StageGrid 1000
Waves DSPRO StageGrid 1000
SoundPro Item: 60652 | Part Number: DSP1000
Usually ships in 5-7 business days
- Compact I/O device for the eMotion LV1 live mixer
- Ideal for use at FOH or monitors8 microphone or line inputs
- 4 balanced analog outputs on XLR connectors
- 1 input and 1 output stereo AES / EBU
- Sampling rates from 44.1 kHz to 96 kHz
- 2 headphone outputs with volume control
- SoundGrid Ethernet connection
- 1U rack mountable unit
Wave's DSPRO StageGrid 1000 is a compact I/O device for eMotion LV1 live mixing systems. Use this versatile unit close to your mixing console to add more inputs and outputs at FOH or monitors, or on stage to add more inputs and outputs for stage performers.
With digitally controlled 8 mic/line ins, 4 balanced analog outputs, and an AES/EBU stereo I/O, this 1U rack unit offers the perfect balance between size and functionality, delivering exceptional, no-compromise sound quality and reliability.
The rugged, road-ready StageGrid 1000 is powered by the same proven audio interface as the larger DSPRO StageGrid 4000, making the DSPRO StageGrid family the perfect I/Os for the most demanding live mixing environments.
StageGrid 1000 is fully compatible with Waves’ SoundGrid ecosystem. It interfaces with SoundGrid hosts and network components to make up a modular, scalable audio distribution infrastructure, which can process multichannel audio at ultra-low latency using Waves’ award-winning plugins.
- General
- 8 Analog mic/line Inputs
- 4 Analog line outputs
- 1 Stereo AES / EBU Digital input
- 1 Stereo AES / EBU Digital output
- Configurable Sample Rate of 44.1, 48, 88.2 and 96kHz
- Two headphone outputs
- A SoundGrid Ethernet port
- Analog Inputs
- Impedance: 2.86 kOhms
- Gain range: -4 dB to 60 dB
- Max input level: 28 dBu (-4 dB gain)
- Dynamic range: 115 dB (-60 dBFS, 20 dB gain, 1 kHz, A-weighted)
- THD: 0,002 % (-1 dBFS, 20 dB gain, 1 kHz, A-weighted)
- Equivalent input noise: -128 dBu (60 dB gain, A-weighted, 150 ohms)
- Frequency response: +/- 0.1 dB (20 Hz to 40 kHz at 96 kHz sampling rate)
- Phase Shift: <10° at 20 Khz
- Analog Outputs
- Output impedance: 50 ohms
- Max output Level (0dBFS): 24 dBu
- Dynamic range: 115 dB (-60 dBFS, 1 kHz, A-weighted)
- THD: 0,002 % (-1 dBFS, 20 dB gain, 1 kHz, A-weighted)
- Frequency response: +/- 0.1 dB (20 to 40 kHz at 96 kHz)
- Phase shift: <5° at 20 Khz
- AES/EBU IN/OUT
- Standard: AES3 (2009)
- Sample rates: 44.1, 48, 88.2 and 96 kHz
- Impedance: 110 ohms
- Headphones
- Output Power: 150 mW per channel on 16 ohms
- Dynamic range: 100 dB
- SoundGrid
- Interface: Gigabit Ethernet
- Connector: Neutrik EtherCON
- Power supply
- Voltage: 110 or 240 VAC
- Frequency: 50 Hz or 60 Hz Power: 60 W
- Environmental
- Operating temperature: 0°C to 40°C
- Relative humidity: Up to 90% non-condensing
- Dimensions
- Height: 44 mm / 1.75 in (1RU)
- Width: 430 mm / 19.92 in (for 19” rack)
- Depth: 300 mm / 11.81 in (not including connectors)
- Weight: 2.89 Kg
