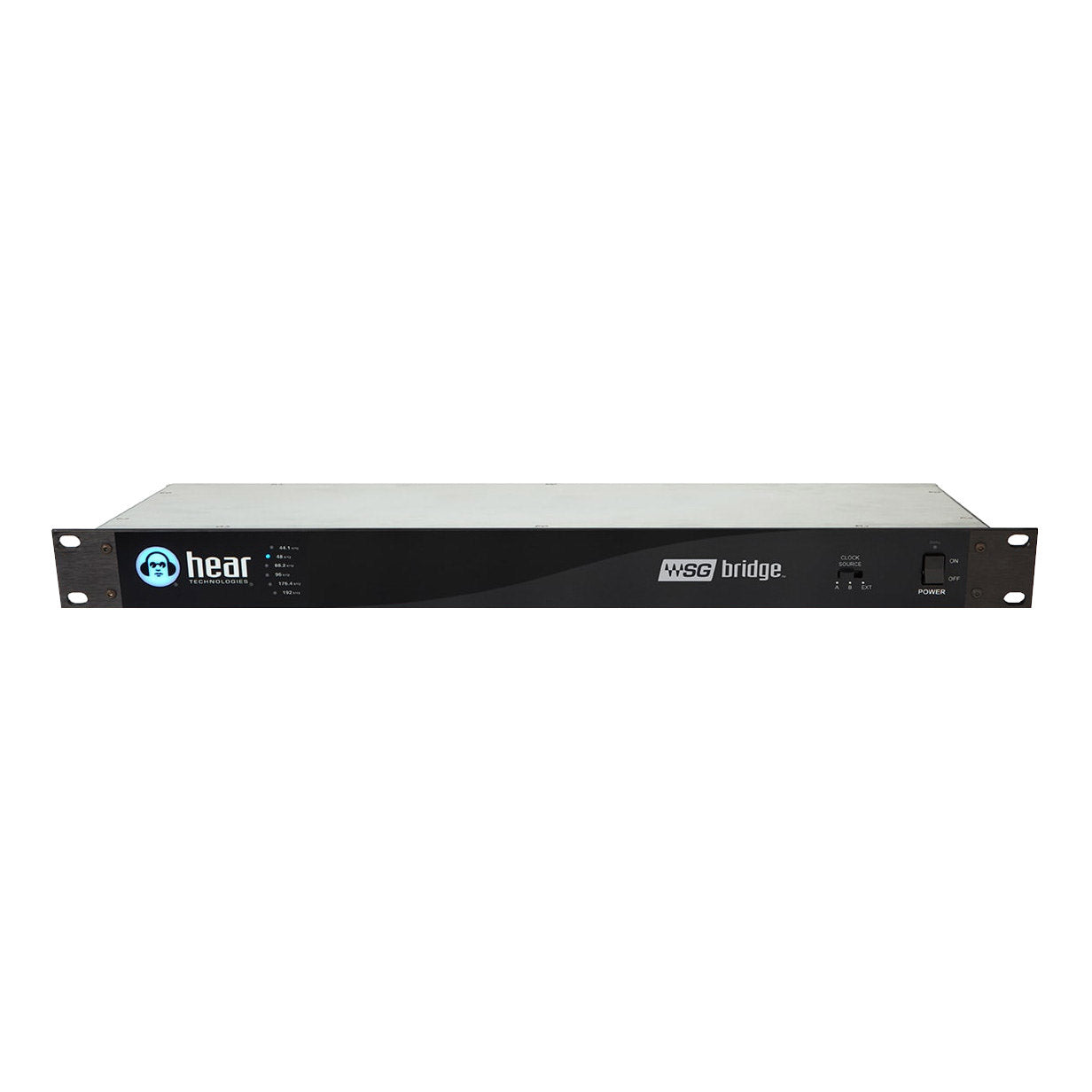

Waves WSG Bridge for Dante 1U Rack

Waves WSG Bridge for Dante 1U Rack

SoundPro Item: 13782 | Part Number: SGBRI-SG

$3,499.00
$3,499.00 $3,499.00
Your Price Sold out
MSRP: $3,499.00 | MAP: $3,499.00

Usually ships in 5-7 business days

  • Up to 64 channels of SoundGrid
  • Up to 64 channels of Dante
  • Supported sample rates: 44.1-96 kHz
  • Clock source: SoundGrid/Dante
  • 1U rack-mountable
  • Redundant power supply (optional, separate purchase)
Log in or register for YOUR best price

Bridge up to 64 audio channels between the Waves SoundGrid and Dante protocols. The WSG Bridge lets you add real-time processing capabilities to a Dante network by using a Waves SoundGrid server dedicated to plugin processing.

'Speaking' both SoundGrid and Dante, the 1U rack-mountable WSG Bridge is the perfect way to bring Waves' powerful, award-winning plugins and sound into your Dante network. Easily route any of the channels from your Dante network to the SoundGrid network for processing, and back to wherever they need to arrive.

View full details
  • System I/O
    • Latency
      • Typical Dante to WSG or WSG to Dante Latency:*
      • 0.787ms @ 44.1kHz
      • 0.778ms @ 48.0kHz
      • 0.580ms @ 88.2kHz
      • 0.520ms @ 96.0kHz
      • *For round-trip time, latency is exactly double
      • **Does not include any A/D or D/A conversion time or plugin processing time
    • Clock Source
      • A: Input “A” as clock master (Dante)
      • B: Input “B” as clock master (WSG)
      • EXT: Future external clock input (optional future external word-clock I/O card)
    • Sampling Rate: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
    • USB Port: USB 2.0 (for firmware updates and future connectivity)
    • Card Slots: Each slot can accept an analog or digital input card, output card, or 8-port Mixer network card
    • HBUS Input: 8-pin RJ45 jack (for future expansion)
    • HBUS Output: 8-pin RJ45 jack (for future expansion)
  • Waves SoundGrid Card
    • Audio Inputs: 64 (8-pin RJ45 jack 1000BaseT Ethernet for WSG audio network)
    • Audio Outputs: 64 (8-pin RJ45 jack 1000BaseT Ethernet for WSG audio network)
    • Sampling Rates (Supported): 44.1kHz, 48kHz, 88.2kHz, 96kHz
  • Dante Card
    • Audio Inputs: 64 @ 44.1kHz or 48kHz; 32 @ 88.2kHz or 96kHz (8-pin RJ45 jack 100BaseT or 1000BaseT Ethernet for Dante audio network)
    • Audio Outputs: 64 @ 44.1kHz or 48kHz; 32 @ 88.2kHz or 96kHz (8-pin RJ45 jack 100BaseT or 1000BaseT Ethernet for Dante audio network)
    • Sampling Rates (Supported): 44.1kHz, 48kHz, 88.2kHz, 96kHz
  • Physical
    • Dimensions (HxWxD): 1.75x19x8.5" (44.5x483x216mm)
    • Unit Weight: 6.3 lbs (2.8 kg)
    • Mounting: Standard rack mount, 1 RU
  • Power
    • Power Requirements
      • 48 VDC, 400mA Main (primary power supply)
      • 48 VDC, 400mA Secondary (redundant power supply)
    • External Power Supply Requirements
      • Input Voltage: 100VAC to 240VAC 50/60Hz
